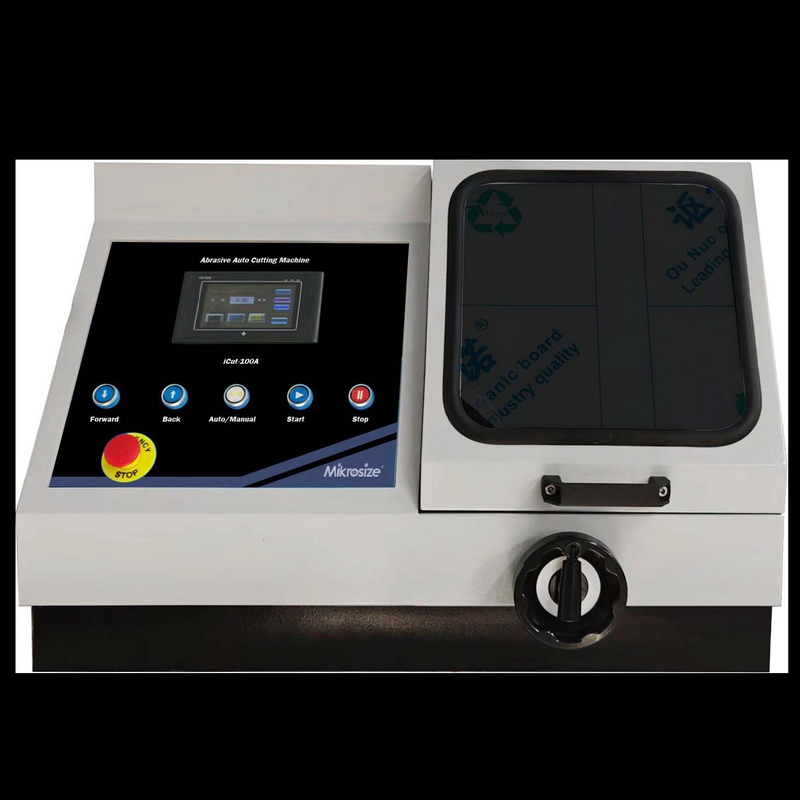

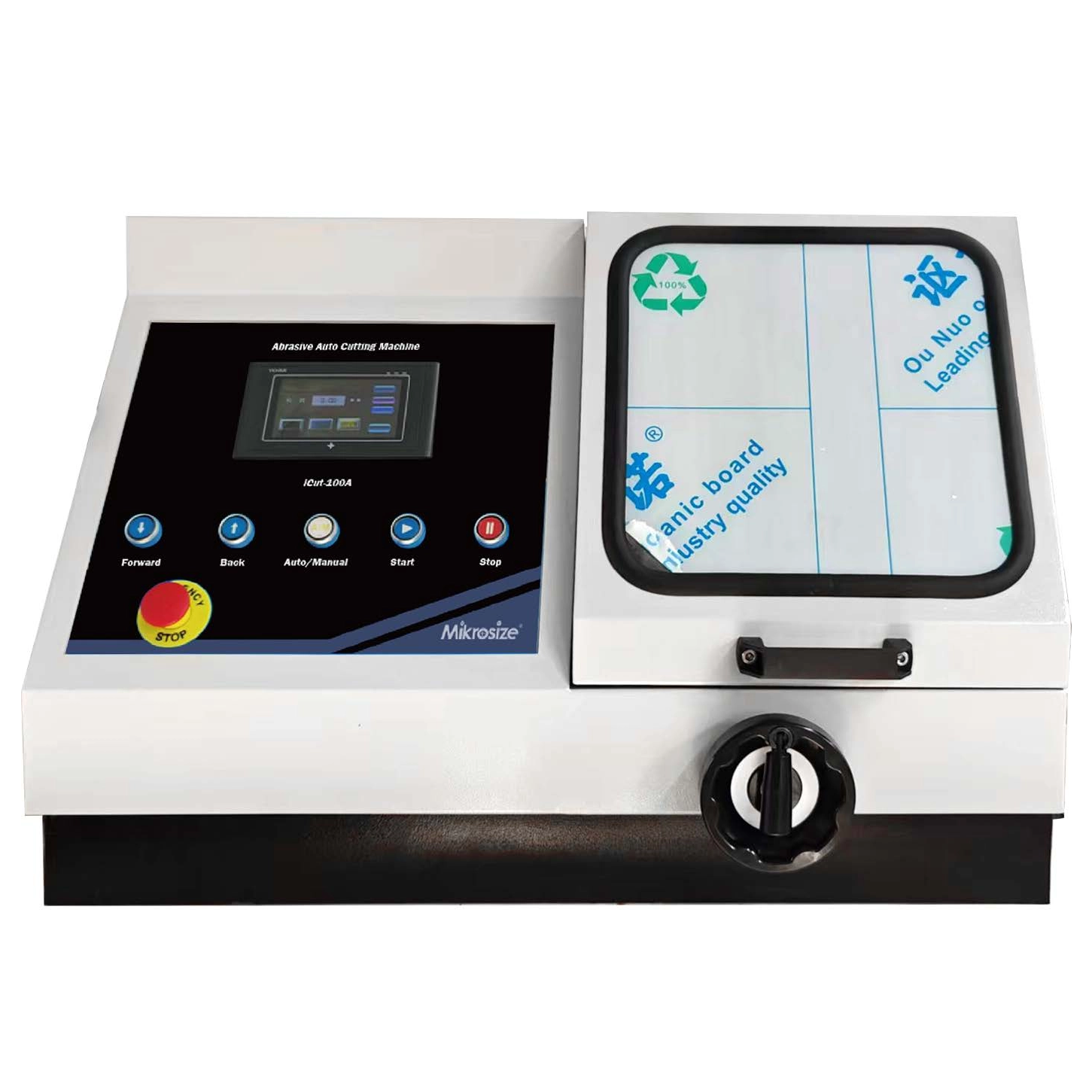

iCut-100A Metallographic Abrasive cutting Machine

Product Feature:
lStainless steel housing
lExtra-large cutting chamber
lManual/automatic dual cutting mode
lEnclosed cutting
lAutomatic 3-channel cooling system to avoid damage to samples due to overheating
lPattern programming is more suitable for batch cutting sampling
lAutomatic reset function of the cutting knife after sampling

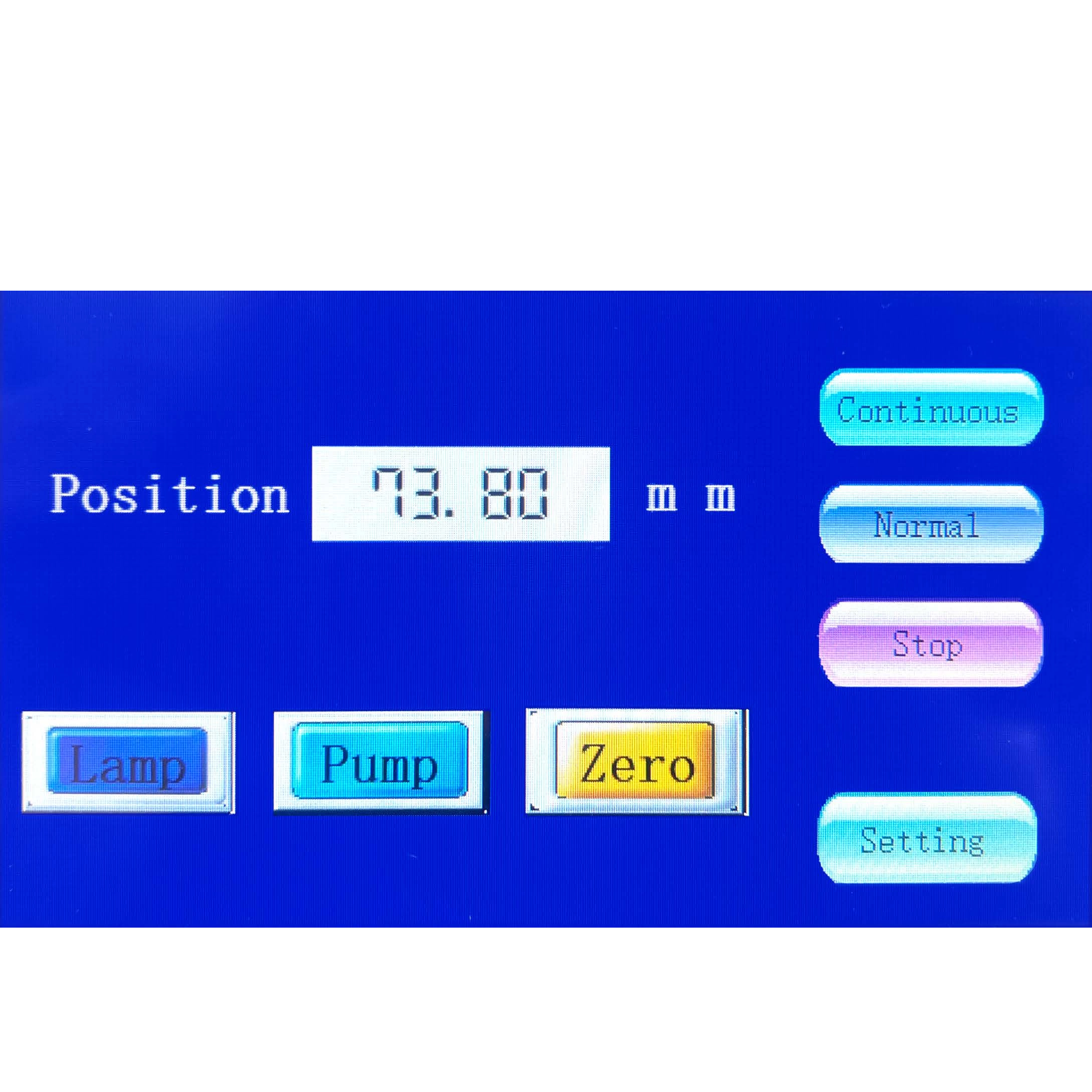

lReal-time tracking and display of the feed depth (LCD digital display)
lThe feed stroke can be set arbitrarily (0-200mm)

Product Application:
lMaterial science research and performance testing.
This machine can be used to prepare high-quality metallographic samples, conduct various scientific research, study the microstructure and crystal structure of experimental materials, reveal the performance and mechanism of materials, and provide technical support for the development of new materials and the improvement of existing material performance.

lIndustrial manufacturing and quality control.
This machine can perform high-precision cutting and processing on various metal materials such as steel, aluminum alloy, etc., to meet the needs of industrial manufacturing with high precision requirements; it can also be used to prepare metallographic samples of various mechanical parts, helping engineers analyze the performance and reliability of parts, optimize material selection, and improve the performance and durability of parts.

lNew material research and development and product failure analysis
The metallographic cutting machine can accurately cut out the sample area containing the fracture source, providing key evidence for diagnosing the cause of the problem.



Availability:
Quantity:

Product Description

 Technical Parameter:

Product name

iCut-100A

Cutting chamber housing

Steel sheet

Cutting Capacity

100mm(Pipe)

Cutting Depth Tracking

LCD  Digital Display

Platform Y-axis Movement

200mm

Cutting Table Size

280*310mm

Cut-off Wheel

350*2.5*32mm

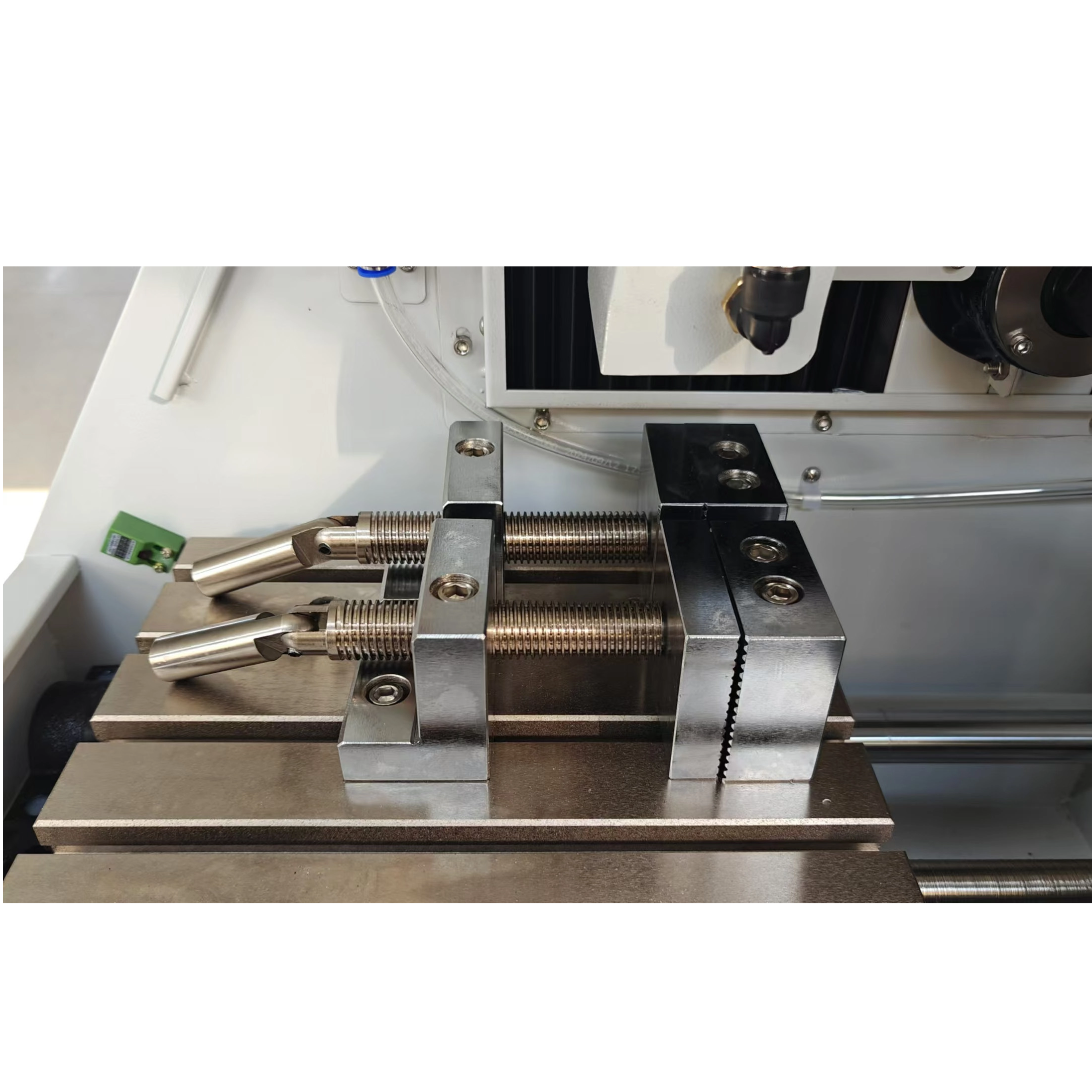

Clamping Table

Divided into left and right, with central cutting edge

Cutting Method

Manual/Automatic

Feeding Method

Adjustment (manual, automatic)

Cutting speed

Maximum 0.25mm/s, automatic cutting mode can be selected: intermittent cutting (metal workpiece) and continuous cutting (non-metal workpiece)

Feed Distance

Set as needed

Reset Method

Automatic reset

Cooling System

Automatic

Water Tank Capacity

50L

Spindle Speed

2100rpm

Motor Power

3.3KW

Machine Type

Desktop

Machine Dimension


887X795X600mm

Power supply

380V

Gross Weight

220KG

Special workpieces can be customized: disc fixture, rack fixture, universal fixture


Standard Delivery:

Name

Specification

Qty

Machine Mainframe

iCut-100A

1 set

Water Tank

With water pump

1 pc

Cut-off Wheel

350×2.5×32mm

2 pcs

Outlet Pipe

φ32×1.5m

1 pc

Inlet Pipe

φ25×1.5m

1 pc

Hose Clamp

iCut-100A

4 pcs

Wrench

24-27mm

1 pc

Wrench

36mm

1 pc

Instruction Manual

iCut-100A

1 copy

Product Certificate

iCut-100A

1 copy

Warranty Card

iCut-100A

1 copy
