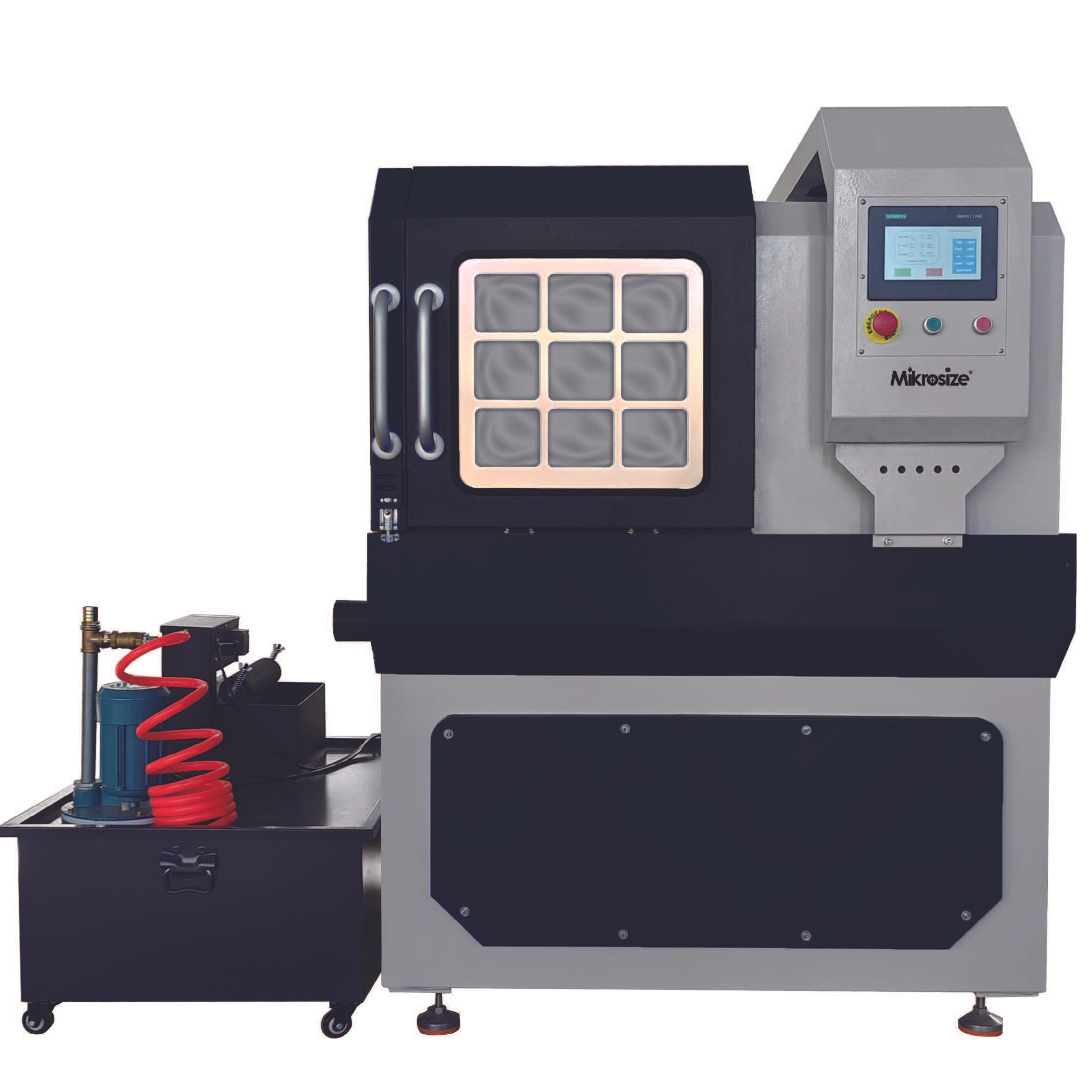

iCut-110A/120A/130A Abrasive Metallographic Auto Cutting Machine

Product Feature
● Automatically controlled by Siemens PLC to drive the stepping motor, achieve precise automatic control in X, Y, and Z-axis.
●Cutting speed can be adjusted according to hardness of the material to achieve the fastest cutting effect, providing very high reliability and control capabilities.

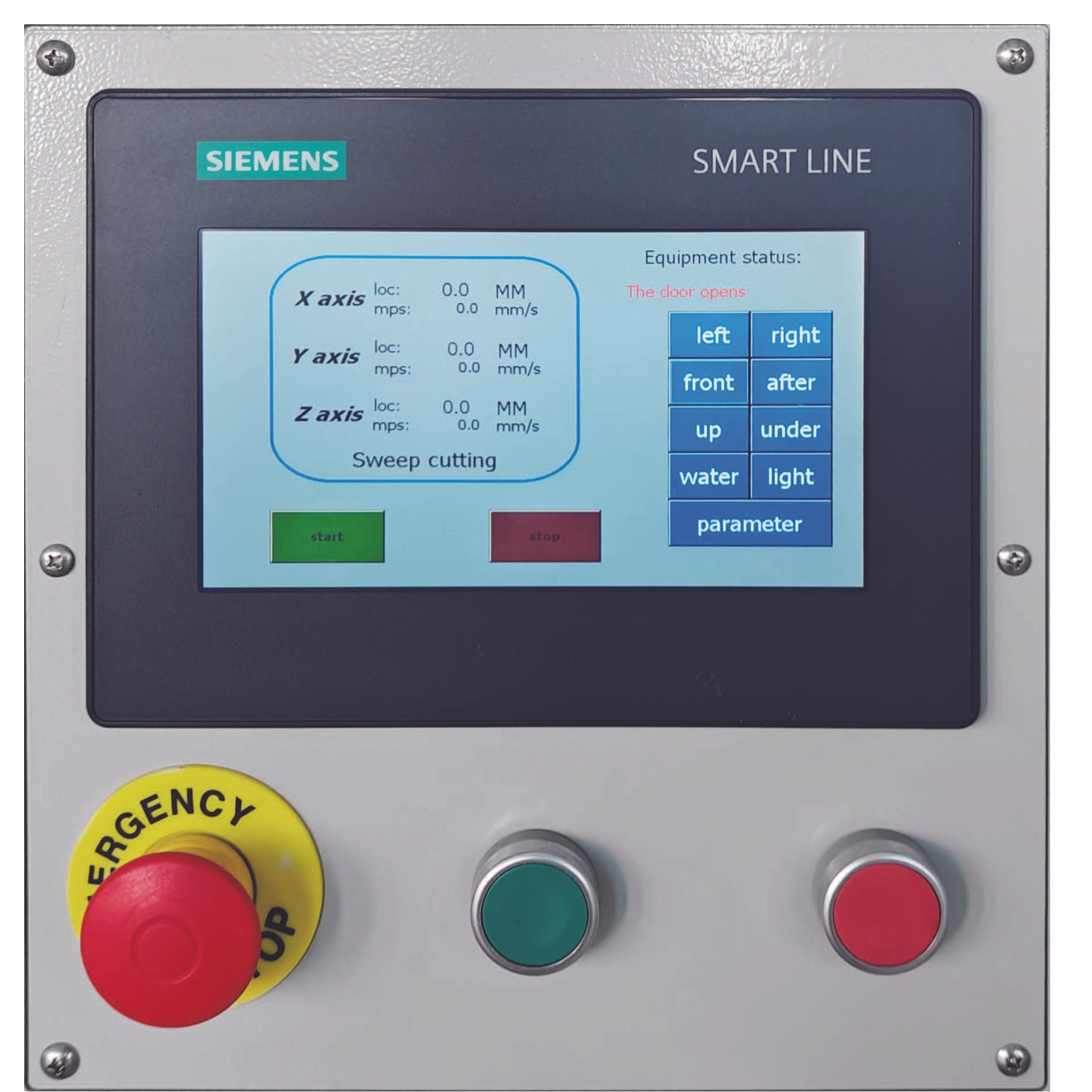

●The touch screen displays various cutting data, which is more accurate and easy to read . It allows for precise positioning, making it easier to position the workpiece
●3 cutting functions: chop cutting, flat push cutting, and sweep cutting.
●Electro-mechanical separation design for easy cleaning of the cutting chamber and the safety of the spindle motor, and the motor in the cutting chamber is protected by waterproof isolation.
●Observation window is installed on the safety protection door of the cutting chamber, allowing users to easily observe the entire cutting process of the sample.

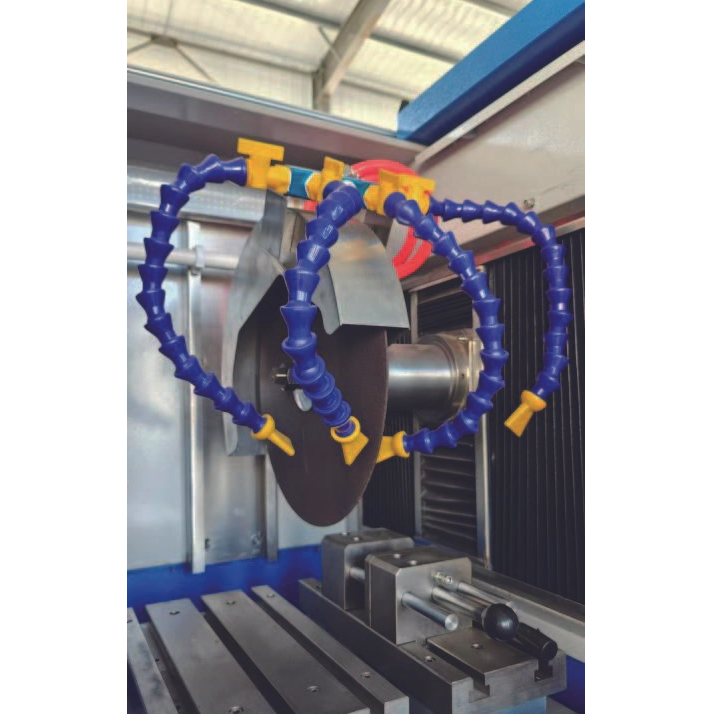

●The cutting chamber is equipped with LED lighting, providing effective illumination of the entire cutting area, increasing brightness and clarity within the workspace.
●Low noise, convenient operation, attractive appearance, and safety in use.

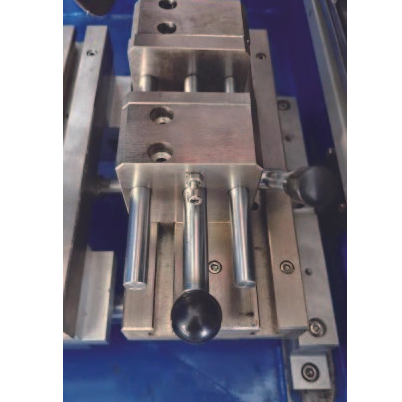

● Vertical machine consists of an upper part (safety cover), a middle part (frame), a right sliding door, a side door, a lower frame (electrical box), fixtures, a flushing water gun, and an independent cooling water tank.
● Easier to maintain machine parts and handle large workpieces. The sliding door and hinged door provide more space and unrestricted access, making it easier to load large workpieces into the correct position. Workpieces can also be loaded into the cutting chamber from the top, front, and left sides.
●Fully enclosed structure with a transparent protective cover for observation during cutting.

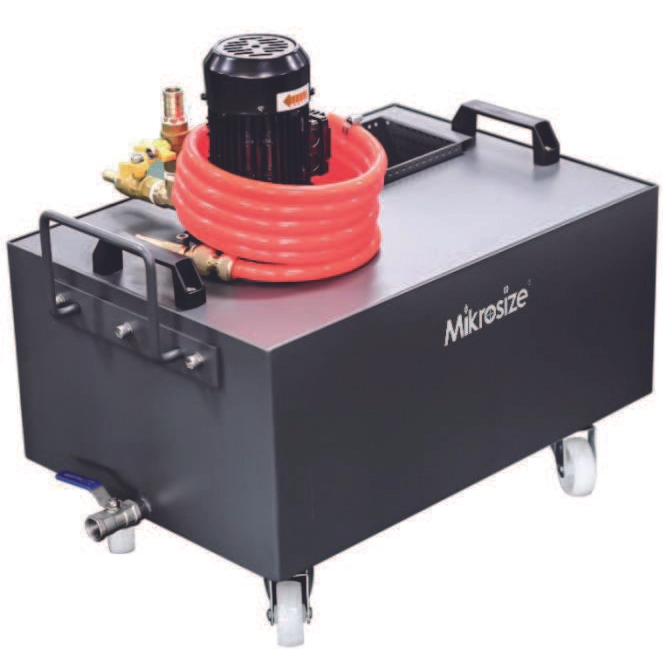

● Cooling water system for storing coolant;

Product Application
●Designed for large workpieces and high-capacity cutting.
●It is one of the essential devices for sample preparation in laboratories.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification

Product Name	Abrasive Metallographic Cutting Machine
Model	iCut-110A	iCut-120A	iCut-130A
Cutting Method	Chop cutting, flat push cutting, sweep cutting
Cutting Speed	0.01-1mm/s（adjustment step 0.01）
Reset Mode	Automatic
Control System	Siemens PLC 7”touch LCD screen
Rotation Speed	2800rpm
Max Stroke	Z-axis 130mm；Y-axis 200mm；X-axis 100mm
Working Table Size	128320mm, 180320mm
Max Cutting Diameter	φ110 mm	φ120 mm	φ130 mm

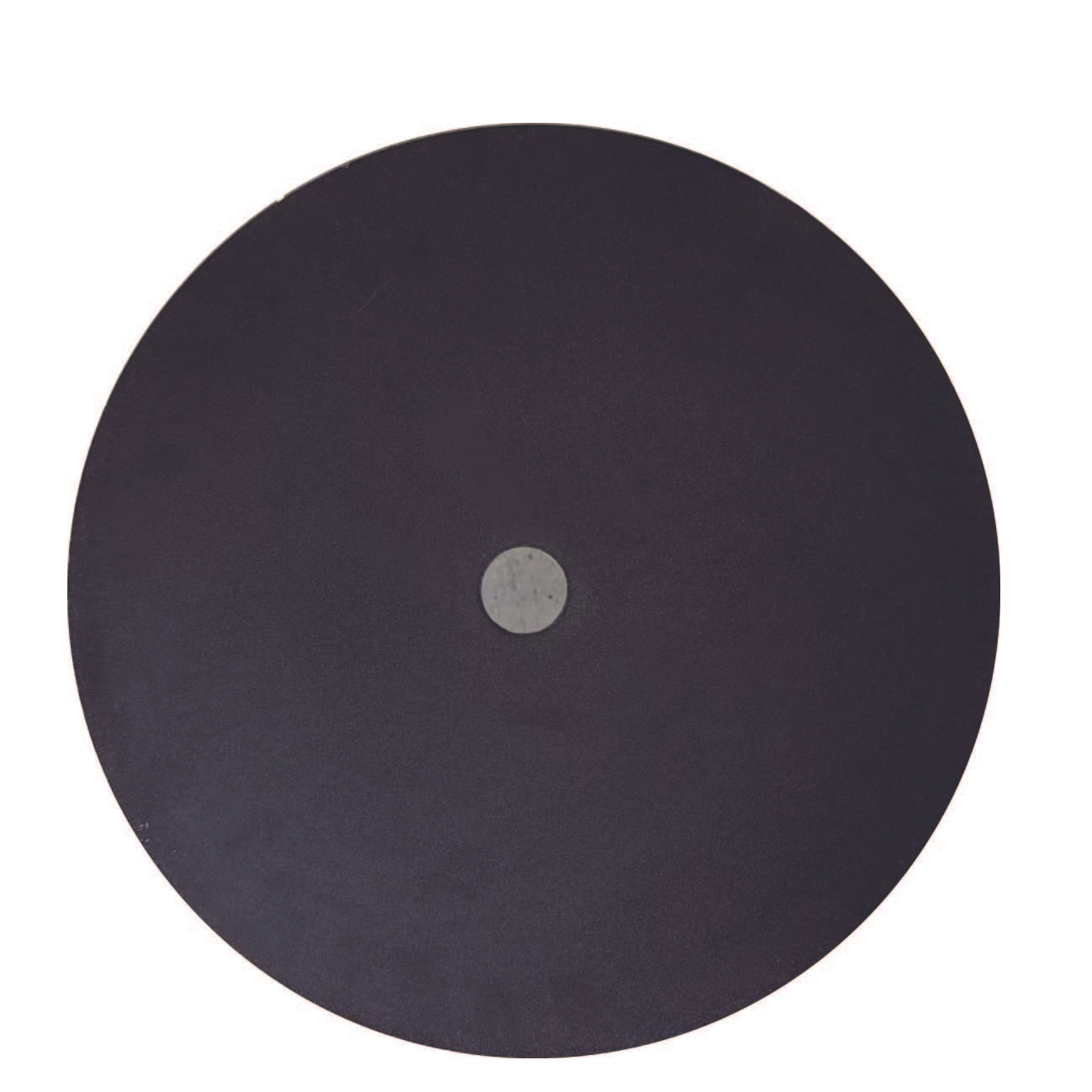

Cutting Disc	3502.532mm
Motor	4KW
Voltage	AC380V±10% , 50-60Hz
Machine Dimension	135011001750mm（L×W×H）
Packing Size	145012001850mm
Net Weight	707.5kg
Gross Weight	727.5kg

Packing list

Name	Model	Unit	Quantity

Machine Mainframe	iCut-110A/iCut-120A/iCut-130A	set	1

Water Tank	iCut-110A/iCut-120A/iCut-130A	set	1

Cutting Disc	350×2.5×32mm	pc	2

Outlet Pipe	iCut-110A/iCut-120A/iCut-130A	pc	1

Inlet Pipe	iCut-110A/iCut-120A/iCut-130A	pc	1

Buckle Ring	iCut-110A/iCut-120A/iCut-130A	pc	2

Wrench	iCut-110A/iCut-120A/iCut-130A	pc	3

Instruction Manual	iCut-110A/iCut-120A/iCut-130A	copy	1
Product Certificate	iCut-110A/iCut-120A/iCut-130A	copy	1
Packing List	iCut-110A/iCut-120A/iCut-130A	copy	1
