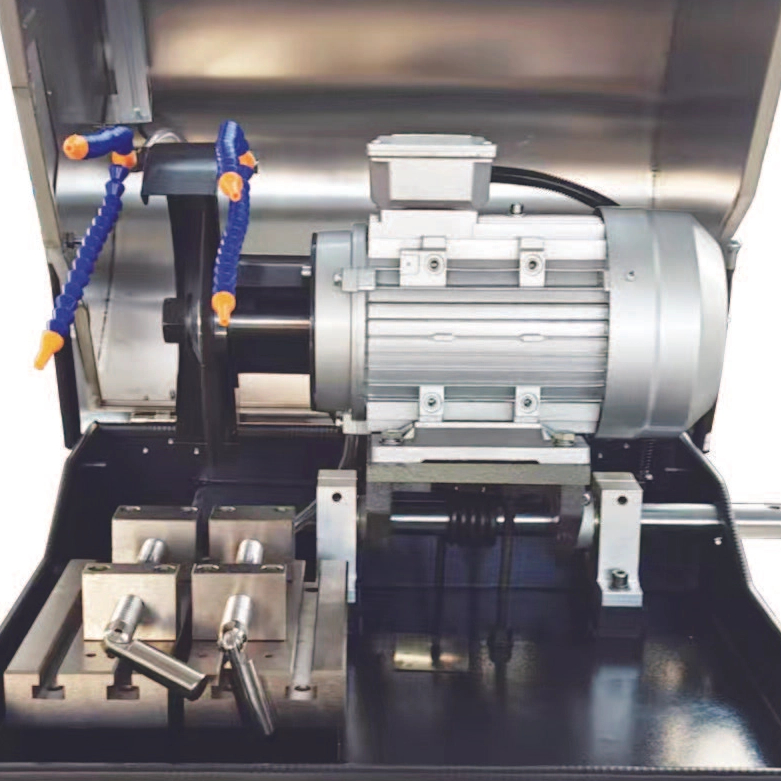

iCut-100M Metallographic Sample Manual Cutting Machine

iCut-100M Metallographic sample manual cutting machine is suitable for cutting samples of various metal and non-metallic materials in order to observe the material metallographic and petrographic organization.
Availability:
Quantity:

Product Description

Product Feature

l The machine is equipped with a cooling system to take away the heat generated during cutting

l The cutting machine uses a high-speed rotating cutting blade to cut the sample.

l The machine has the advantages of convenient operation and easy maintenance, and is superior to similar domestic products.

l Cutting range and transmission power are also greater than the domestic similar products, is the best choice of sample cutting equipment







Technical Parameter

Product Name

iCut-100M

Max. cutting dia.

φ100mm

Rotation Speed

2800 r/min

Input power

3kw

Input voltage

Three-phase 380V, 50-60Hz

Cutting Blade specifications

300*2*32mm

Overall dimension

800*680*631mm

Packing size

930*756*792mm

Net weight

135kg

Gross weight

153kg

Water Tank size

470*370*300mm

Packing size of water tank

540*460*460mm

Net weight of water tank

15kg

Gross weight of water tank

25kg

Packing List

Main machine

iCut-100M

SET

1

Manual


SHARE

1

Product certificate


SHARE

1

Packing list


SHARE

1

Spanner

30-32

PCS

1

Cutting Blade

250mm

PCS

2

Water Inlet pipe


PCS

1

Water outlet pipe


PCS

1

Pipe clamp


PCS

2

Water tank

Include water pump

SET

1
