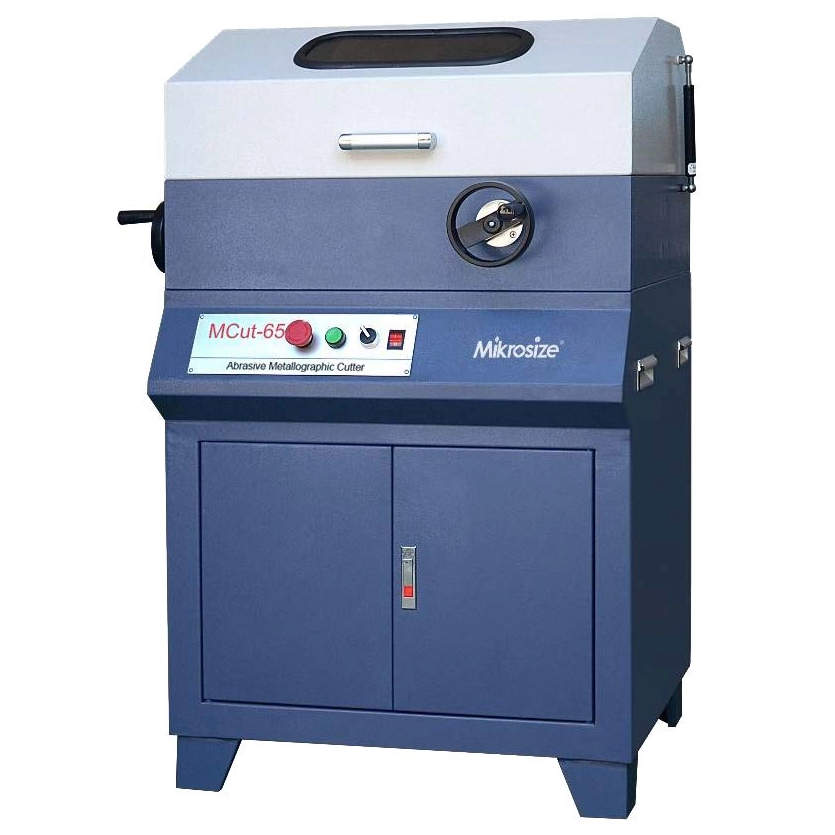

MCut-65 Manual Abrasive Metallographic Cutter

Product Application
This machine is suitable for various metallographic materials。it is the ideal equipment for sample cutting.
Availability:
Quantity:
  • MCut-65

  • Mikrosize

Product Description

Product Feature

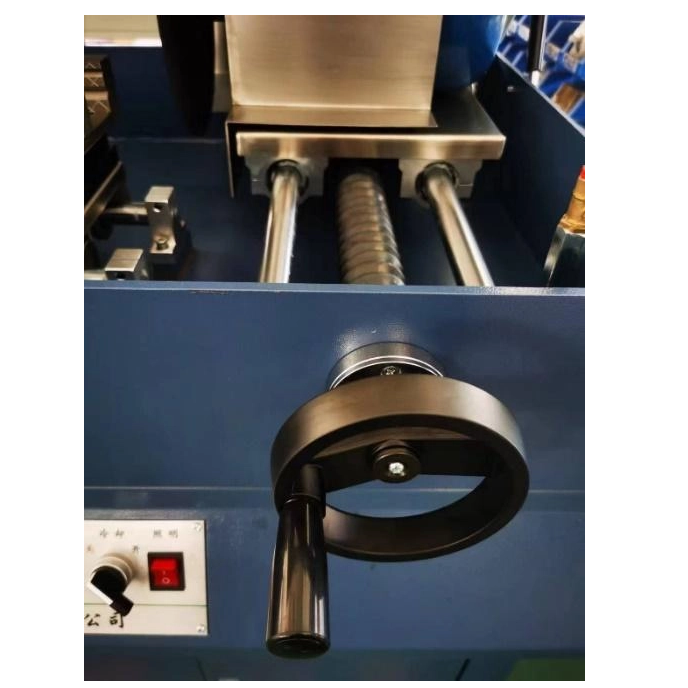

●X-axis manual movement controls cutting thickness
●Y-axis feeding controls sample cutting off
●1.5kW motor has strong cutting ability and convenient operation.
●The main parts of the clamp device and cutting table are all made of stainless steel, which has long service life and convenient maintenance.

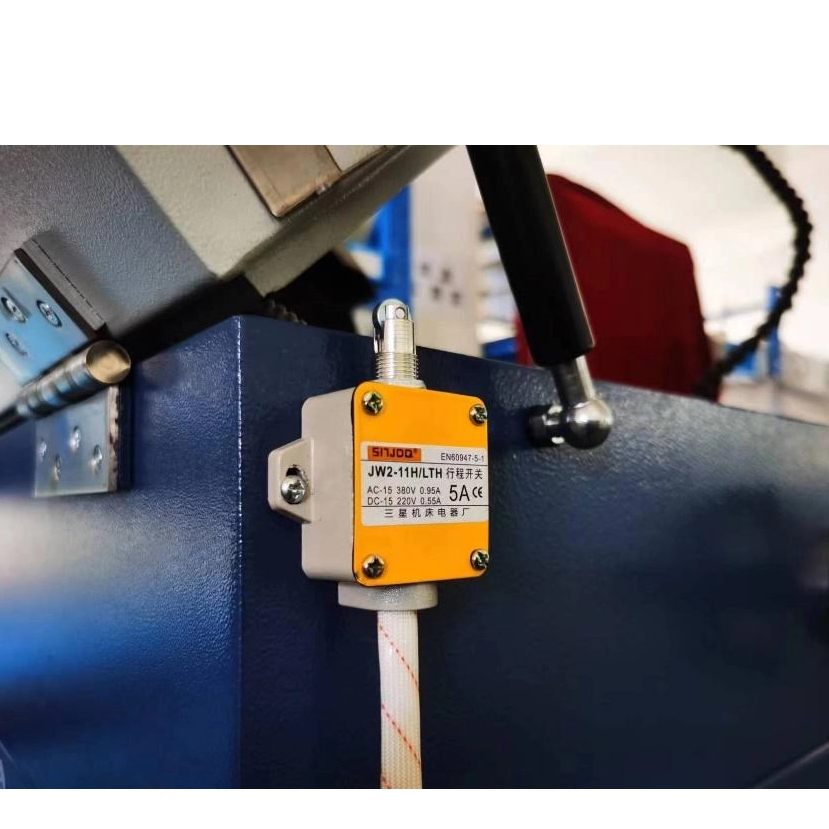

●The cutting chamber adopts closed structure with safety limit switch

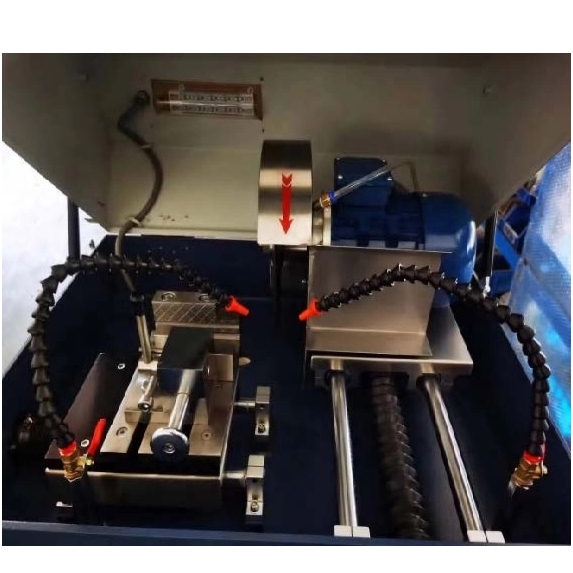

●Transparent organic glass window and built-in LED lamp for cutting observation
●With cabinet structure, it is easy to store all kinds of cutting consumables.

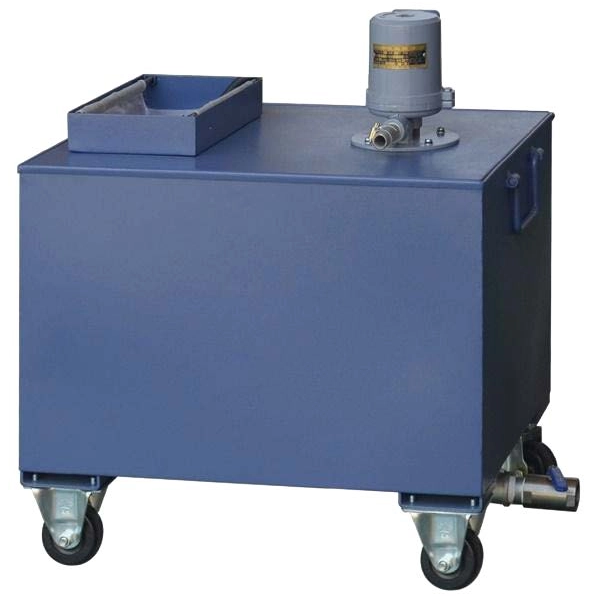

● With circulating cooling water tank, the surface of the sample after cutting is bright and flat without burns.

Technical Specification

Product Name

Manual Abrasive Metallographic Cutter

Model

MCut-65

Cutting Method

Manual, Y-axis Feeding

Cut-off Wheel

Φ250×2×Φ32mm

Max. Cutting Capacity

65×65mm

X -axis Travel

45mm

Y -axis Travel

270mm

Spindle Speed

2800r/min

Motor Power

1.5kW

Cutting Table

130×190mm,T-slot 12mm

Clamping Fixture

Quick Clamp,Jaw Height 60mm

Power Supply

380V, 50Hz,6A, Three-phase, Four-wire

Machine Dimensions

700×520×1110mm

Net Weight

170kg

Water Tank Capacity

60L

Pump Flow

25L/min

Water Tank Dimensions

565×360×600mm

Water Tank Weight

27kg



Variable Cut-off Wheels Optional

Series

Name

Material

Application

Specification

Series A

Alumina Cut-off Wheel       A2: 45~55HRC
A3: >55HRC

Aluminum oxide
(Brown corundum)
Resin bond

For cutting of common steel materials, carbon steel, alloy steel, cast iron, unquenched steel, etc.

(250×1.2×32)(250×1.5×32) (250×2×32)

(300×1.5×32)(300×2×32)

(350×2.5×32)

(380×2.8×32)

(400×3×32)

Series B

Alumina Cut-off Wheel       B2: 45~55HRC

Aluminum oxide
(White corundum)
Resin bond

For cutting of high-quality carbon steel, alloy structural steel, tool steel, bearing steel, stainless steel, high-speed steel and high hardness quenched steel, etc.

180×1×22

205×1.2×32

(250×1.2×32)(250×1.5×32)(250×2×32)

(300×1.5×32)(300×2×32)

(350×2.5×32)

Series C

Silicon Carbide
Cut-off Wheel

Silicon Carbide
Resin bond

For cutting of non-ferrous metal materials (copper, aluminum, zinc, titanium, cast aluminum, tungsten-molybdenum alloy, cemented carbide, etc.) and non-metallic brittle materials (glass, ceramics, rock, etc.).

(250×1.2×32)(250×1.5×32)(250×2×32)

(300×1.5×32)(300×2×32)

Series D

Alumina Cut-off Wheel        D2: 45~55HRC

Aluminum oxide
(Chromium corundum)
Resin bond

For cutting of high vanadium high speed steel, alloy steel, tool steel, and high toughness, high viscosity, burn-prone materials, etc.

(250×1.5×32)(250×2×32)

(300×1.5×32)(300×2×32)

Customized

Alumina Cut-off Wheel(Red sand)

Aluminum oxide
Resin bond

For cutting of hard ferrous metals.
(60HRC)

(250×1.2×32)(250×1.5×32)(250×2×32)

(300×1.5×32)(300×2×32)

Ultrathin Precision
Cut-off Wheel

Diamond Cut-off Wheel

Diamond
Bronze bond

For cutting of plastics, rubber, dental orthopedic materials, high hardness ceramics, glass, electronic components, printed circuit boards, non-ferrous metal materials, rocks, non-ferrous composite materials, etc.

(100×0.7×12.7)

(180×0.8×22)

(200×1×32)

(250×1.2×32)

(300×1.5×32)

CBN Cut-off Wheel

CBN
Resin bond

For cutting of iron-based metals, super alloy materials, cobalt-based alloys, nickel-based alloys, high-carbon alloys, high-speed steel, tungsten-molybdenum alloys, heat-resistant alloys, cast magnets, titanium alloys, etc.

(100×0.7×12.7)

(180×0.8×22)

(200×1×32)

(250×1.2×32)

(300×1.5×32)

Petrographic
Cut-off Wheel

Diamond
Bronze bond

For cutting of petrographic materials.

(250×2×32)

Saw Blade

Toothed Saw Blade

Cemented carbide

For cutting of aluminum, aluminum alloy and other high viscosity materials.

(180×1.8×25.4)

(200×2×32)

Packing List

Name

Specification

Qty

Machine Mainframe

/

1 set

Water Tank

/

1 set

Cut-off Wheel

Φ250×2×Φ32mm

Resin cut-off wheel

1 pc

Cutting Fluid

3kg

1 bottle

Spanner

36mm, 14×17mm, 24×27mm

each 1 pc

Water Inlet Pipe

1/2 Metal pipe

1 pc

Water Outlet Pipe

Φ32mm

1 pc

Usage Instruction Manual

/

1 copy
