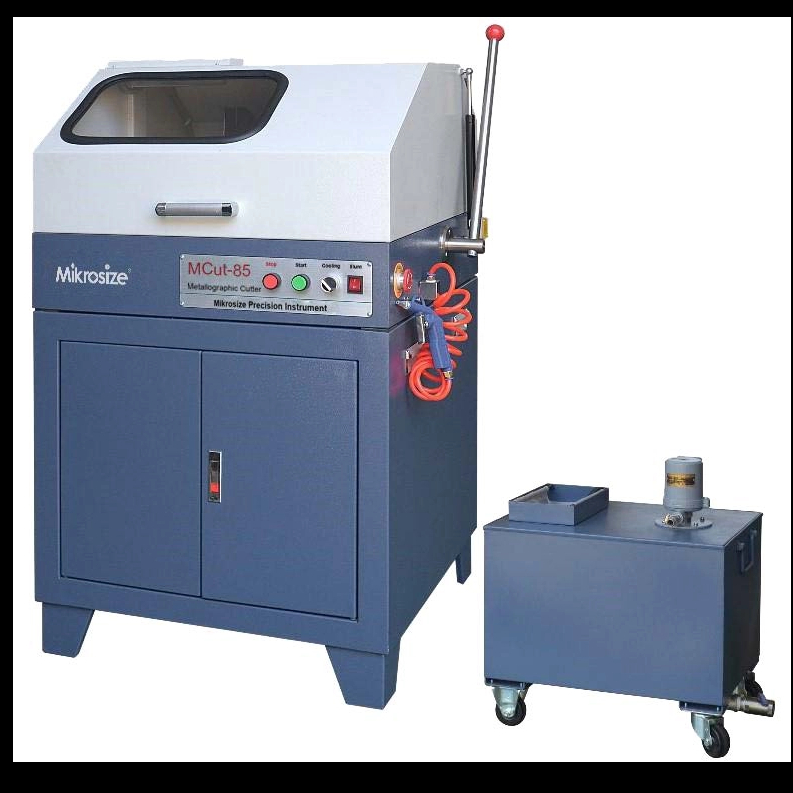

MCut-85 Manual Metallographic Cutter

Product Feature
●High motor rotating speed and powerful cutting ability ●Double-sided clamp device, fix sample firmly.
●Main parts of the clamp and cutting table are all made of stainless steel
●Cutting chamber adopts closed structure with safety limit switch,
●An opening window in the left cover used for cutting long strip samples,
●Transparent organic glass window and built-in LED lamp for observation
●Equiped with circulating cooling water system, the sample surface after cutting is bright and flat without burns,
Product Application
This machine is suitable for general metallographic and petrographic materials. By pulling spindle and using the spindle gravity to cut sample,ideal equipment for sample cutting. This model is divided into benchtop and floor type for customers to choose.

Availability:

Quantity:



Inquire Add to Basket

Model:
MCut-85
Brand:
Mikrosize

Product Description

Product Description

Technical Specification

Model	MCut-85
Cutting Method	Manual
Cut-off Wheel	Φ300×2×Φ32mm
Max. Cutting Capacity	85×85mm
Spindle Speed	2800r/min
Electromotor Power	3kW
Cutting Stage	204×240mm，T-slot 12mm
Clamping Device	Quick clamp，Jaw height 60mm
Power Supply	380V, 50Hz，10A, Three-phase four-wire
Dimensions	730×700×540mm （750×730×1200mm floor type）
Net Weight	125kg（180kg floor type）
Water Tank Capacity	60L
Pump Flow	25L/min
Water Tank Dimensions	565×360×600mm
Water Tank Weight	27kg

Standard Delivery

Name	Specification	Qty
Machine Body	/	1 set
Water Tank	/	1 set
Cut-off Wheel	Φ300×2×Φ32mm Resin cut-off wheel	2 pcs
Cutting Fluid	3kg	1 bottle
Spanner	14×17mm，24×27mm	each 1 pc
Inner Hexagon Spanner	3mm, 6mm	each 1 pc
Water Inlet Pipe	1/2 Metal pipe	2 pcs
Water Outlet Pipe	Φ48mm	1 pc
Usage Instruction Manual	/	1 copy
