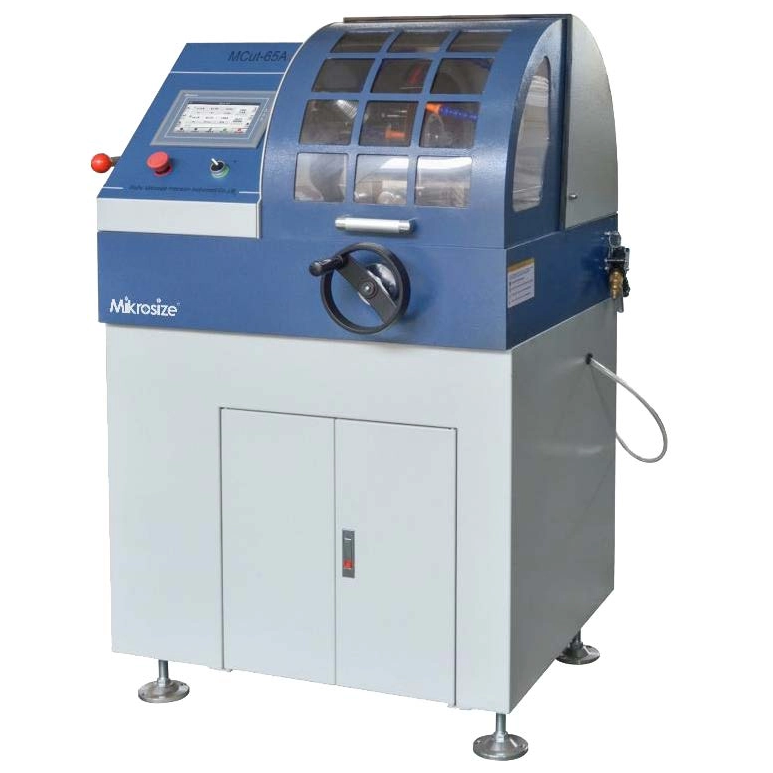

MCut-65A Automatic Metallographic Cutter

Product Feature：
●Manual/Automatic operation. electromechanical separation structure is effective in protecting electrical safety and convenient in maintenance. Machine body is made of thick sheet metal, firm and stable.
●With automatic feeding, rotating speed can be automatically adjusted according to the hardness of the material to avoid blockage.

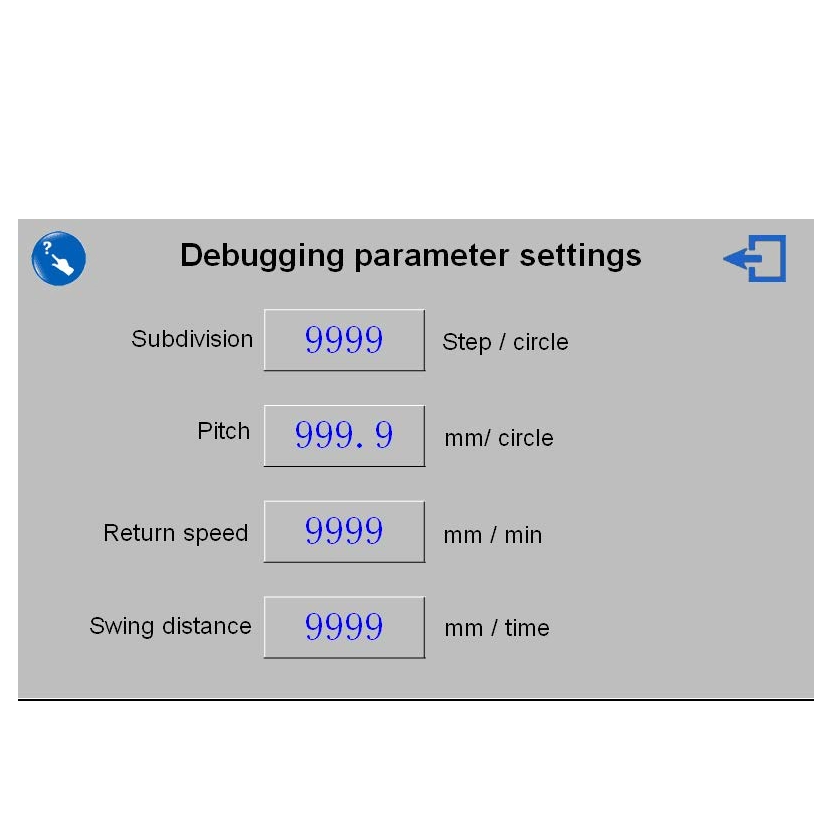

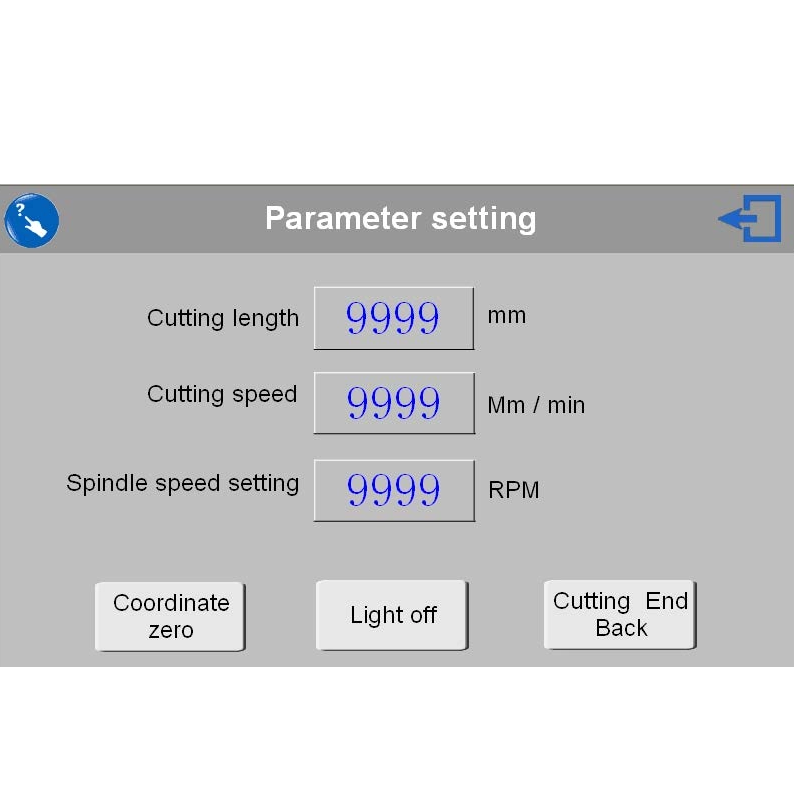

●7 inch high-definition color touch screen, visual display and easy to operate.
●Y axis automatic intelligent feeding, the speed can be automatically adjusted according to the hardness of the material to avoid blockage.
●Z axis can be manually adjusted, which is suitable for various sizes cut-off wheels, and can compensate for the loss and thus effectively improving the utilization rate of cut-off wheels.
●With explosion-proof transparent observation window and protection of cover opening
●Adjustable LED lamp to achieve effective lighting for the whole cutting chamber.
●With double-sided quick clamp device and T slot cutting table
●Three adjustable cooling water lines can prevent sample burns
●Independent cleaning water gun for easy cleaning.

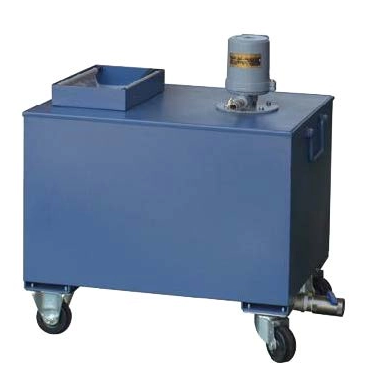

●The mobile circulating cooling water tank has effective filtration and can prevent sample burns.

Product Application：
Suitable for the sample cutting of various shapes, sizes and materials, the surface of the sample after cutting is bright and flat without burns, it is the ideal equipment for sample cutting. It is suitable for various ferrous metals, non-ferrous metals, heat treatment parts, forgings, semiconductors, crystals, ceramics and rocks etc.

Availability:

Quantity:



Inquire Add to Basket

Model:
MCut-65A
Brand:
Mikrosize

Product Description

Product Description

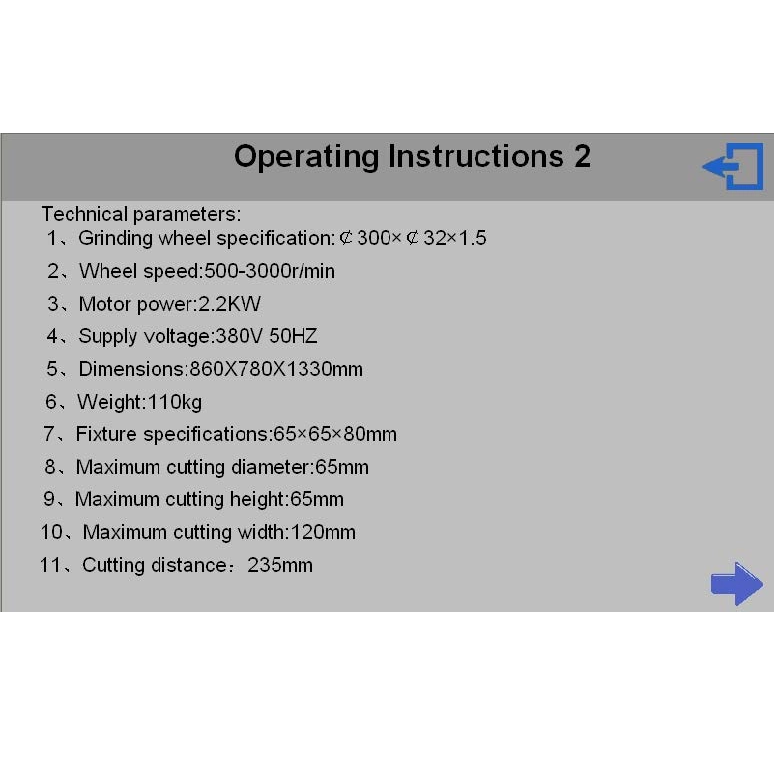

Technical Specification

Model	MCut-65A
Cutting Method	Manual/Automatic, Table feeding along Y axis
Cutting Mode	Continuous Cutting, Pulse Cutting
Feeding Speed	Manual / Automatic 1~240mm/min
Cut-off Wheel	Φ300×2×Φ32mm
Max. Cutting Capacity	Φ65mm
Y Axis Travel	235mm
Z Axis Travel	35mm
Spindle Speed	500~3000r/min
Motor Power	2kW
Cutting Table	350×220mm，T-slot 12mm
Clamping Device	Quick Clamp，Jaw height 60mm
Display and Control	7 inch Touch Screen
Power Supply	380V, 50Hz，10A, Three-phase Five-wire
Dimensions	800×760×1370mm
Net Weight	280kg
Water Tank Capacity	60L
Pump Flow	25L/min
Water Tank Dimensions	565×360×600mm
Water Tank Weight	27kg

Variable Cutting Discs Optional

Series	Name	Material	Application	Specification
Series A	Alumina Cutting Disc A2: 45~55HRC A3: >55HRC	Aluminium oxide (Brown corundum) Resin bond	For cutting of common steel materials, carbon steel, alloy steel, cast iron, unquenched steel, etc.	(250×1.2×32)(250×1.5×32) (250×2×32)
				(300×1.5×32)(300×2×32)
				(350×2.5×32)
				(380×2.8×32)
				(400×3×32)
Series B	Alumina Cutting Disc B2: 45~55HRC	Aluminium oxide (White corundum) Resin bond	For cutting of high-quality carbon steel, alloy structural steel, tool steel, bearing steel, stainless steel, high-speed steel and high hardness quenched steel, etc.	180×1×22
				205×1.2×32
				(250×1.2×32)(250×1.5×32)(250×2×32)
				(300×1.5×32)(300×2×32)
				(350×2.5×32)
Series C	Silicon Carbide Cutting Disc	Silicon Carbide Resin bond	For cutting of non-ferrous metal materials (copper, aluminium, zinc, titanium, cast aluminium, tungsten-molybdenum alloy, cemented carbide, etc.) and non-metallic brittle materials (glass, ceramics, rock, etc.).	(250×1.2×32)(250×1.5×32)(250×2×32)
				(300×1.5×32)(300×2×32)
Series D	Alumina Cutting Disc D2: 45~55HRC	Aluminium oxide (Chromium corundum) Resin bond	For cutting of high vanadium high speed steel, alloy steel, tool steel, and high toughness, high viscosity, burn-prone materials, etc.	(250×1.5×32)(250×2×32)
				(300×1.5×32)(300×2×32)
Customized	Alumina Cutting Disc（Red sand）	Aluminium oxide Resin bond	For cutting of hard ferrous metals. （60HRC）	(250×1.2×32)(250×1.5×32)(250×2×32)
				(300×1.5×32)(300×2×32)
Ultrathin Precision Cut-off Wheel	Diamond Cutting Disc	Diamond Bronze bond	For cutting of plastics, rubber, dental orthopaedic materials, high hardness ceramics, glass, electronic components, printed circuit boards, non-ferrous metal materials, rocks, non-ferrous composite materials, etc.	(100×0.7×12.7)
				(180×0.8×22)
				(200×1×32)
				(250×1.2×32)
				(300×1.5×32)
	CBN Cutting Disc	CBN Resin bond	For cutting of iron-based metals, superalloy materials, cobalt-based alloys, nickel-based alloys, high-carbon alloys, high-speed steel, tungsten-molybdenum alloys, heat-resistant alloys, cast magnets, titanium alloys, etc.	(100×0.7×12.7)
				(180×0.8×22)
				(200×1×32)
				(250×1.2×32)
				(300×1.5×32)
	Petrographic Cutting Disc	Diamond Bronze bond	For cutting of lithofacies materials.	(250×2×32)
Saw Blade	Toothed Saw Blade	Cemented carbide	For cutting of aluminum, aluminium alloy and other high viscosity materials.	(180×1.8×25.4)
				(200×2×32)

Packing List

Name	Specification	Qty
Machine Body	/	1 set
Water Tank	/	1 set
Cutting Disc	Φ300×2×Φ32mm, Resin Cutting Disc	2 pcs
Cutting Fluid	3kg	1 bottle
Spanner	36mm，14×17mm，24×27mm	each 1 pc
Water Inlet Pipe	Φ20mm	1 pc
Water Outlet Pipe	Φ48mm	1 pc
Usage Instruction Manual	/	1 copy
