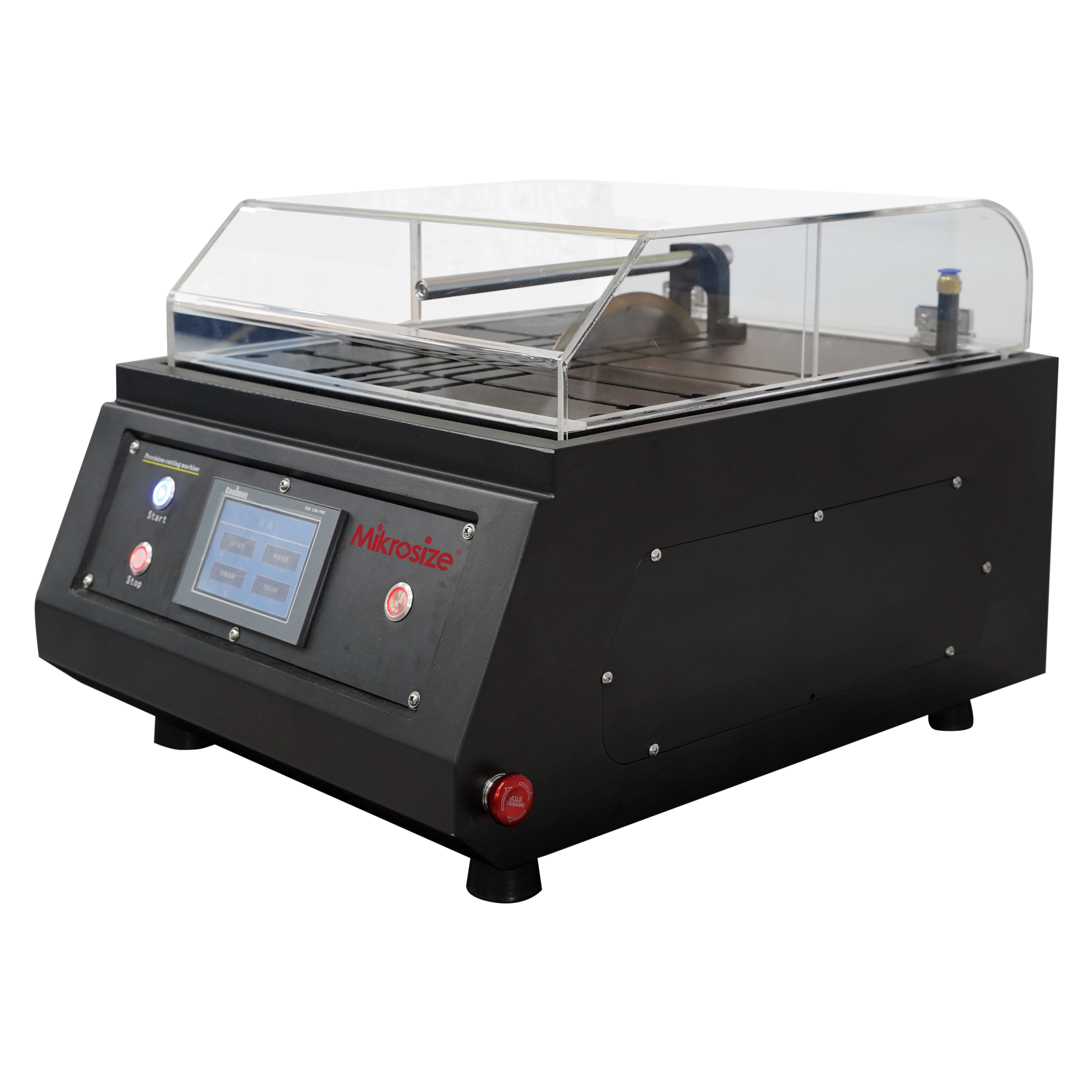

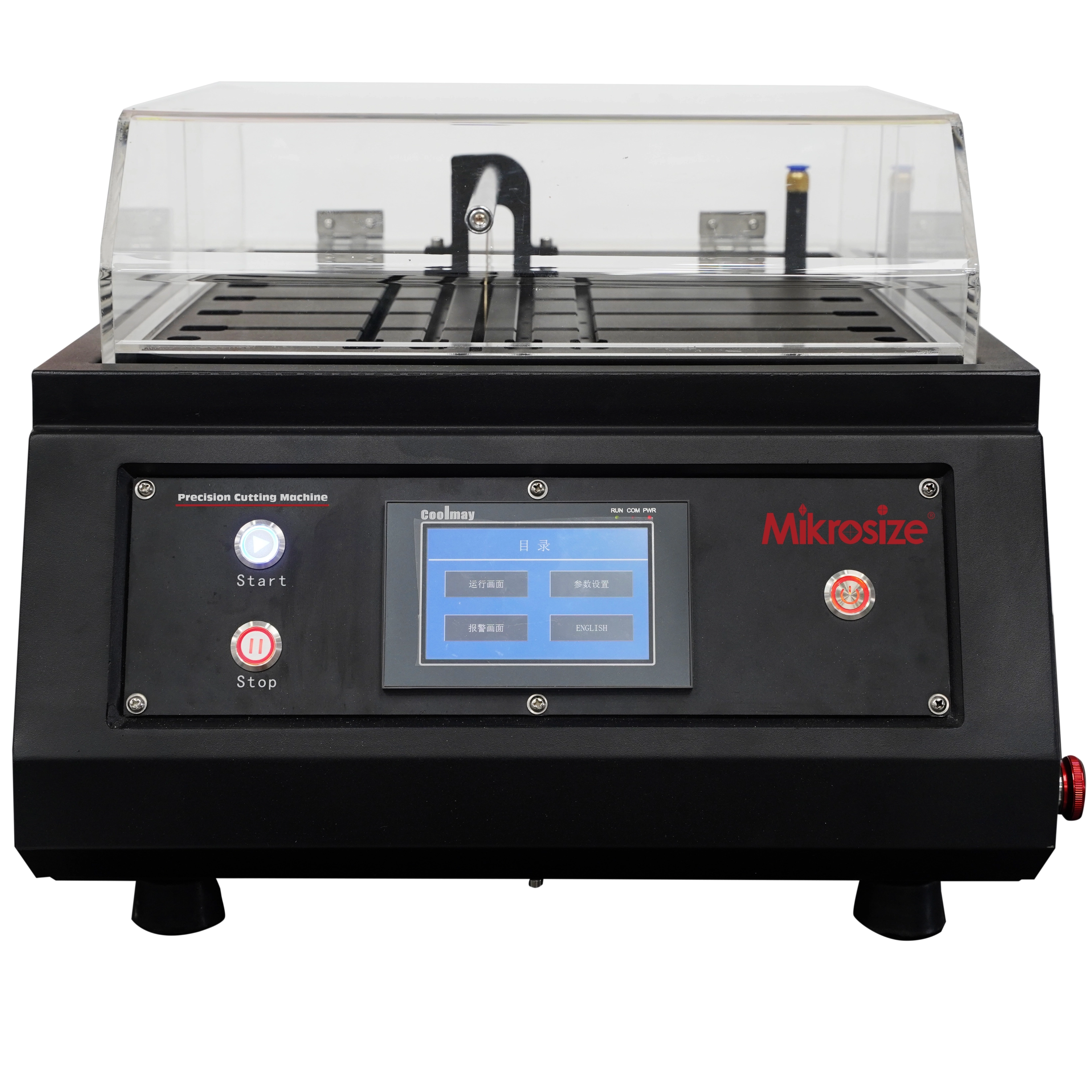

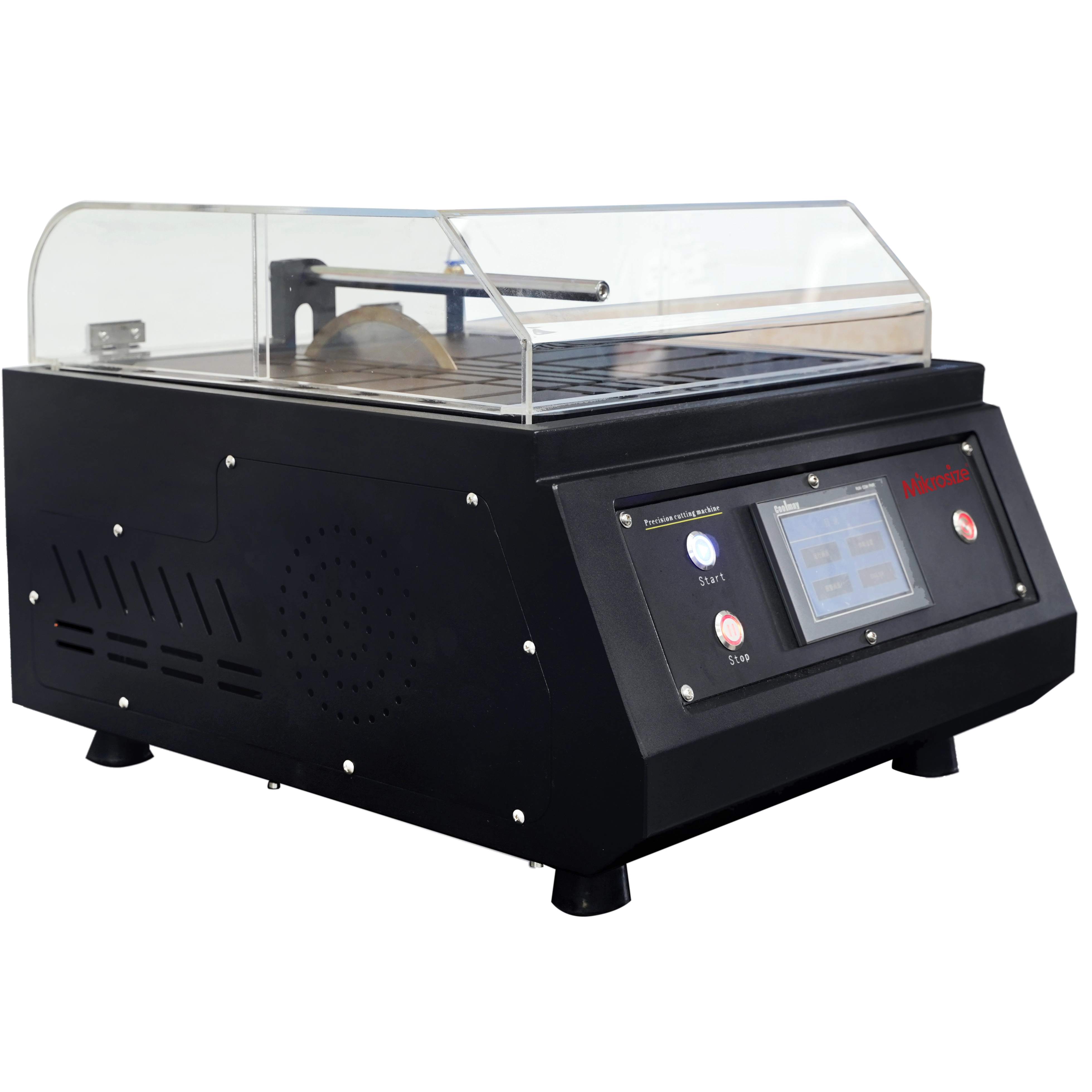

iCut-40P Metallographic Precision Flat-panel Cutting Machine

 Product feature:
●The equipment has high positioning accuracy; large speed range; strong cutting ability; strong circulating cooling system

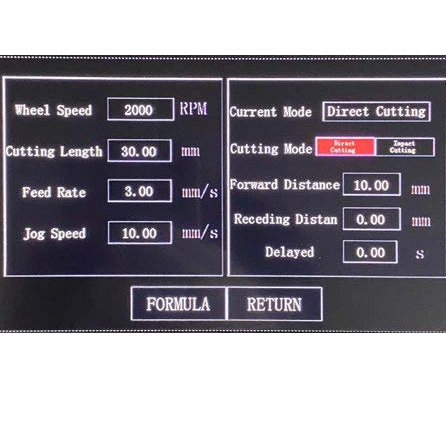

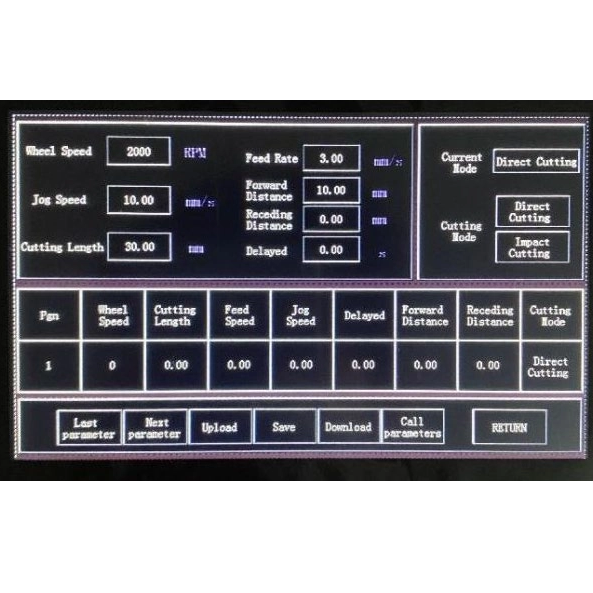

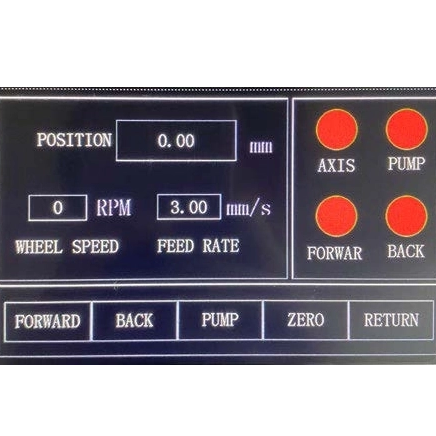

●The feed speed can be preset; the touch screen control display is easy to operate and control.
●The automatic cutting machine can reduce the fatigue of the operator and ensure the consistency of the sample production
● Equipped with a large bright cutting chamber with safety switch. It is one of the ideal equipment for industrial and mining enterprises and scientific research institutes to prepare high quality samples.
Availability:
Quantity:

Product Description

 Technical parameter

Product Name

iCut-40P

Y direction travel

160mm

Cutting method

Straight line, pulse

Diamond cutting disc

φ200*0.9*32mm

Spindle rotation speed

500-3000rpm,custominzed

Automatic cutting speed

0.01-3mm/s

Manual speed

0.01-15mm/s

Impact cutting distance

0.1-2mm/s

Maximum cutting thickness

40mm

Maximum clamping length of table

425mm

Maximum clamping width of table

200mm

Display

5寸inch touch all-in-one control

Data usage method

10 kinds can be selected

Table size

425*435mm

Power

600W

Power supply

Single phase 220V

Overall dimension

530×600×410mm

Packing size

810*730*540mm

Net weight

85kg

gross weight

101kg

Tank size

470*370*300mm

Packing size of water tank

650*440.5*460mm

Gross weight of water tank

17kg

Net weight of water tank

27kg

Packing list

Main machine

iCut-40P

SET

1

Product manual


COPY

1

Product certificate


COPY

1

Packing list


COPY

1

Cutting blade

200*0.9*32

PC

1

Wrench


PCS

2

Allen key


PC

1

Leveling Foot


PCS

4

Power Cord


PC

1

Cooling system (including water tank, water pump, water inlet pipe and drain pipe)


SET

1

Hose clamp


PCS

4
