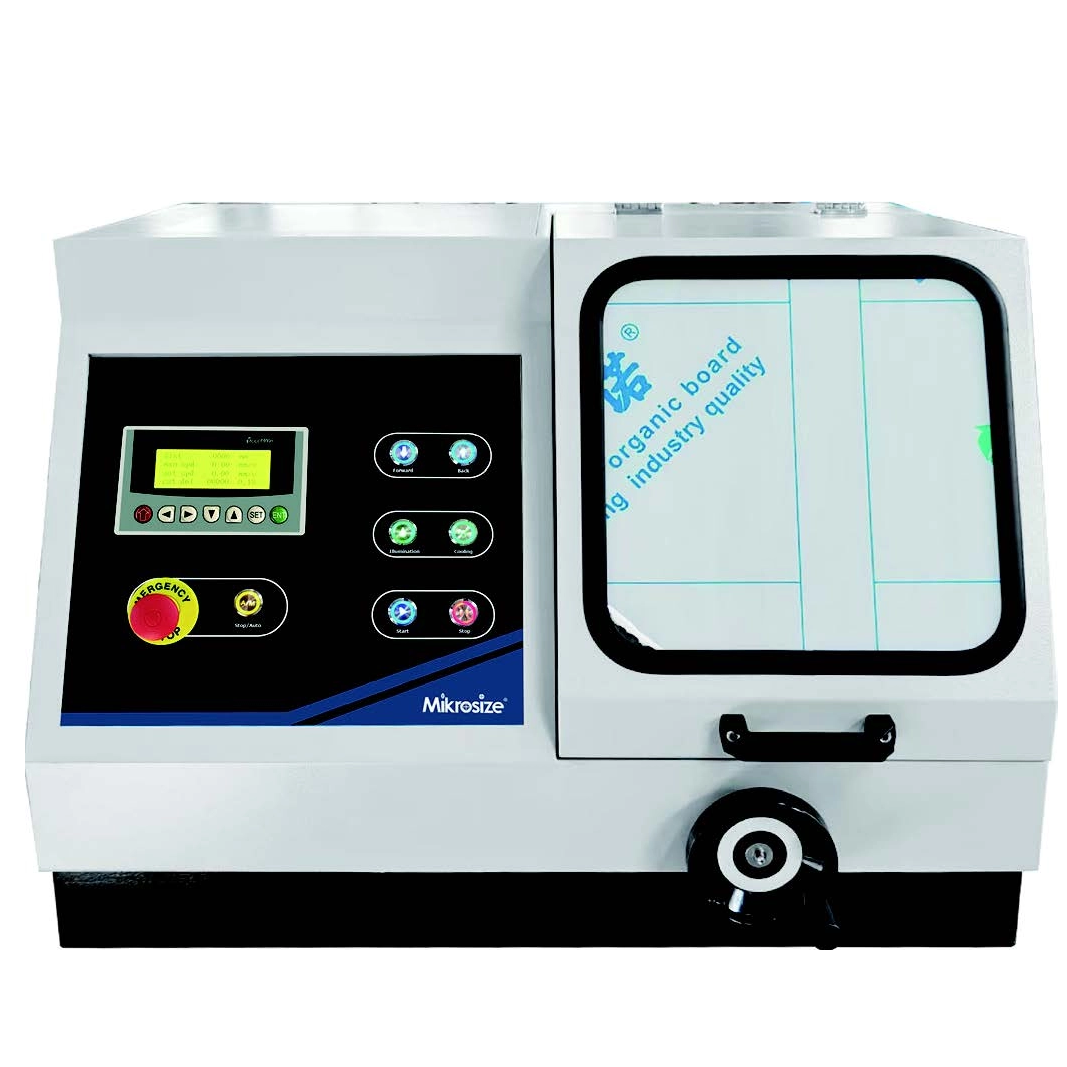

iCut-80A Metallographic Sample Cutting Machine

Product Feature:
●Stainless steel housing
●Extra-large cutting chamber
●Manual/automatic dual cutting mode
●Enclosed cutting
●Automatic 3-channel cooling system to avoid damage to samples due to overheating
●Pattern programming is more suitable for batch cutting sampling
●Automatic reset function of the cutting knife after sampling

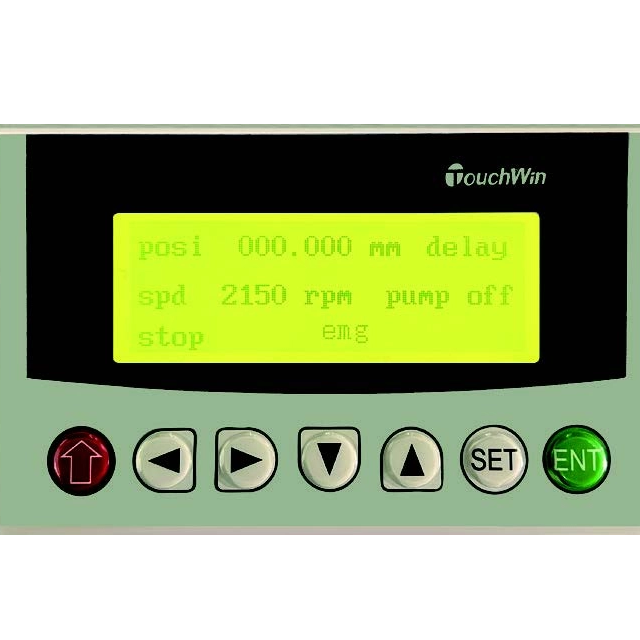

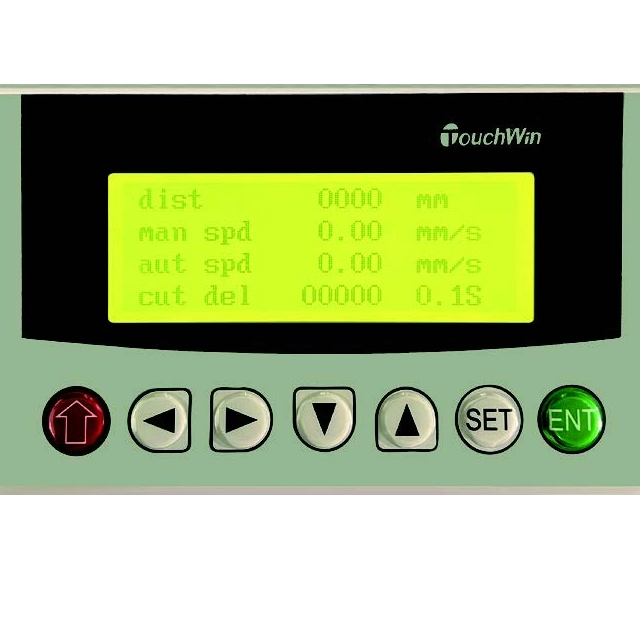

●Real-time tracking and display of feed depth (LCD digital display)
●Arbitrary setting of feed stroke (0-200mm)
Product Application:
●Material science research and performance testing
The metallographic cutting machine can be used to prepare high-quality metallographic samples, conduct various scientific research, study the microstructure and crystal structure of experimental materials, reveal the performance and mechanism of materials, and provide technical support for the development of new materials and the improvement of existing material performance.
●Industrial manufacturing and quality control
The metallographic cutting machine can perform high-precision cutting and processing on various metal materials such as steel, aluminum alloy, etc., to meet the needs of industrial manufacturing with high precision requirements; it can also be used to prepare metallographic samples of various mechanical parts, helping engineers analyze the performance and reliability of parts, optimize material selection, and improve the performance and durability of parts.
●New material research and development and product failure analysis
The metallographic cutting machine can accurately cut out the sample area containing the fracture source, providing key evidence for diagnosing the cause of the problem.
Availability:
Quantity:

Product Description

 Technical Parameter:

Product name

iCut-80A

Cutting chamber housing

Steel sheet

Max. cutting diameter

80mm(Pipe)

Feed depth tracking by

LCD Digital Display

Platform movement in Y direction

275mm

Cutting table size

280*310mm

Cutting blade specifications

350*2.5*32mm

Clamping table specifications

The fixture table is divided into left and right parts, and the central cutting

Cutting method

Manual/Automatic

Infeed method

Adjustment (manual, automatic)

Cutting speed

0.1-2.5mm/s, automatic cutting mode can be selected: intermittent cutting (metal workpiece) and continuous cutting (non-metal workpiece)


Feed Distance

Arbitrary setting (0-200mm)

Reset Method


Automatic reset


Cooling system

Automatic (water-cooled 3 channels)

Water tank capacity

50L

Spindle speed

2150r/pr

Motor power

3KW

Machine Type

Desktop

Power supply

380V

Machine Dimension

900*795*600mm

Gross weight

150kg

 Others: Special workpieces can be customized (disc fixture, rack fixture, universal fixture)


Standard Delivery

Name

Specification

Qty

Machine Mainframe

iCut-80A

1 set

Water Tank (including water pump)

iCut-80A

1 pc

Cut-off Wheel

350*2.5*32mm

2 pcs

Pipe Clamp

iCut-80A

4 pcs

Wrench

24-27mm

1 pc

Wrench

36mm

1 pc

Inlet Pipe

iCut-80A

1 pc

Outlet Pipe

iCut-80A

1 pc

Instruction Manual

iCut-80A

1 copy

Product Certificate

iCut-80A

1 copy

Warranty Card

iCut-80A

1 copy
