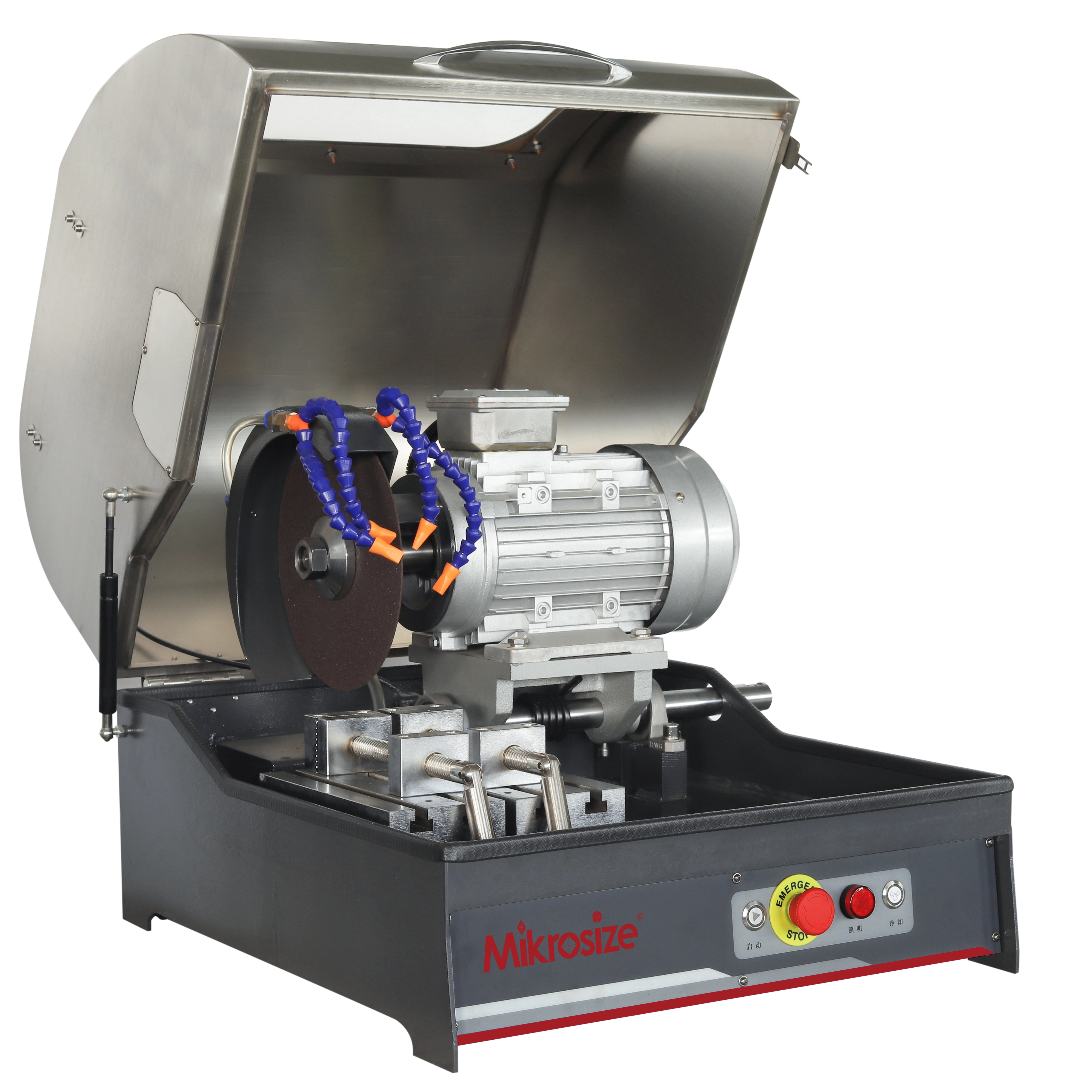

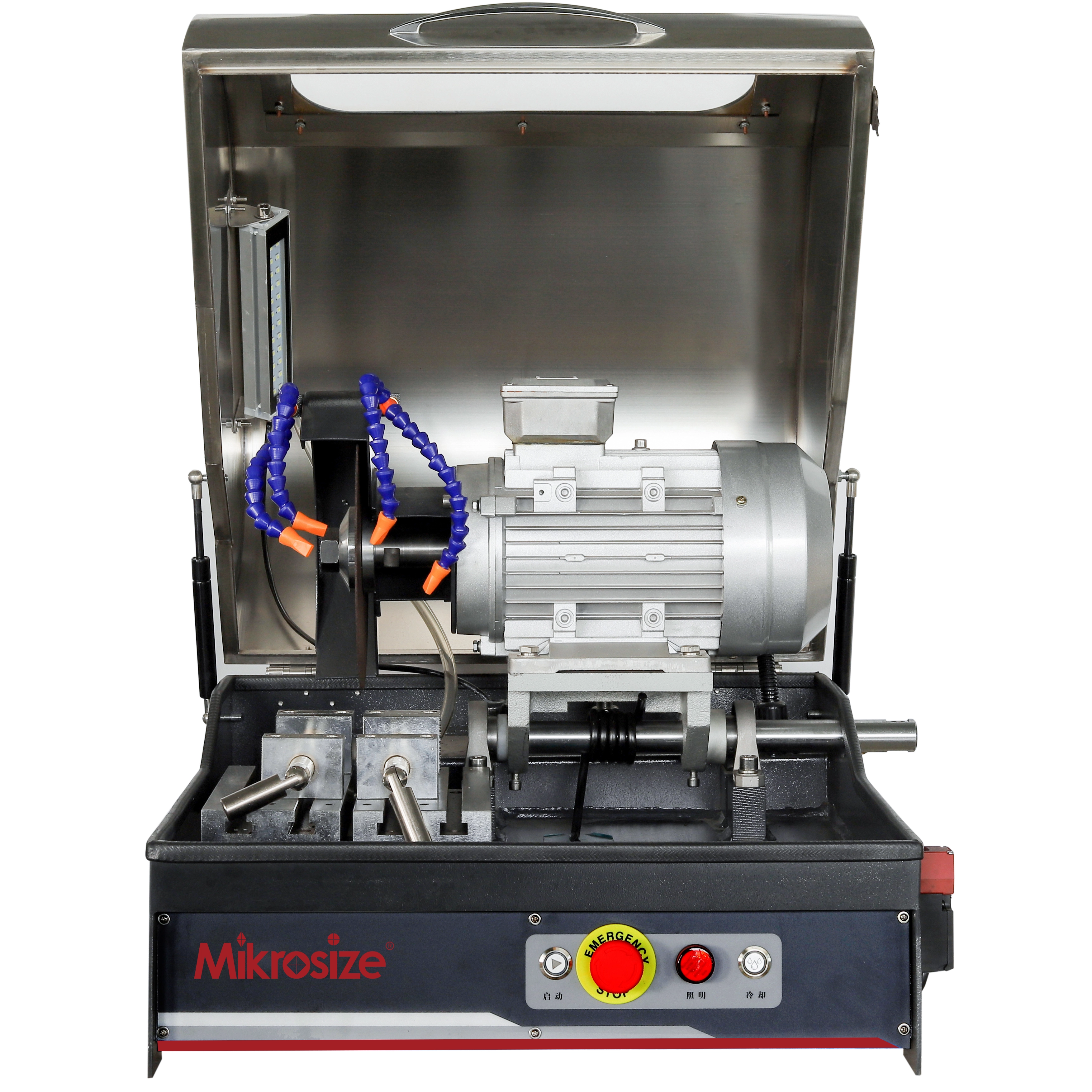

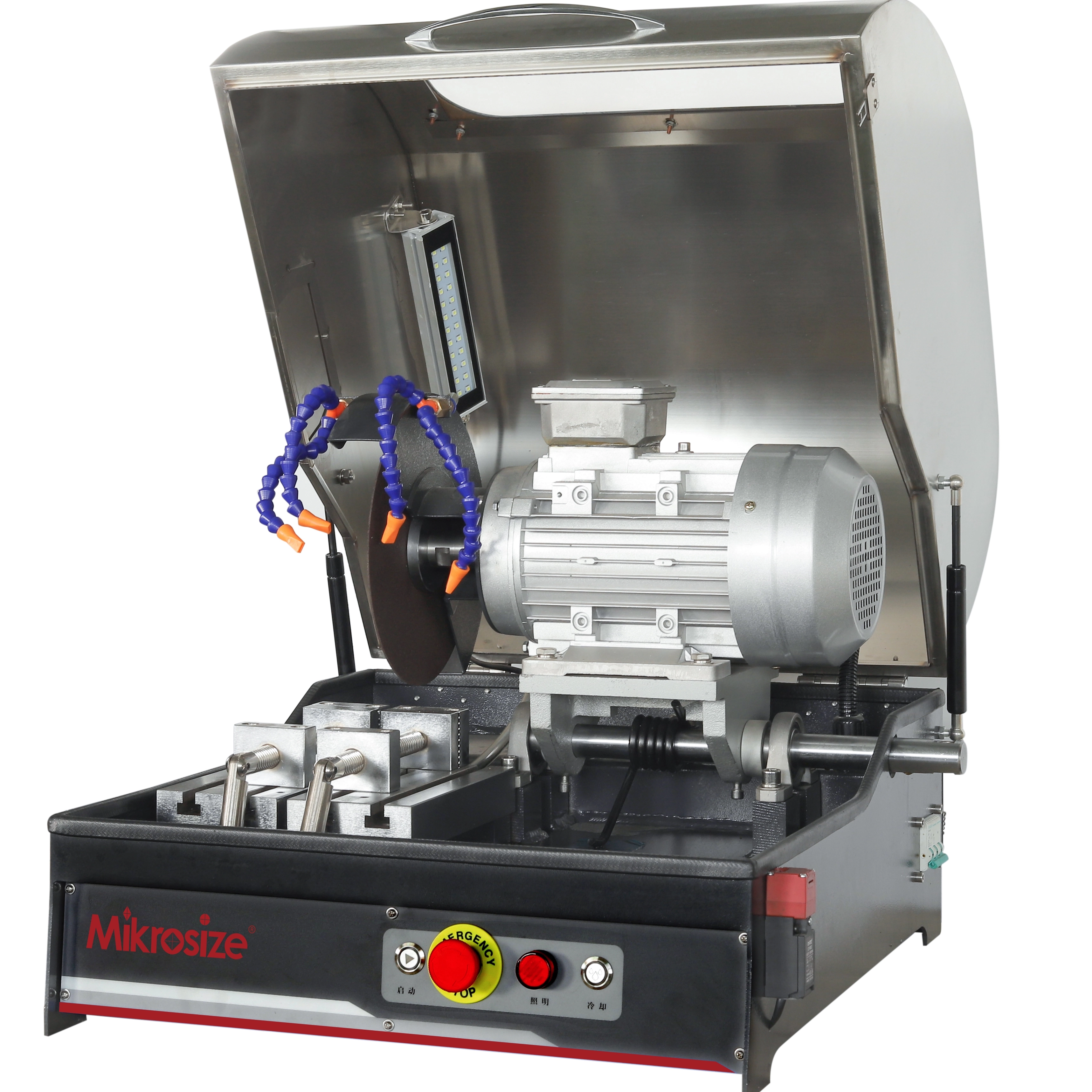

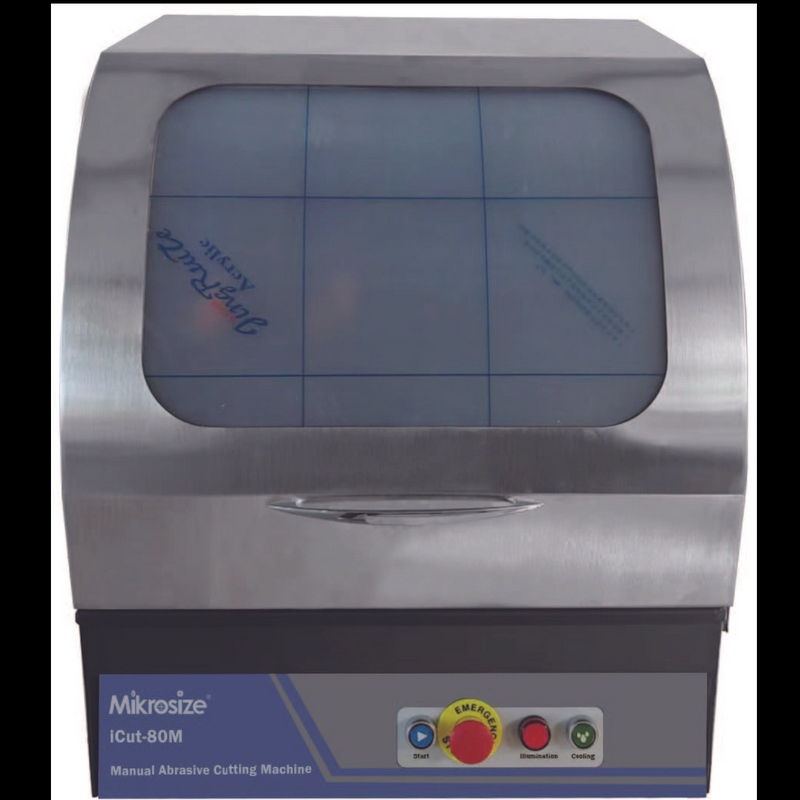

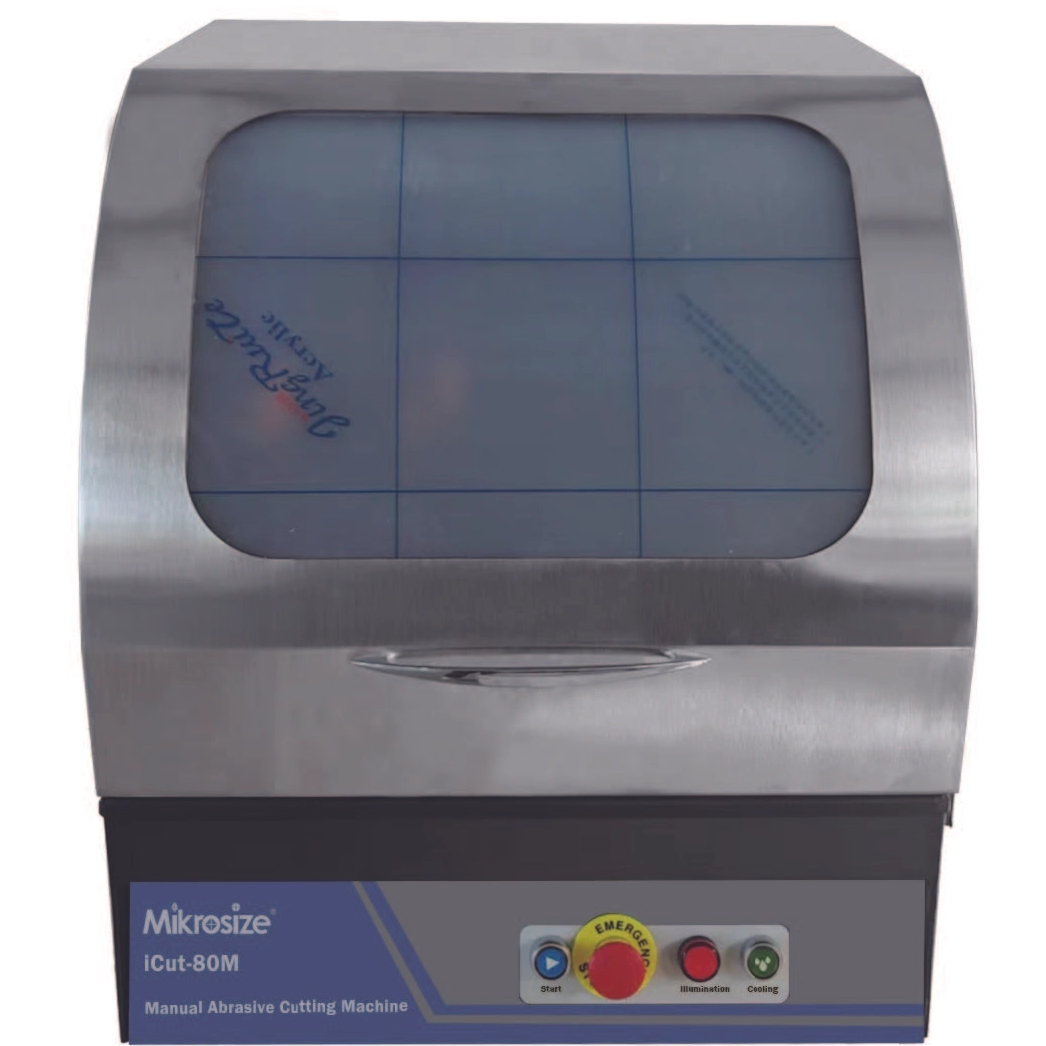

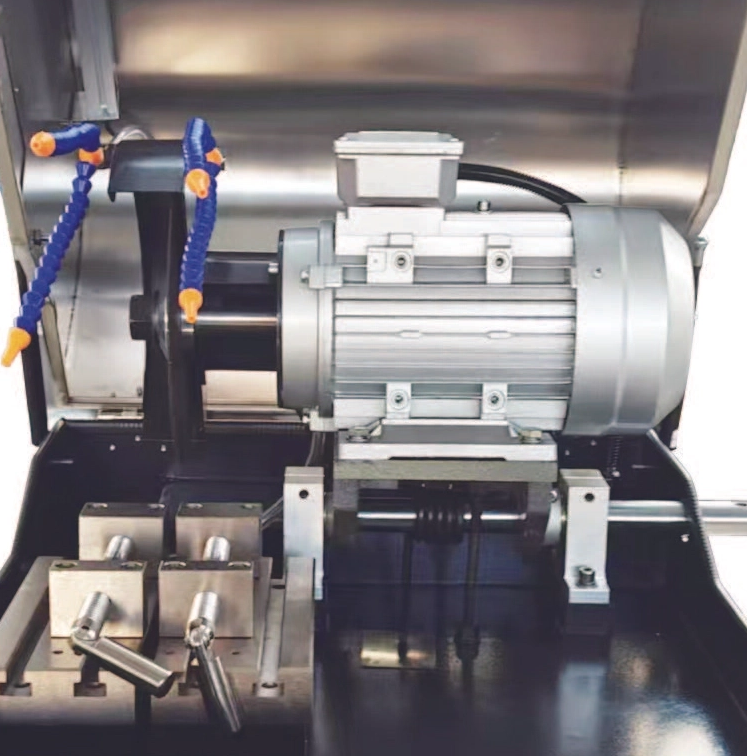

iCut-80M Metallographic Sample Manual Cutting Machine

Product Feature：
●The machine is equipped with a cooling system to take away the heat generated during cutting
●The cutting machine uses a high-speed rotating cutting blade to cut the sample.
●The machine has the advantages of convenient operation and easy maintenance, and is superior to similar domestic products.
●Cutting range and transmission power are also greater than the domestic similar products, is the best choice of sample cutting equipment

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Parameter

Product Name	iCut-80M
Max. cutting dia.	φ80mm
Rotation Speed	2800 r/min
Input power	3kw
Input voltage	Three-phase 380V, 50-60Hz
Cutting Blade specifications	250232mm
Overall dimension	730650551mm
Packing size	897757730mm
Net weight	118.75kg
Gross weight	139.7kg
Water Tank size	470370300mm
Packing size of water tank	540460460mm
Net weight of water tank	15kg
Gross weight of water tank	25kg

Packing List

Main machine	iCut-80M	SET	1
Manual		SHARE	1
Product certificate		SHARE	1
Packing list		SHARE	1
Spanner	30-32mm	PCS	1
Spanner	36 mm	PCS	1
Cutting Blade	250mm	PCS	2
Water tank		PCS	1
Water pump		PCS	1
Water Inlet pipe		PCS	1
Water outlet pipe		PCS	1
Pipe clamp		PCS	2
