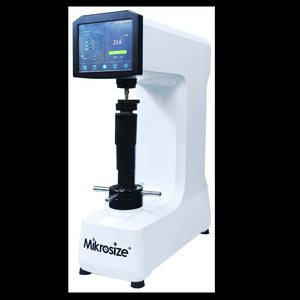

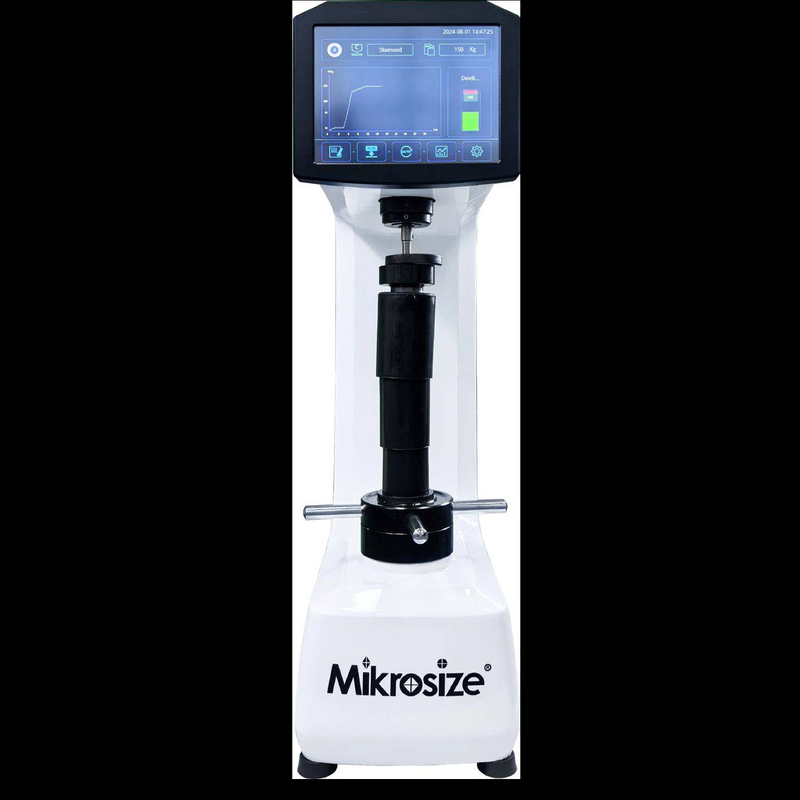

IRocky-150/45CL Touch Screen Superficial Rockwell Hardness Tester

Product Feature:

●Electronic loading test force instead of weight force to improve the force accuracy of force values and ensure more stable measurement
●8 inch touch screen operation and display, user-friendly interface to complete instrument settings;
●Bluetooth connection to computer, analyzing and managing data through dedicated hardness software;
●Powerful data processing capabilities, including calculating and analyzing maximum, minimum, and average values
●It can convert multiple hardness such as HB and HV, users select hardness scale through touch screen operation
●The operation interface is simple, with a user-friendly setting parameters,independently stores 500 sets of data
●Compliant with the latest ISO, ASTM, GB and other standards

●The initial load dwelling time and loading time can be freely set, with functions of hardness value correction

Product Application:
●The surface Rockwell hardness test method can use diamond indenors and steel ball indentors to measure hard and soft specimens,
●Widely used to determine the Rockwell hardness of ferrous, non-ferrous, and non-metallic materials.
●Mainly used for measuring the Rockwell hardness of heat-treated materials such as quenching and tempering; Materials such as hard alloy, carburizing steel, quenched steel, surface quenched steel, hard cast steel, aluminum alloy, copper alloy, malleable castings, soft steel, quenched and tempered steel, annealed steel, bearings, etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification

Test Force	15kg，30kg，45kg
Test Range	71-94HR15N，42-86HR30N，20-77HR45N, 67-93HR15T，29-82HR30T，10-72HR45T
Indentor	Diamond Rockwell Indentor	ф1.588mm Steel Ball Indentor
Test Space	Test Height：230mm
	Test Throat：170mm
Loading Method	Initial Test Force：Manual Main Test Force：Automatic（Loading-Dwelling-Unloading）
Hardness Scale	HR15T, HR30T, HR45T,HR15N, HR30N, HR45N,HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Conversion Scale	HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Display	8 inch Touch Screen
Hardness Resolution	0.1HR
Power Supply	110/220V, 50／60HZ

Standard Delivery

Name	Qty	Name	Qty
Mainframe	1pc	Diamond Rockwell Indentor	1pc
Φ1.588mm Ball Indentor	1pc	Φ150mm Flat Anvil	1pc
Φ60mm Flat Anvil	1pc	Φ40mm V-shape Anvil	1pc
Hardness Block 65-80HR30N	1pc	Hardness Block70-85HR30TW	1pc
Hardness Block 80-90HR15N	1pc	Power Adaptor	1个
Wrench	2 pcs	Power Cord	1pc
Portable Printer	1 pc	Product Certificate/Warranty Card	Each 1 copy
Anti-dust Cover	1 pc	Instruction Manual	1 copy
