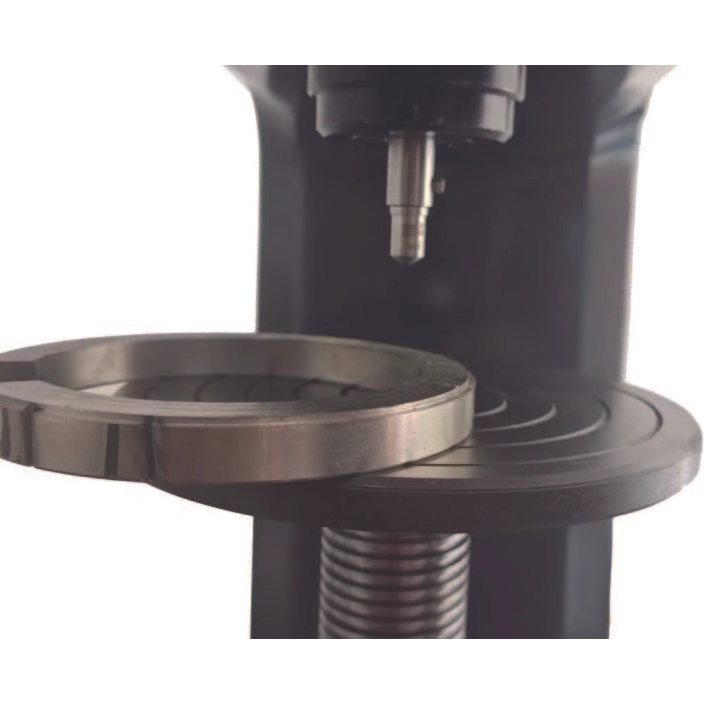

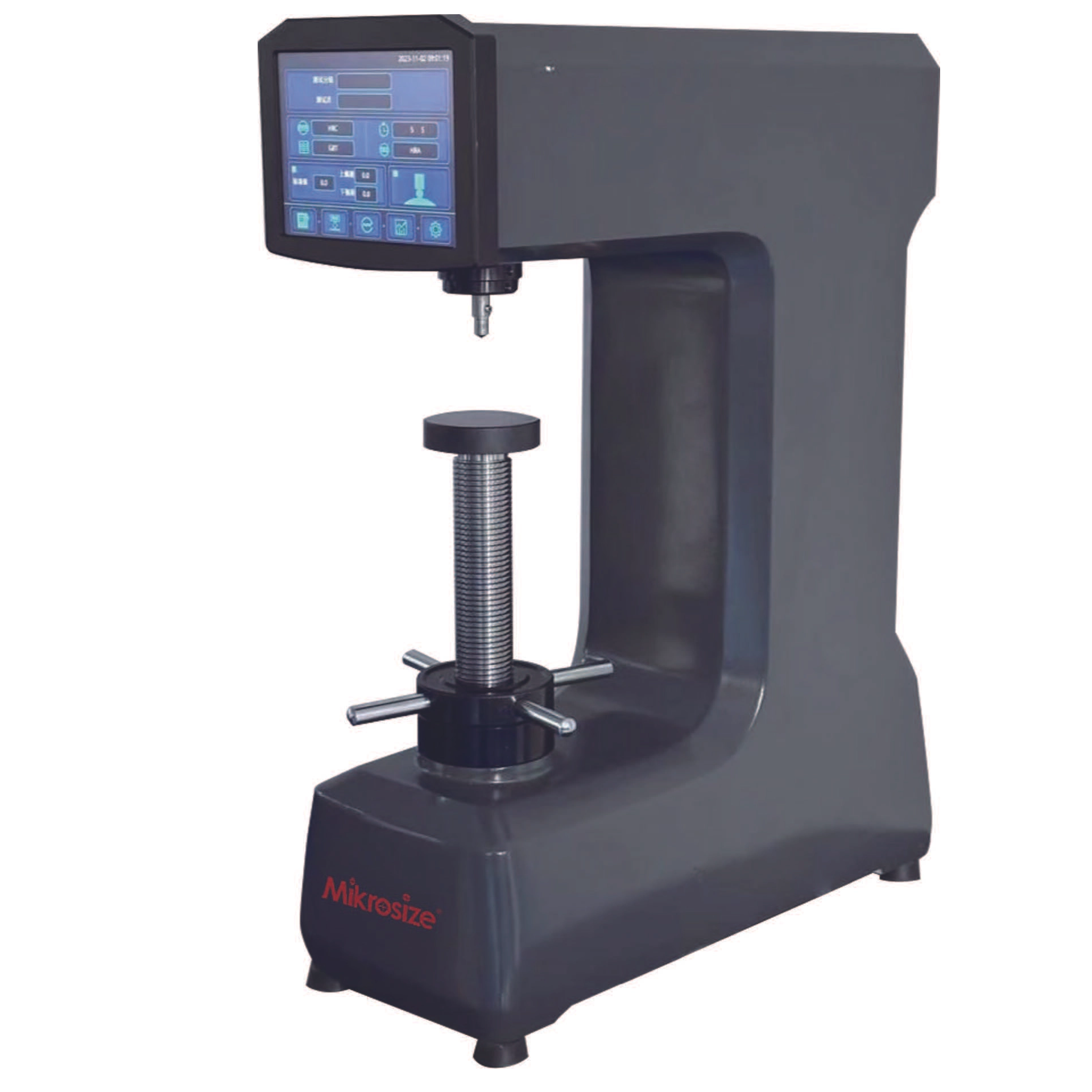

uRocky-150CM Touch Screen Digital Carbon Brush Hardness Tester

Product Feature:
This machine uses electronic loading test forces instead of weights, enhancing the accuracy of force values and ensuring more stable measurements.

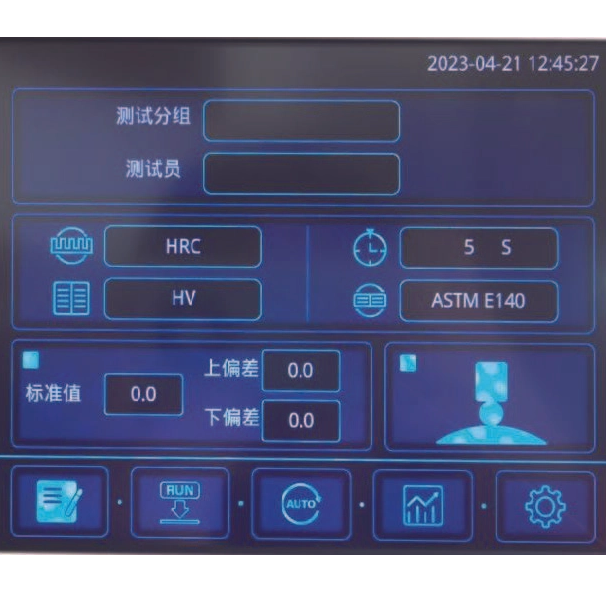

An 8-inch touchscreen for operation and display, offering a user-friendly interface to complete instrument settings.
Bluetooth connection to the computer allows for data analysis and management through dedicated hardness software.
Powerful data processing cap abilities allow for the calculation and analysis of maximum, minimum, average values, and more.

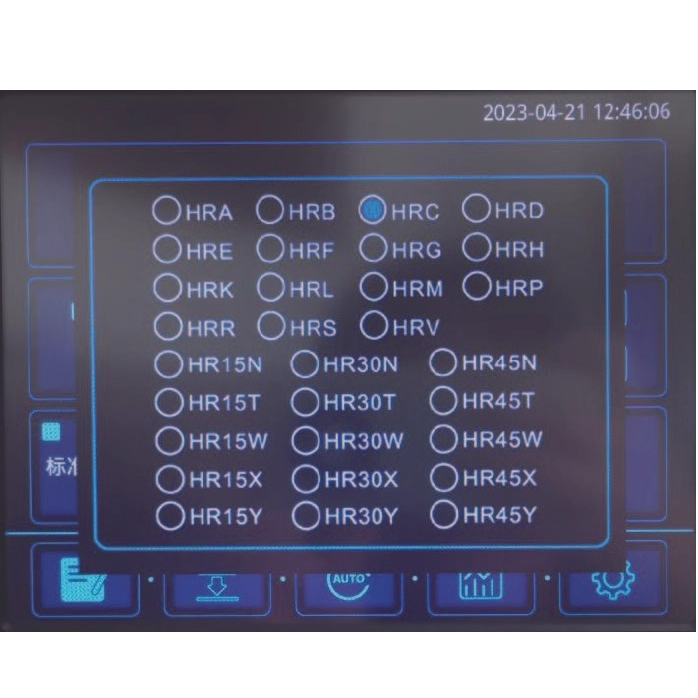

Touch screen selection for various Rockwell hardness scales, with the ability to convert between multiple hardness scales such as HV, HB, etc.
The operation interface is simple, with user-friendly parameter settings. The main unit independently stores up to 500 sets of data.
Comply with the latest ISO, ASTM, GB standards for scale conversion.
The initial load holding time and loading time can be freely set, along with functions such as hardness value correction.

Product Application:
Measures the Rockwell hardness of carbon brushes and electrocarbon products.

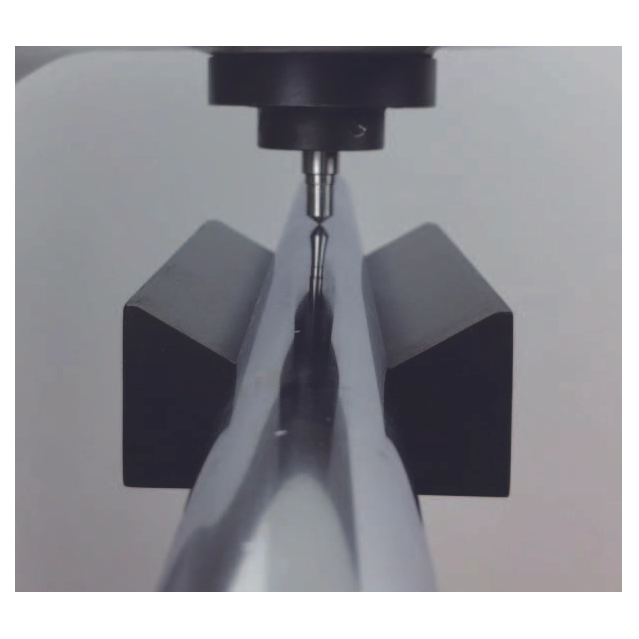

Especially suitable for precise measurement on parallel surfaces, and provides stable and reliable measurements on curved surfaces.
Availability:
Quantity:

Product Description

Technical Specification

Test Force

20、40、60、100 KGF

Testing Range

30-110HR

Indentation Head Types

2.5mm, 5mm, 10mm(diameter)

Testing Space

Max Test Height: 230mm


Test Throat: 170mm

Test Force Application Method

Main initial test force: Automatic (loading, holding, and unloading are fully automated)

Testing Scale

HRA,HRBHRC,HRD,HRE,HRF,HRG,HRH,HRK,

HRL,HRM,HRP,HRR,HRS,HRV

Conversion Scale

HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HBS,HR15N,HR30N,

HR15TW,HR30TW,HR45TW

Hardness Value Display Method

8-inch touchscreen display (computer display optional)

Hardness Resolution

0.1HR

Power Supply

AC 220, 50/60 Hz

Executive Standard

DIN 51917-2002 Carbon material inspection hardness test

JBT 8133.3-2013 Test methods for physical and chemical properties of electric carbon products



Packing List

Name

Qty

Name

Qty

Machine Mainframe

1 unit

2.5mm, 5mm, 10mm Steel Ball Indenter

1 pc for each

Φ1.588mm Ball Indenter

1pc

Φ150mmTest Platform

1pc

Φ60mm Test Platform

1pc

Φ40mm V-shape Test Platform

1pc

Rockwell Hardness Block 88-95HRB

1pc

Power Adapter

1pc

Wrench

2pcs

Power Cord

1pc

Printer

1pc

Instruction Manual

1copy

Dust Cover

1pc

Product Certificate,Warranty Card

1 copy for each
