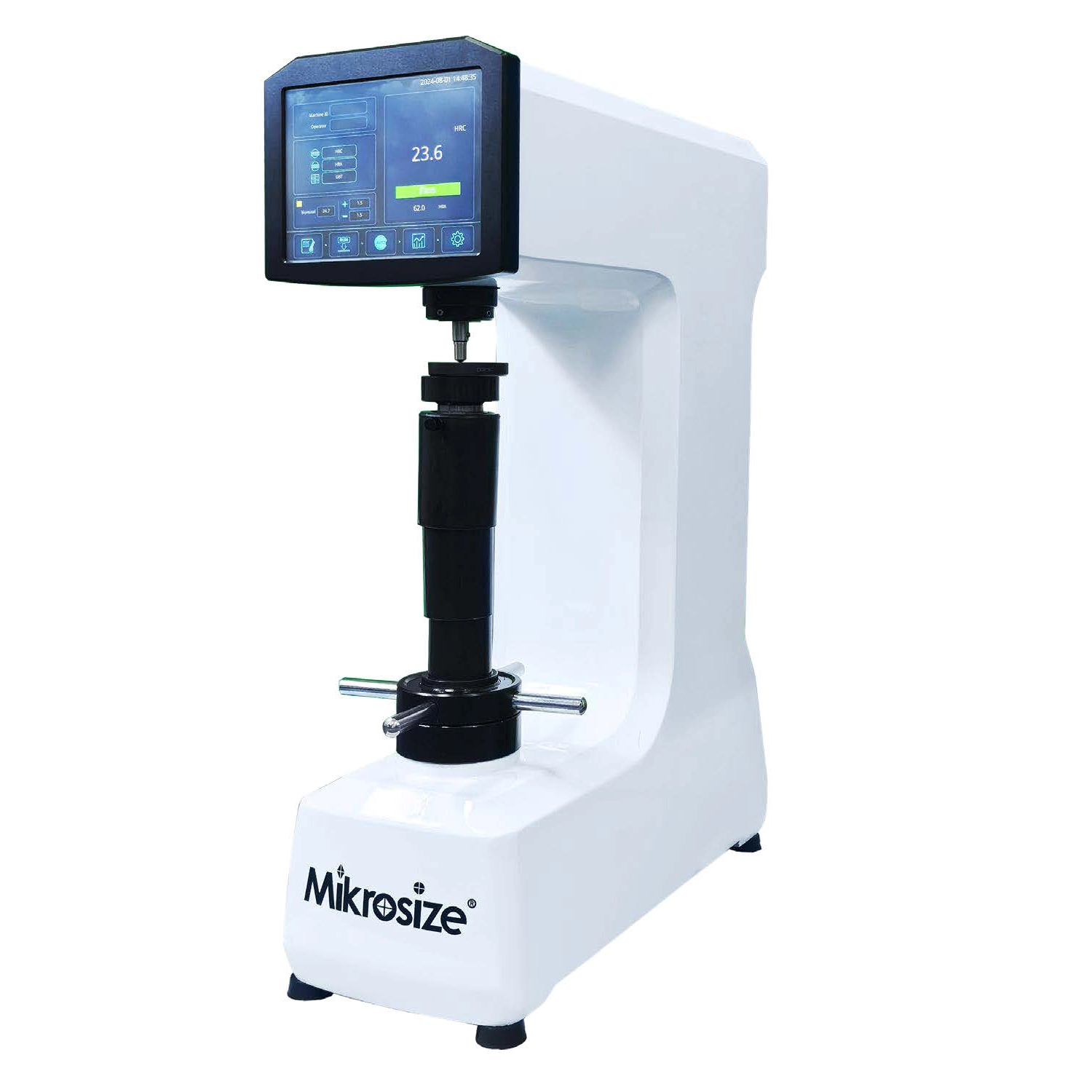

iRocky-150CL Touch Screen Rockwell Hardness Tester

Product Feature：

●It adopts electronic loading test force instead of weight force, high precision and stable measurement value.

●It has a Bluetooth link to a computer that analyzes and manages the data through dedicated hardness software;

●It has eight-inch touch screen operation and display, humanized operation interface;

●It has a touch screen to select a variety of Rockwell hardness scales, HV, HB and many other hardness scales can be converted;

●It has a simple operation interface, humanized interface to set parameters, and the host computer independently stores 500 groups of data.

Product Application：

●Suitable for Rockwell hardness measurement of quenched, tempered and other heat-treated metal parts;

Product Description

Technical Specification：

Model	iRocky-150CL
Test Force	60kgf, 100kgf, 150kgf
Test Range	Rockwell: 20-95HRA, 10-100HRB, 10-70HRC
Indenter Specification	Diamond Rockwell Indenter, Φ1.588mm Ball Indenter
Test Force Application	Automatic(Loading/Dwelling/Unloading)
Hardness Reading	Touch Screen Showing
Hardness Scale	HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Conversion Scale	HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Resolution	0.1HR
Test Height	230mm
Test Throat	170mm
Power Supply	AC110/220V, 50-60Hz AC
Executive Standards	GB/T 230.2
Machine Dimension	475200700mm

Packing List：

Name	Quantity	Name	Quantity
Machine Mainframe	1 Set	Diamond Indenter	1 PC
Φ1.588mm Ball Indenter	1 PC	Standard Hardness Block 20~30 HRC	1 PC
Standard Hardness Block 60~62 HRC	1 PC	Standard Hardness Block 40~50 HRC	1 PC
Standard Hardness Block 80~88HRC	1 PC	Standard Hardness Block 90~95 HRB	1 PC
Φ60mm Flat Anvil	1 PC	Φ150mm Flat Anvil	1 PC
Φ40mm V-Shape Anvil	1 PC	Power Cord	1 PC
Mini-Printer	1 PC	Power Supply Adapter	1 PC
Screwdriver	2 PCS	Anti-dust Cover	1 PC
Instruction Manual	1 Copy	Product Certificate, Warranty Card	1 PC ea.
