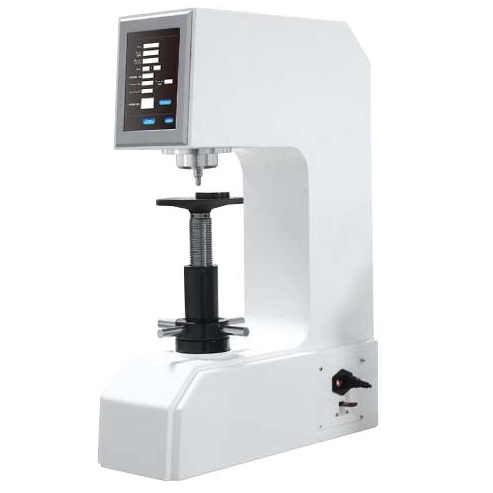

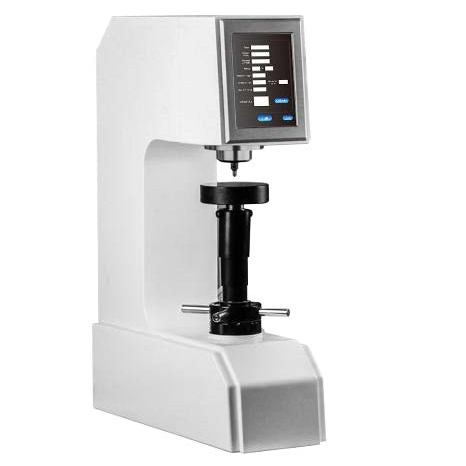

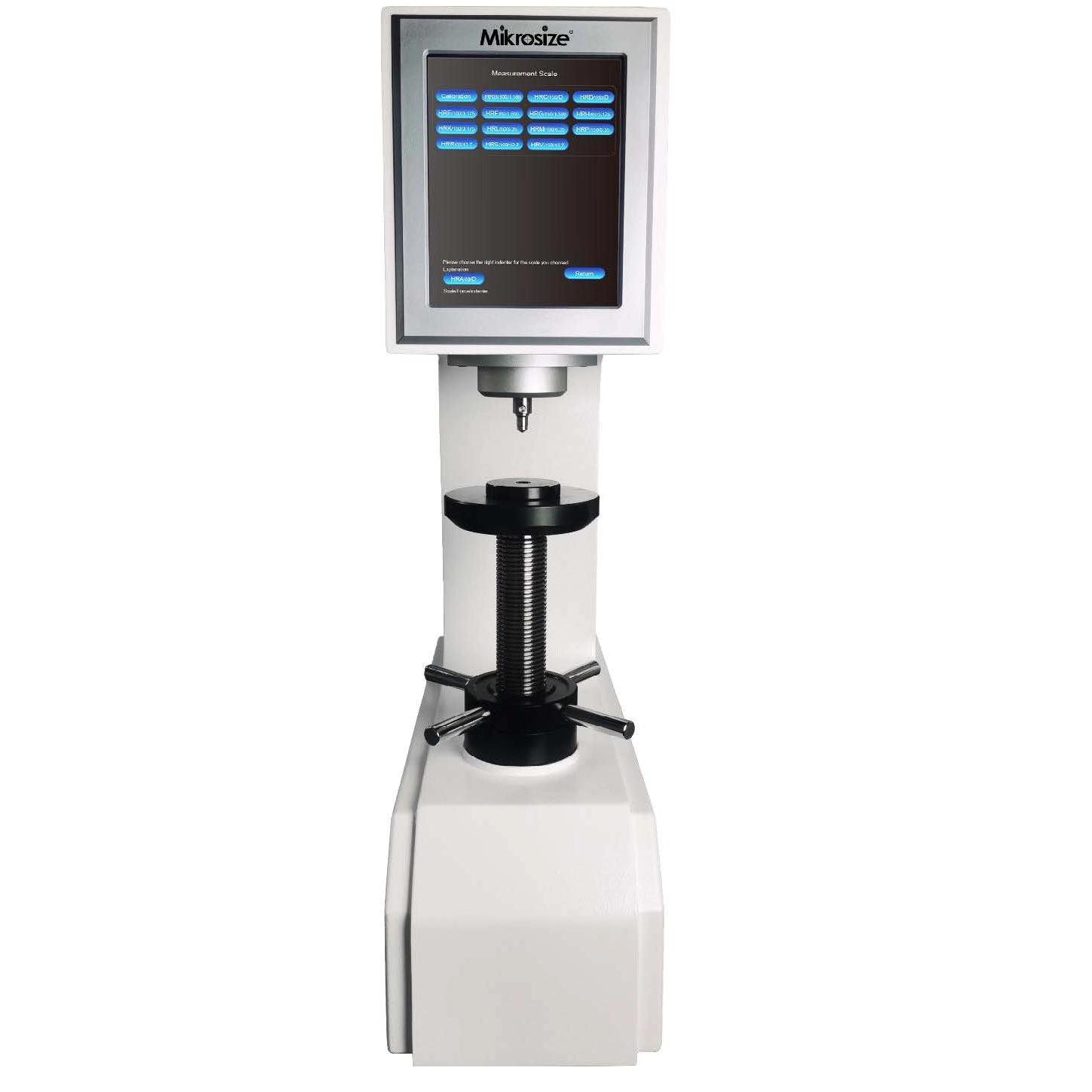

uRocky-45
Mikrosize
Product Description
Product Feature

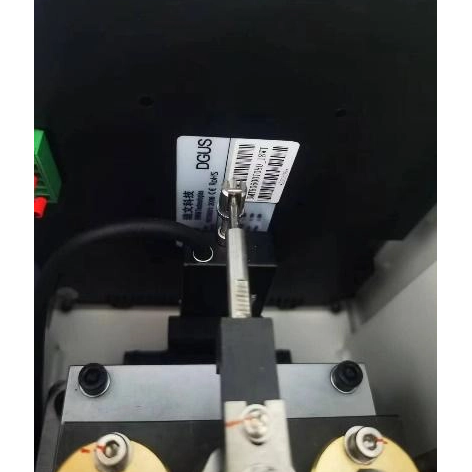

●uRocky-45CL Close loop system, high accuracy load cell instead of dead weights

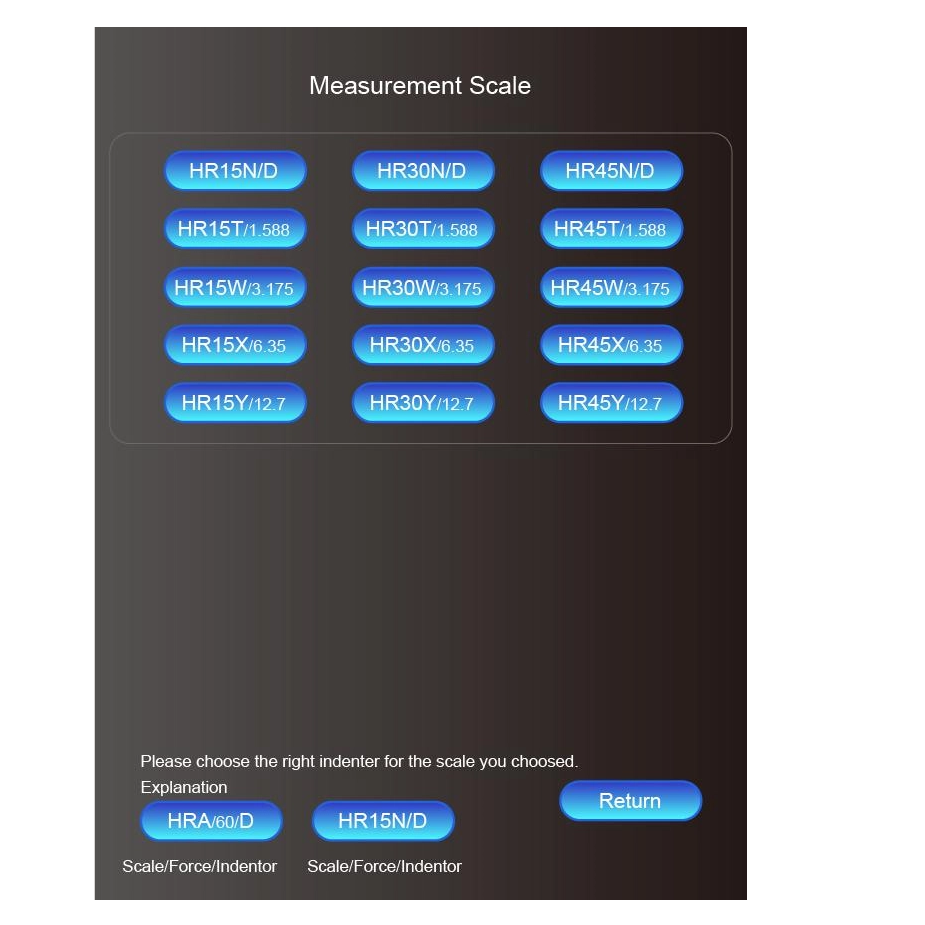

●8’’ inch touch screen interface for user directly select the hardness scale and test force and displays hardness value, conversion scale, test force, dwell time, etc.
●Automatic correction of high, medium and low hardness numbers
●Automatically apply the initial test force and the main test force.
●Automatic testing process: Automatic loading - Dwell - Unloading, and automatic display hardness value.
●Curve display: test force, displacement depth change curve, real-time test force value curve .
●Powerful data processing function, including: HR, HB, HV and other hardness scale conversion,
●Qualified range can be set, automatic alarm over the limit, tester’s name, sample name and other information can be input,.
●With USB interface, test data can be saved in U-flash directly in Excel format. easy to edit and process.
●Indenter protective device for optional purchase (testing sample size should over 15mm)
Technical Specification
Model | uRocky-45WL | uRocky-45CL |
Loading Method | Weights Loading | Closed Loop |
Initial Test Torce | 3.0Kgf(29.4N) | |
Main Test Torce | 15kgf(147.1N) 30kgf(294.2N) 45kgf(441.3N) | |
Hardness Scale | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y | |
Conversion scale | HRA, HRB, HRC, HRD, HRE, HRF, HV, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | |
Rockwell Test Range | HR15N:70-94 HR30N:42-86 HR45N:20-77 HR15T:67-93 HR30T:29-82 HR45TW:10-72 | |
Executive Standards | BSEN 6508, ISO 6508, ASTM E18, GB/T230 | |
Dwell time | 0-99s | |
Hardness Resolution | 0.1 HR | |
Error of Test Force | < 1% | |
Data Reading | LCD Touch Screen | |
Data Output | USB-flash in Excel Format | |
Conversion Scale | Rockwell, Brinell and Vickers | |
Test Height | 220mm | |
Test Throat | 200mm | |
Machine Dimensions | 560 * 220 * 750 mm | |
Net Weight | 70kg | |
Gross Weight & Packing Size | 780x470x940mm / 90kg | |
Power Supply | AC220 + 5%, 50 ~ 60 HZ | |
Packing List
Name | Quantity | Name | Quantity |

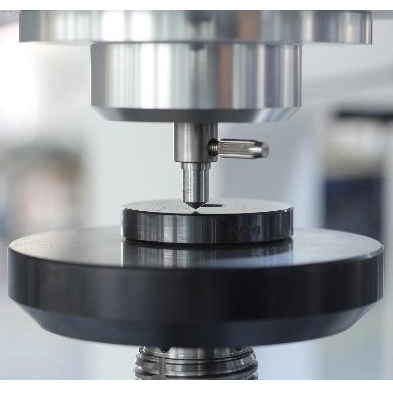

Diamond Rockwell Indenter | 1 | 1.5875 mm Ball Indenter | 1 |
Regulating Screw | 4 | 150mm Test Anvil | 1 |
HR15N Hardness Block | 1 | 55mm Test Anvil | 1 |
HR30N Hardness Block | 1 | 40mm V-type Test Anvil | 1 |
HR30T Hardness Block | 1 | Dust-proof Plastic Cover | 1 |
Power Line | 1 | Instruction Manual | 1 Copy |
USB Flash Disk | 1 | Product Certificate | 1 Copy |
Touch Pen | 1 | 2A Fuse | 2 |
