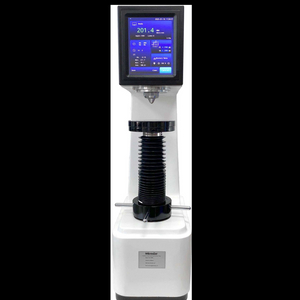

uBrin-3000E Electronic Touch Screen Brinell Hardness Tester

Product Feature
uBrin-3000E
●Touch screen panel, menu structure, easy for operation.
●Closed-loop control, with high accuracy load cell, test force from 62.5kgf to 3000kgf,high repeatability and stability, easy installation and calibration.
●20x portable brinell indentation measurement microscope.
●Automatic load - dwell - unload main test force..
●Based on depth measurement method to fast determination of hardness, directly display brinell hardness value on touch screen after make an indentation.
●For 500 -- 3000 kg, the accuracy of the force is less than 0.5%.

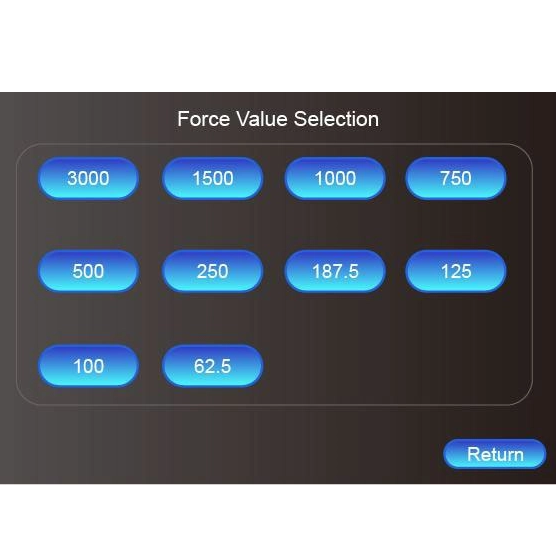

●The test force is directly selected, and the force value is automatically changed in the test parameters.
●The minimum measurement time less than 15s, high working efficiency.

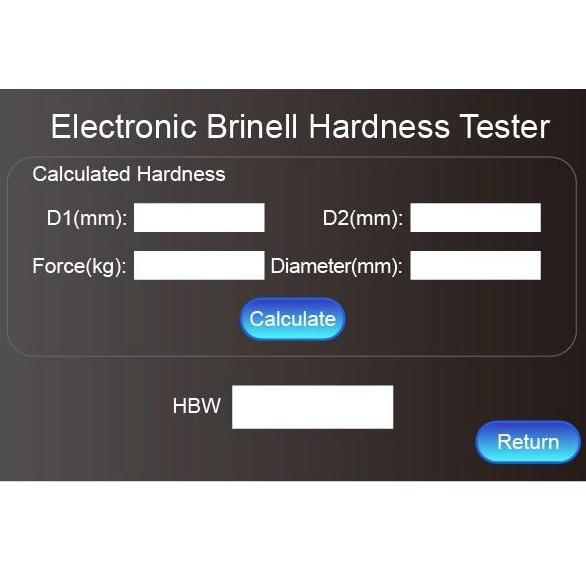

●Built-in hardness value calculation system, after the end of hardness measurement, input the values of D1 and D2, no need to check hardness calculating table.

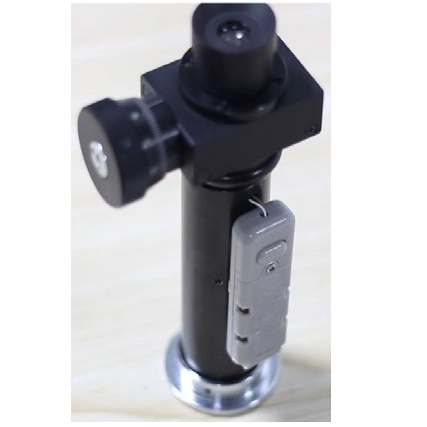

●Included: BRM-3 brinell reading microscope with light source is specially used for measuring the indentation size of Brinell hardness. Its own light source ensures that the indentation image and scale line are super clear in the environment with no light, makes indention measurement is easy and accurate.
● High accuracy, much better than ASTM E-10-08 and GB/T231.2 required accuracy.
uBrin-3000EV

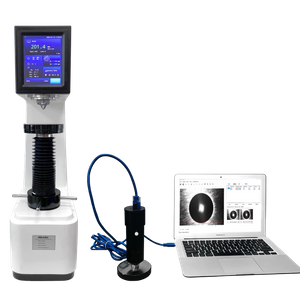

●Based on uBrin-3000E, uBrin-3000EV is equipped with uVision-PB Portable Automatic Brinell Hardness Measurement System
●Automatic process by software to get hardness value display
●With all brinell hardness software function including hardness conversion etc.
● Easy to save test result in computer.

uBrin-3000E Technical Specification

Standard Accessories
