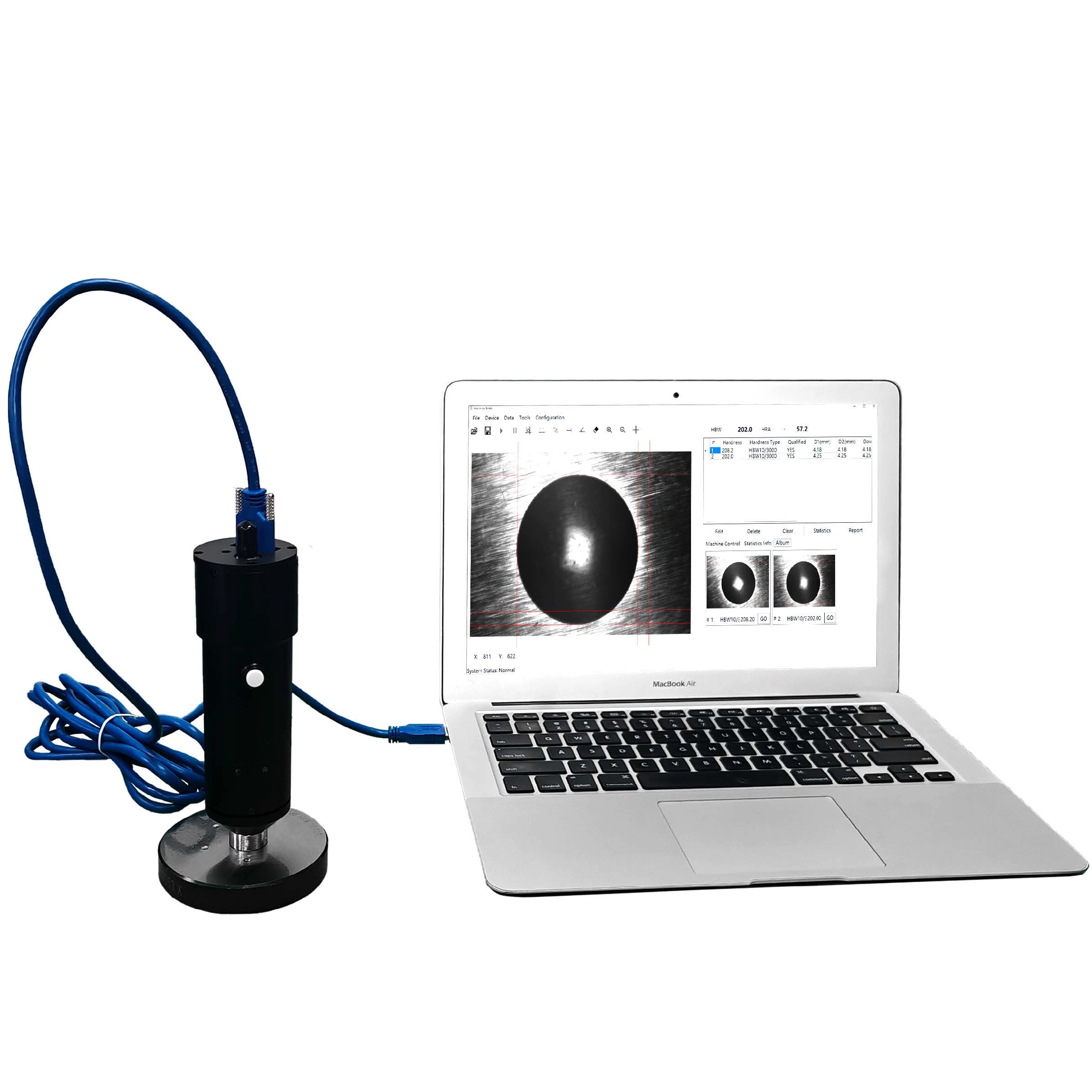

uVision-PB Portable Brinell Hardness Testing System

Product Feature：

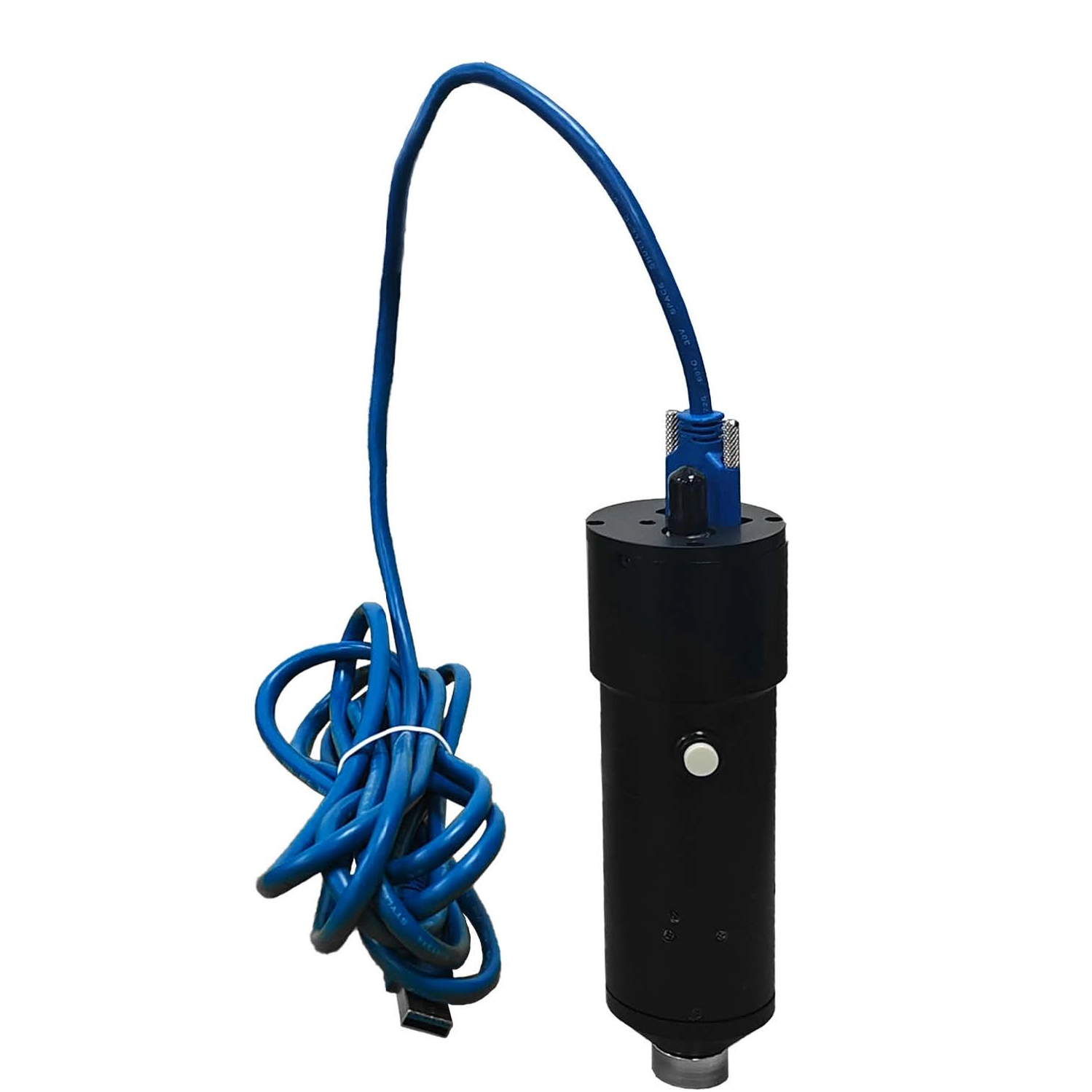

● Portability design: The system features a compact and exquisite structural design. It is easy to install and has an intuitive operation,fully meeting the convenient usage requirements in mobile scenarios；
● Professional optical system: By precise optical imaging technology,it can clearly present the contour of the Brinell indentation image, ensuring the accuracy of the measurement；

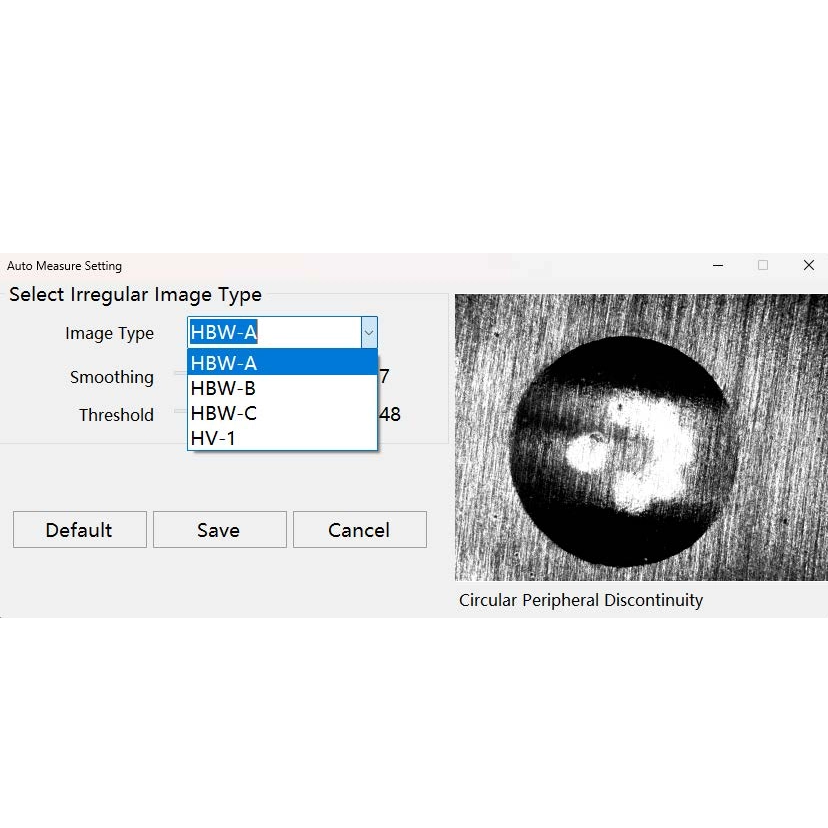

● Intelligent Image Analysis: By integrating three algorithms of shape recognition, brightness analysis, and edge computing, the accuracy of measurement results is significantly enhanced；
● Standard sample part testing supports both manual and automatic measurement: It is equipped with a one - click automatic measurement function, which simplifies the operation process and enables non - professionals to get started quickly. Manual measurement and adjustment are also supported；
● The brightness, contrast, and lighting system are adjustable.Parameters can be saved separately and input according to different sample surfaces；
● Multi - scenario applicability: Compatible with both laboratory -level precision inspection and rapid quality inspection in industrial sites；

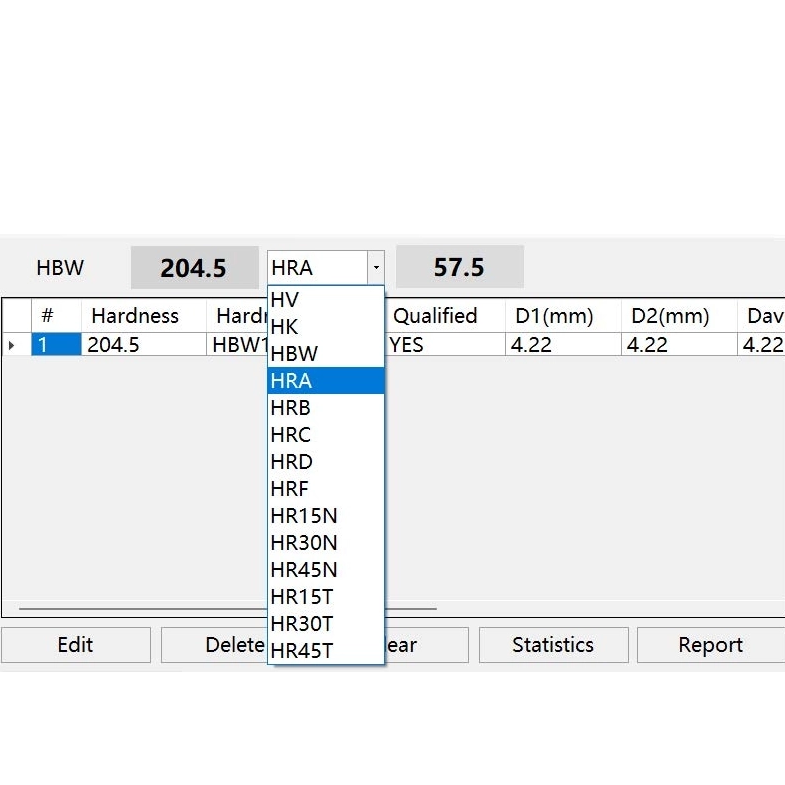

● Hardness conversion: Automatically conduct conversions among various hardness scales such as Brinell, Rockwell, and Vickers；

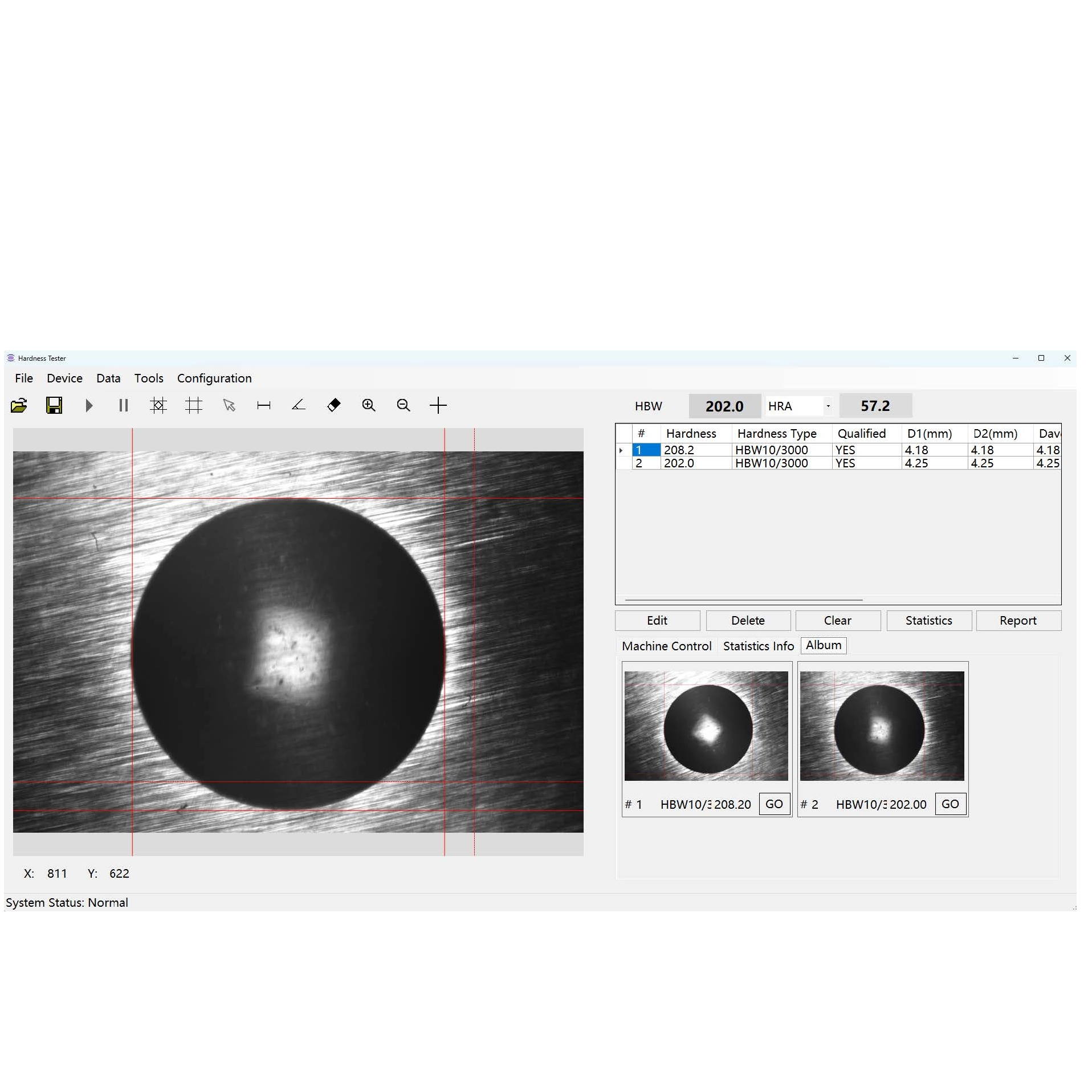

● Real - time display of hardness indentation images, with the ability to store and print the images；
● Automatically record measuring data. Reports can be generated according to user - customized requirements and are supported in multiple formats；

Product Application：

● Industrial Manufacturing and On - site Quality Control.It is applicable to scenarios such as foundries, forging workshops,and machining factories. It can quickly test the hardness of materialslike cast iron, steel, non - ferrous metals, and alloys;
● Laboratory Material Research and Standardized Testing.It is used in scenarios such as hardness comparison experiments of metal materials and R & D testing of new alloys;
● Inspection of Large - scale Workpieces and Infrastructure.Particularly suitable for in - situ inspection of large - scale castings and forgings, pipelines, and pressure vessels in scenarios such as power plants and steel mills.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

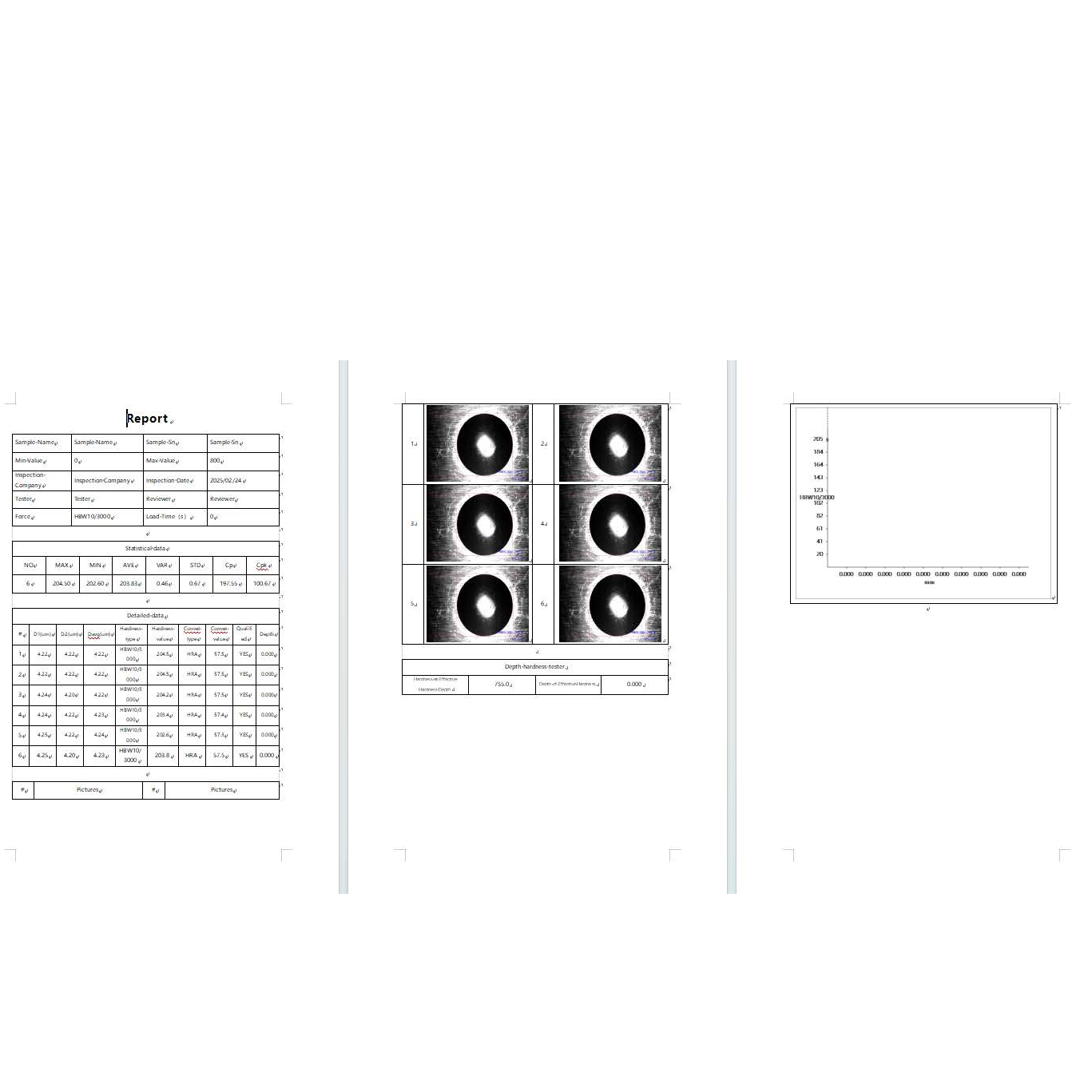

Report Output：

Model	uVision-PB
Application Brinell indentor	1mm/2.5mm/5mm/10mm
Brinell Hardness Scale	HBW1/1、HBW1/2.5、HBW1/5、HBW1/10、HBW1/30、 HBW2.5/6.25、HBW2.5/15.625、HBW2.5/31.25、HBW2.5/62.5、 HBW2.5/187.5、HBW5/25、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000 、HBW10/1500、HBW10/3000
Executive Standards	BSEN 6506、IS0 6506、ASTM E10、GB/T 231
Measuring Range	15.9-650HBW(ASTM E10 Recommended Effective Hardness Value）
Indention Diameter Range	0.6-6mm
Measurement Resolution	0.0001 mm
Hardness Resolution	0.1 HBW
Digital lmaging	6.3 Mega Pixel Industrial-grade Digital Camera
Measuring Way	Manual And Automatic Measurement (For Standard Samples)
Calibration Method	Standard Hardness Block/length Scale
Support Language	English (Optional Other Languages)
Power Supply	USB Power Supply
Dimension	170x54x54mm
Weight	500g

Standard Delivery：

Item	Qty
Portable Measuring Head	1 set
USB Flash Drive (Software Included)	1 pc
Brinell Hardness Block HB10/3000	1 pc
Dongle	1 pc
Instruction Manual	1 copy
Warranty Card	1 copy
Product Certifcate	1 copy
