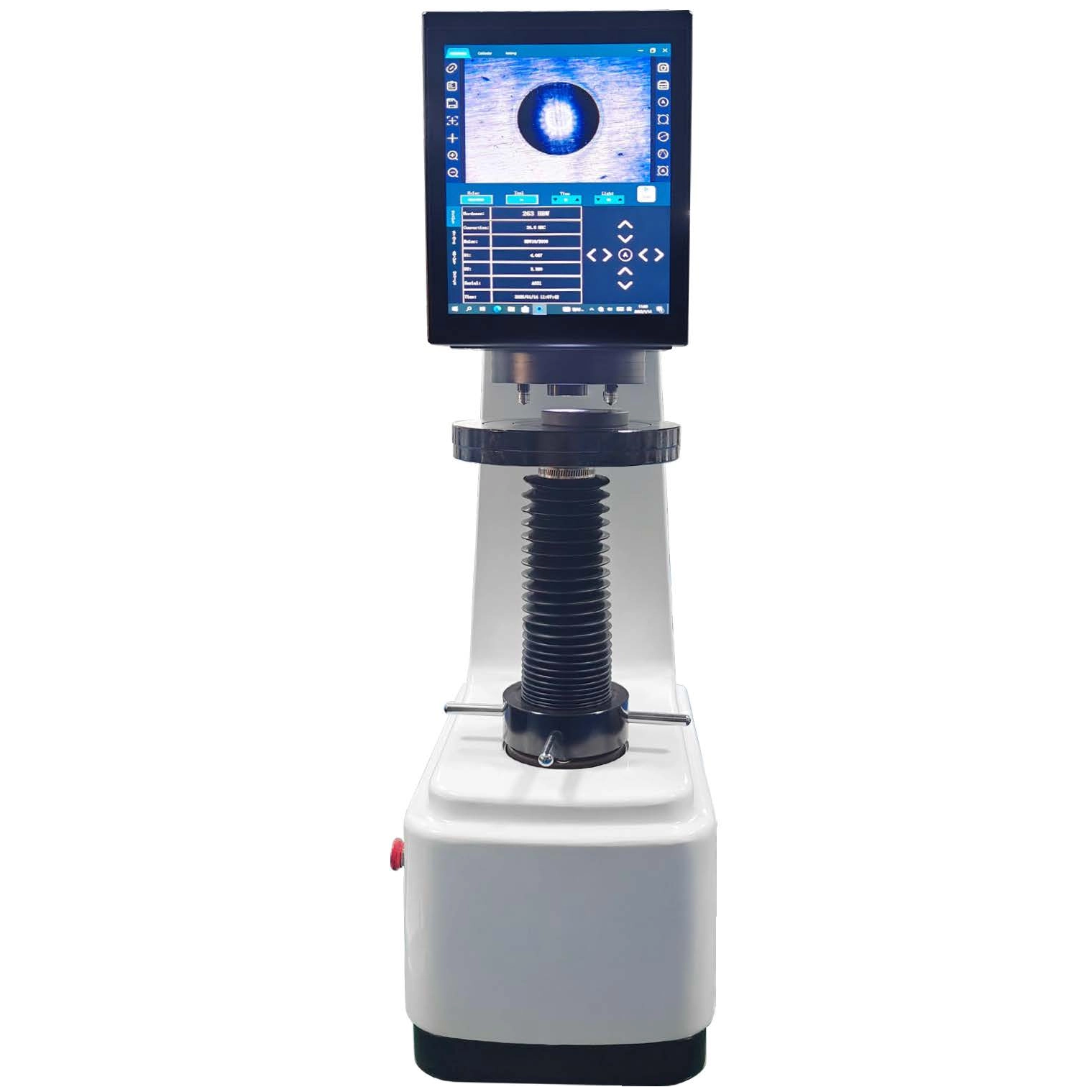

MBrin-3000SA Intelligent Semi-auto Brinell Hardness Tester

Product Feature：

lElectronic weight loading, ready to use after turning on the device.
l12.1 - inch touch screen for convenient and simple operation

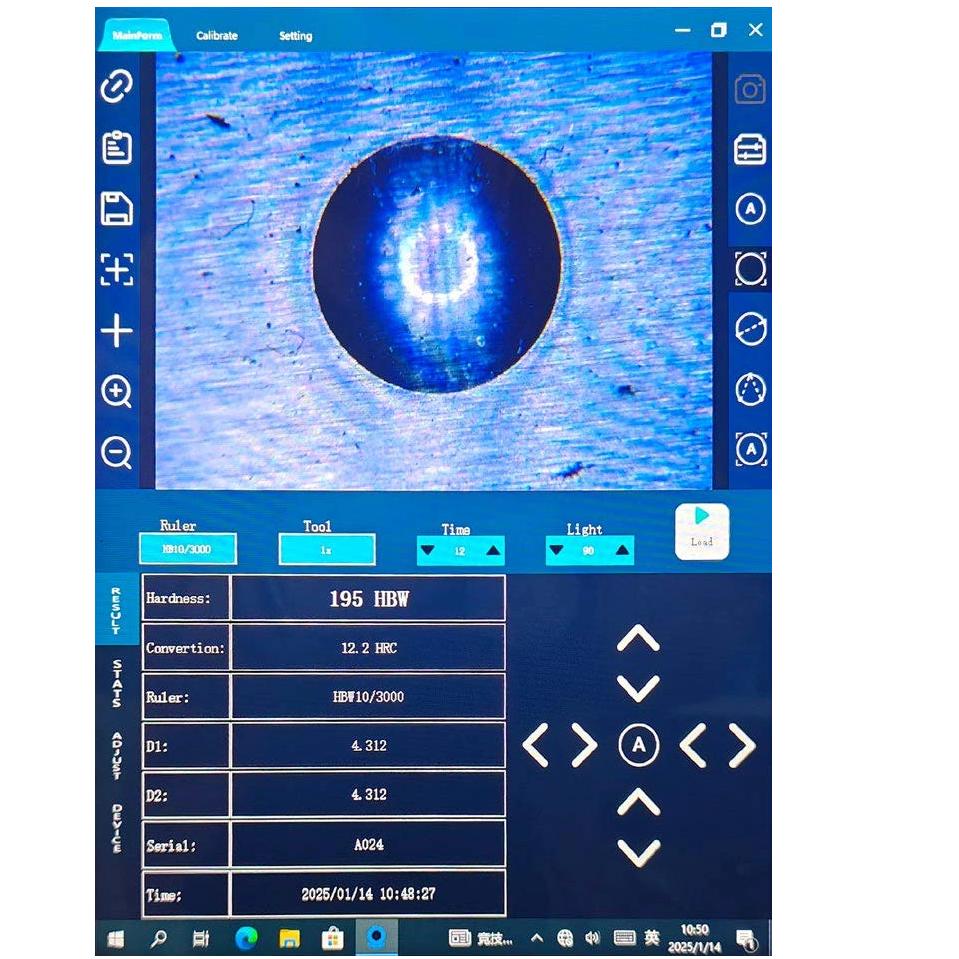

lDirect capture of indentation images by CMOS.
l11 levels of test force and 15 Brinell hardness test scales for arbitrary selection.
lAutomatic turret with 3 sets of ball indenters installed at the same time, all of which can automatically participate in the test.
lTwo groups of objectives and indenters are installed on the same turret and can both participate in the measurement of indentation diameter.
lAutomatic switching of objectives and indenters according to the selected scale.
lFunctions of presetting the holding time of test force and adjusting the intensity of the light source for measuring indentation.
lReal - time display of loading time.
lDisplay of measurement indentation length, hardness value, number of measurements, etc.
lConversion of test results between various hardness scales
lPrintable output of hardness test results
lEquipped with multiple communication interfaces: USB, RS232, WLAN, RJ45LAN
Product Applications：
lIn the mechanical processing process, the Brinell hardness tester can be used to detect the hardness of raw materials to select appropriate processing technology and tools.
lIt can be used to detect the hardness of mechanical components (such as gears, bearings, bolts, etc.) to ensure that they meet the design requirements and service performance.
lIt can be used to detect the hardness of forgings to judge the effect of the forging process and the quality of forgings

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Parameters：

Name	Semi - automatic Brinell Hardness Tester (3 indenters and 2 objectives)
Model
Test Force	31.25kg、62.5kg、100kg、125kg、187.5kg、250kg、500kg、750kg、1000kg、1500kg、3000kg
Test Force	306.45N、612.9N、980.7N、1226N、1839N、2452N、4903N、7355N、9807N、14710N、29420N
Test Scale	HBW2.5/31.25、HBW2.5/62.5、HBW2.5/187.5、 HBW5/31.25、HBW5/62.5、HBW5/125、HBW5/250、HBW5/750、 HBW10/100、HBW10/125、HBW10/250、HBW10/500、HBW10/1000、HBW10/1500、HBW10/3000
Scale Conversion	HRA、HRB、HRC、HRD、HS、HV、HB、HR15N、HR30N、HR45N
Measurement Range	8~650HBW
Loading Method	Automatic loading, holding and unloading
Maximum Allowed Height of Specimen	280mm
Distance from Indenter Center to Machine Wall	200mm
Main Test Force Loading Time	5~8s
Holding Time	0~99s
Indenter and Objective Conversion	Automatic
Objective Magnification	1X、2X
Camera Magnification	20X
Total Magnification	20X、40X
Indenter Diameter (mm)	Φ2.5、Φ5、Φ10
Repeatability of Indentation Image Measurement	Repeatability reaches ±0.8%
Data Display Mode	12.1 - inch industrial touch screen
Data Output	Output reports in WORD and EXCEL formats, and can be printed
Light Source	LED
Communication Interface	USB、RJ45LAN、WLAN、RS232
Overall Dimensions (LxWxH) mm	1000595350
Power Supply Voltage	AC220V/110V±5%，50~60Hz
Weight	210KG

Standard Configuration：

Name	Quantity
Hardness Tester Host	1 set
Φ2.5mm Brinell Indenter	1个
Φ5mm Brinell Indenter	1个
Φ10mm Brinell Indenter	1个
Φ2.5mm、Φ5mm、Φ10mm Cemented Carbide Balls	3 pieces
Φ230mm Platform	1 piece
Φ78mm Platform	1piece
60*90mm V-shaped Test Bench	1piece
Hardness Block（150~250）HBW10/3000	1 piece
Hardness Block（80~110）HBW10/1000	1piece
USB Disk Software	1piece
Encryption Dog	1piece
Dust Cover	1piece
Hexagon Wrench	1piece
Power Cord	1piece
Fuse	2pieces
Product Qualification Certificate	1copy
Product Instruction Manual	1book

Optional Accessories：

Cemented Carbide Balls

All Kinds of Worktables

Various Hardness Blocks

Internal Parts of the Machine

Various Indenters
