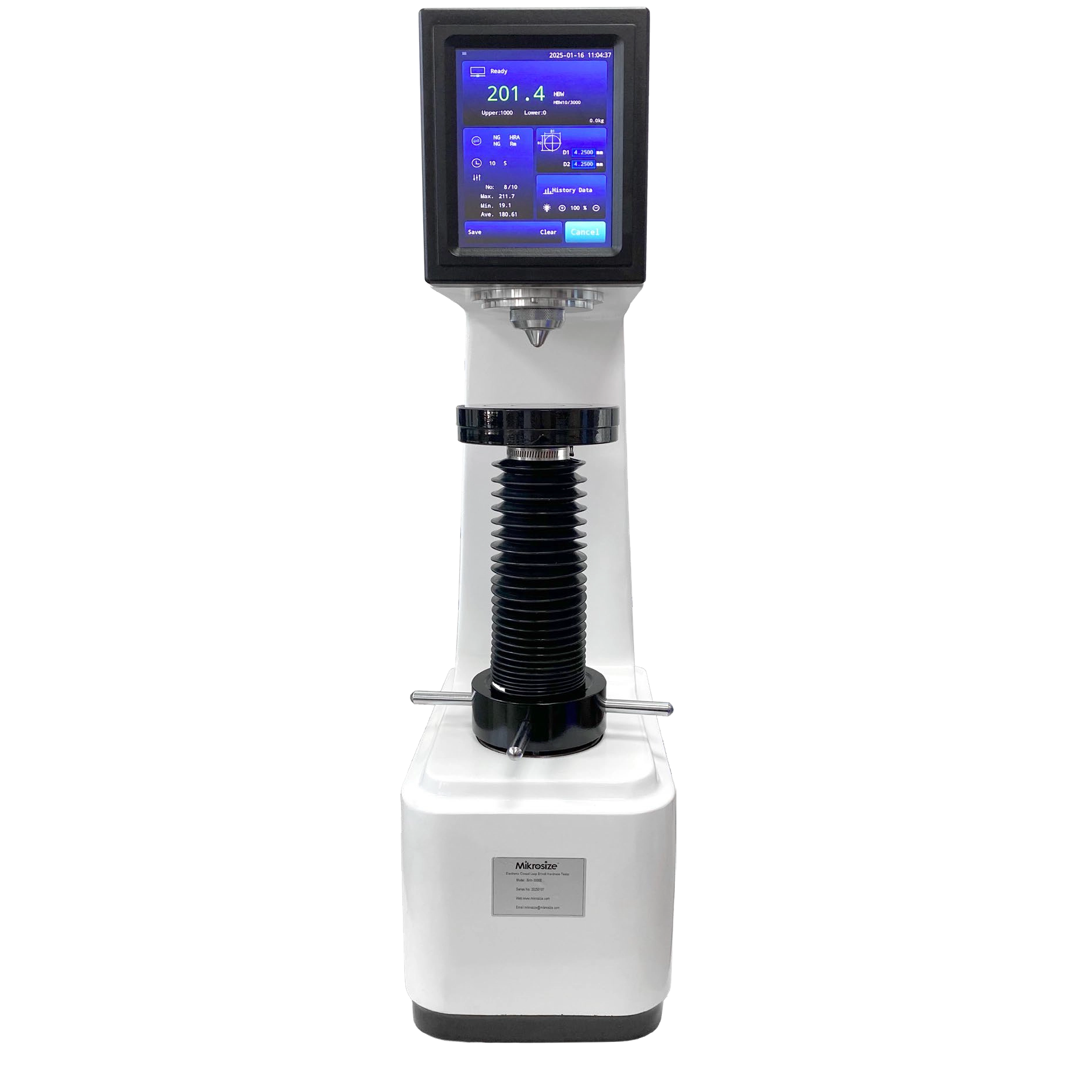

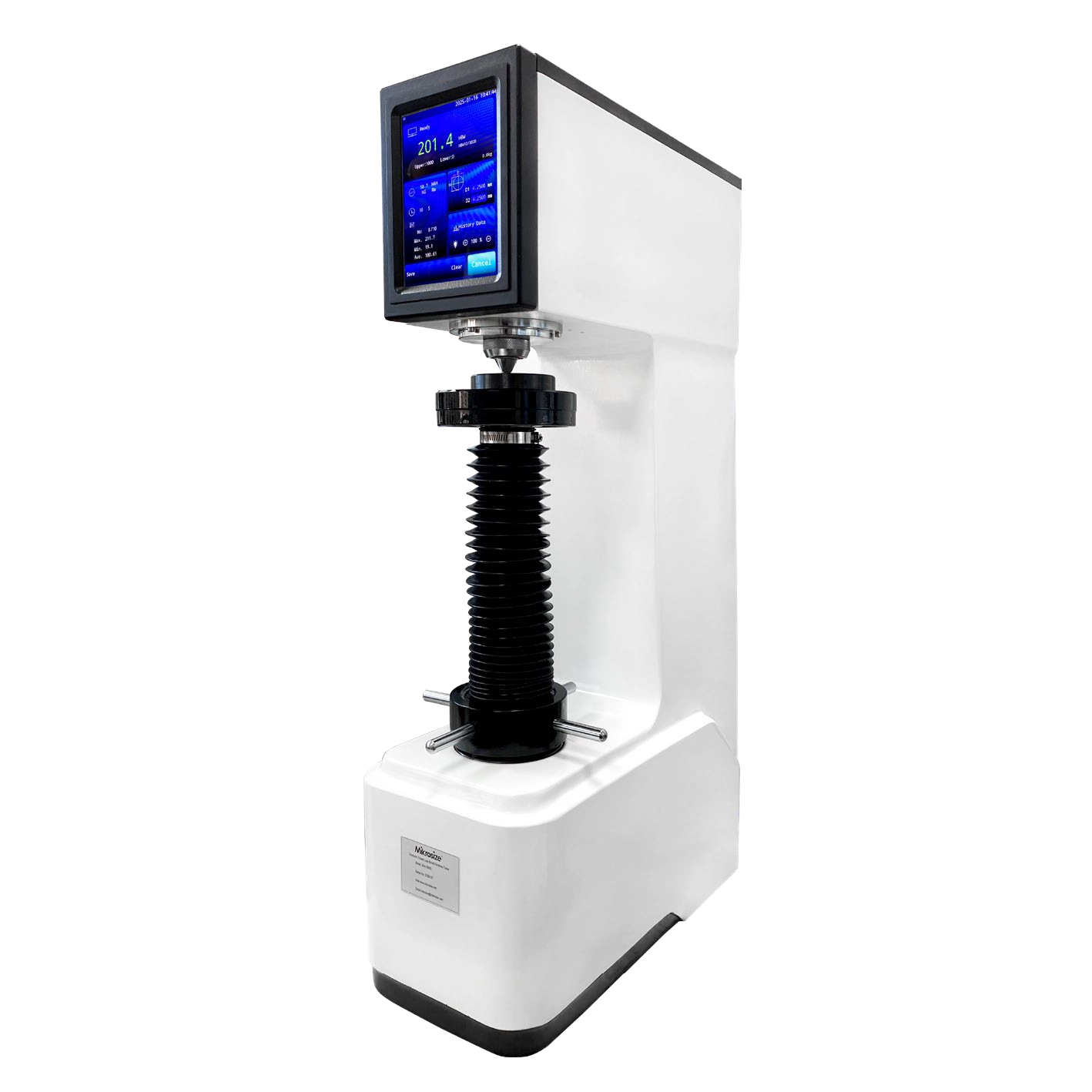

iBrin-3000EV Electronic Touch Screen Vision Brinell Hardness Tester

Product Feature：
●Closed loop loading with high-precision load cell and single - chip microcomputer control ensure precise automatic loading and unloading, guaranteeing reliable test results.
●Variety of test force levels, ranging from 0.613 KN to 29.42 KN, meeting the hardness testing requirements for different materials.

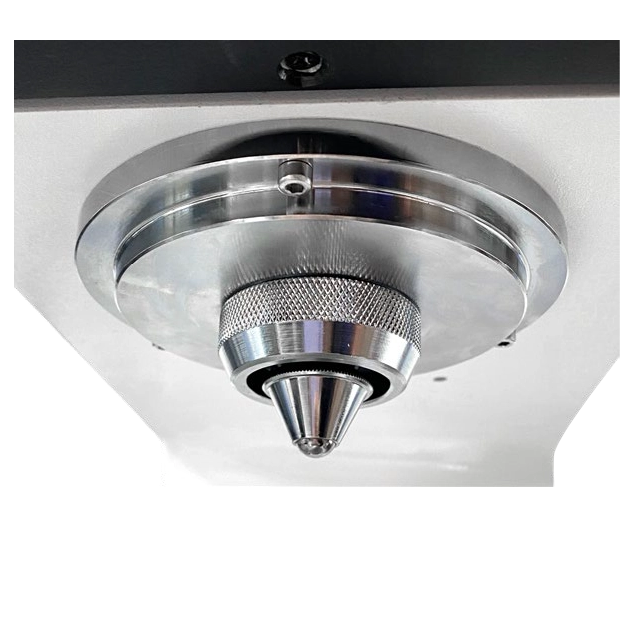

●2.5mm,5mm,10mm three carbide brinell ball indenters
●The test force dwelling time can be flexibly adjusted from 1 to 99 seconds, adapting to the characteristics of various materials and testing standards.
●The maximum test height is 280mm, and test throat is 150mm, providing ample operating space.
●Instrument function on touch screen is clearly divided, operat- ing simple: data viewing, processing, and calibration can be easily completed.
●iBrin-3000E complies with standards such as GB/T231.2 - 2002 ensuring accuracy.
Product Application：
●iBrin-3000E brinell hardness tester is a bench - type ma- chine,which is used to test the brinell hardness of annealed and normalized workpieces, cast parts, non - ferrous metals, various relatively soft components, or unquenched steel parts.
●It is suitable for use in metrology, metal metallurgy, chemical industry, machinery manufacturing, industry, as well as scientific research institutions of universities and colleges.
●Accurately detect the hardness of annealed and normalized parts to control the quality of metal processing.
●Effectively measure the hardness of cast parts to ensure stable performance of products.
●Reliably test the hardness of non - ferrous metals to support the R & D and innovation of materials.
●Precisely measure the hardness of soft components to ensure a good fit during assembly.
●Quickly identify the hardness of unquenched steel parts to improve production efficiency.
