Product Feature:
●Uses electronic weight loading, equipped with high-precision sensors and measurement systems to ensure test result accuracy and reliability.
●Liquid crystal touch screen, simple and convenient operation and use.
●Fully automatic operation for test force application (loading/dwell/unloading).
●Equipped automatic turret simultaneously holds 2 objectives and 1 indenter, automatically switching between indenter and objectives.
●Supports display in 4 languages (including Chinese and English).
●Built-in thermal printer
●Equipped with RS232 and USB interfaces for connecting to computers and printers.
●Automatic input of indentation size after measurement, automatic output of hardness value.
●Adjustable light source.
Product Application:
●Soft metal material testing for materials with low hardness like pure aluminum, copper, lead, tin, zinc, and their alloys, where traditional hardness testing methods may struggle to provide accurate measurements, the small-load Brinell hardness tester can accurately reflect their hardness characteristics.
●For small-sized or complex-shaped parts, the small-load Brinell hardness tester allows convenient hardness testing without damaging or cutting the part
| Quantity: | |
|---|---|
Product Description
Technical Specification：

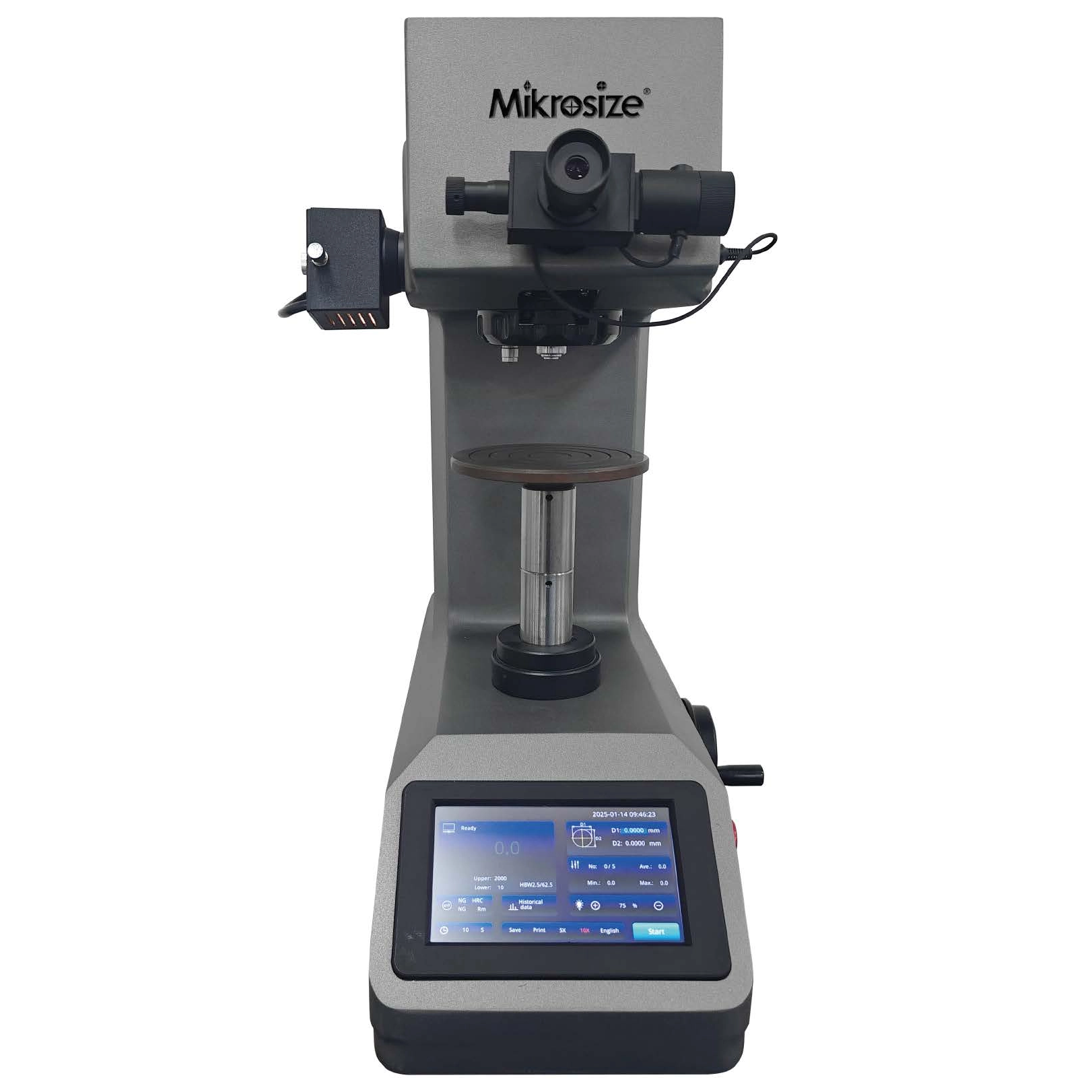

Name | Small-load Digital Brinell Hardness Tester |
Model | iBrin-62.5 |
Measuring Range | 8~650HBW |
Test Force | 1kgf、1.25kgf、2.5kgf、5kgf、6.25kgf、7.8125kgf、10kgf、15kgf、15.625kgf、20kgf、25kgf、30kgf、31.25kgf、62.5kgf |
Test Scales | HBW1/1、HBW1/1.25、HBW1/2.5、HBW1/5、HBW1/10、HBW1/15、HBW1/30 HBW2/20 HBW2.5/6.25、HBW2.5/7.8125、HBW2.5/15.625、HBW2.5/31.25、HBW2.5/62.5 HBW5/25、HBW5/31.25、HBW5/62.5 |
Scale Conversion | HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HS、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
Test Force App. & Ctrl. | Fully Automatic (Loading/Dwell/Unloading) |
Indenter & Obj. Switch | Automatic |
Indenter Size | Φ1mm, Φ2.5mm (Φ2mm, Φ5mm optional) |
Micrometer Eyepiece | 10X |
Objectives | 5X、10X |
Total Magnification | 50X、100X |
Max. Sample Height | 175mm |
Indenter Ctr. to Wall Dist. | 125mm |
Reading Method | Automatic input of indentation length; Hardness value displayed on LCD screen. |
Power Supply | AC220V，50Hz |
Dimensions (LxWxH) | 320mm*580mm*620mm |
Net Weight | 65KG |
Packing List：
Name | Quantity |
Small-load Brinell Hardness Tester | 1 |
10X Digital Micrometer Eyepiece | 1 |
Φ150mm Platform | 1 |
Φ58mm Platform | 1 |
Φ58mm V-Anvil | 1 |
Φ1mm Brinell Indenter | 1 |
Φ2.5mm Brinell Indenter | 1 |
Φ1mm, Φ2.5mm Tungsten Carbide Balls | 各1 |
Test Block 90~110HBW2.5/62.5 | 1 |
Test Block 85~105HBW1/10 | 1 |
Spirit Level | 1 |
Fuse | 2 |
Leveling Screws | 4 |
Hex Key | 1 |
Dust Cover | 1 |
Screwdriver | 1 |
Power Cord | 1 |
User Manual | 1 |
Certificate of Conformity | 1 |
Optional Delivery:
Tungsten Carbide Balls |
Various Work Stages |
Various Test Blocks |
Optional Internal Components |
Various Indenters |
