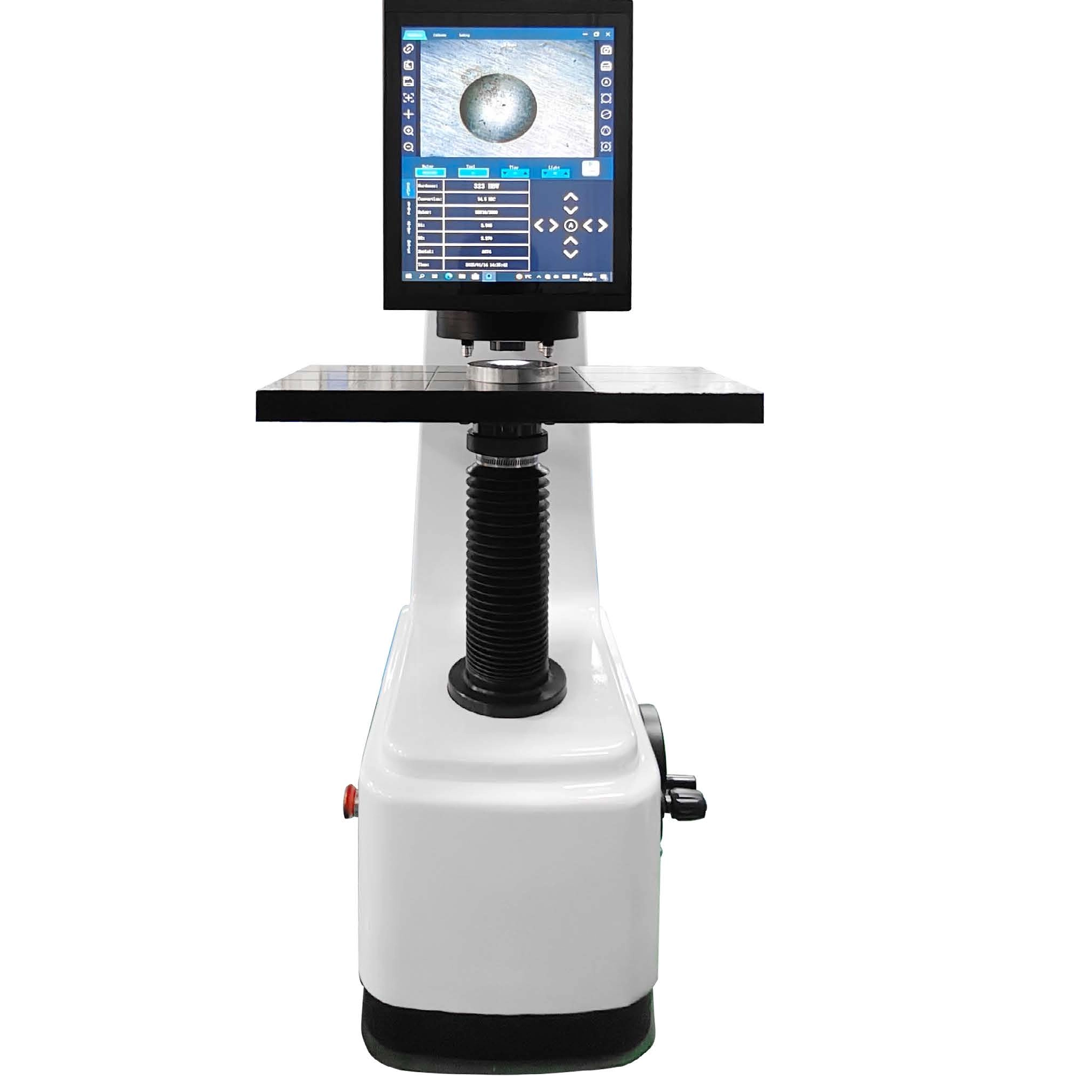

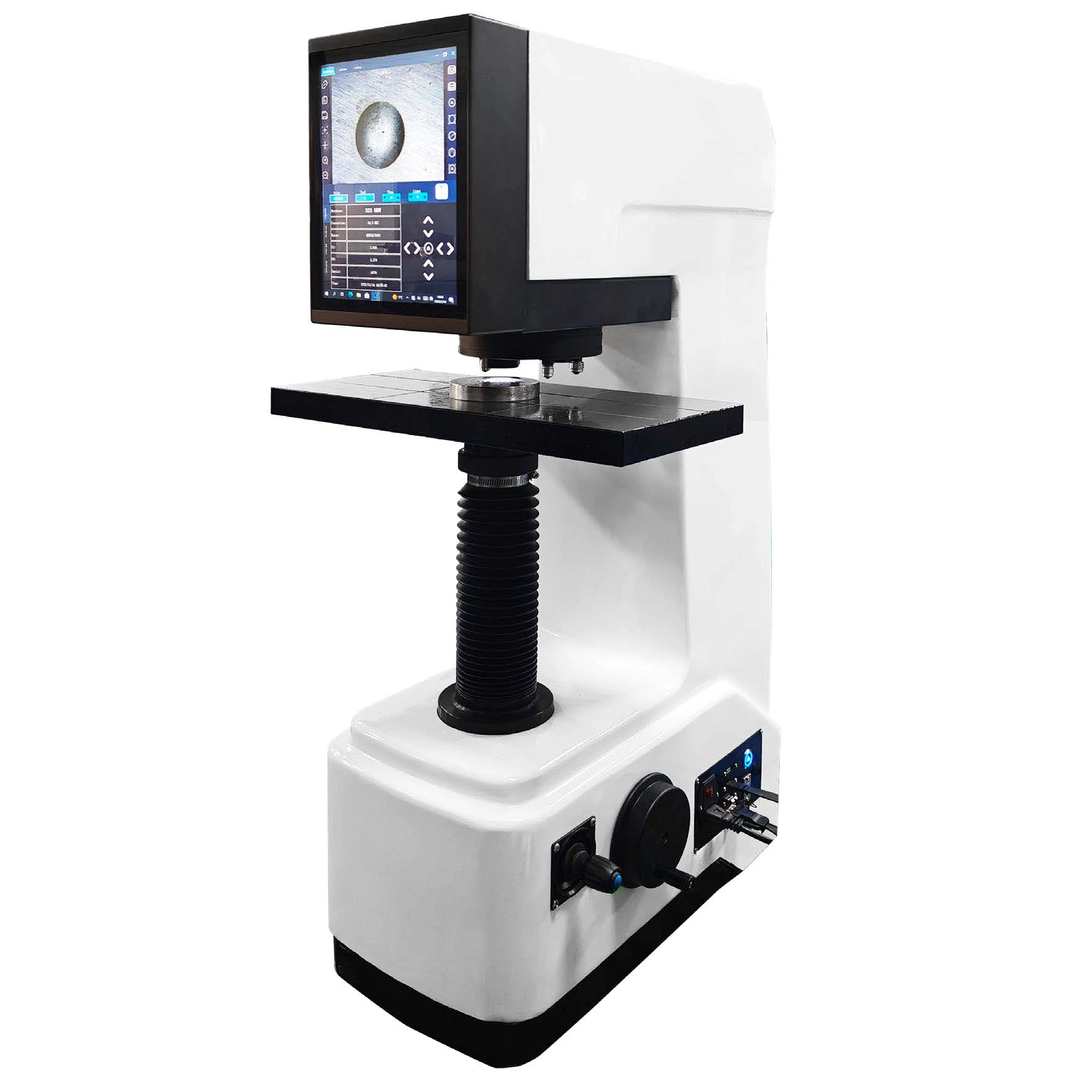

MBrin-3000A Intelligent Fully Automatic Brinell Hardness Tester

 Product Feature:
●Closed loop electronic loading ,no need to install dead weights

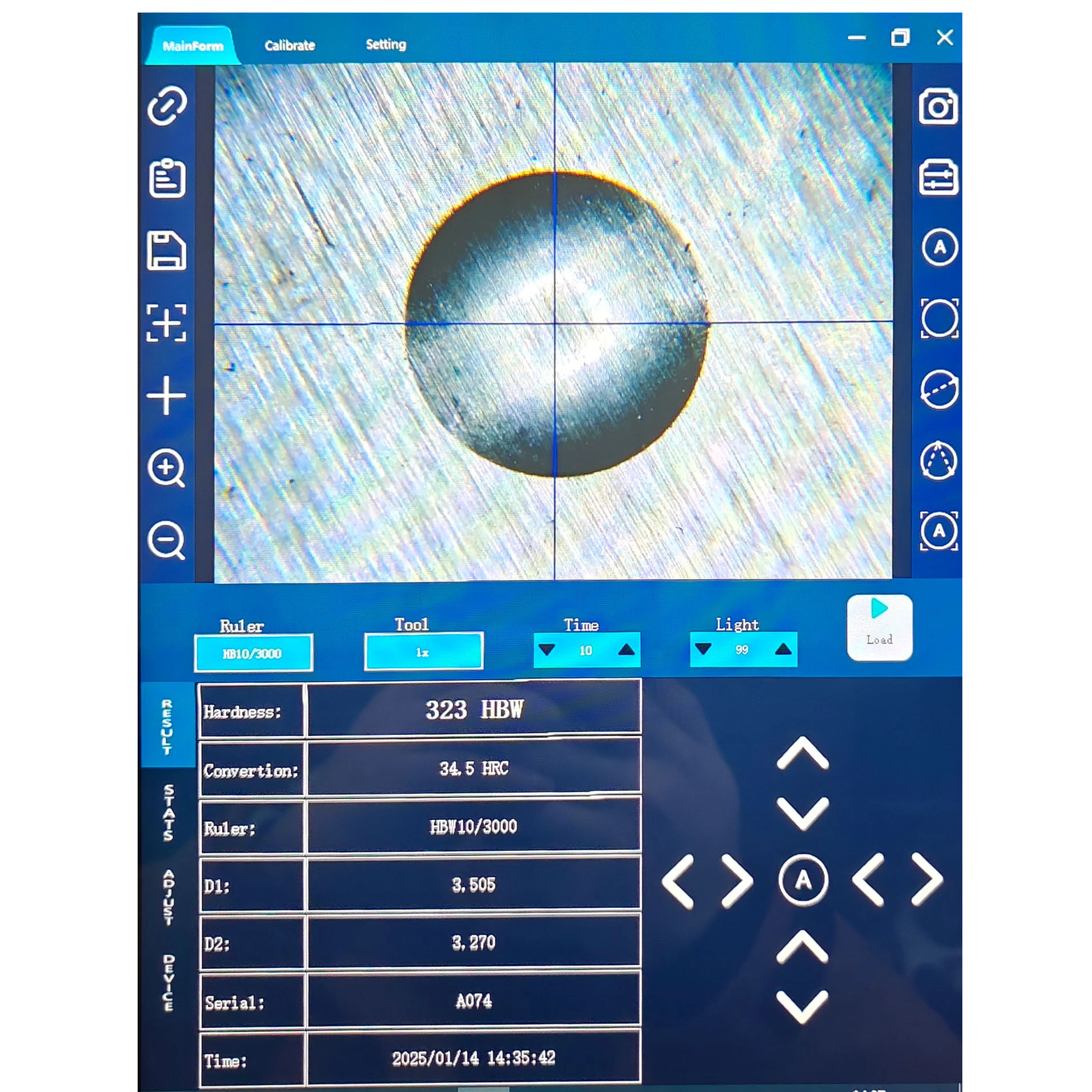

●12.1 inches Large touch screen, easy to use, simple to operate
●CMOS directly captures indentation image

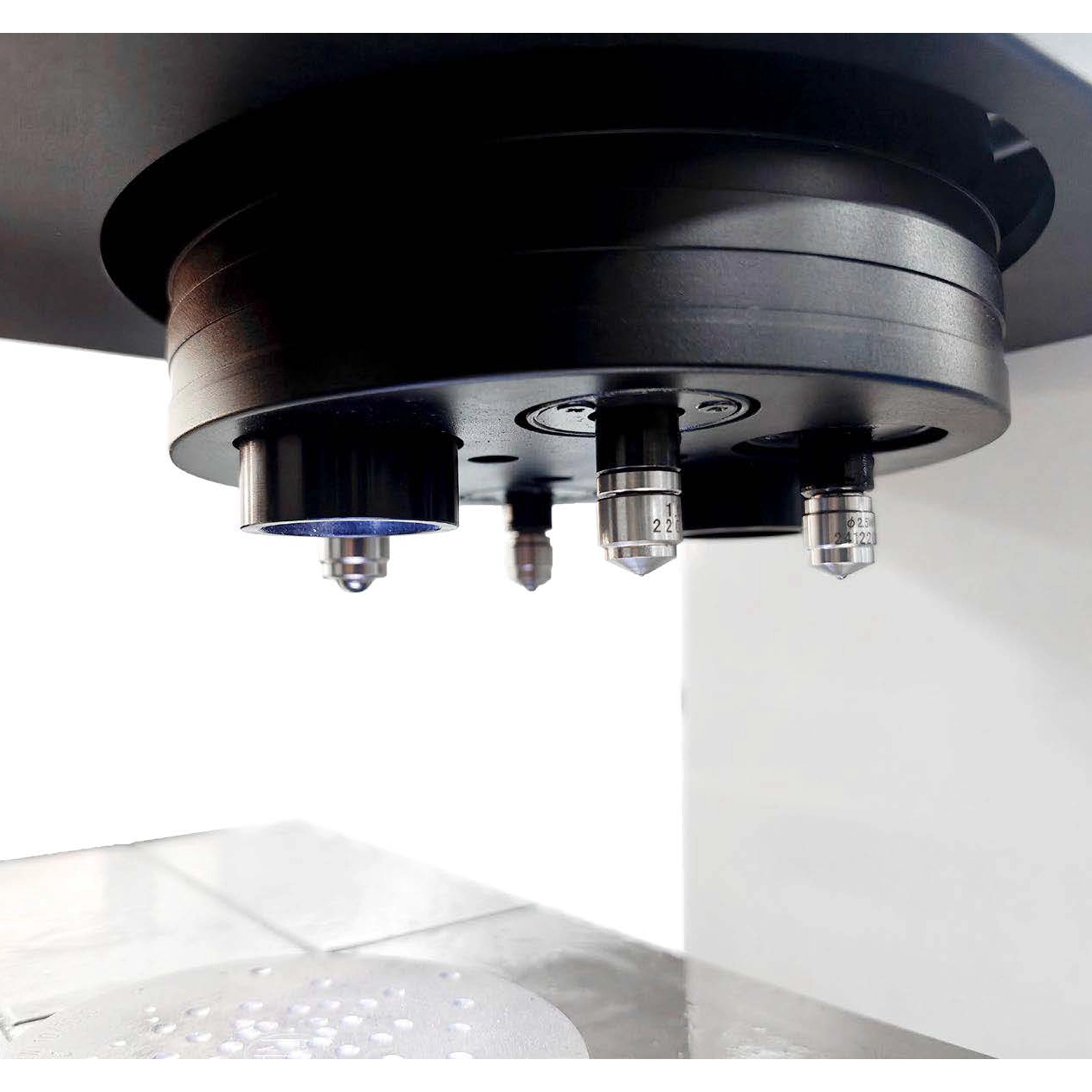

●4 Brinell indentors installed in turret for automatic brinell testing
●Two objective lens installed in turret for brinell indentionmeasurement.
●Automatic turret switching according to brinell hardness scale selection. 
●The brinell test forces dwelling time can be pre-set and the illumination for indentation measurement can be adjusted.
●Real time display of test force loading time.
●Display the measured indentation length, hardness value, measurement frequency, etc.
●The test results can be converted to various hardness scales.
●Built in printer for data output.
●With communication interfaces:USB、RS232、WLAN、RJ45LAN

 Product Application:
In the process of mechanical processing, Brinell hardness tester can be used to detect the hardness of raw materials, in order to select suitable processing technology and cutting tools.
Can be used to test the hardness of mechanical components such as gears, bearings, bolts, etc., to ensure that they meet design requirements and performance requirements.
Can be used to test the hardness of forgings to determine the effectiveness of forging processes and the quality of forgings

Availability:
Quantity:
  • MBrin-3000A

  • Mikrosize

  • MBrin-3000A

Product Description

Technical Specification

Name

Specification

Test Force

29.42N(30kg)  306.45N(31.25kg)  612.9N(62.5kg)、 980.7N(100kg)、 1226N(125kg)、1839N(187.5kg)、 2452N(250kg)、4903N(500kg)、 7355N(750kg)、 9807N(1000kg)、14710N(1500kg)、29420N(3000kg)

Hardness Scale

HB 10/3000、HB 10/1500、HB 10/1000、HB 5/750、HB 10/500、HBW 10/250、HB5/250、HB 2.5/187.5、 HB 10/125、HB5/125、HB10/100、HB 5/62.5、 HB2.5/62.5、HB5/31.25 、HB2.5/31.25、HB1/30

Test Range

8~650HBW

Loading Method

Working Stage Auto Lift up and down,  Loading , Dwelling, Unloading, Auto Measuring Indention

Test height

280mm

Test Throat

200mm

Main test force Laoding Time

5~8S

Dwelling Time

0-99S

Turret

Automatic

Machine Dimensions

230*600*920mm

Net Weight

130Kg

Objectives

1X、2X

Optical Path Conversion

Automatic

Indentor Size(mm)

Φ1、Φ2.5、Φ5、Φ10  four indetors installed in one turret

Working Mode

One-key Operating, CMOS  Measuring

 Brinell Indention Measuring

Automatic


Brinell Indention Measuring Repeatibility

±0.8%

Data Display

12.1" Industrial grade touch screen

 Data Output


WORD, EXCELL , Printing Output, Graphics engine display

Data Statistic


Hardness Conversion , according to GB Standard , Auto Conversion Brinell-Rockwell-Vickers-Knoob, On-time Display

 Illumination

LED

 Function Adjustment

Adjustable illumination brightness

Communicating Interface

USB、RJ45LAN、WLAN、RS232


Machien Dimension (L×W×H)

1000×595×350mm

Power Supply

AC 220V/110V±5%,50~60 Hz

Packing List:

Name

Specification

Unit

Qty

Machine mainframe


pc

1

Ball indentor

φ10、φ5、φ2.5、φ1

pc

4

Objective lens

1、2

pc

2

Accessory case


pc

1

Reading microscope

20

pc

1

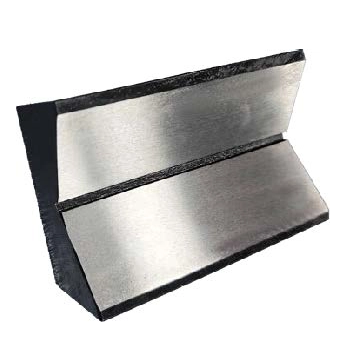

V-shape test anvil


pc

1

Big test anvil


pc

1

Small test anvil


pc

1

Anti-dust cover


pc

1

Hex wrench


pc

1

Power line


pc

1

Fuse

2A

pc

2

brinell block

(150~250)HBW3000/10

pc

1

Brinell block

(150~250)HBW750/5

pc

1

Brinell testing system

Installed in mainframe

set

1

Product certificate


pc

1

Instruction manual


pc

1
