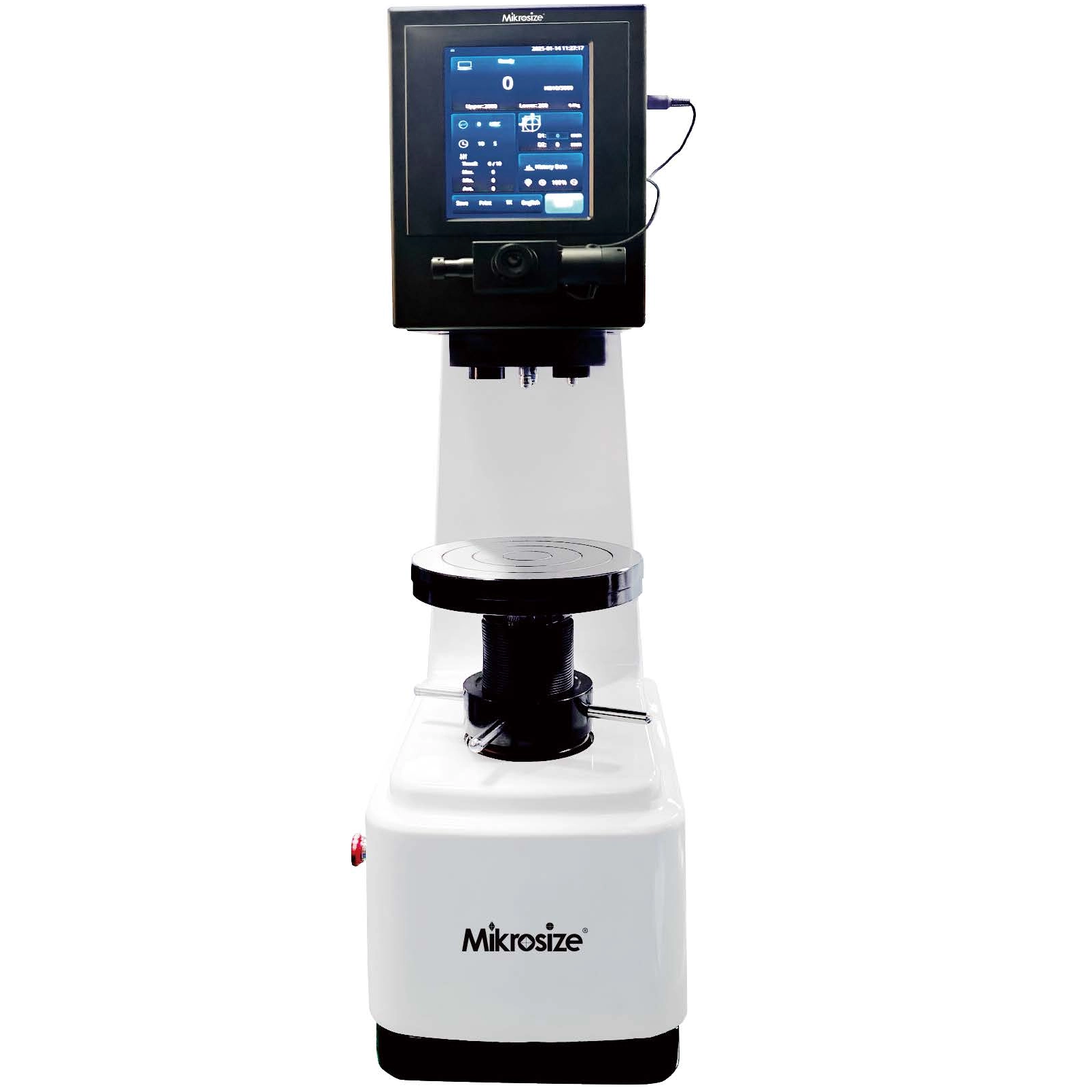

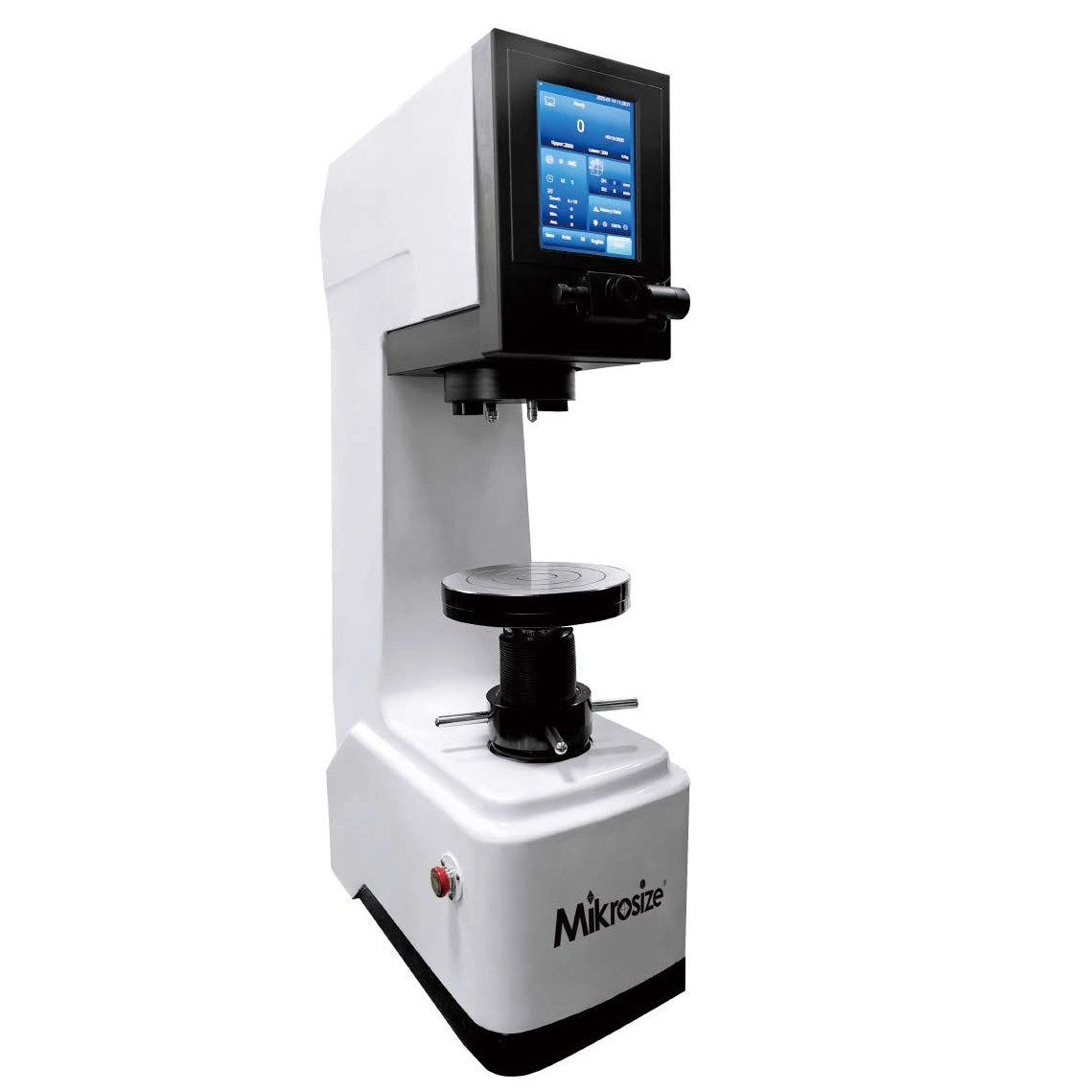

iBrin-3000CLD Digital Hardness Tester(3 Indentors+2 Lens)

Product Feature：
●Equipped with 11 test forces and 15 brinell hardness test scales for flexible selection.
●3 types of indenters pre-installed simultaneously.
●2 sets of objectives, both capable of measuring indentation diameter.
●Automatic switching of objectives and indenters based on selected scale.
●Pre-set dwell time and adjustable indentation measurement light intensity.
●Real-time display of loading time.
●Displays indentation size, hardness value, test count, etc.
●Converts between common hardness scales.
●Printable test results.
Product Application：
●Inspects raw material hardness during machining for optimal tool/process selection.
●Verifies hardness of mechanical components (gears, bearings, bolts) for compliance.
●Ensures safety-critical hardness of power plant equipment(boilers, turbines, generators).
●Evaluates forging quality and process effectiveness.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Model	iBrin-3000CLD
Test Force(N/kgf)	31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf(306.45N , 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N)
Test Range	8-650HBW
Main Test Force Loading Time	2~8s
Dwelling Time	0~99s
Test Height	270mm
Test Throat	190mm
Indenter Objective Transformation	Automatic Turret
Indentation Measurement Method	Digital Display Micrometer
Eyepiece	20^X
Objective Lens	1^X, 2^X
Data Display	Industrial Touch Screen
Indenter Diameter (mm)	Φ2.5, Φ5, Φ10 Installed in the Same Turret
Data Output	Built-in Printer, RS232 Interface
Hardness Conversion	HBW convert to HR , HV
Light Source	LED
Machine Dimension	1000595350mm
Net Weight	150kg
Power Supply	AC110/220V, 50Hz

Packing List：

Name	Quantity
Machine Mainframe	1 Set
Big Flat Anvil, Small Flat Anvil, V-Shape Anvil	1 PC ea.
Objective Lens 1^X	1 PC
Objective Lens 2^X	1 PC
Φ2.5mm Hard Ball Indenter	1 PC
Φ5mm Hard Ball Indenter	1 PC
Φ10mm Hard Ball Indenter	1 PC
Brinell Hardness Standard Block 200±50HBW 10/3000	1 PC
Brinell Hardness Standard Block 95±15HBW 10/1000	1 PC
Accessory Box	1 PC
Anti-dust Cover	1 PC
Power Cord	1 PC
2A Fuse	2 PCS
Allen key	1 PC
Digital Micrometer	1 Set
Instruction Manual	1 Copy
Product Certificate, Warranty Card	1 Copy ea.

Optional Delivery：

Carbide balls

Host Frame

Hardness test blocks

Internal spare parts

Additional indenters
