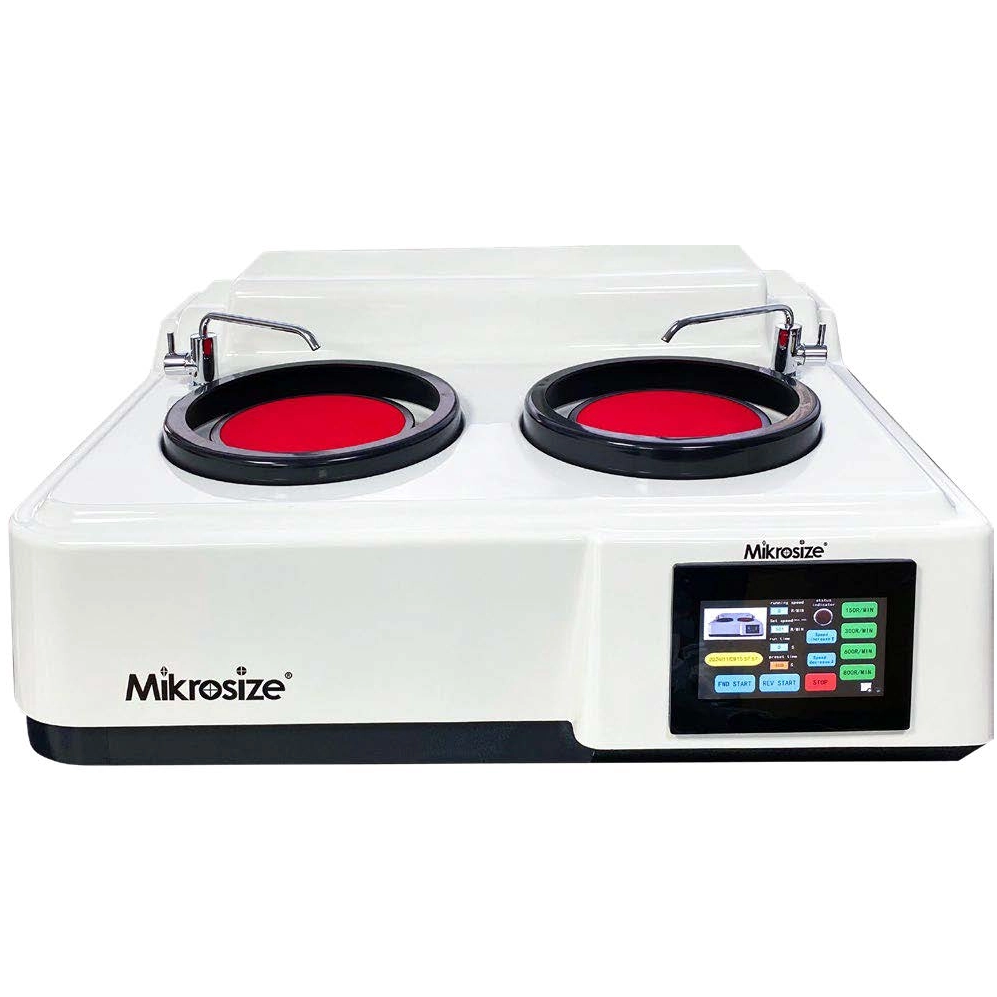

iPoli-1/2D-200M Metallographic Manual Grinding Polishing Machine

Product Feature:
●Equipped with two independent grinding and polishing discs, allowing different processes or handling of different samples simultaneously, improving work efficiency.
●The polishing disc has a diameter of 203mm, capable of grinding and polishing most samples available on the market.
●The machine features a water cooling system that cools the samples during
grinding and polishing, preventing damage to the metallographic structure due to overheating, thus ensuring the quality and performance of the samples.

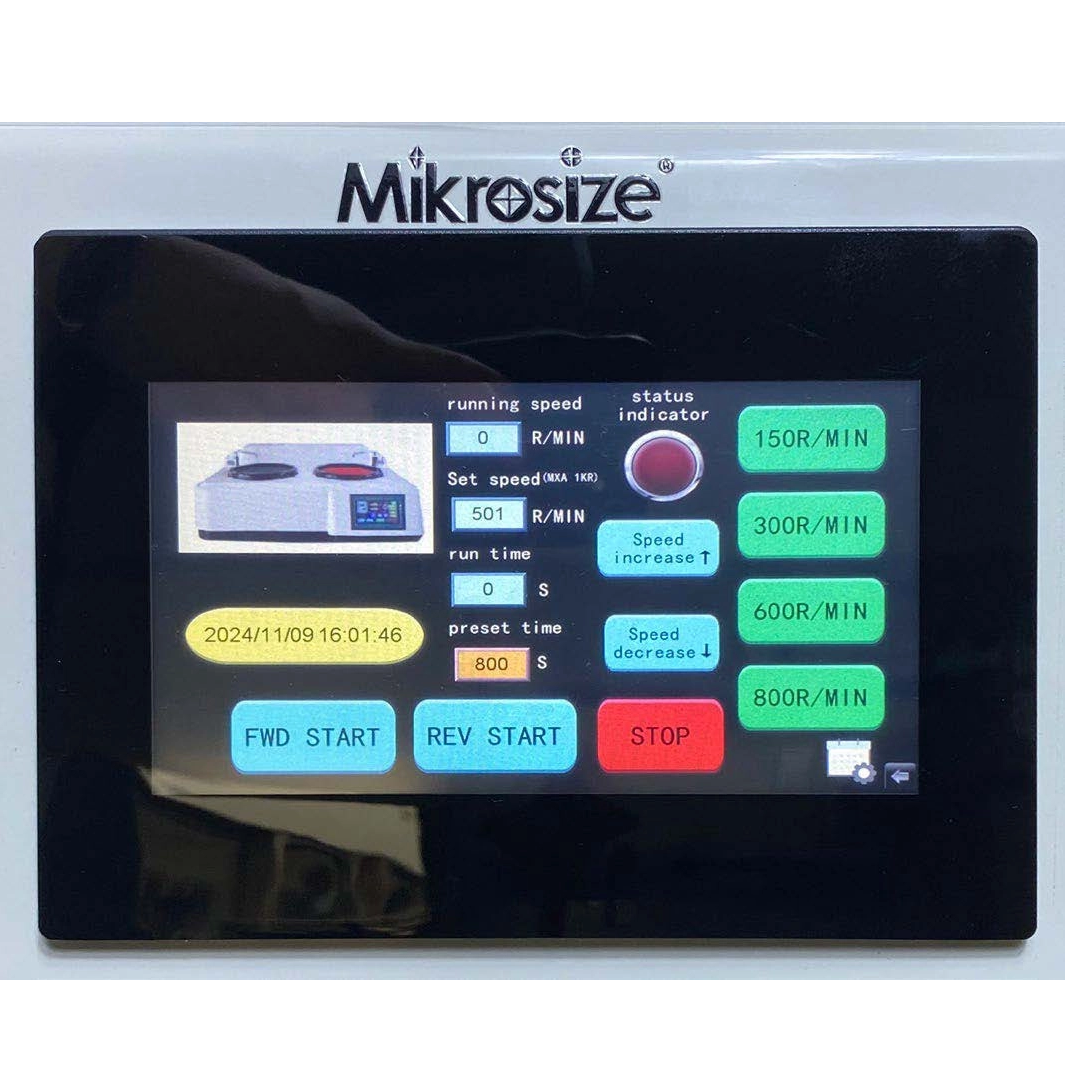

●Including stepless and multi-stage speed control, enabling users to select the
appropriate speed based on the sample material, process requirements, and the stage of grinding or polishing to achieve optimal results.
●The structure is reasonably designed for easy daily maintenance and upkeep.
●Consumables such as grinding paper and polishing cloth used in the grinding and polishing process are easy to replace.
Product Application:
●Used for the preparation of metallographic samples of various metal materials, such as steel, aluminum alloys, copper alloys, and more.
●Applied in the wafer grinding and polishing processes within chip manufacturing, enhancing chip performance and reliability.
●Used for grinding and polishing the surfaces of rock and mineral specimens to observe internal structures, mineral composition, and other details.
●Applied to the surface treatment of automotive components, improving the wear resistance, sealing properties, and durability of parts.
●Used for teaching demonstrations and scientific research.
Availability:

Product Description

Technical Specification:

Product Name


Metallographic Manual Grinding Polishing Machine


Model


iPoli-1D-200M

iPoli-2D-200M

Disc Type


Single Disc

Dual Discs


Polishing Disc


Φ203mm (Customized Φ230mm, Φ250mm)


Diameter



Polishing Disc

Rotation Speed


50-1000 rpm stepless speed


Regulation 150/300/600/800 rpm four

constant speed


Control Method


Single disc/Single control


Dual disc/Single control


Voltage Supply


220V 50HZ


Power Supply


550W


Motor


YSS7124,550W


Machine Dimension


500*910*475mm


860*660*355mm


Net Weight


41kg


70kg


Gross Weight


47kg


84kg


Standard Delivery:







Name


Qty



Machine Mainframe

iPoli-1D-200M


iPoli-2D-200M


Water Shield


1

Velvet Polishing Cloth Φ

203mm(Non-adhesive)


2


Abrasive Paper Φ203mm


2


Plastic Cover


iPoli-1D-200M: 1 pc

/iPoli-2D-200M: 2 pcs


Inlet Pipe


1


Outlet Pipe


1

Ground Screw


2

Aluminum Buckle Ring

Φ203mm


iPoli-1D-200M: 1 pc

/iPoli-2D-200M: 2 pcs


Polishing Disc Φ203mm


iPoli-1D-200M: 1 pc

/iPoli-2D-200M: 2 pcs


Instruction Manual, Product

Certificate, Warranty Card


1 copy ea.
