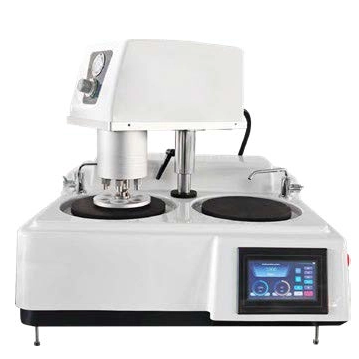

iPoli-2S-250A Auto Metallographic Grinding Polishing Machine(Single Force)

Product Feature:
● One machine with multiple functions can easily complete the pre-grinding, rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples.
● Double disc single control,Variable speed regulation, four-stage constant speed, optimized speed control

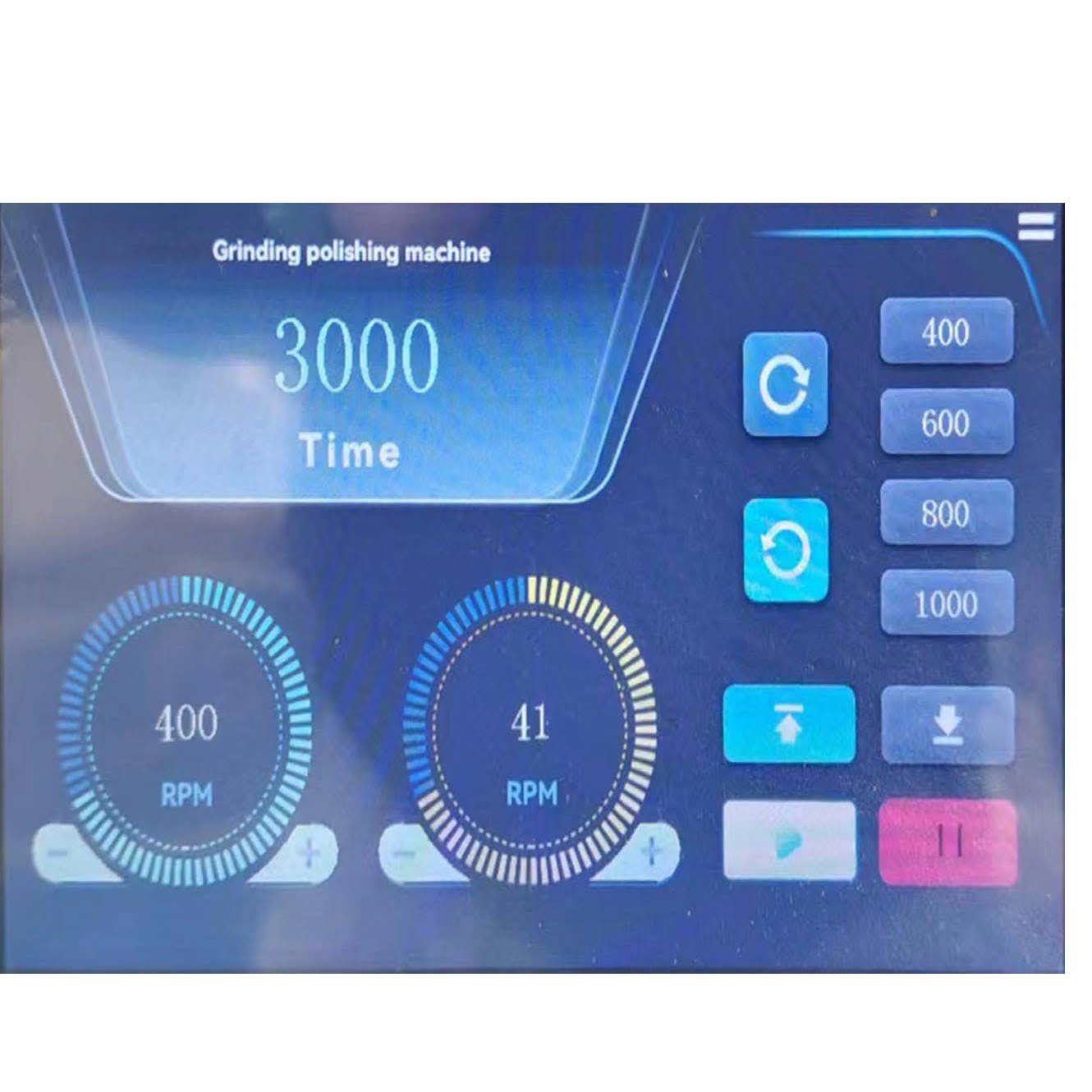

● Easy to control the LCD screen display, simple operation
● Fine grinding and surface treatment of the work disc, to ensure that the surface of the sample is smooth
● The overall molding of high-strength glass steel material shell, durable.
Product Application:
iPoli-2S-250A Double disc automatic grinding and polishing machine is a set of metallographic sample pre grinding, grinding and polishing and other functions in one, strong power, low noise, durable, simple operation, is the ideal grinding and polishing machine for enterprises and scientific research institution.
Availability:
Quantity:

Product Description

 Technical Parameter

Product Name

iPoli-2S-250A

Working disc diameter (mm)

φ250mm(customized φ230mm、φ300mm)

Working disc speed (rpm)

50-1000(Variable speed), 400 / 600 / 800 / 1000 (four fixed speed)

Rotation direction

Clockwise and counter clockwise

Speed of grinding and polishing head

5-150 r/min(Variable speed)

Preparation sample quantity

6pcs

Force loading Range

0-0.7Mpa adjustable, factory set below 0.2Mpa

Sample preparation time

0-3000 S

Specimen diameter

Standard φ30mm(customized φ22-φ45mm)

Input voltage

Single phase 220V±10%,50-60Hz

Total power

900W

Overall dimension

790*740*700mm

Packing size

920*820*840mm

Net weight

89.6kg

Gross weight

113.5kg

Packig list

Main machine

  iPoli-2S-250A

SET

1

Product Instruction


Sheet

1

Product certificate


Sheet

1

Packing list


Sheet

1

Polishing velvet

Φ250mm

PCS

2

metallographic sandpaper

Φ250mm

PCS

8

grinding and polishing disc

Φ250mm

PCS

2

Aluminum buckle ring

Φ250mm

PCS

2

Drain pipe


PCS

1

Inlet pipe


PCS

1

Pressure pipe

Φ8*3000mm

PCS

1

Oil-water separator


PCS

1

Magnetic disc


PCS

2

Anti-stick disc


PCS

5

Leveling Foot


PCS

4

Power Cord


PCS

1

Dust cover


PCS

2

Water retaining ring


PCS

2
