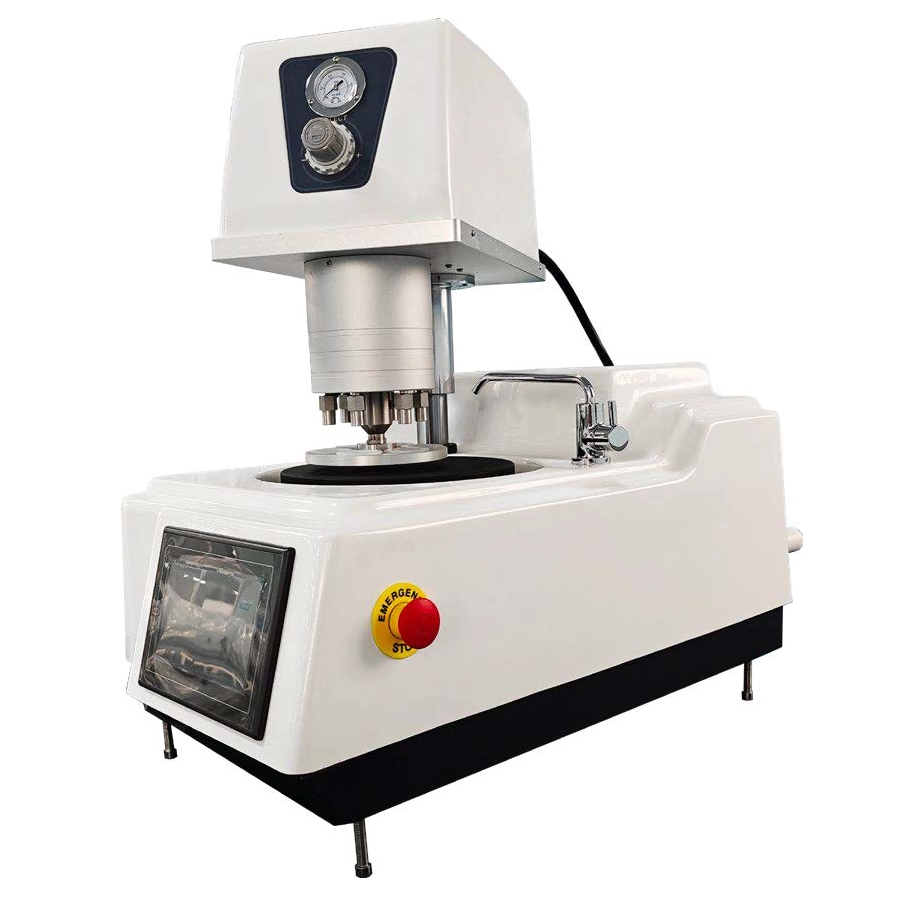

iPoli-1S-250A Auto Metallographic Grinding Polishing Machine(Single Force)

iPoli-1S-250A single disc automatic grinding and polishing machine is a set of metallographic sample pre grinding, grinding and polishing and other functions in one, strong power, low noise, durable, simple operation, is the ideal grinding and polishing machine for enterprises and scientific research institutions
Availability:
Quantity:

Product Description

Product Feature

● One machine with multiple functions can easily complete the pre-grinding, rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples.

● Variable speed regulation, four-stage constant speed, optimized speed control system for grinding and polishing machine

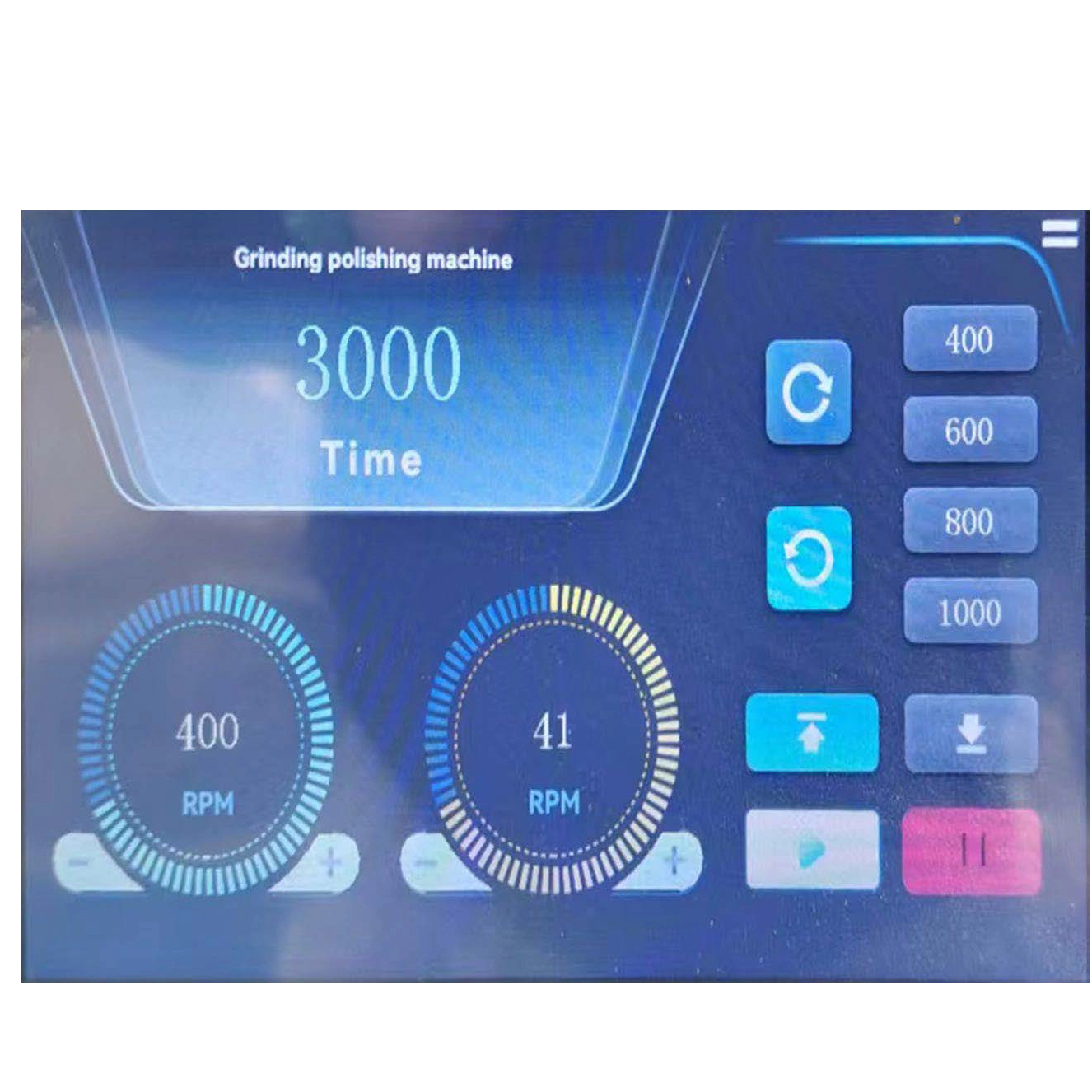

●Easy to control the LCD screen display, simple operation

● Fine grinding and surface treatment of the work disc, to ensure that the surface of the sample is smooth

● The overall molding of high-strength glass steel material shell, durable.


Technical Parameter

Product Name

iPoli-1S-250A

Working disc diameter

φ250mm(customized φ230,φ300mm)

Rotation direction

Clockwise and counter clockwise

Working disc speed (rpm)

50-1000(Variable speed), 400 / 600 / 800 / 1000 (four fixed speed)

Total power

900W

Speed of grinding and polishing head

5-150 r/min(variable speed)

Preparation sample quantity

4pcs(customized 6pcs)

Force loading Range

0-0.7Mpa adjustable, factory set below 0.2Mpa

Sample preparation time

0-3000 S

Specimen diameter

Standard φ30mm(customized φ22-φ45mm)

Overall dimension

455*785*700mm

Packing size

950*680*870mm

Net weight

69.5kg

Gross weight

90.8kg

Input voltage

Single phase 220V±10%,50-60Hz

Packig list

Main machine

iPoli-1S-250A

SET

1

Product Instruction


Sheet

1

Product certificate


Sheet

1

Packing list


Sheet

1

Polishing velvet

Φ250mm

PCS

2

metallographic sandpaper

Φ250mm

PCS

2

grinding and polishing disc

Φ250mm

PCS

1

Aluminum buckle ring

Φ250mm

PCS

1

Drain pipe


PCS

1

Inlet pipe


PCS

1

Pressure pipe

Φ8

PCS

1

Oil-water separator


PCS

1

Magnetic disc


PCS

1

Anti-stick disc


PCS

3

Leveling Foot


PCS

4

Power Cord


PCS

1

Dust cover


PCS

1

Water retaining ring


PCS

1
