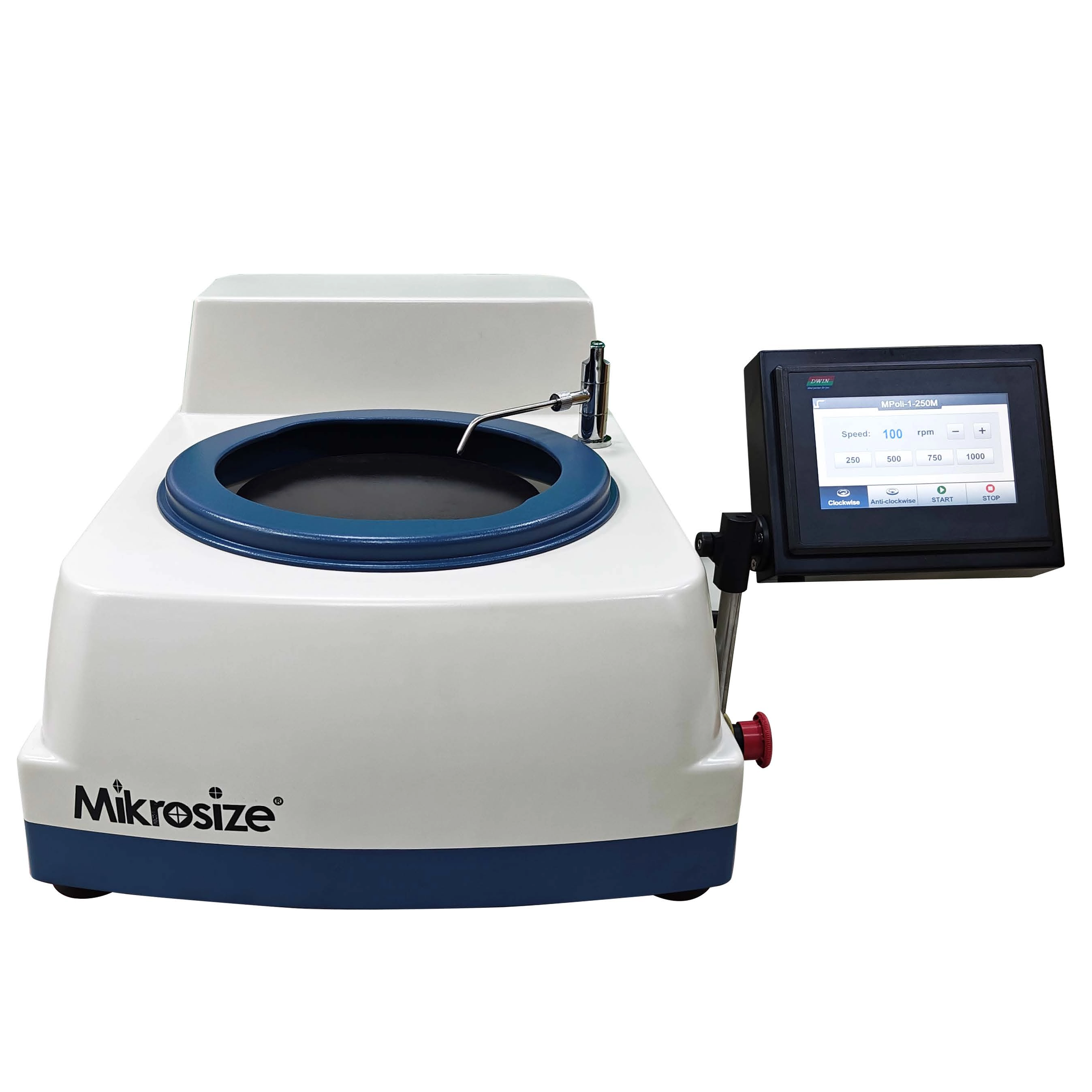

MPoli-1/2-250/300M Digital Manual Metallography Grinding Polishing Machine

Product Features：

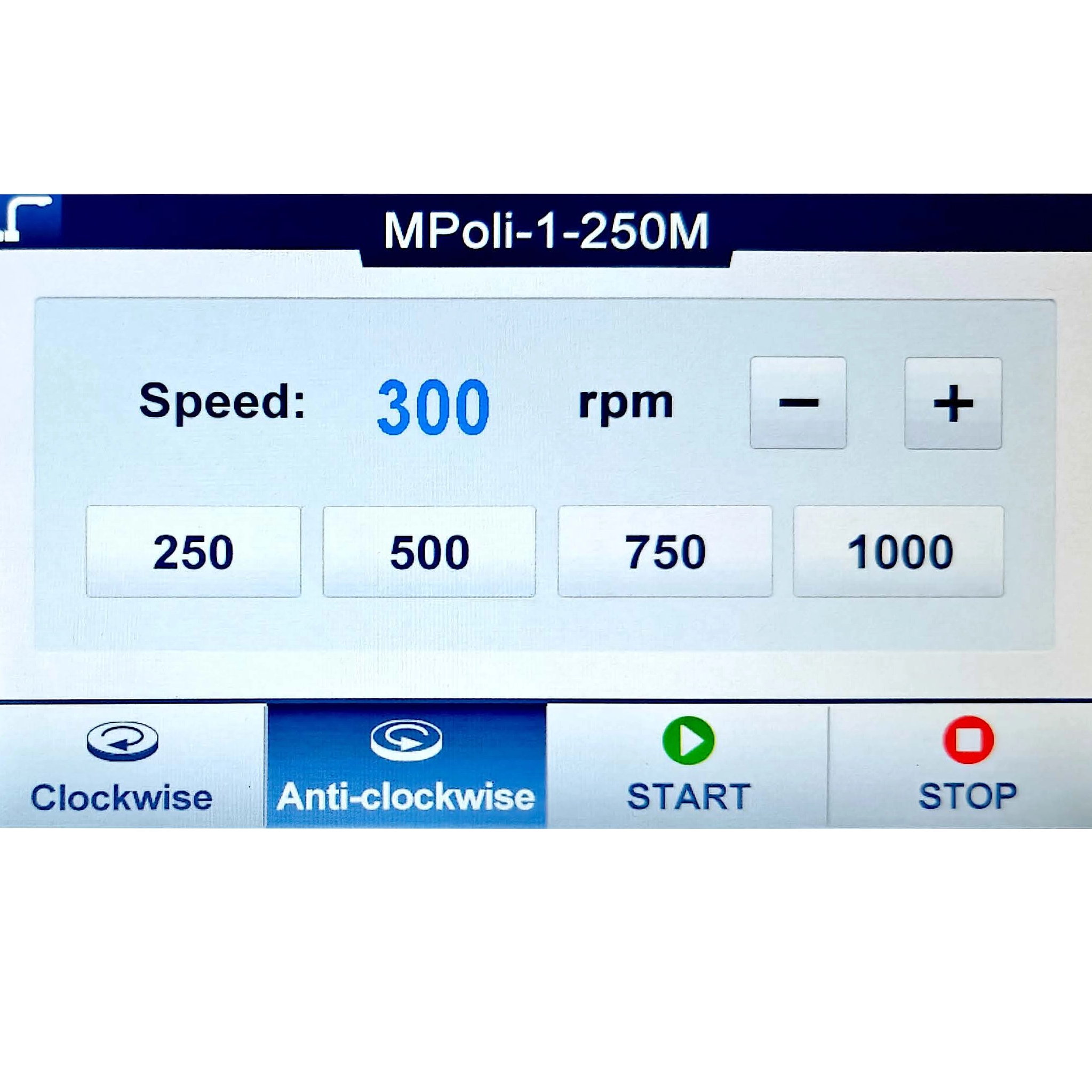

l7 - inch LCD touch screen.
lThe machine body is integrally formed with ABS material, which is corrosion - resistant and durable.
lIt adopts a servo motor, with low noise and strong power.
lGrinding disc has four - level fixed speeds and supports stepless speed regulation, with a speed range of 50 - 1000 r/min.
lThe rotation direction is adjustable, and it can be switched between clockwise and counterclockwise directions at any time.
lEquipped with a magnetic disc. With a Teflon non - stick disc, rapid disc replacement can be achieved.

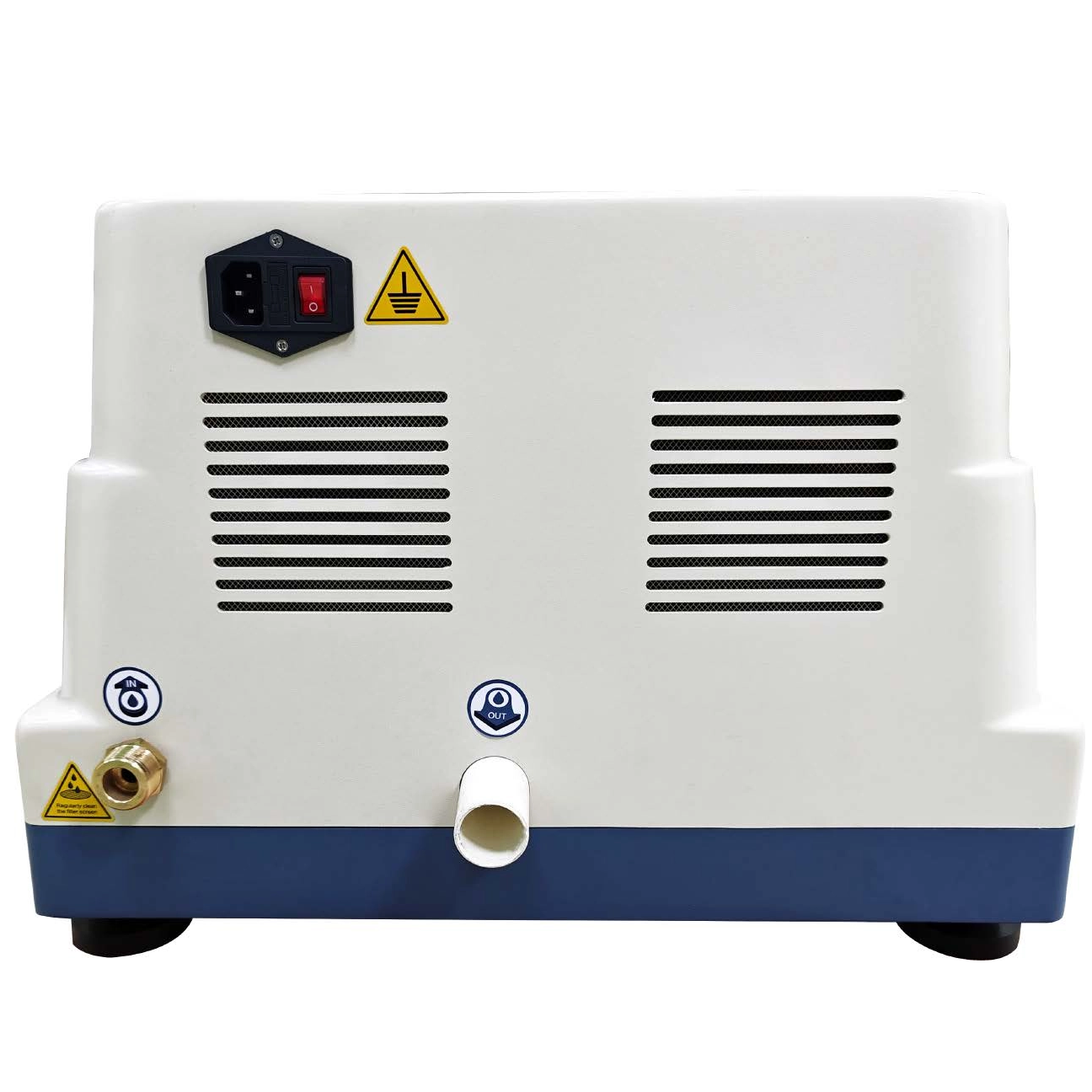

lEquipped with a cooling water pipe, the direction can be rotated and adjusted.
lElectromagnetic water valve allows for controlling water on and off through the touch screen.

Product Applications：
lPreparation of metallographic specimens of various metal materials such as steel, aluminum alloys, and copper alloys.
lUsed in the grinding and polishing processes during chip manufacturing to improve the performance and reliability of chips.
lGrinding and polishing the surfaces of rock and mineral specimens to observe their internal structures, mineral compositions, and other information.
lUsed for teaching demonstrations and scientific research.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification:

Model	MPoli-1-250M	MPoli-1-300M		MPoli-2-250M		MPoli-2-300M

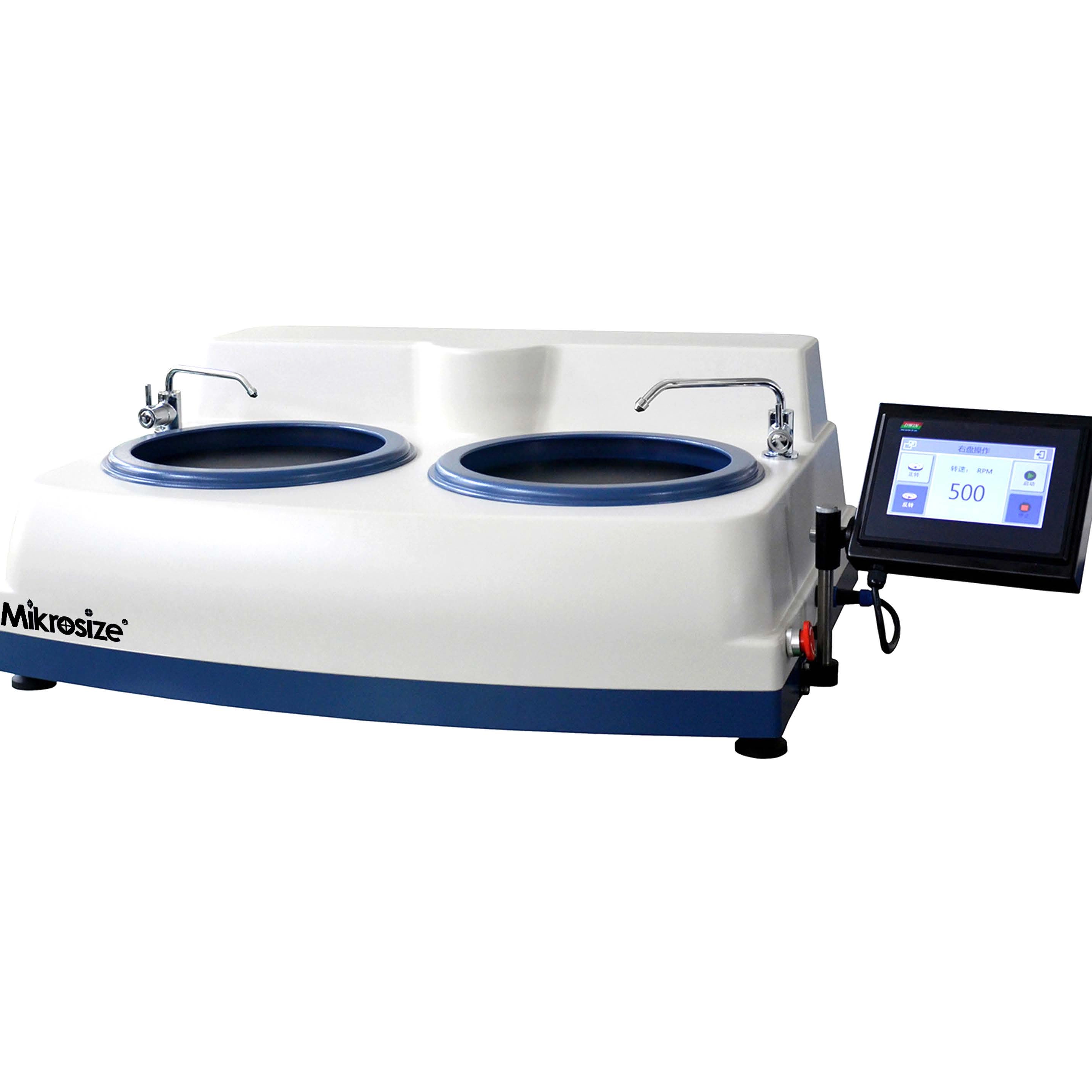

Disc Type	Single disc			Dual disc
Grinding Polishing Disc Diameter	254mm	300mm		254mm		300mm
Abrasive Paper Diameter	250mm	300mm		250mm		300mm
Rotation Speed	Stepless speed 50~1000r/min
Rotation Direction	Switchable clockwise and counterclockwise
Motor	Servo motor, 220V, 1.5kW
Display And Operation	7 inch LCD touch screen
Input Power Supply	Single - phase 220V, 50Hz, 8A
Machine Overall dimensions	800×800×360		800×800×360		1200×800×360	1200×800×360
Net Weight(kg)	50		57		85	95

Packing List：

Name	Qty
Machine Mainframe	1 set
Grinding And Polishing Disc Φ254mm	1 pc
Magnetic Disc Φ250mm (Already Adhered To The Grinding Disc)	1 pc
Non - Stick Disc Φ250mm	4 pcs
Self - Adhesive Abrasive Paper Φ250mm	6 pcs
Self - Adhesive Polishing Cloth Φ250mm	2 pcs
Water Inlet Pipe	1 pc
Water Outlet Pipe	1 pc
Water Inlet Filter	1 pc
Allen Wrenches 3mm；5mm	each 1 pc
Instruction Manual	1 copy
Product Certificate	1 copy
