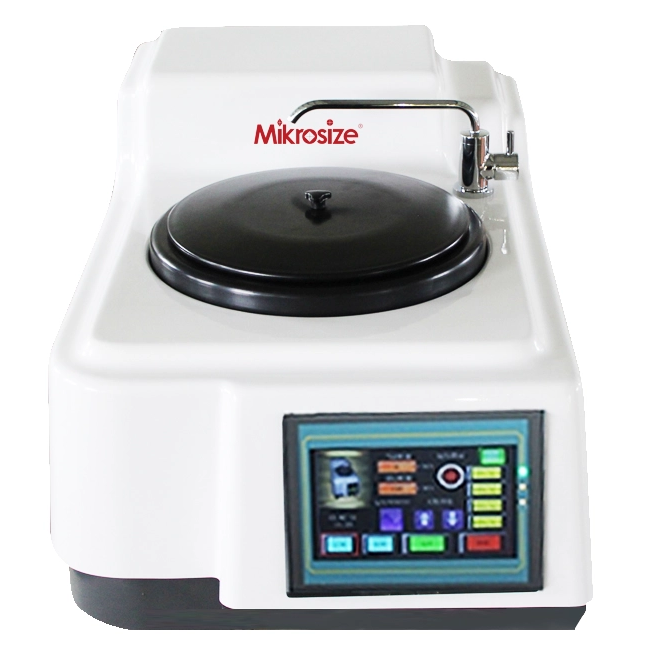

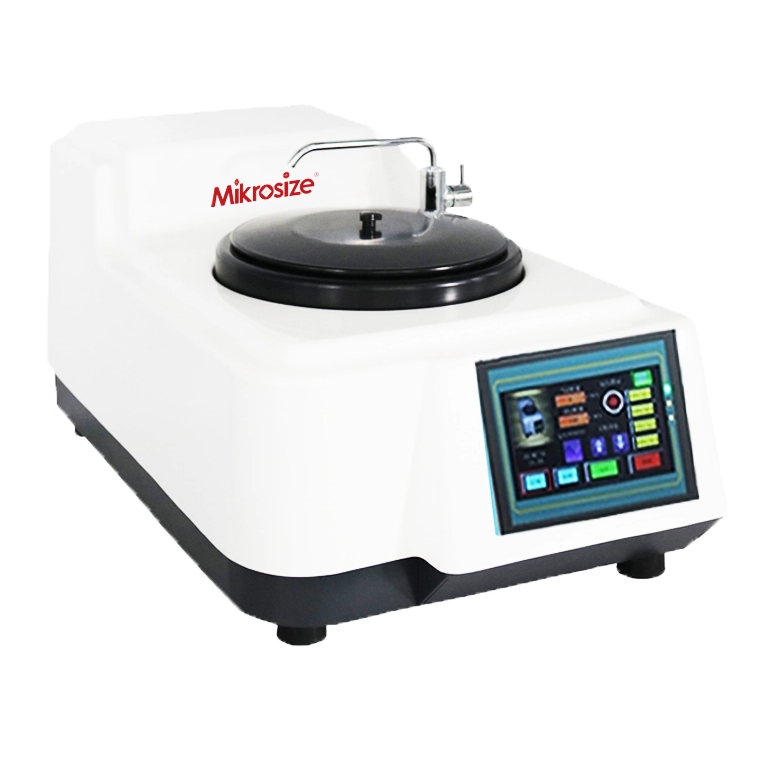

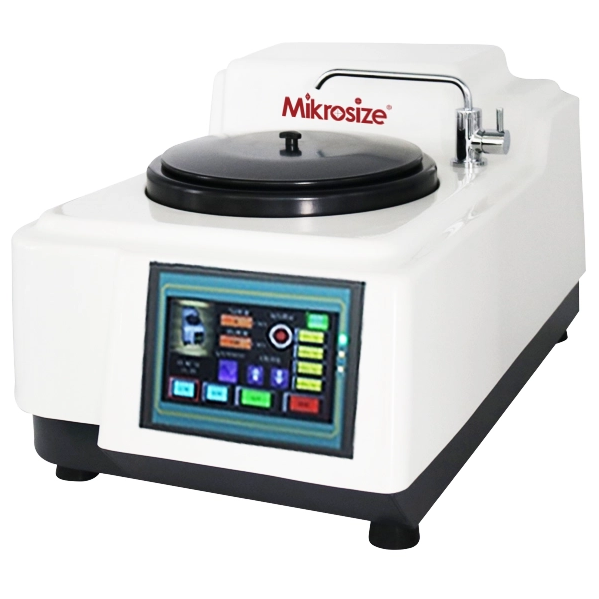

iPoli-1D-200M Metallographic Manual Grinding Polishing Machine

Product feature:
● One machine with multiple functions can easily complete the pre-grinding, rough grinding, fine grinding, rough polishing and fine polishing of metallographic samples.
● Stepless speed regulation, four-stage constant speed, optimized speed control system for grinding and polishing machine
● Touch screen control, simple operation
● Fine grinding and surface treatment of the work disc, to ensure that the surface of the sample is smooth
● The overall molding of high-strength glass steel material shell, durable
Product Application:
iPoli-1D-200M Single disc manual grinding and polishing machine is a set of metallographic sample pre grinding, grinding and polishing and other functions in one, strong power, low noise, durable, simple operation, is the ideal grinding and polishing machine for enterprises and scientific research institutions.
Availability:
Quantity:

Product Description

 Technical parameter

Product Name

iPoli-1D-200M

Working disc diameter (mm)

203(customized φ230,φ250)

Working disc speed (rpm)

50-1000,150/300/600/800

Motor power

550W

Overall dimension

500*910*475mm

Packing size

915*530*490mm

Net weight

41kg

Gross weight

55kg

Input voltage

Single phase 220V±10%,50-60Hz

Packing List

Main machine

iPoli-1D-200M

SET

1

Product Instruction


SHEET

1

Product certificate


SHEET

1

Packing list


SHEET

1

Polishing velvet

Φ200

PCS

2

metallographic sandpaper

Φ200

PCS

2

Aluminum buckle ring

Φ203

PCS

1

Polishing disc

Φ203

PCS

1

Inlet pipe


PCS

1

Drain pipe


PCS

1

Dust cover


PCS

1

Power Cord


PCS

1
