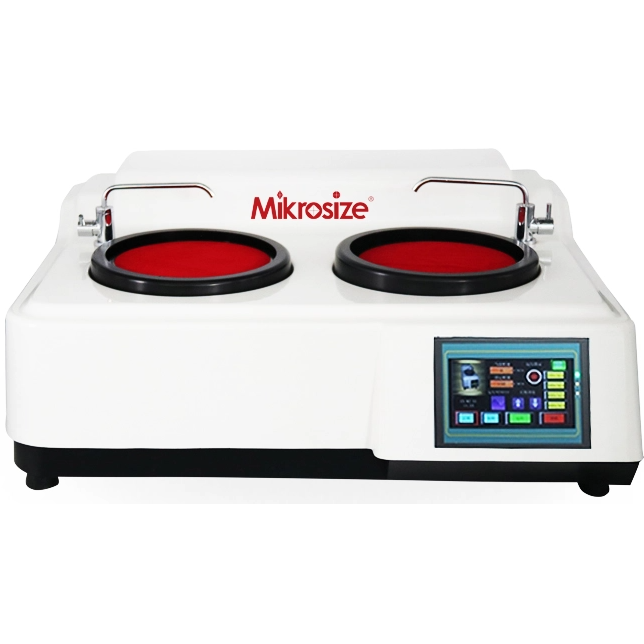

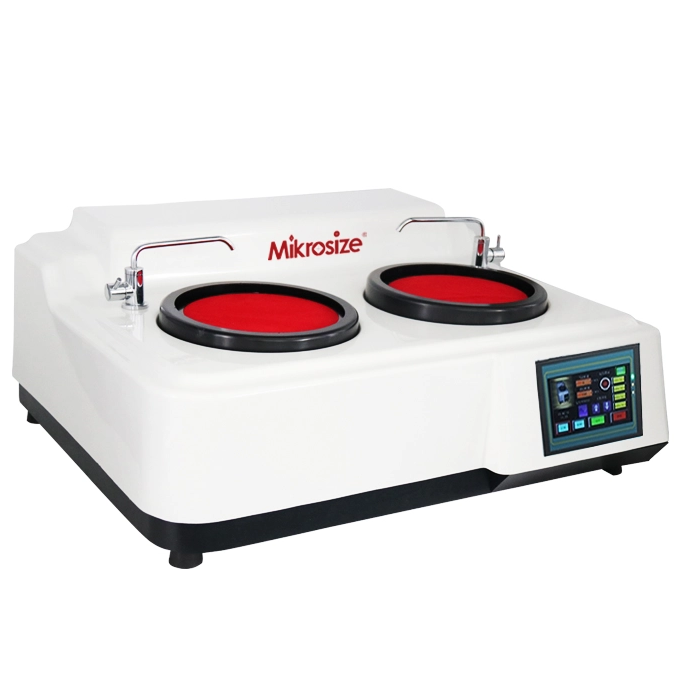

iPoli-2D-200M Metallographic Manual Grinding Polishing Machine

iPoli-2D-200M Double disc manual grinding machine is a set of metallographic sample pre grinding, grinding and polishing and other functions in one, strong power, low noise, durable, simple operation, is the ideal grinding and polishing machine for enterprises and scientific research institutions.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Product feature

● One machine is multi-purpose, easy to complete the metallographic sample pre-grinding, rough grinding, fine grinding, rough polishing and fine polishing

● Double disc single control，Variable speed regulation and four fixed speed, speed control system optimized for grinding and polishing machine

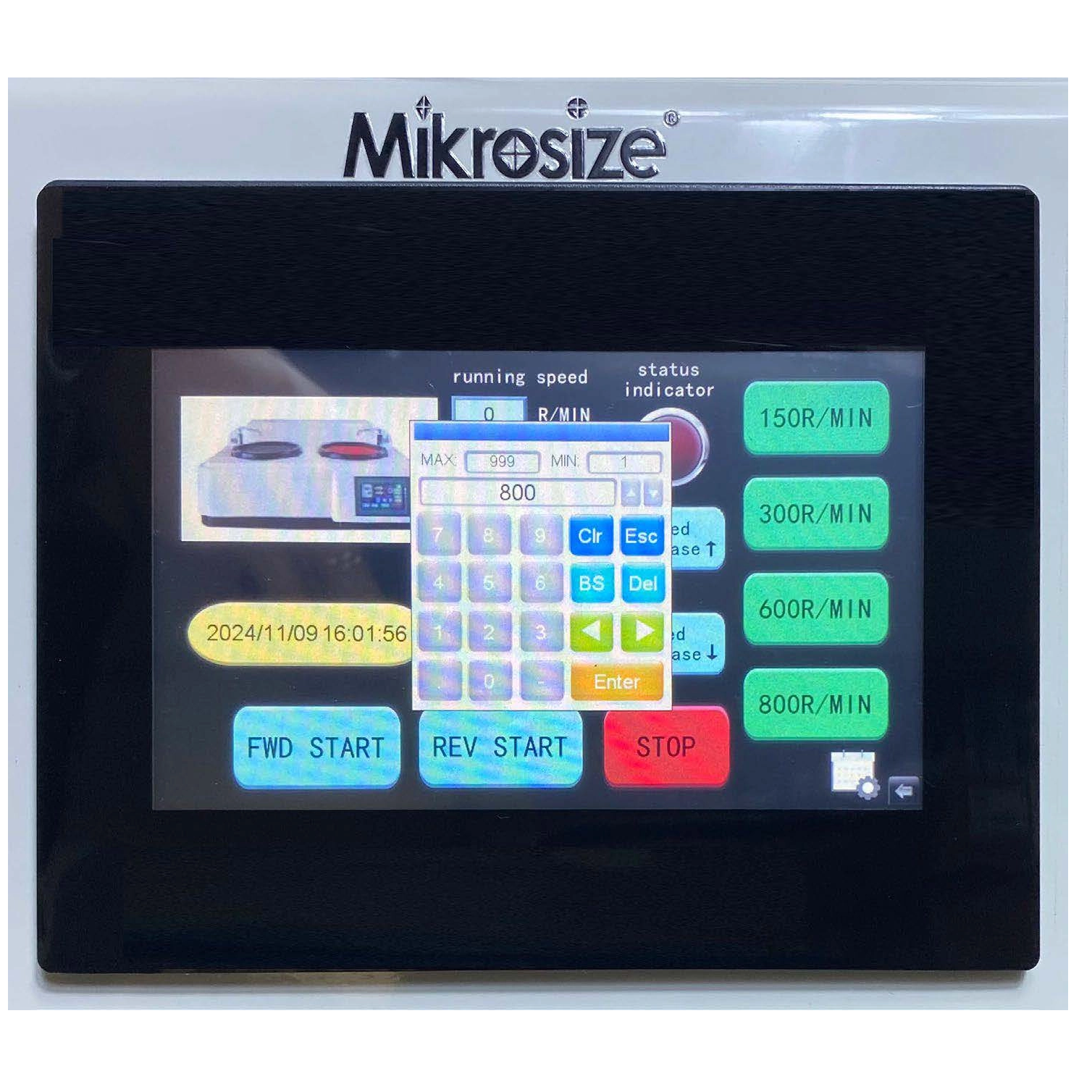

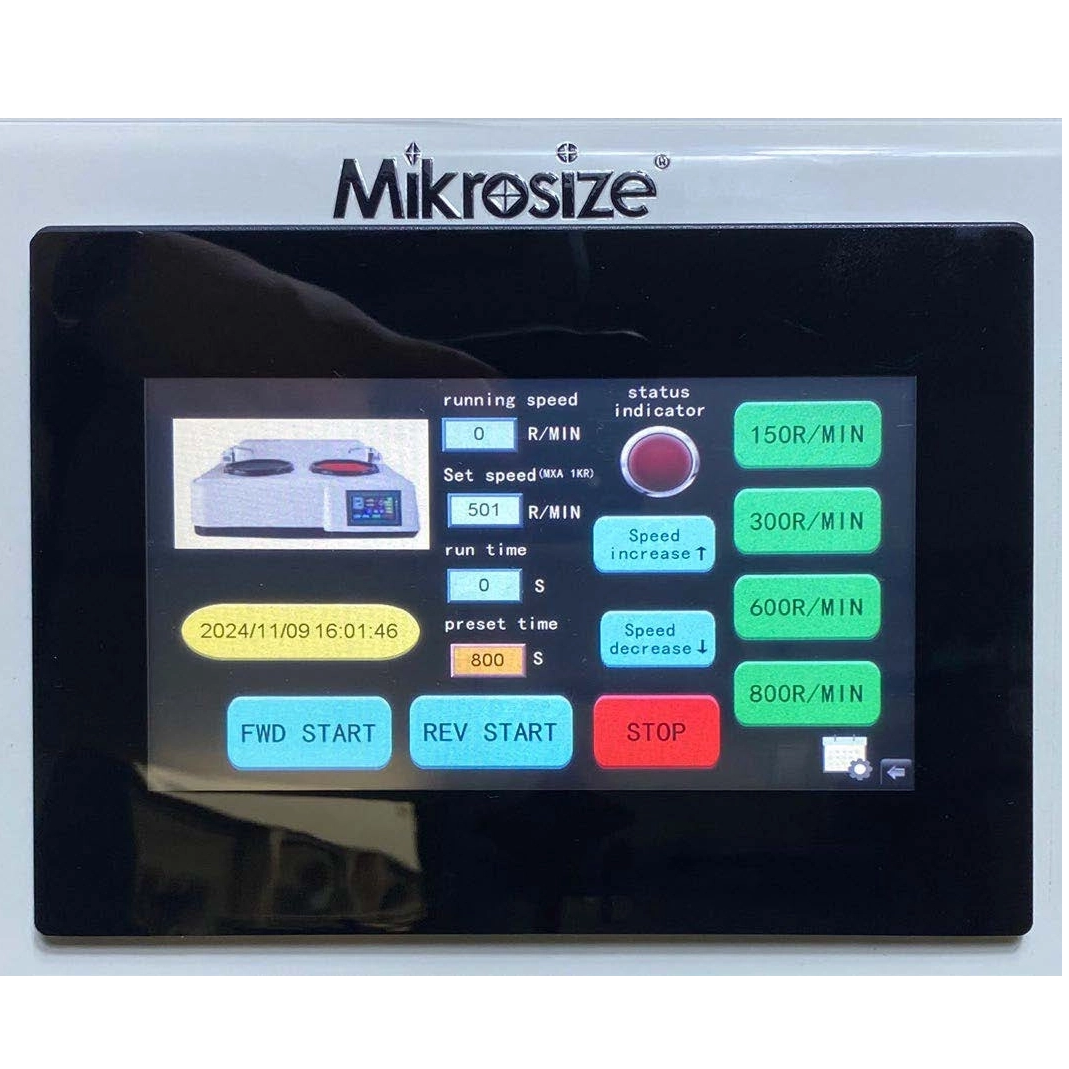

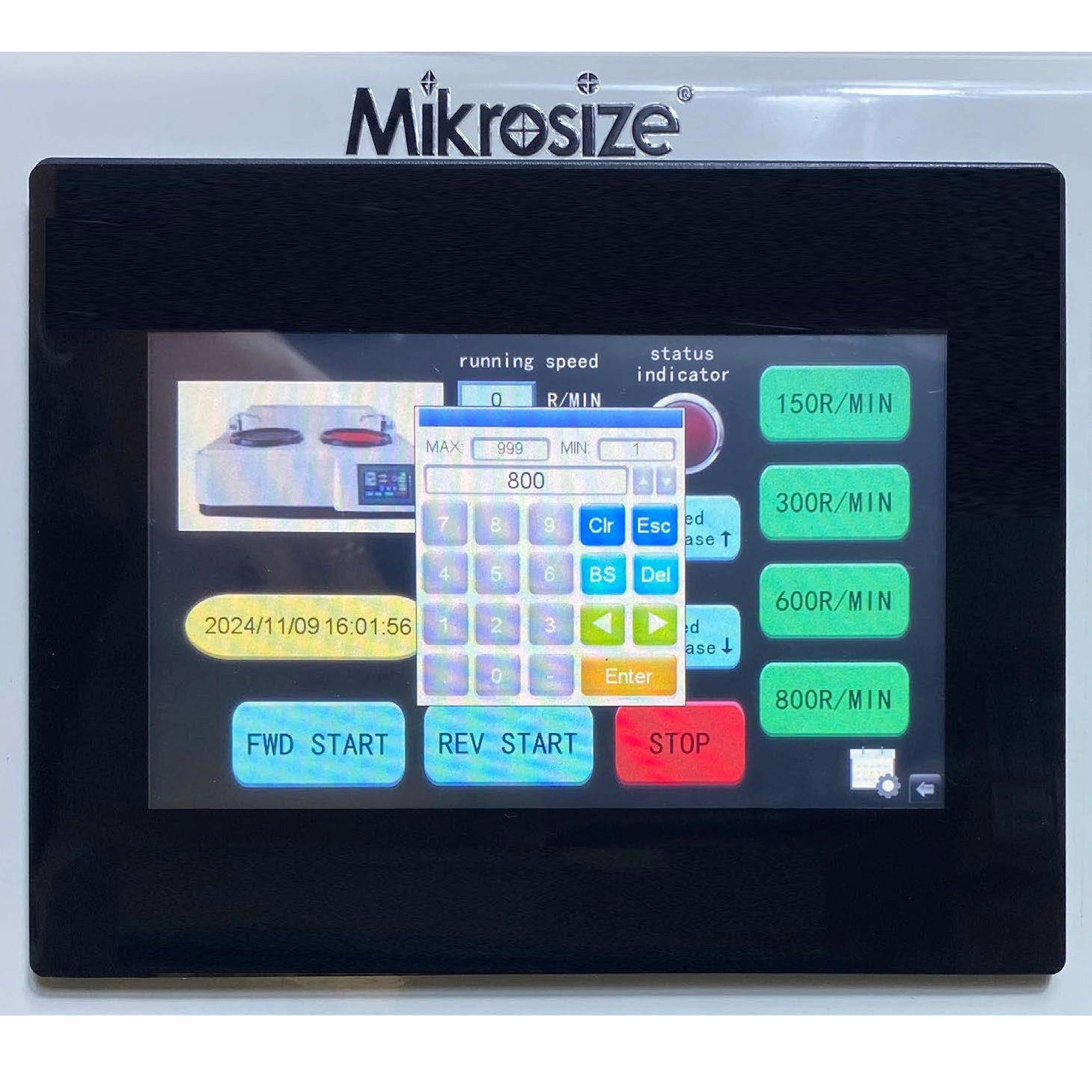

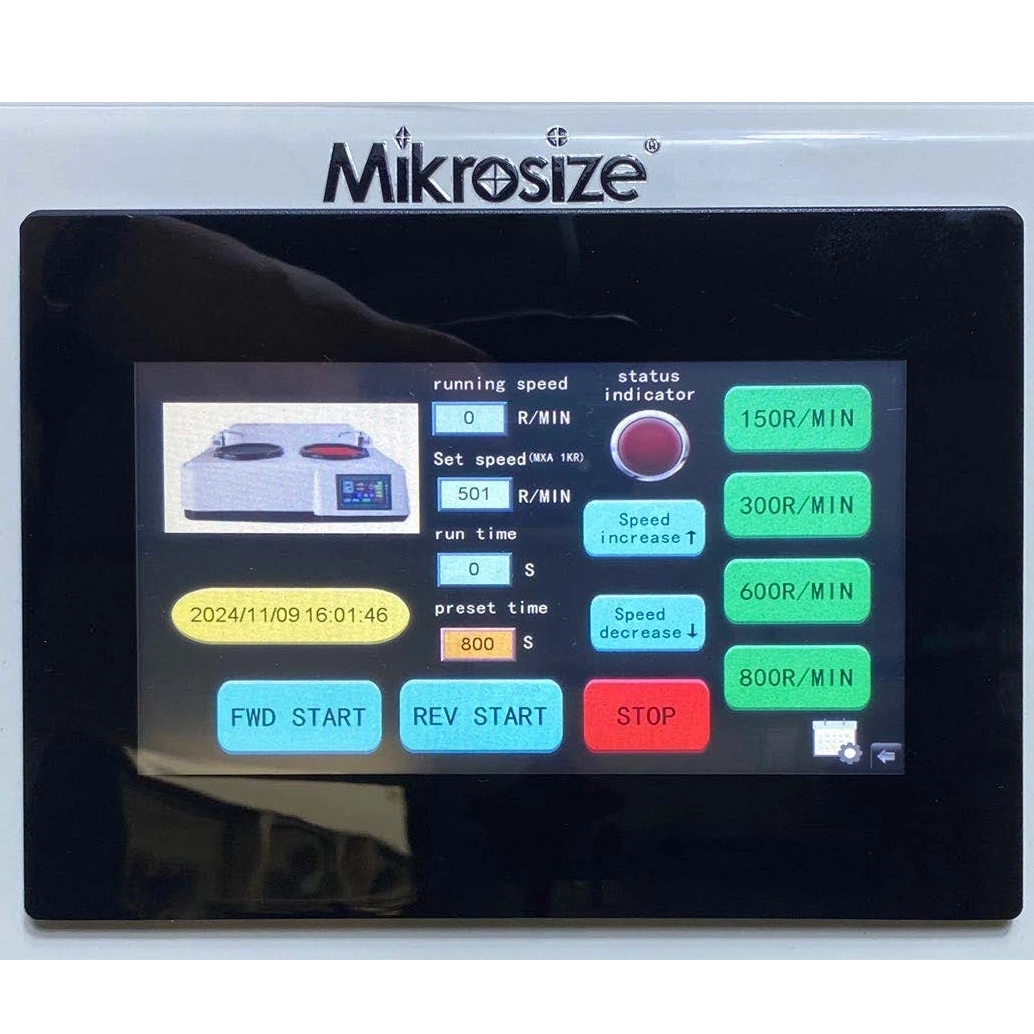

● Easy to control the LCD screen, simple operation

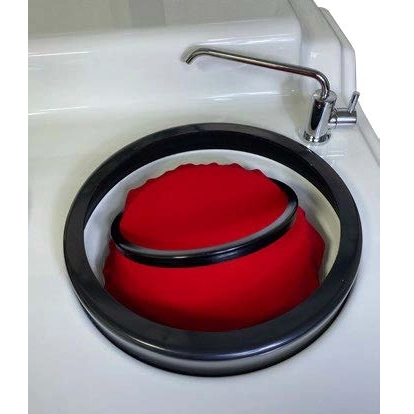

● Fine grinding and surface treatment of the work disc, to ensure that the surface of the sample is smooth

● The overall molding of high-strength glass steel material shell, durable.

Technical parameter

Product Name	iPoli-2D-200M
Polishing disc diameter (mm)	203（customized φ230,φ250）
Rotation speed (rpm)	variable speed 50-1000，150/300/600/800
Working disc rotation direction	Clockwise and counter clockwise
Motor power	550W
Control method	双盘单控
Overall dimension	860660355mm
Packing size	980920470mm
Net weight	55kg
Gross weight	84.8kg
Input voltage	Single phase 220V±10%，50-60Hz

Packing List

Main machine	iPoli-2D-200M	SET	1
Product Instruction		SHEET	1
Product certificate		SHEET	1
Packing list		SHEET	1

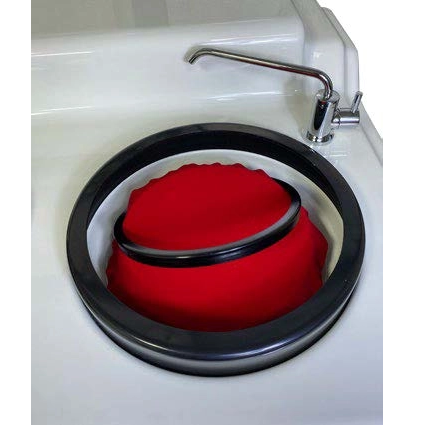

Polishing velvet	Φ200	PCS	2
Metallographic sandpaper	Φ200	PCS	2
Aluminum buckle ring	Φ203	PCS	2

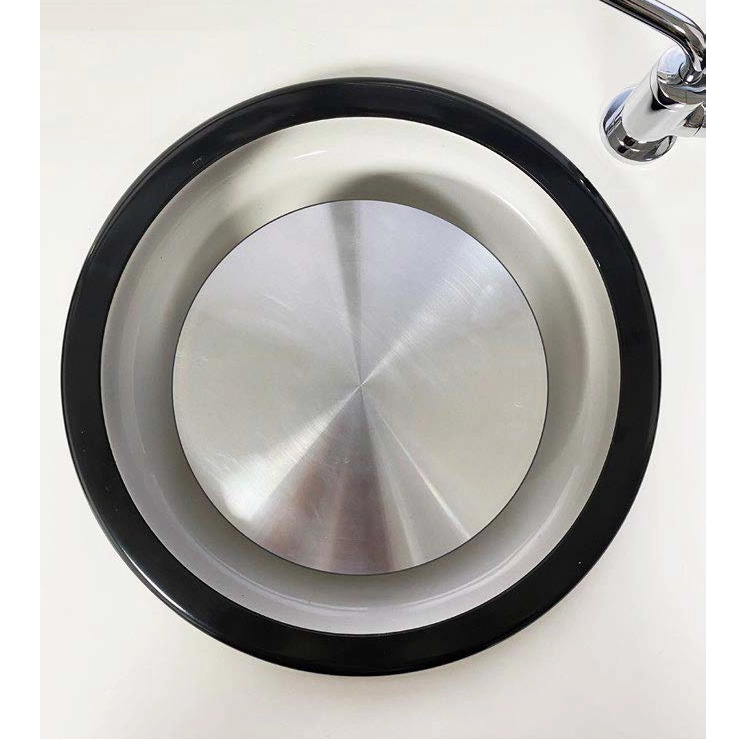

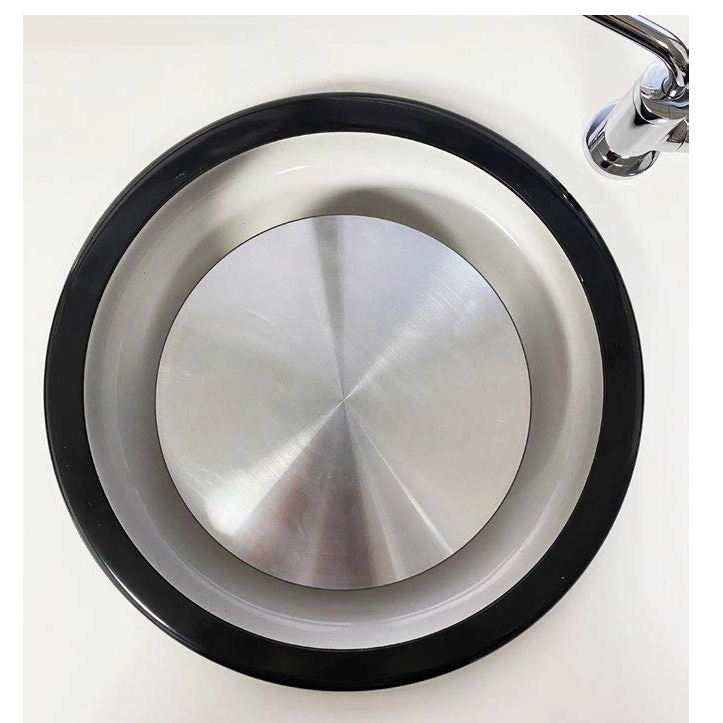

Polishing disc	Φ203	PCS	2
Dust cover		PCS	2
Inlet pipe		PCS	1
Drain pipe		PCS	1
Water retaining ring		PCS	2
Power Cord		PCS	1
