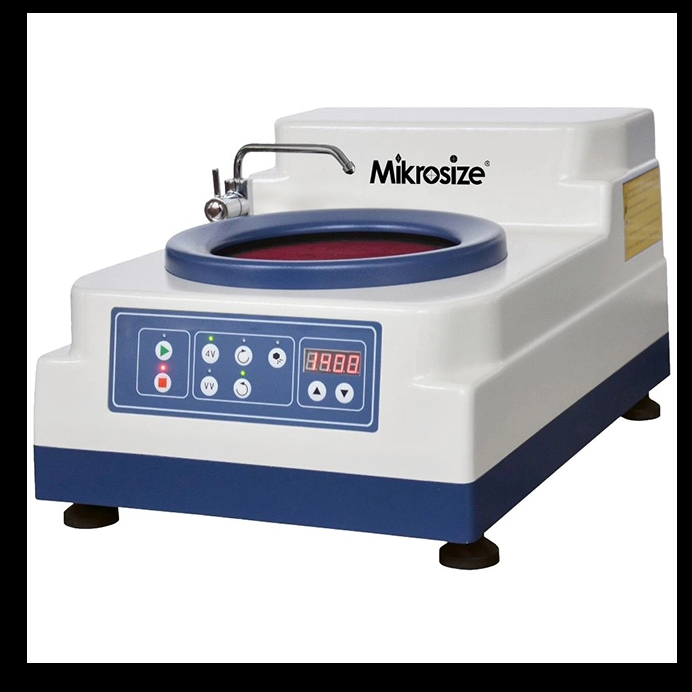

MPoli-230M Metallographic Manual Grinder Polisher

Product Feature
●Single-chip microcomputer controlled grinding and polishing machine.
●ABS material shell is beautiful in appearance,anti-corrosion and durable.
●Strong large support chassis design ensures the precision rotary balance.
●Stepless speed or four speeds control and rotationaldirection changeable.
●DC brushless motor has long service life, low noise and powerful motor brings strong power forefficient grinding polishing experience.
●Spindle leak-proof design ensures the bearing without damage.

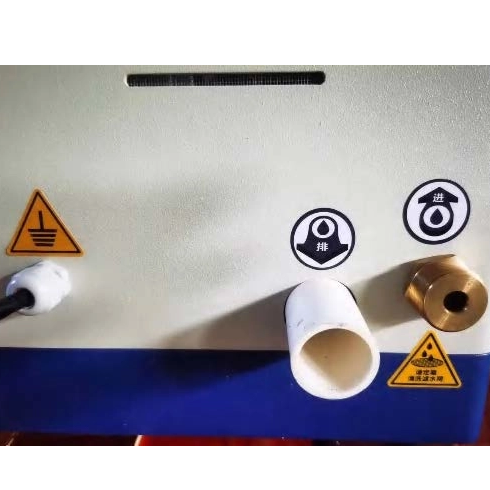

●With cooling water, adjustable tube direction for wet grinding.
●With washing function at the bottom of the grinding disc to prevent the accumulation and precipitation of grinding materials.
●Only need to change the abrasive paper and polishing cloth, it can complete various sample grinding,fine grinding and polishing process.
Availability:
Quantity:
  • MPoli-230M

  • Mikrosize

Product Description

Technical Specification


Model

MPoli-1-230M

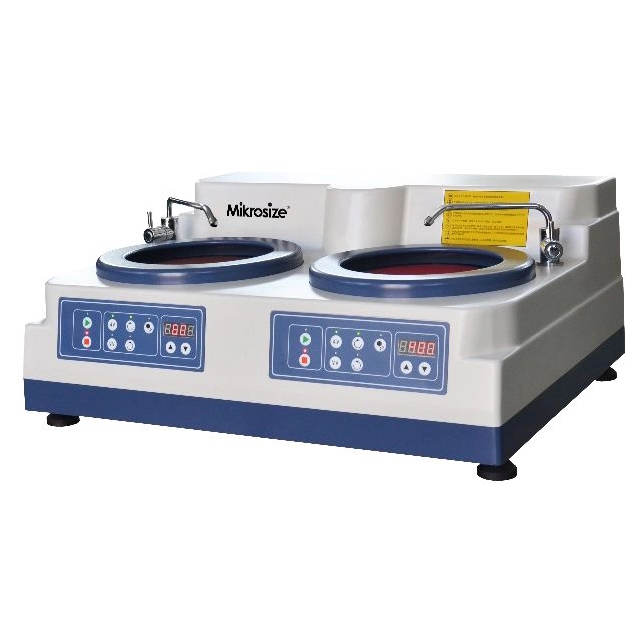

MPoli-2-230M

Disc Diameter

230mm

230mm

Abrasive Paper Diameter

230mm

230mm

Speed

Stepless Speed 50~1400r/min,

or Four Speeds 300, 600, 900, 1400r/min

Rotational Direction

Clockwise or Counter-clockwise

Electromotor

DC Brushless Motor, 220V, 600W

Control and Display

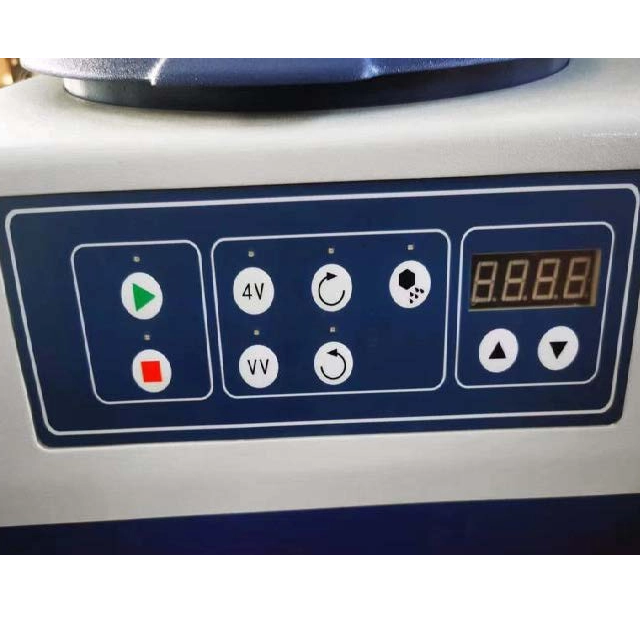

Keyboard Operation , LED Display, With washing function

Power Supply

220V, 50Hz, 6A

220V, 50Hz, 8A

Machine Dimensions

420×660×330mm

757×660×330mm

Net Weight

30kg

57kg

Variable Grinding Abrasive Paper

Name

Specification

Silicon Carbide Abrasive Paper 230mm

(60#,80#,120#,150#,180#,220#,240#,280#,

320#,360#,400#,500#,600#,800#,1000# 1200#,1500#,2000#)

Silicon Carbide Adhesive

Abrasive Paper 230mm/250mm/300mm

(60#,80#,120#,150#,180#,220#,240#,280#,320#,360#,

400#,500#,600#,800#,1000#,1200#,1500#,2000#)

Aluminium Oxide Abrasive Paper 230mm

(180#,240#,280#,320#,400#,600#,800#,1000#,1200#)

Aluminium Oxide Adhesive

Abrasive Paper 230mm/250mm/300mm

180#,240#,280#,320#,400#,600#,800#,1000#,1200#)

Dry Grinding Metallographic Abrasive Paper 230mm

(W5,W7,W10,W14,W20,W28,W40,W50)
