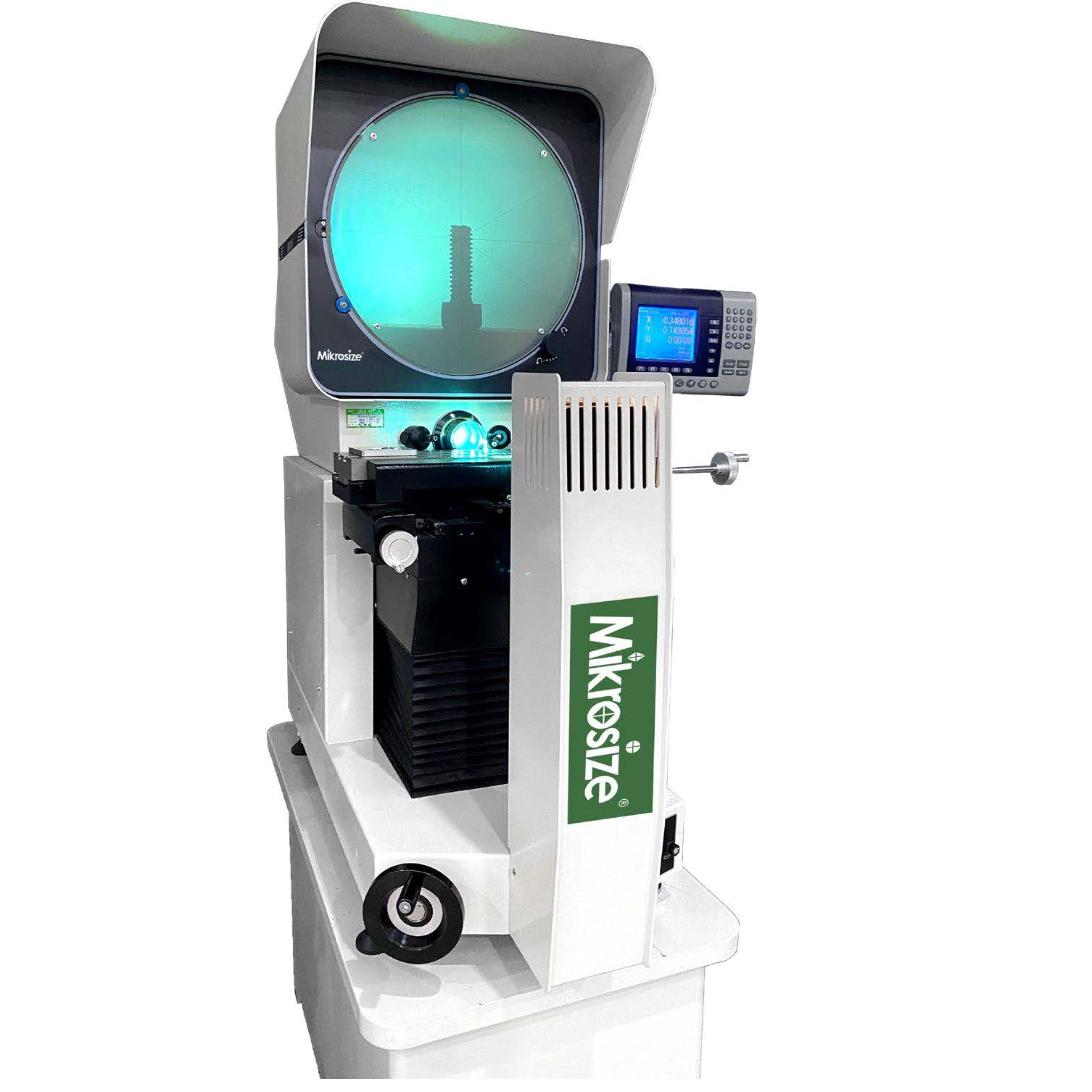

Hey there, friends! Today, I'm going to talk about the awesome iProjec-H12/H16/H24 Horizontal Measuring Profile Projector from Mikrosize. It's truly a great tool in the field of industrial measurement! Before using it, make sure to place the device steadily on a sturdy workbench. Connect the power supply, press the power button, and wait for a moment. The projector will start up, and the cool indicator light will turn on. Then, carefully put the workpiece to be measured in the measurement area of the workbench and fix it securely with the built-in fixtures of the workbench to avoid any shaking that might affect the accuracy during the measurement.

Once you're all set, you can either use the intuitive buttons on the control panel or the operating software connected to the computer to select the measurement mode that suits your workpiece and measurement requirements. The iProjec series projectors offer a variety of measurement modes to meet different scenarios! Adjusting the focal length and magnification of the lens is also crucial. Rotate the lens adjustment ring until the projected image is clear and sharp, showing the details of the workpiece. At this point, you can start the measurement! Utilize the built-in crosshairs, angle measurement tools, etc. of the projector to directly obtain key dimensional data such as length, angle, and radius on the projected image. If you need to conduct batch measurements, you can also set up an automatic measurement program, which is both time-saving and labor-saving!

After the measurement is completed, don't rush to turn off the device. First, remove the workpiece from the workbench, clean the workbench and the lens to keep the equipment clean. Then, press the power button to turn off the projector, and unplug the power plug after the fan stops rotating. The iProjec-H12/H16/H24 Horizontal Measuring Profile Projector designed by Mikrosize is simple and intuitive to operate, and even beginners can quickly get the hang of it. With its high precision and efficiency, it can help you easily complete various complex measurement tasks. Give it a try now!
