Optical Precision Meets Digital Efficiency: The Future of Measuring Testing Instruments

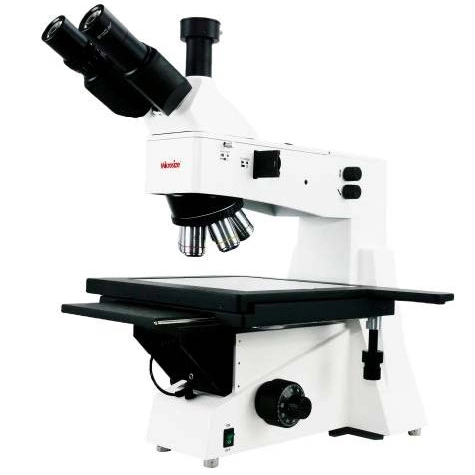

Unveiling the Next Generation of Inspection: The Research-Type Metallographic Microscope by Mikrosize

In the fast-paced world of materials science and electronics manufacturing, precision is non-negotiable. As a premier Mikrosize supplier of high-precision Measuring Testing Instrument solutions, we understand that the clarity of your analysis directly impacts your yield. We are proud to introduce the latest advancement in our portfolio: the Research-Type Metallographic Microscope. This instrument represents a significant evolution in metallurgical inspection, specifically engineered to meet the rigorous demands of inspecting 300mm wafers and 17-inch LCD panels.

Designed for professionals in electronics, metallurgy, chemistry, and instrumentation, this microscope seamlessly bridges traditional optical inspection with modern digital analysis. Whether you are analyzing solar cell silicon wafers, semiconductor wafers, multi-layer circuit boards, FPDs, or precision molds, this system delivers exceptional clarity. By choosing Mikrosize as your Measuring Testing Instrument partner, you are investing in a tool defined by ergonomic excellence, robust construction, and cutting-edge optical engineering.

Unmatched Versatility for Large-Sample Inspection

A key strength of this research-grade system is its adaptability. Inspecting flat panel displays and semiconductor wafers requires a platform capable of handling delicate, large-format samples without compromising stability. The microscope stage supports substrates up to 300mm wafers and 17-inch LCD panels, making it indispensable for modern cleanrooms and failure analysis labs.

To address the diverse needs of research and quality control, the system features multiple turntables for 4, 6, 8, and 12 inches. This flexibility ensures seamless adaptation whether you are working with small metallurgical samples or large production wafers. This commitment to versatility is central to the Mikrosize design philosophy—providing Measuring Testing Instrument solutions that evolve with your application demands, eliminating the need for multiple dedicated platforms.

Ergonomics Redefined: The Human-Centric Approach by Mikrosize

Extended hours at the inspection station can lead to fatigue, which inevitably affects accuracy. Recognizing this, our engineers have comprehensively enhanced the ergonomic design. As a trusted Mikrosize supplier, we prioritize user comfort to ensure sustained productivity.

• Elevation-Adjustable Observation Tube: The observation tube features a fully adjustable tilt mechanism, ranging from 0 to 35 degrees. This is critical for facilities with multiple shifts or operators of varying heights. By allowing users to customize the viewing angle, the microscope reduces neck and back strain associated with prolonged use. This ergonomic flexibility improves comfort and significantly boosts work efficiency by enabling rapid, natural transitions between samples.

• Clutch-Driven Stage Mechanism: Precision movement is fundamental to any high-end microscope. The brand-new clutch-driven stage (featured in the MCK-12RC model) transforms how operators interact with the platform. By engaging the clutch wrench, users can glide the stage freely to locate new inspection points without repetitive knob turning. When fine, calibrated movement is required, disengaging the clutch locks the stage into a precision guide rail transmission system. This ensures smooth, vibration-free movement, delivering the stability and reliability essential for critical metrology tasks.

Technological Integration: Optical Precision Meets Digital Efficiency

As a modern Measuring Testing Instrument, this research-type industrial microscope results from a seamless fusion of optical microscope technology, photoelectric conversion, and computer imaging. This integration enables dual-mode operation: traditional manual observation through the eyepieces and real-time observation on a high-resolution computer monitor. This hybrid capability is essential for collaborative analysis and training. Users can capture high-definition metallographic images at any time for immediate analysis, grading, or archival purposes. The ability to save and print high-resolution metallographic photos directly from the system transforms raw visual data into actionable reports.

• Safe and High-Speed Electric Objective Changer: Speed and safety are often at odds in mechanical design, but not with this Mikrosize system. The microscope features a safe and high-speed electric objective lens changer. Utilizing a forward and reverse switching mode, it allows quick, precise positioning to the desired observation magnification. The high repeatability of the mechanism ensures parfocality is maintained, meaning the sample stays in focus when switching magnifications. By eliminating manual force on the turret, this mechanical switching mode effectively extends the service life of the converter, safeguarding your investment.




• Intuitive Electric Controls: True to its status as a premium Measuring Testing Instrument, all primary controls are within easy reach. The aperture diaphragm and objective lens selection are managed by a brand-new electric control system. Operation buttons are strategically positioned at the front of the instrument, allowing the operator to make adjustments without moving their hands away from the work area. This user-friendly electric design not only eliminates manual steps but also enhances the precision and flexibility of your detection work, enabling subtle adjustments in contrast and depth of field critical for defect identification.




• Shockproof Bracket Design for Image Stability: Image stability is paramount when capturing high-resolution images at 1000x magnification. The camera body is supported by a six-point bracket system. Combined with a low center of gravity and an all-metal frame, this design provides exceptional vibration damping. Whether the microscope is located near heavy manufacturing equipment or in a busy lab, the robust construction ensures image quality remains stable and free from interference.

Advanced Observation Techniques: A Multifunctional Powerhouse

To truly understand a material's microstructure, one must view it under the right light. This research-grade system integrates multiple observation functions including Brightfield (BF), Darkfield (DF), Polarization (POL), and Differential Interference Contrast (DIC).

• Brightfield and Darkfield: Ideal for revealing surface defects, inclusions, and grain boundaries in metals and ceramics.




• Polarization: Essential for identifying anisotropic materials, stresses in transparent films, and specific phases in alloys.




• DIC (Differential Interference Contrast): Provides a pseudo-3D relief effect, making sub-nanometer topographical variations visible without sample staining or contact profiling.

This rich suite of contrast methods makes the microscope widely applicable across high-tech industries. It is the go-to Measuring Testing Instrument for semiconductors, flat panel display inspection, circuit packaging, and the analysis of cast metal ceramic components and precision grinding tools. As a dedicated Mikrosize supplier, we ensure your lab is equipped to handle the evolving challenges of material science.

Why Choose Mikrosize for Your Metrology Needs?

In a competitive market, Mikrosize stands out as a symbol of reliability and innovation. By selecting our Research-Type Metallographic Microscope, you are not just purchasing a tool; you are partnering with a leader in precision measurement. We combine robust hardware with intelligent software to create solutions that drive industry forward.

Our commitment extends beyond the sale. As a premier Measuring Testing Instrument provider, we offer comprehensive after-sales support, including calibration services, technical training, and rapid response maintenance. This ensures your operations continue uninterrupted, maintaining the highest standards of quality control.

Whether you are in a research institution developing the next generation of solar cells or a quality assurance lab ensuring the reliability of aerospace-grade alloys, the Research-Type Metallographic Microscope from Mikrosize is engineered to exceed your expectations. Explore the future of metallography today with a partner dedicated to precision—Mikrosize.
