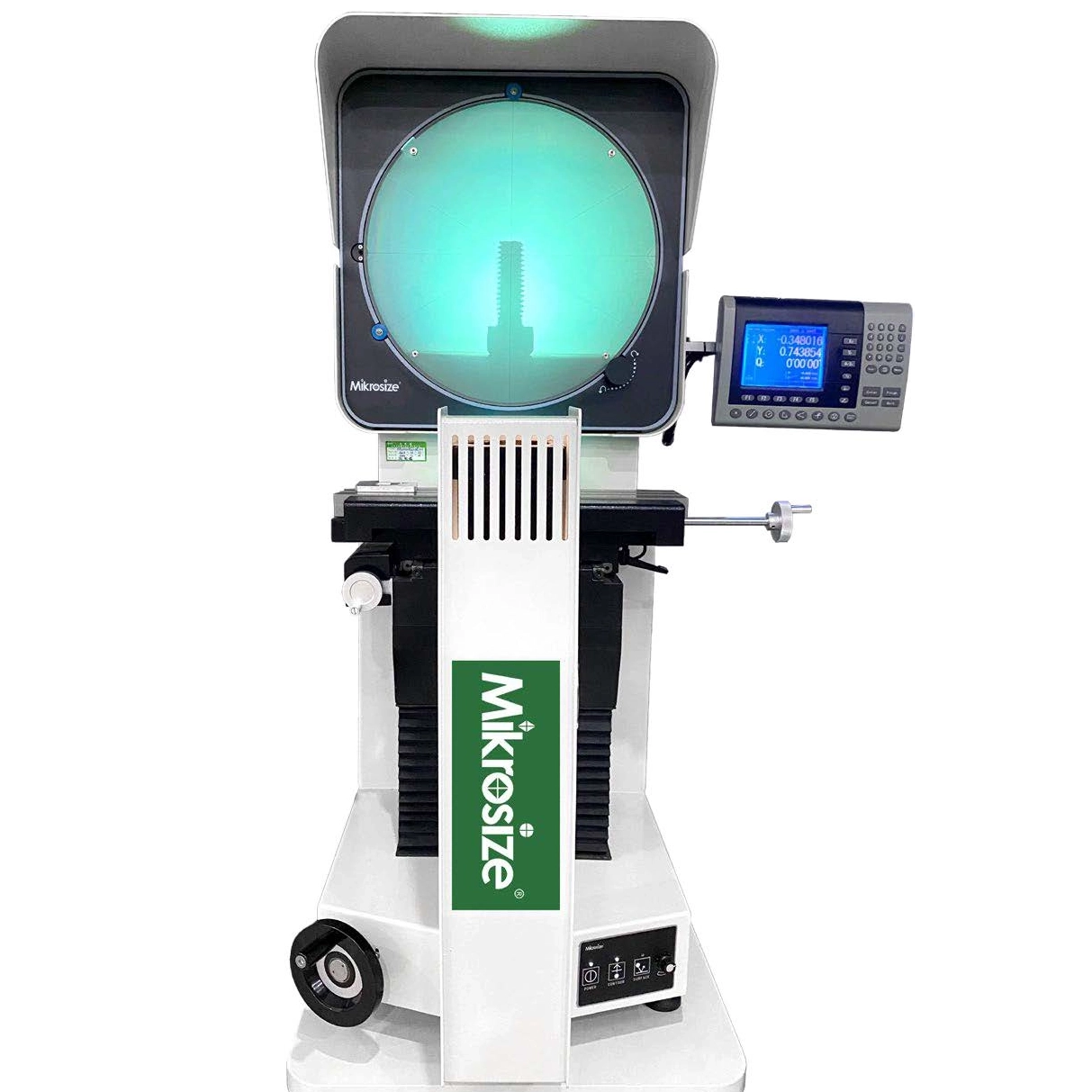

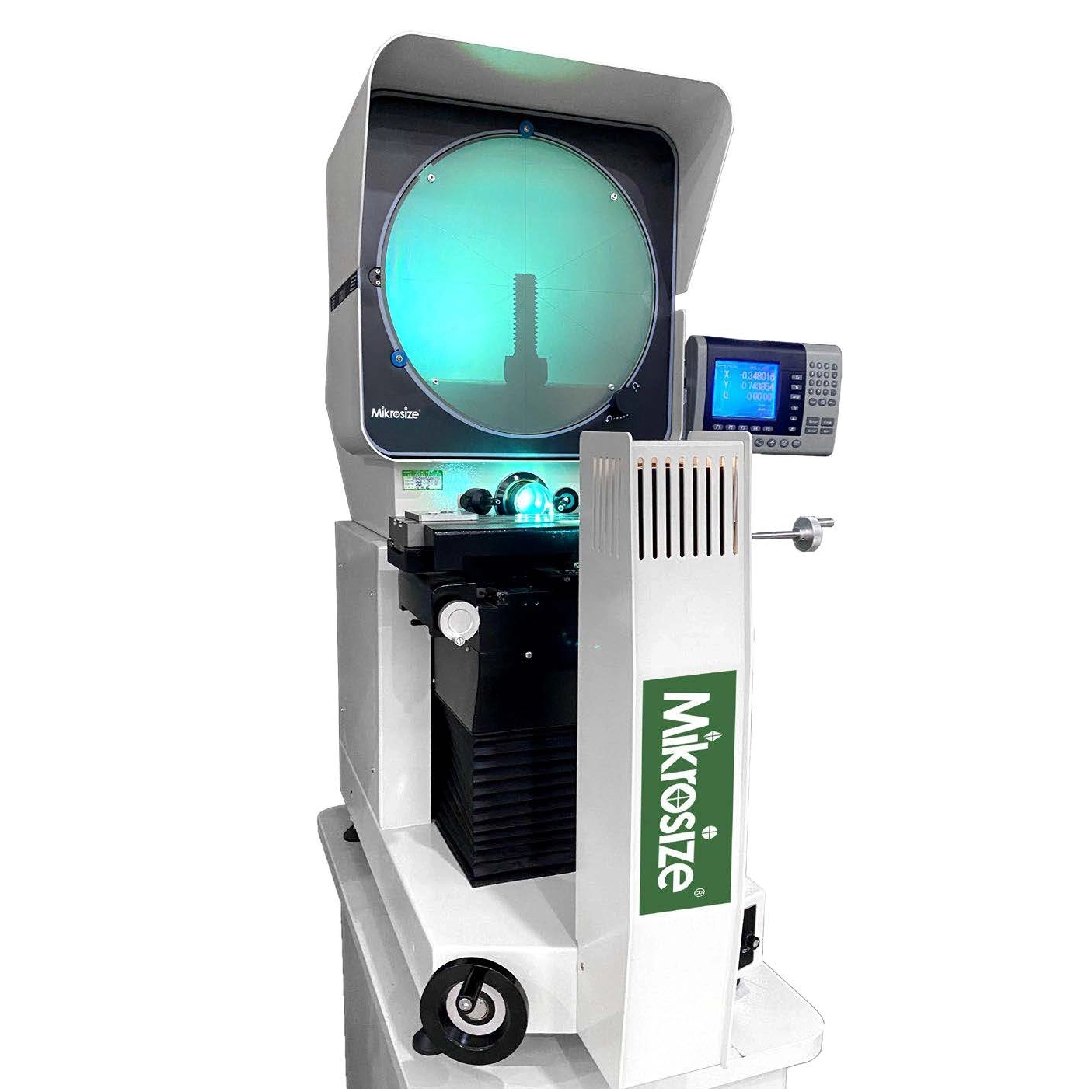

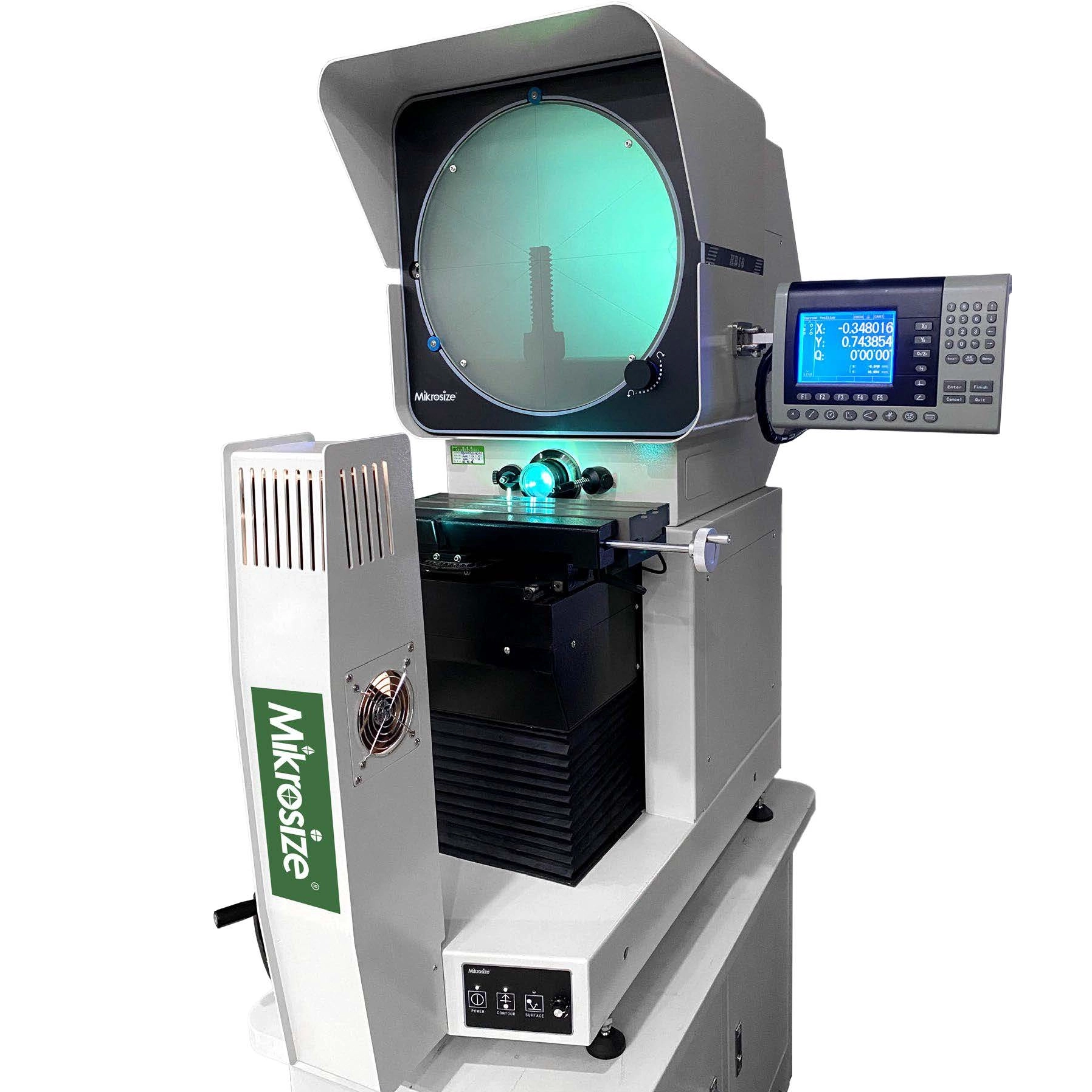

iProjec-H12/H16/H24 Horizontal Measuring Profile Projector

Product Feature：

●High-precision optical system: Equipped with high-quality objective lenses, it can produce sharp and clear images, and the magnification ratio is accurate, ensuring the accuracy of dimensional measurement and meeting the requirements of precise measurement.
●Precision worktable: Processed from aviation aluminum alloy, it has a large measurement range and is lightweight. The digital display resolution of the X and Y coordinates reaches 0.0005mm, and the positioning accuracy is extremely high.
●Stable guide rail transmission: The lifting transmission of the worktable adopts imported V-shaped linear guide rails, which run smoothly, reduce vibration deviation, and ensure the stability and accuracy during the measurement process.
●Sturdy and durable structure: The overall structure has strong versatility, a reasonable design, and high-quality materials. It is resistant to interference and wear, and can maintain high precision even after long-term use.
●Advanced digital display system: The coordinate indication value error is ≤3+L/200. Equipped with an advanced digital display system, the readings are intuitive and accurate, effectively improving the measurement accuracy and efficiency.

Product Application：

●Mechanical manufacturing: It can accurately measure complex mechanical parts, such as the contours of cams and gears, ensuring the machining accuracy and assembly quality.
●Electronic industry: It can accurately detect the dimensions of tiny electronic components, facilitating the miniaturization and high-precision production of electronic products.
●Instrument production: It can measure the components of instruments efficiently, ensuring the stable and reliable assembly and performance of the instruments.
●Mold processing: It is used for the measurement of key parts such as mold cavities, improving the precision of mold manufacturing.
●Metrological verification: It provides a high - precision measurement basis for metrological departments, ensuring the accurate transfer of measurement values.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Model	iProjec-H12	iProjec-H16	iProjec-H24
X,Z-axis Travel(mm)	200*100	300*150	300*150
Y-axis Travel(mm)	75(Focusing)	125(Focusing)	125(Focusing)
Precision	X/Y-axis≤3+L/200(um)
Projector Screen Size(mm)	Φ330	Φ425	Φ615

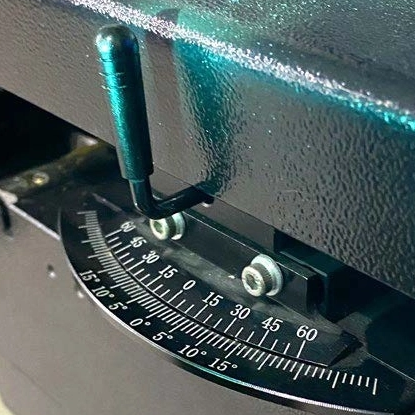

Projector Screen Rotation Range	0-360°
Rotation Angle Resolution	1’ or 0.01°
Magnification	10X(Standard),20X50X100X(Optional)
Power Source	110V/220V (AC),50/60HZ,Total 400W

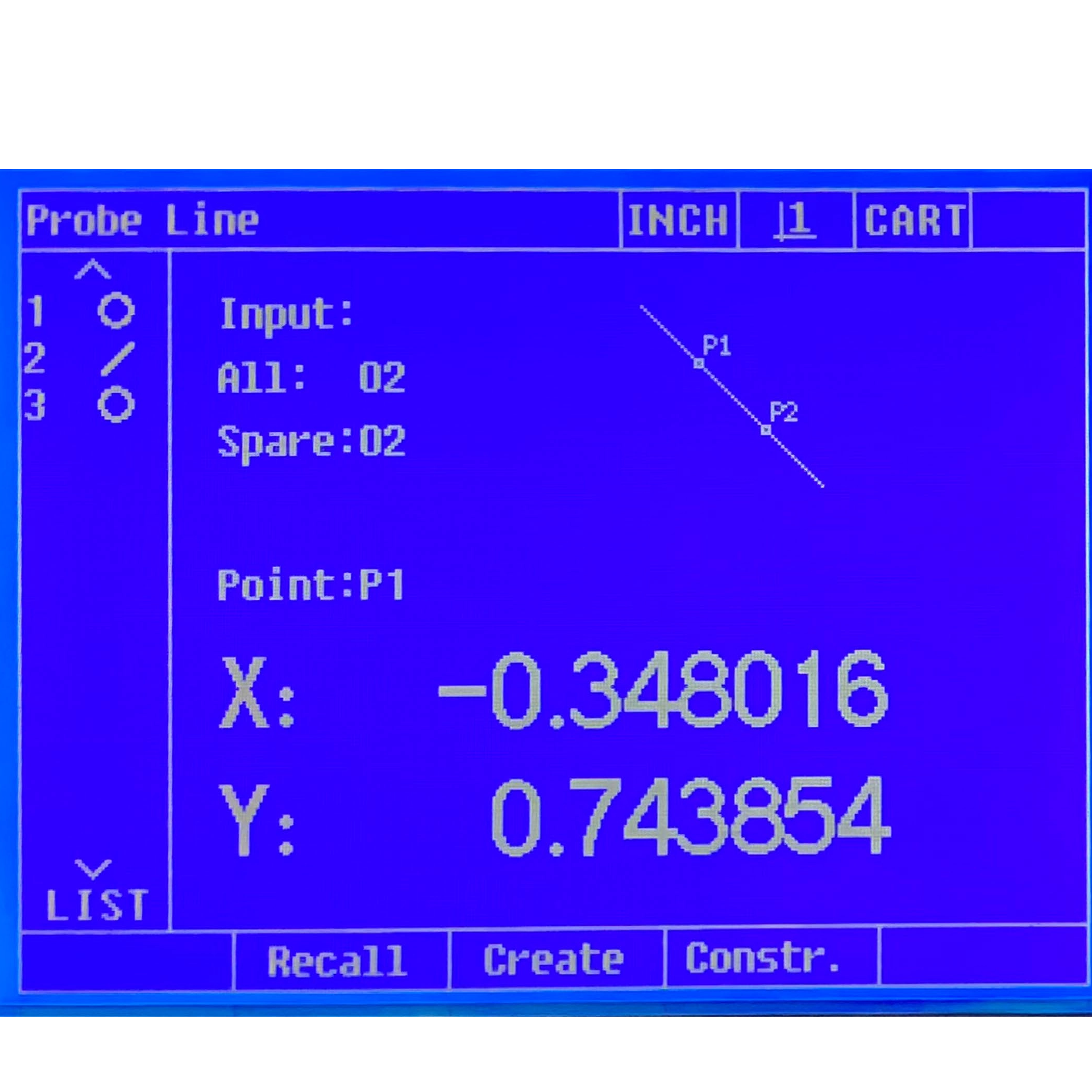

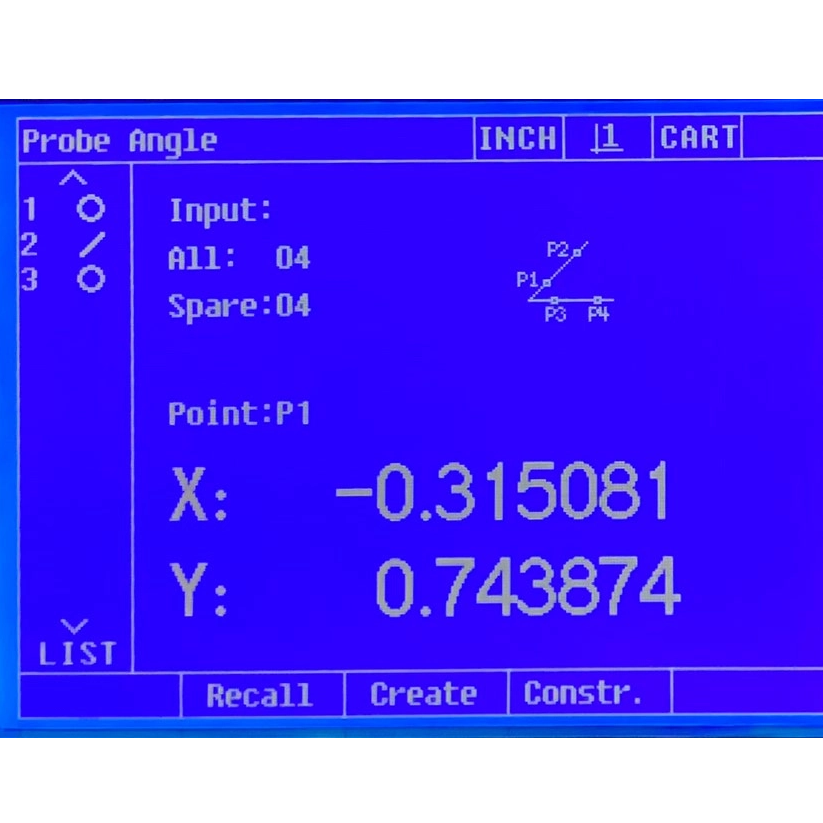

Digital Readout	Supports English, can be used for measuring and collecting two-dimensional data such as points, lines, circles, angles, distances, etc., and is easy to operate
Cooling Method	Forced air cooling (3-axis fan)
Illumination	Transmission and reflection lighting: 24V/150W halogen lamp
Machine Size(mm)	11147569964	13605801170	16117611409
Instrument Accessory	Mini-printer(Standard),Measuring Software(Optional)

Packing list：

Items	Name	Qty	Unit	Remark
Standard list	8A fuse	5	Pcs
	Halogen lamps（64640）	2	Pcs
	Halogen lamps （13629）	1	Pc
	Power cable	1	Pc
	Rotary fastening Plug	4	Pcs
	Foot switch	1	Pc
	10X Objective lens	1	Pc
	Instruction Manual	1	Pc
	DRO300 Instruction Manual	1	Pc
	Dust-proof Cover	1	Pc
Optional List	Objective lens	1	set	□20X □50X □100X
	Rotary table	1	set
	Arc film (with film clips)	1	set
	Glass line ruler	1	Pc
	Fixture	1	set	V-groove
	Edgefinder	1	Pc
	Measuring Software	1	Pc
	Working Cupboard	1	set
