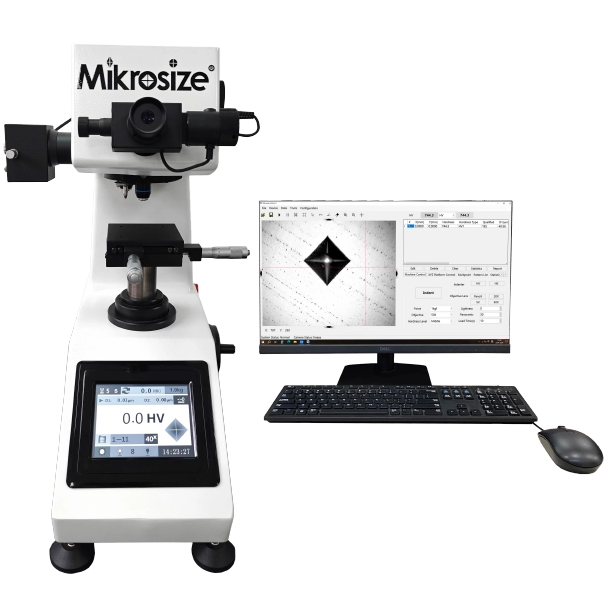

Revolutionizing Material Analysis: The Visual Vickers Hardness Tester by Mikrosize
In material science and quality control, precision and efficiency are non-negotiable. As a premier Measuring Testing Instrument supplier, Mikrosize introduces our latest innovation: the Visual Vickers Hardness Tester. This equipment represents a paradigm shift from traditional methods, integrating advanced embedded vision technology to deliver unparalleled accuracy, speed, and user experience.
The Evolution: From Eyepiece to Intelligence
For decades, Vickers hardness testing relied on manual microscopes and measuring eyepieces, which are inherently limited by human error, mechanical backlash, and operator fatigue. Mikrosize has addressed these challenges by eliminating the conventional eyepiece. Our visual series projects the indentation image directly onto a high-definition screen, enabling real-time video measurement. This makes the process faster, more intelligent, and perfectly aligned with our mission to provide cutting-edge solutions for metallography, manufacturing, and research.
Core Technology: High-Precision Step-Controlled Electrical Loading
At the heart of this tester is a sophisticated step-controlled electrical loading system, a cornerstone of its superior performance that distinguishes it from hydraulic or dead-weight alternatives.
Ultra-Fast Loading Speeds: The system achieves remarkably fast loading for the main test force, with adjustable loading times between 2 to 10 seconds. This drastically reduces cycle times and boosts productivity in high-throughput environments.
Real-Time Video Measurement: A high-definition industrial camera provides a live feed of the indentation. This "what-you-see-is-what-you-measure" approach allows for immediate feedback, ensuring tests are valid and measurements are captured with the highest fidelity.
High-Precision Sensor Fusion: High-accuracy sensors work in harmony with the proprietary "Aolongxin" control system. This synergy ensures the applied test force is exact, repeatable, and free from the inertia-related errors of traditional testers.
Specific Force Curve Graph: The integrated software displays a real-time force curve graph, allowing the operator to visualize the application, dwell, and unloading phases. This is invaluable for validating test parameters and troubleshooting.
Optimized Loading/Unloading Dynamics: The system is engineered for faster, more precise loading and unloading. This controlled application prevents overloading and ensures the indentation is formed under ideal conditions.
Unique Embedded Vision Technology: By digitizing the entire measurement process, we can apply advanced image processing algorithms to enhance edges and facilitate automatic measurement.
Reduction of Human Error: By automating measurement on a digital screen, our visual system greatly reduces the subjectivity and parallax error associated with eyepieces, ensuring consistent results across different operators.
Remote Control Capabilities: Embracing Industry 4.0, the tester allows for remote control, facilitating operation in clean rooms or hazardous environments and integration into automated production lines.
Intelligent Process Control: Segmented force application and smooth speed variation protect the sample and indenter, while high-speed step control ensures seamless and accurate force transitions.
Embedded Imaging Interface: Replacing the uncomfortable eyepiece is a high-resolution camera and a vibrant display screen. The indentation image is clearly displayed, making measurement accessible to operators of all skill levels.
In-Depth Analysis: The Mikrosize Vision System
The transition to a digital vision system is the most significant upgrade in modern hardness testing, designed to maximize objectivity and precision.
Unwavering Objectivity: Unlike the subjective human eye, the Mikrosize vision system provides objective analysis. Its algorithms treat every indentation with the same criteria, ensuring results are based purely on geometry.
Superior Grayscale Resolution: The human eye typically distinguishes only about 64 shades of gray, making it difficult to discern indentation edges on certain materials. Our machine vision system resolves up to 256 gray levels, allowing it to "see" boundaries with exceptional clarity for more precise measurements.
Industrial-Grade Hardware: At its core is an industrial-grade, high-definition camera built for workshop environments and calibrated for the specific requirements of Vickers testing. Critical image adjustments are optimized through the software interface.
Intuitive Visual Analysis Mode: The operator simply touches the screen or clicks a mouse to mark the indentation corners. This process dramatically reduces operator fatigue and provides a more intuitive measurement experience.
Comparative Advantage: Vision System vs. Eyepiece
To fully appreciate this leap in technology, it is essential to compare the direct benefits of the vision system over the traditional eyepiece.
Elimination of Parallax and Visual Error: Traditional eyepieces suffer from parallax error if the operator's eye is not perfectly centered. With the Mikrosize visual system, measurements are taken directly on a digital image, completely eliminating this source of error.
Enhanced Measurement Accuracy and Repeatability: Mechanical eyepieces suffer from mechanical backlash and limited resolution. The Mikrosize vision system replaces this with a digital process. The image sensor's pixel spacing of just 7.5μm, combined with sub-pixel algorithms, provides a level of precision that far exceeds mechanical systems.
Advanced Multi-Directional Measurement: Eyepiece measurement is linear and one-dimensional. The Mikrosize vision system provides two-dimensional simultaneous measurement, measuring both diagonals instantly. It also offers advanced methods like rectangular tangent measurement for very small or irregular indentations.
Ergonomic Excellence: Staring through an eyepiece for hours causes significant eye strain. The Mikrosize system utilizes a large, 65K true color TFT LCD screen, providing a comfortable, fatigue-free viewing experience and allowing for collaborative discussion of results.
Optimizing the Metallography Workflow
The Mikrosize Visual Vickers Hardness Tester is designed to optimize every aspect of the workflow, from preparation to data reporting.
Time Savings: By optimizing the test cycle—from fast electrical loading to instant digital measurement—the system saves up to 50% of the time compared to traditional testers.
Data Management: The digital nature allows seamless integration with Laboratory Information Management Systems (LIMS). Data, images, and force curves can be stored and exported for certification.
Versatility: As a leading Measuring Testing Instrument, it is adept at performing standard Vickers tests as well as low-force tests for thin materials and coatings.
Why Choose Mikrosize?
Mikrosize distinguishes itself through a commitment to innovation and quality. Our Visual Vickers Hardness Tester is a testament to our engineering philosophy: to create instruments that empower technicians and researchers. By choosing Mikrosize, you are investing in a partner dedicated to providing reliable, high-precision solutions. Every product is built to exceed industry standards, offering the perfect blend of durability, advanced technology, and user-centric design.
Conclusion: The Future of Hardness Testing is Visual
The transition to a high-definition visual system is a complete transformation of the hardness testing process. The Mikrosize Visual Vickers Hardness Tester embodies this transformation, offering unprecedented speed, accuracy, and ease of use. By integrating high-precision electrical loading with an advanced embedded vision system, we have created an instrument that eliminates operator error, reduces fatigue, and delivers reliable data. Embrace the future of material testing. Choose precision. Choose efficiency. Choose Mikrosize. Contact us today to learn more.
