Magnetic Induction vs. Eddy Current: Understanding NDT for Metal Substrates

The Essential Guide to Coating Thickness Gauges: Mikrosize's Portable Dual-Probe Solution

In material protection and quality assurance, the accuracy of coating measurements directly impacts product longevity and performance. From aerospace to industrial corrosion protection, professionals need reliable data to ensure paints, platings, and films meet strict specifications. As a leading supplier of high-end measuring instruments, Mikrosize presents its latest innovation: a portable, dual-purpose coating thickness gauge designed for metallurgists, QC engineers, and field inspectors.

This guide explores the technical fundamentals of coating measurement and the advanced features that make the Mikrosize gauge an indispensable tool for global engineering projects.

Understanding Coating Thickness Measurement

Coating thickness gauges are vital for non-destructive testing (NDT), allowing measurement without surface damage. Our Mikrosize device operates on two key principles:

• Magnetic Induction (For Ferrous Metals): This measures non-magnetic coatings (like paint, zinc, or rubber) on magnetic steel or iron. The gauge probe contacts the surface and measures the magnetic flux between it and the base metal. The coating's thickness directly affects this flux, allowing for precise readings.

• Eddy Current (For Non-Ferrous Metals): For non-magnetic metals like aluminum or copper, the gauge uses eddy currents. A high-frequency field induces currents in the conductive base, and non-conductive coatings (like anodizing or plastic) alter this field. A high-precision chip interprets these changes for instant, accurate values.

This dual-purpose capability means a single instrument can handle tasks ranging from thick rubber linings on tanks to micron-level anodizing on precision parts.

Mikrosize: A Name Synonymous with Precision

Mikrosize is dedicated to providing complete solutions for material science. Our portfolio includes hardness testers, vision measuring machines, microscopes, and metallurgical equipment. This new coating thickness gauge reinforces our commitment to quality. As a dedicated supplier, we bridge the gap between advanced technology and practical application, delivering an instrument engineered to meet ISO standards for consistent, traceable measurements in labs or harsh field environments.

Why Our Mikrosize Gauge Stands Out

Our portable gauge is packed with features addressing the real-world challenges of quality professionals.

1. Uncompromised Accuracy with High-Tech Calibration

Precision is paramount. Utilizing a high-precision sampling chip and advanced real-time temperature compensation, the gauge ensures full-range accuracy. This is critical for industries working with ultra-thin coatings below 20µm, where a micron of error can cause product failure.

2. Dual Functionality: Thickness and Unit Weight

Innovation sets us apart. A specialized mode allows simultaneous measurement of coating unit weight (grammage) . For galvanizing, where zinc weight per square meter is a regulatory requirement, this feature saves time and eliminates the need for destructive testing.

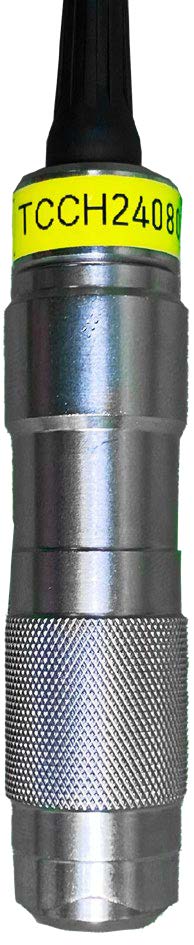

3. Interchangeable Probes and Extended Longevity

To combat probe wear and tear, our system supports multiple probe specifications. If a probe wears over time, it can be re-matched with the main unit. This effectively extends the probe's service life, protecting your capital investment.

4. Versatile Measurement Modes

The instrument adapts to any scenario with multiple modes:

• Single-Point: For spot-checking critical components.

• Scanning: For capturing continuous data over large areas.

• Unit Weight: For direct coating mass measurement.

• Difference/Average: To calculate deviations and statistical averages for batch inspections.

5. Intelligent Calibration Protocols

Multiple calibration paths eliminate systematic errors. Options include zero-point, one-point, and two-point calibration for linearity correction, ensuring the instrument is always optimized for the specific material and surface condition.

6. Comprehensive Data Management

In the Industry 4.0 era, data is vital. The gauge features robust onboard storage, allowing users to save measurement groups and perform instant statistical analysis (standard deviation, min/max) without needing a PC.

7. Quality Control with Audible Alarms

For high-volume lines, speed is essential. Users can set upper and lower limits. If a measurement falls outside these specs, an automatic buzzer alarms, enabling real-time process correction and reducing waste.

8. User-Centric Design

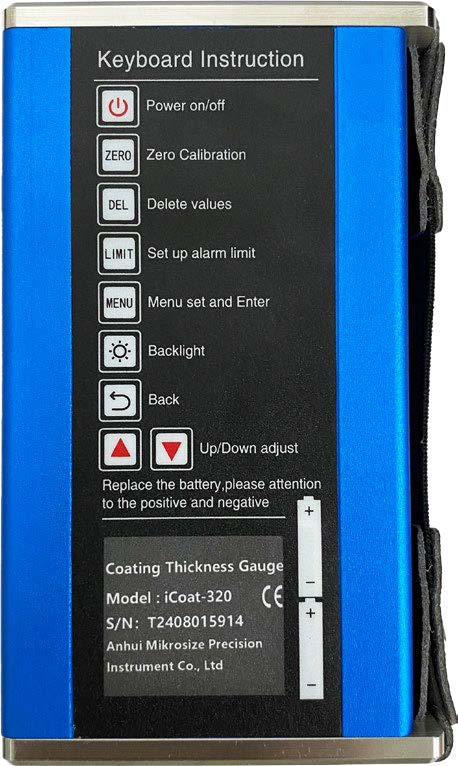

A clear interface minimizes error. The display shows the thickness value, coupling status, battery life, test time, and storage status simultaneously, ensuring the operator is fully informed.

9. Advanced Connectivity: Bluetooth and USB

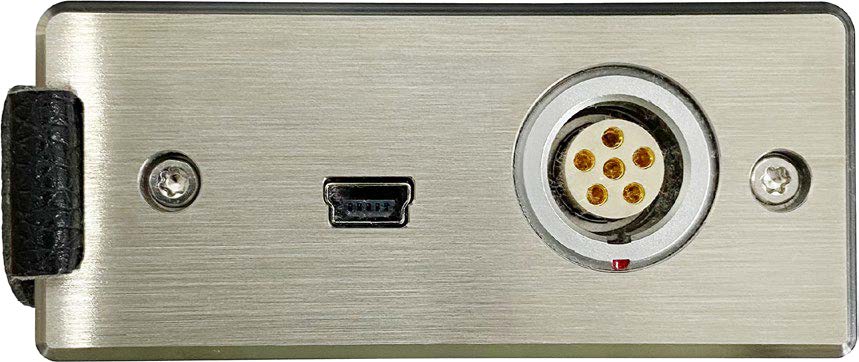

With built-in Bluetooth and a Mini-USB port, the gauge integrates seamlessly into modern workflows. It can connect to Bluetooth printers for on-the-spot reports or transmit data to PCs for long-term trend analysis.

10. Future-Ready Customization

For specialized needs, the gauge offers more. It supports command control for integration into automated systems, and host software is upgradeable. Optional RS232/RS485 interfaces and fully customizable sensors are available for unique OEM applications.

Applications Across Industries

The Mikrosize gauge's versatility makes it critical across many fields.

• Automotive: Used on assembly lines to verify e-coat thickness and in body shops to detect previous repairs by measuring paint on curved panels.

• Heavy-Duty Corrosion: Inspectors verify dry film thickness (DFT) on offshore platforms and pipelines to prevent structural failure. Scanning mode is ideal for large steel structures.

• Metal Finishing: For anodizing and electroplating, it ensures compliance with ASTM/ISO standards, helping shops optimize material usage on ultra-thin layers.

• Aerospace: The eddy current function is perfect for measuring anodic films on aluminum aircraft skins without damaging delicate surfaces.

• Electronics: Ensures consistent paint and texture coatings on smartphone and laptop enclosures, with a small probe tip for tight corners.

• Laboratories: Used in metrology labs to verify new coating processes and maintain traceability through multiple calibration modes.

Technical Specifications at a Glance

• Principles: Magnetic Induction (Fe) & Eddy Current (NFe)

• Probe: Built-in, Dual-Purpose (Interchangeable options available)

• Range: 0–1500 µm (expandable)

• Resolution: 0.1 µm (0–99.9 µm range)

• Accuracy: ± (1 µm + 1% of reading)

• Data Storage: Multiple groups / thousands of readings

• Interface: Mini-USB, Bluetooth (Optional RS232/RS485)

• Compliance: Meets ISO 2178, ISO 2360, ASTM B499

Why Choose Mikrosize as Your Supplier?

Choosing Mikrosize offers distinct advantages over established players. We provide a comprehensive metrology portfolio, allowing you to standardize your QA department on one trusted brand. We deliver laboratory-grade accuracy and advanced features at a competitive price. Our technical support team possesses deep expertise in material science, and our ability to offer customization makes us the ideal partner for OEMs and automation integrators.

Conclusion

The integrity of a coating is the first line of defense against wear and corrosion. The Mikrosize Portable Dual-Purpose Coating Thickness Gauge represents the pinnacle of NDT technology, combining high-precision chips, versatile calibration, and robust data management with the ruggedness required for field use. Trust Mikrosize for precision—whether measuring an oxide layer on an aircraft wing or paint on a vehicle.

Explore our range of Measuring Testing Instruments today. Contact us, your trusted Mikrosize supplier, to discuss how our coating thickness solutions can enhance your quality assurance workflow.
