M-Type vs BC-Type Vernier Caliper: Which One Do You Need for Large Targets?

Vernier Caliper: Precision Measurement with Mikrosize Measuring Testing Instrument

The vernier caliper is a versatile measuring instrument capable of measuring length, inner diameter, and height difference (step depth). Due to its simple use and relatively high measurement accuracy, it is widely used in production and manufacturing sites. In recent years, the application of digital vernier calipers has gradually increased. As a trusted supplier of precision tools, Mikrosize — a leading brand in Measuring Testing Instrument — offers high-quality vernier calipers alongside hardness testers, video measuring machines (影像仪), microscopes, and metallographic equipment.

Structure and Purpose

A vernier caliper consists of a main scale, vernier scale (cursor), external measuring jaws (lower), internal measuring jaws (upper), depth rod, and locking screw. The commonly used type is the M-type vernier caliper, while the BC-type is designed for measuring large targets.

• Measurement of length (external dimensions): Use the external measuring claw to clamp the object and read the values of the main ruler and vernier. For cylindrical objects, the parallel surface of the outer measuring claw must fully clamp the target.

• Measurement of inner diameter: Insert the internal measuring claw between the object walls, expand until the gap disappears, then read the measurement.

• Measurement of height difference: Use the depth rod or step measuring surface to measure hole depths or step heights.

Main Usage Methods

When measuring, hold the main ruler with your palm and use your thumb to move the cursor. Apply gentle force — excessive force tilts the external claw, causing errors. Always ensure the object is perpendicular to the jaw faces.

Reading the scale: Combine the main scale and vernier scale readings. The vernier scale is typically one twentieth of the main scale division, giving a minimum measurement unit of 0.05 mm (analog) or 0.01 mm (digital). Observe from the left and find where a vernier line exactly aligns with a main scale line. For digital Mikrosize calipers, the large LCD display shows the reading instantly, eliminating parallax and interpretation errors.

Digital Vernier Calipers and Mikrosize Quality

Digital vernier calipers offer higher resolution (0.01 mm), absolute/incremental measurement, data output (USB/Bluetooth), and automatic shut-off. Mikrosize’s digital vernier calipers feature hardened stainless steel, IP54 protection, and come with a calibration certificate. Both M-type and BC-type models are available, with measuring ranges from 0–150 mm to 0–1000 mm.

Applications Across Industries

Hardness Testing Integration

Before using a Mikrosize hardness tester (Rockwell, Brinck, or Vickers), the sample thickness and diameter must be measured with a vernier caliper to comply with test standards (e.g., ISO 6508). Using a Mikrosize digital caliper, technicians quickly record dimensions and proceed to hardness testing — a seamless Measuring Testing Instrument workflow.

Video Measuring Machine (VMM) Pre-Measurement

Mikrosize’s video measuring machines provide high-precision non-contact measurement. For large or simple features, a vernier caliper is faster. Many labs use Mikrosize calipers for preliminary checks before loading parts onto the VMM, saving time and preserving high-end equipment.

Microscopy and Metallography

In metallographic sample preparation, a vernier caliper measures mounted sample dimensions to fit the microscope stage. Mikrosize offers metallurgical microscopes and sample preparation equipment; the caliper acts as the essential bridge between preparation and analysis. For coating thickness verification, the depth rod provides quick checks.

Advanced Tips for Precision Measurement

• Zero setting: Close the jaws and verify zero alignment. For digital models, press the zero button. Regular calibration with gauge blocks is recommended.

• Temperature compensation: Allow the caliper and workpiece to equilibrate to 20°C to avoid thermal expansion errors.

• Avoiding Abbe error: Keep the depth rod perpendicular to the reference surface.

• Maintenance: Wipe jaws with a lint-free cloth and light oil after use. Store in the provided protective case. Mikrosize includes custom cases with every caliper.

Why Choose Mikrosize Measuring Testing Instrument?

Mikrosize has established itself as a reliable global supplier of hardness testers, video measuring machines, microscopes, metallographic equipment, and precision hand tools. Every Mikrosize vernier caliper meets DIN 862 and GB/T 21389 standards. The company offers a complete ecosystem: from calipers to hardness testers to VMMs, reducing supplier management complexity. Technical support, online tutorials, and a 2-year warranty are included. Competitive pricing makes Mikrosize the smart choice for quality assurance.

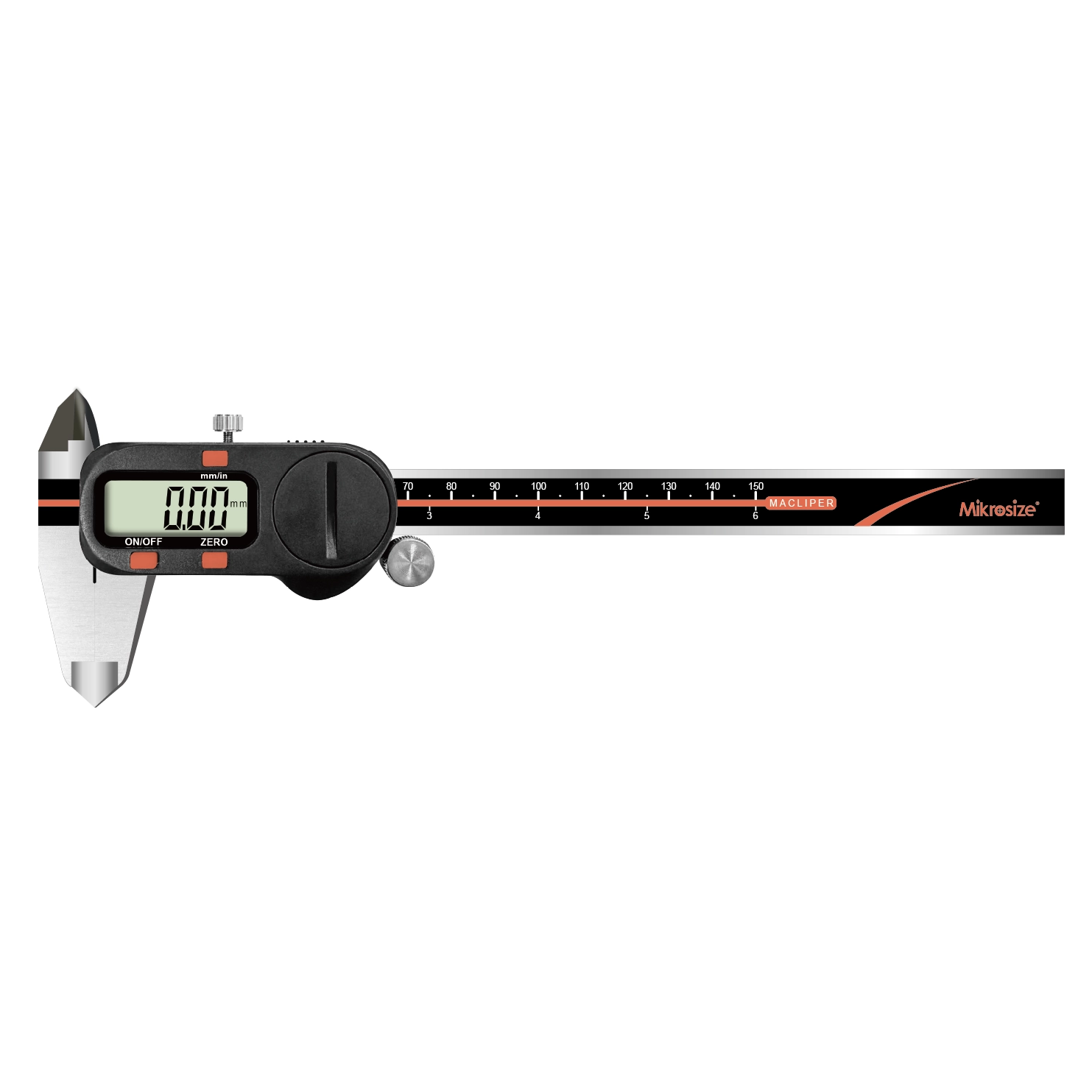

Step-by-Step Example with a Mikrosize Digital Caliper (Model MS-DC150)

1. Clean the workpiece and jaws. Turn on and press ZERO.

2. External measurement: Open lower jaws, clamp the object gently, read LCD.

3. Internal measurement: Insert upper jaws into a hole, expand until contact, read.

4. Depth measurement: Place main scale end on reference surface, extend depth rod to bottom, read.

5. Step measurement: Use step face to measure height differences.

6. Data output: Use USB/Bluetooth to record measurements automatically for SPC.

Common Errors and Solutions

• Parallax error: Use a digital Mikrosize caliper or read from directly above.

• Dirt/jaws not zeroed: Clean before each use.

• Over-tightening: Use the thumb roller gently; Mikrosize calipers have friction adjustment.

• Thermal expansion: Avoid holding the caliper too long.

• Worn jaws: Verify with gauge blocks periodically. Mikrosize offers replacement jaw kits for BC-type calipers.

The Future: Smart Measurement with Mikrosize

Mikrosize integrates wireless data transmission into digital vernier calipers for Industry 4.0. Bluetooth-enabled models pair with MeasureLink software for real-time quality monitoring. These innovations solidify Mikrosize’s position as a forward-thinking Measuring Testing Instrument supplier.

Conclusion

The vernier caliper remains an indispensable tool for measuring length, inner diameter, and height difference. By choosing a Mikrosize vernier caliper — analog or digital, M-type or BC-type — you invest in precision, durability, and comprehensive support from a trusted Measuring Testing Instrument brand. Combined with Mikrosize hardness testers, video measuring machines, microscopes, and metallographic equipment, you build a complete quality assurance ecosystem. Explore the full range at the official Mikrosize website. Accurate measurement is the first step toward manufacturing excellence.
