Fast, Cold, Clear: Automatic Light Curing Embedding Machine by Mikrosize

Automatic Light Curing Cold Embedding Machine – Advanced Solution by Mikrosize, a Professional Measuring & Testing Instrument Supplier

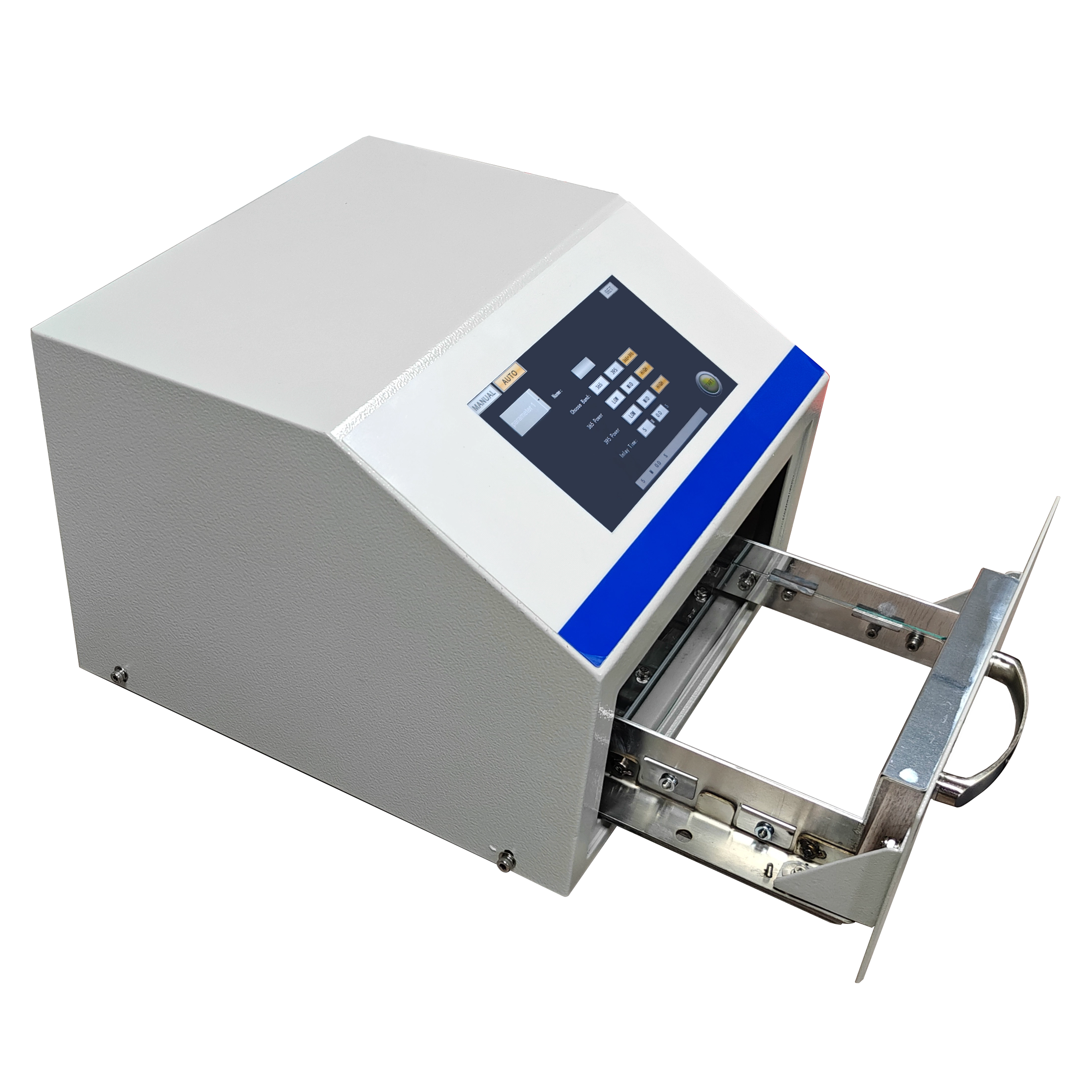

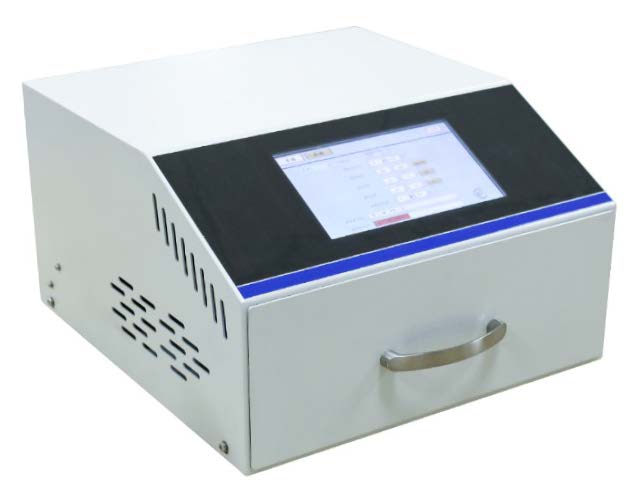

The automatic light curing cold embedding machine offers speed, low viscosity, and transparency. Mikrosize, a trusted measuring and testing instrument supplier, provides this system for laboratories worldwide. It uses dual wavelength LED lights (365+395 nm; 395+450 or 365+450 optional) for light curing of inlay materials. The cold light source has no thermal radiation, keeping surface temperature low and preventing thermal damage during embedding. Transparent light cured inlay material fills sample gaps, creating a tight bond. This gives excellent protection and support for samples during grinding and polishing.

Product Features:

1. Dual wavelength combination: 365+395; (395+450, 365+450 optional).

2. Three independent brightness settings per wavelength.

3. Six-sided illumination: top, bottom, left, right, front, back with surface light sources and reflective films, ensuring uniform light and high curing efficiency.

4. Manual and automatic working modes.

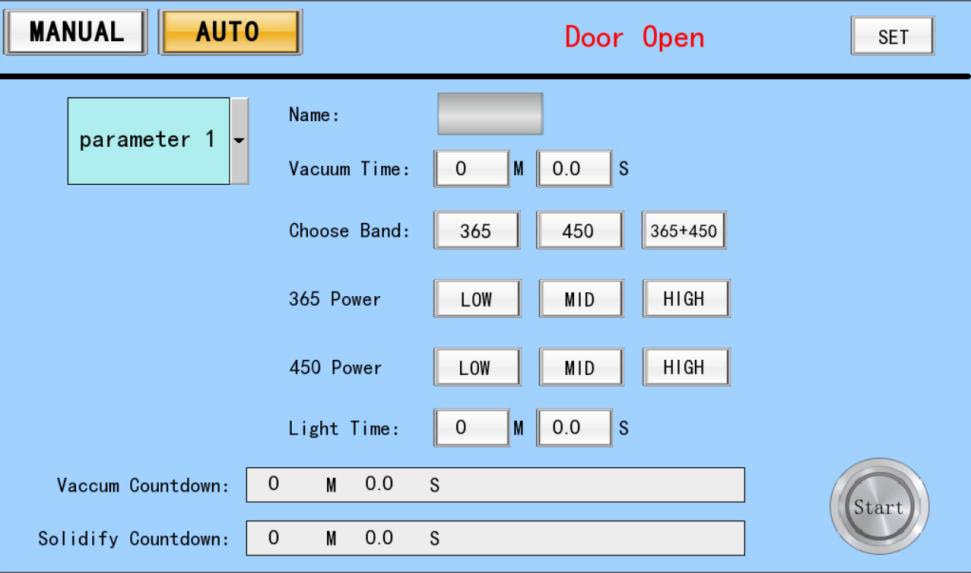

5. 99 automatic working programs, settable by wavelength, brightness, and lighting time.

6. Easily replaceable light panel.

7. Long service life: over 10 times longer than traditional mercury lamp curing machines; lifespan unaffected by switch frequency.

8. Low energy consumption: only 10% of UV curing machine (mercury lamp) power, saving 90% electricity.

9. Optional vacuum pumping device to reduce bubbles.

As a measuring and testing instrument supplier, Mikrosize delivers this automatic light curing cold embedding machine with all above features. The dual wavelength and independent brightness control allow precise curing. Six-sided uniform illumination eliminates shadows and uneven curing, improving throughput and mount quality. Manual mode gives operator control; automatic mode stores up to 99 programs for different samples, ensuring repeatability. The replaceable light panel cuts maintenance costs. LED service life exceeds ten times that of mercury lamps, and frequent switching does not degrade it. Energy consumption is only 10% of mercury lamp systems, saving 90% electricity. The optional vacuum pump removes bubbles, critical for high-magnification microscopy and hardness testing.

Mikrosize also supplies hardness testers, image analyzers, measuring microscopes, metallographic microscopes, and other metallographic equipment. All instruments meet ASTM, ISO, and JIS standards. In summary, the automatic light curing cold embedding machine provides fast, safe, and high-quality cold embedding. Its cold LED light, uniform curing, programmability, long life, and low power consumption make it superior to hot mounting or mercury lamp methods. Contact Mikrosize, your reliable measuring and testing instrument supplier, to improve your sample preparation process.
