Product Description
General characteristics:
a) The instrument adopts the principle of electromagnetic ultrasonic, and there is no need to grind the surface of the workpiece during the detection process, and no coupling agent is required
b) The probe and the host are integrated, and the probe can be replaced
c) Configurable probe types: normal temperature probe (≤150℃, short-term measurement), high temperature probe (≤800℃, short-term measurement)
(2) Detectable workpiece material:
carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum, titanium and other conductor materials
(3) Measurement range: 1.5-240.0mm
the maximum value of the measurement range is affected by the properties of the measured material, sound attenuation coefficient, surface conditions and other factors
(4) Error range of measuring equipment:
When the thickness of workpiece is less than 10mm, the error is 0.05mm; when the thickness is more than 10mm, the error is + (0.01 + H / 200) mm (H is the thickness of workpiece)
(5) Receiving gain: ≤ 100dB
(6) Normal temperature probe: ≤ 120 ℃, 4MHz, mainly used to detect fine-grained materials, such as low carbon steel, aluminum, etc., with a maximum liftable clearance of 4mm
(7) High temperature probe: ≤ 800 ℃, 4MHz, mainly used to measure ferromagnetic fine-grained materials, such as low carbon steel, with a maximum liftable clearance of 1~2mm
(8)Lift-off effect:
(actual lift-off distance is related to material properties and degrees), anti-rust film, salt deposits or any other insulating coating (oil, varnish, porcelain, plastic, etc.) can be used as operating clearance
(9) The minimum diameter (curvature) of the workpiece that can be detected is 8mm
(10) The maximum tilt angle of the probe: 25°
(11) Probe excitation method: permanent magnet
(12) Type of sound wave: shear wave
(13) Power supply: built in lithium battery, working time not less than 5 hours
(14) The normal working temperature range of the host: -10~+50℃
(15) Host storage temperature range: 0~+40℃
(16) Host weight: 250g (with normal temperature probe)
(17) Dimensions of the host: length 176mm x width 42mm x thickness 32mm

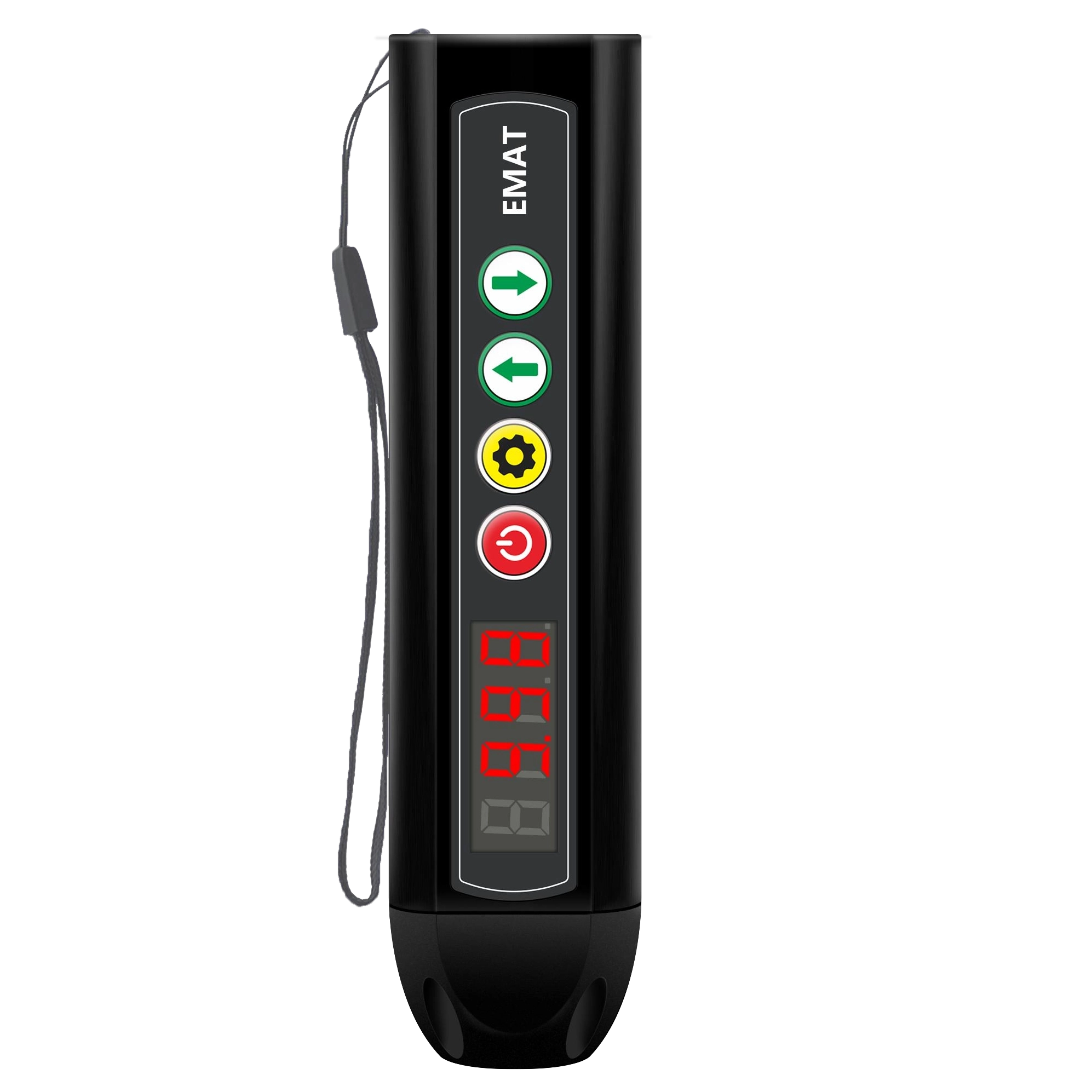

Key Description
| On /Off key | Press and hold to switch on and off the machine |
| Setting key | Press the setting key to set the host parameters |
| Up key | In setting mode, menu selection and setting can be carried out |
| Down key | In setting mode, menu selection and setting can be carried out |
