iThick-200 Ultrasonic Thickness Gauge

Product Feature:
●Adopting the principles of interface echo and bottom echo difference (IE) thickness measurement and pulse reflection (PE) ultrasonic measurement, it has” PE、 IE、 Testing” three measurement modes to accurately measure thickness through coatings.
●The display resolution is 0.01mm, with an error limit of 0.4% H (where H is the thickness of the workpiece), high accuracy .

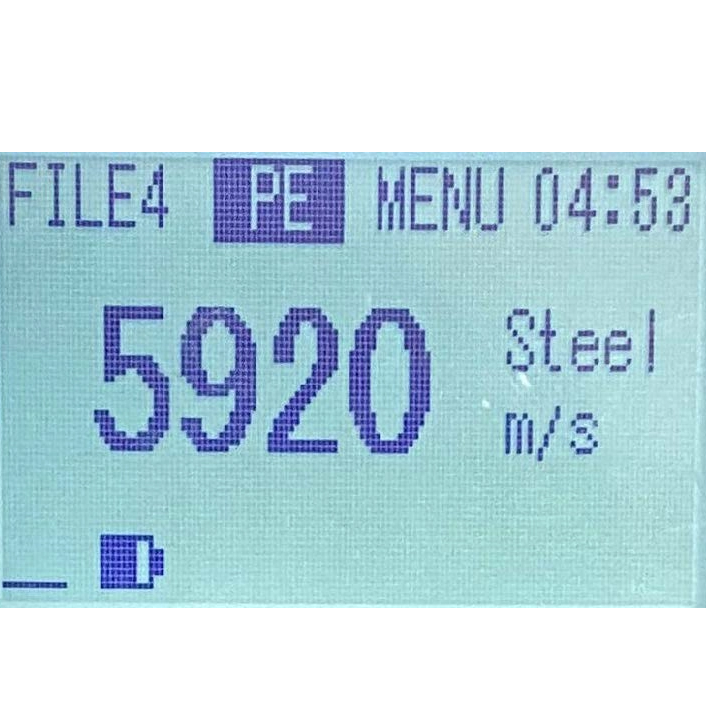

●Equipped with zero point calibration and sound velocity calibration functions, it can automatically correct system errors and also measure sound velocity through known thickness of blocks.
● It can store complete measurement information, including thickness values, sound velocity, and time information, store 500 sets of measurement results; The LCD display has adjustable contrast and LED backlight display, which can clearly display measurement content in various lighting environments, such as thickness value, coupling status, power status, calibration status, sound velocity, time, etc.
●Powered by two No. 5 alkaline batteries, it can work continuously for up to 5 hours (without backlight) and has a battery level indicator function.
●Continuous 2-minute (adjustable) automatic shutdown, and also equipped with a switch button for easy user operation.

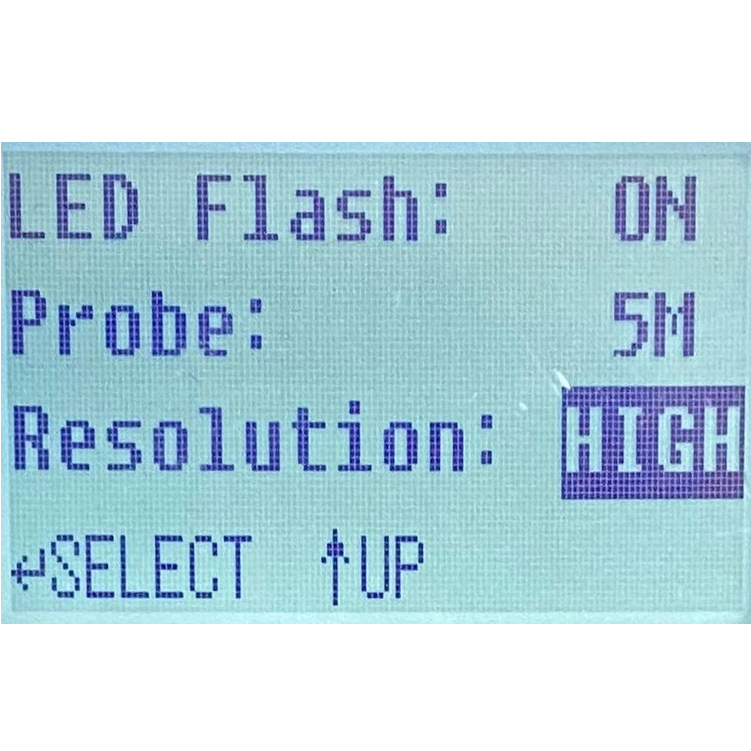

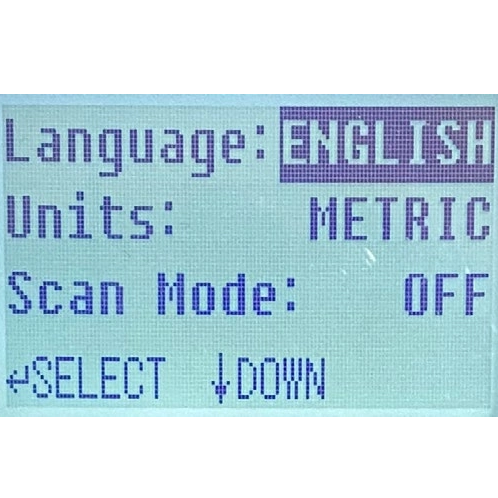

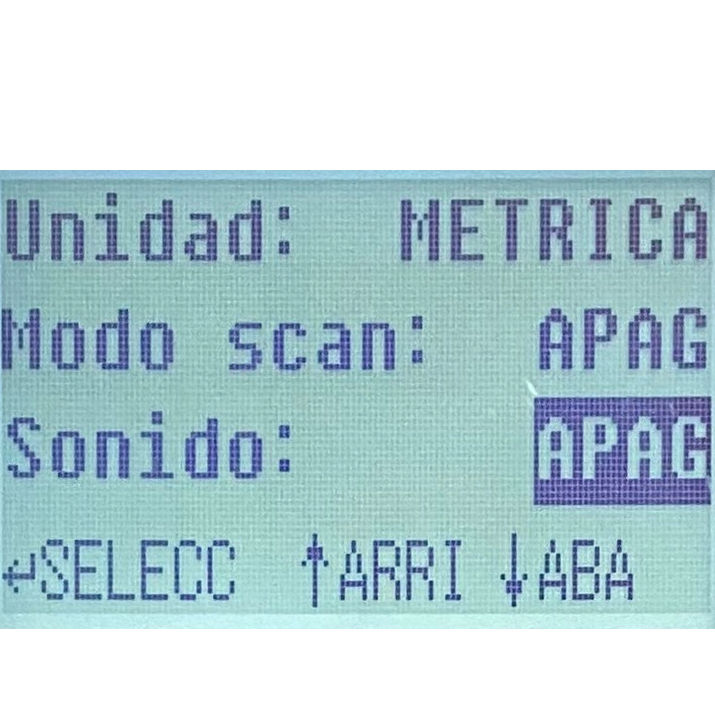

●Settings including:Measurement units (metric and imperial), scanning modes (on and off), beep notification, flashing alarms, probe parameters, restore default settings, send data to the computer, delete files, delete all data, contrast, system time, standby time, etc, also view version information.

Product Application:
● Purity testing: Using ultrasonic technology to inspect the interior of precious metals such as gold bars, silver bars, gold coins, and silver coins for adulteration, accurately identifying their purity through testing functions.
●Accurate thickness measurement of various materials of plates, including but not limited to steel, non-ferrous metals, etc., suitable for different thickness ranges, such as basic type can measure 1-300mm (steel), cast iron type can measure 4-508mm, precision type can measure 0.75-35mm, and high-temperature type can measure 4.0-80mm.
●Cold light source, no heat radiation, low temperature rise on the surface of the illuminated product, solving the problem of thermal damage in the inlay process.
●Transparent light-curing inlay fills the void in the sample, realising a close bond between the sample and the inlay, so that the sample is well protected and supported during grinding and polishing.

Availability:
Quantity:

Product Description

Technical Specification


Basic Type

Cast Iron Type

High Precision Type

High Temperature Type

Testing Range(Steel

1.0~500mm

2.0~500mm

0.85~300mm

4.0~80mm

Display Error(<10 mm)

±0.04mm

±0.04mm

±0.04mm

±0.05mm

Testing Error(≥10 mm)

±0.4%H mm

±0.4%H mm

±0.4%H mm

±0.4%H mm

Testing Frequency

5MHz

2MHz

7.5MHz

3MHz

Display Accuracy

0.01mm

Measurement period

4 times/second

Velocity Range

1000-9999m/s

Display

 FSTN LCD display, with cold light source illumination display

Working Voltage

2*1.5V

Continuous Working time

50 hours without backlight

Data Storage

500 groups of measurement results, including measurement time and sound velocity information

Auto Power off

Automatic shutdown without action for 2 minutes (settable), with switch button

Display Content



Thickness value, coupling state, electric quantity state, calibration state, sound velocity, time, etc

Size

155mm X 68mmX27mm

Weight

230g
