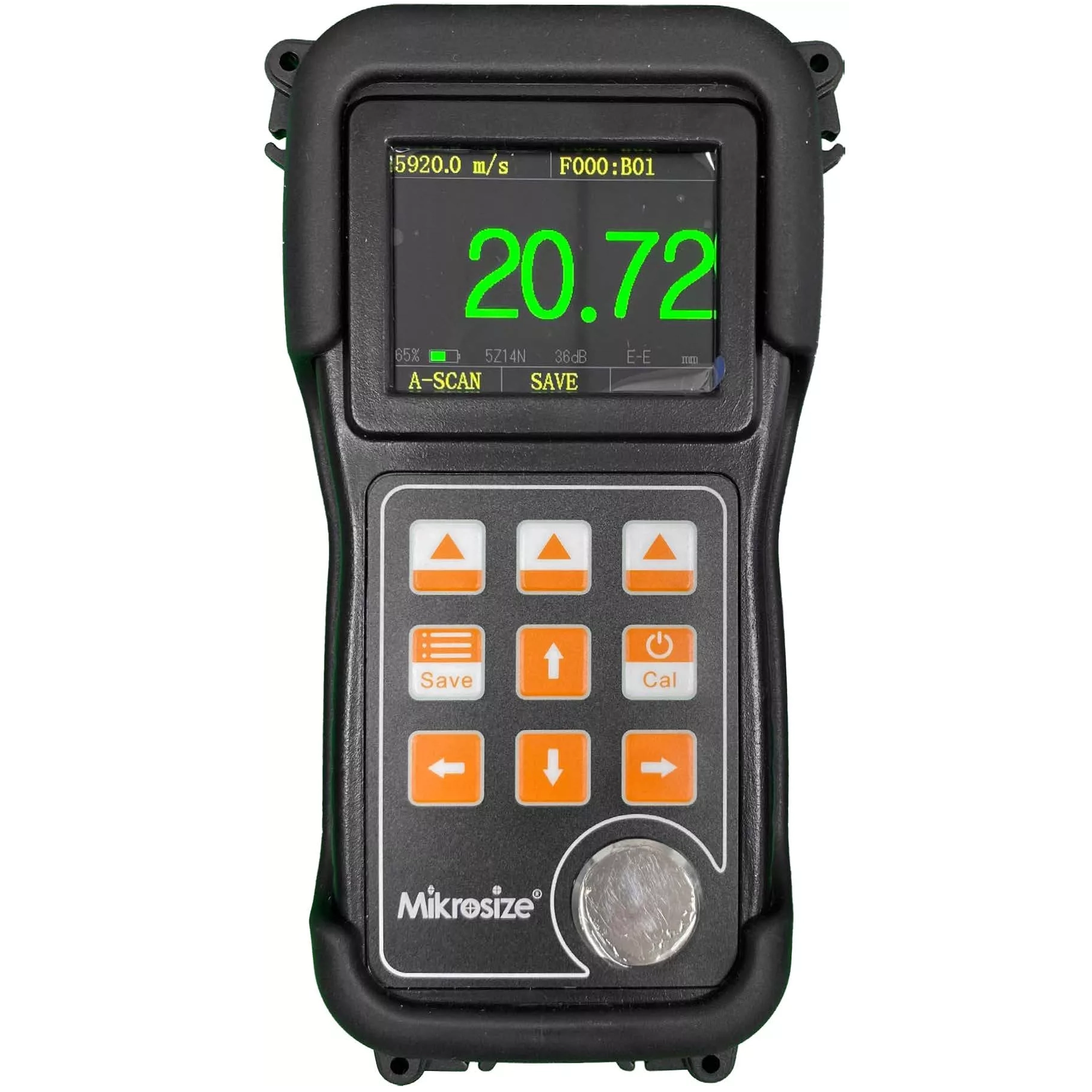

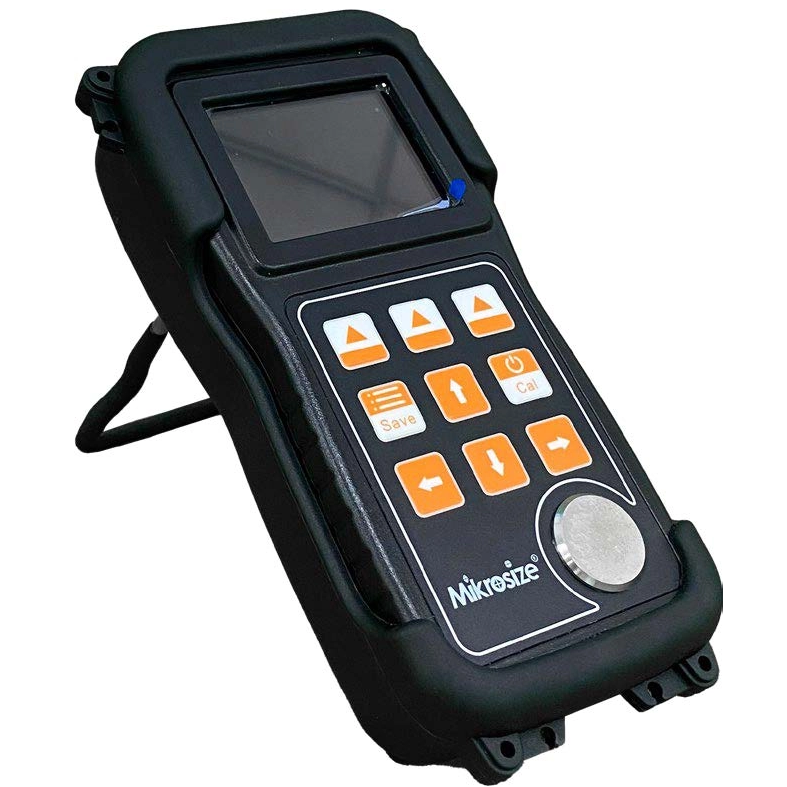

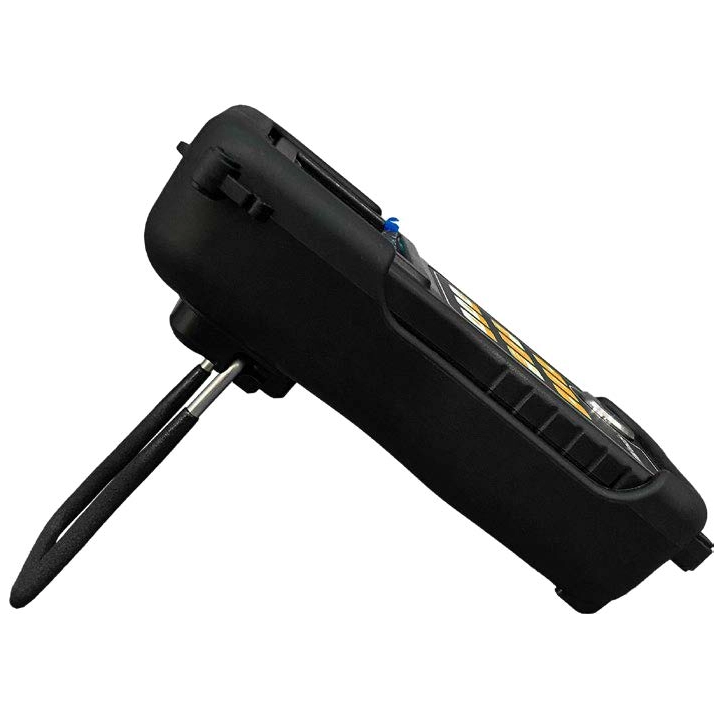

iThick-7000 Ultrasonic Thickness Gauge

Product Features：

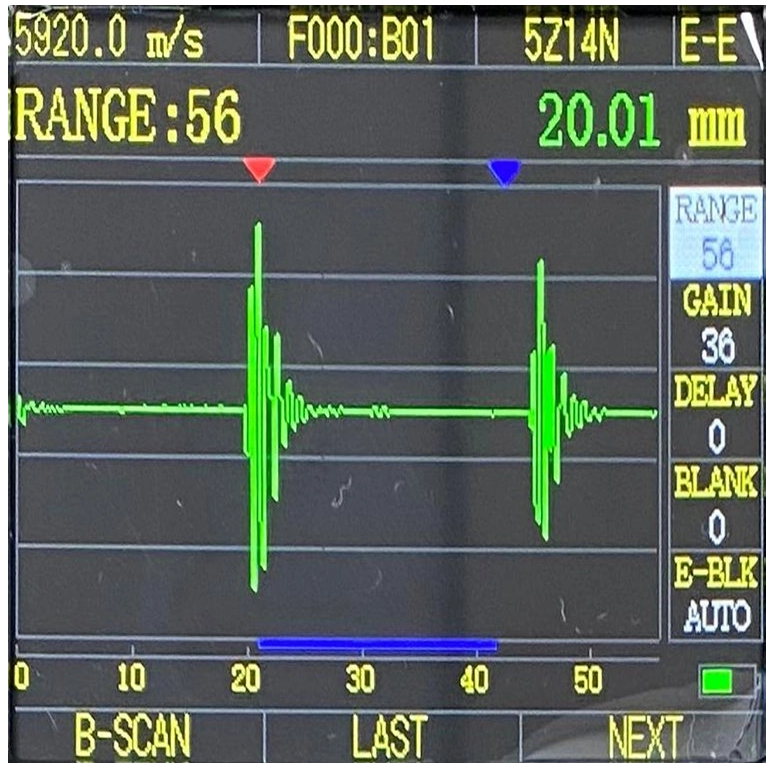

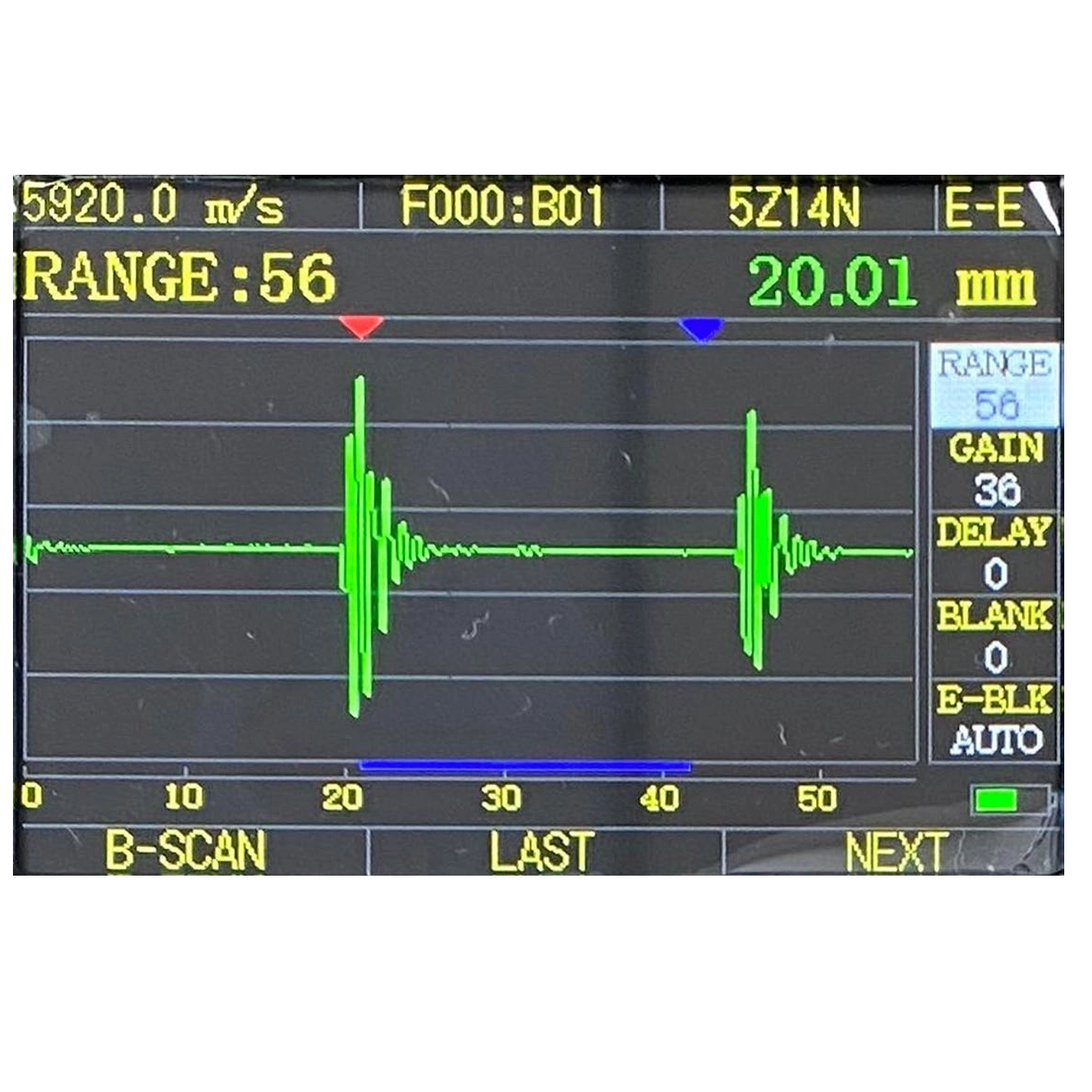

●Features A-scan, B-scan, and numerical display modes, with the numerical display mode including regular, differential, and maximum/minimum capture modes to meet various measurement requirements.
●Equipped with automatic ranging, automatic freeze, automatic E-blanking, automatic gain, and other functions to enhance measurement convenience and accuracy.
●Thickness alarm function: Changes the color of thickness values and sounds a buzzer alarm when measurements exceed the upper or lower limits. Probe coupling prompt: Displays thickness values in white font and sounds a buzzer prompt when coupling is good.
●Bandwidth of 1MHz-20MHz, gain of 72dB with step adjustment, automatically adjustable averaging times, multiple selectable update rates, diverse filters, abundant probe types, multiple measurement modes, and an effective range of 0.15-3200mm (longitudinal wave in carbon steel).
●Can save 520 files, with each file recording 252 sets of thickness values, totaling 130,000 sets. Uses a grid file format for easy access and selection of storage locations.
●Includes functions such as automatic shutdown (sleep mode), buzzer alarm, upper computer communication, backlight adjustment, etc., to adapt to various working environments and needs.

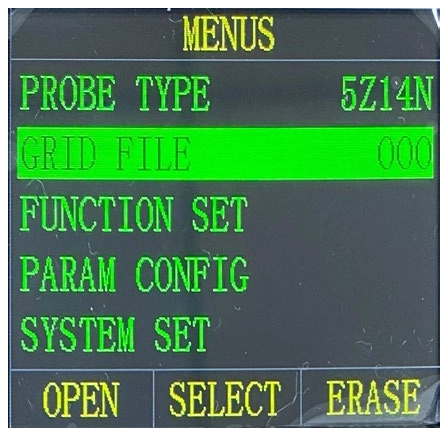

●The keyboard has 9 clearly defined keys for easy operation. The menu interface allows adjustment of multiple parameters, such as measurement range and mode.
●Includes bundled Data View upper computer software for data statistics, analysis, archiving, and report printing.
Product Application：
●Used to measure the thickness of metal products such as steel plates and aluminum plates, ensuring the precise thickness of products like automobile body panels and aircraft frames.
●Can measure the thickness of concrete columns and walls to assess their strength, check the thickness of floor concrete to ensure uniformity, and is also used for metal corrosion inspection to measure thickness reduction due to external corrosion in a non-destructive manner.
●Measures the thickness of metal pipes, containers, and plates to provide important data for quality control during production processes. Detects material uniformity and defects in welding, casting, and other processes.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Parameters

Bandwidth	1MHz～20MHz
Receiving gain	72dB, step pace 1dB, 6dB
Average	Average number of times 0 to 64 automatically adjusted
Update rate	4Hz, 8Hz, 16Hz
Filter	Broadband, 5M, 10M, 15M
Probe type	single crystal, double crystal
Pulse mode	Square waves, two-sided waves
Transmit voltage	25V～300V, 25Vstep pace
Pulse width	25ns～300ns, 5ns step pace
Pulse frequency	400Hz-3200Hz auto-adjustment
Specialized function	A-Scan, B-Scan
Calibration mode	Automatic zero point calibration, automatic sound velocity calibration
View mode	Normal, difference, maximum value capture
Measuring range	0.15～3200mm(Longitudinal wave carbon steel)
Detection mode	Full wave, positive half wave, negative half wave, RF, Invert to RF
Measurement mode	P-E(pulse-echo), E-E(echo-echo), I-E(interface-echo), ME-E(multiple echo)
Detection range	0X-25mm(steel), 1X-100mm(steel), 2X-200mm(steel), 3X-400mm(steel), 4X-800mm(steel), 5X-1600mm(steel), 6X-3200mm(steel)
Data storage	520 files can be saved, each file can record 252 sets of thickness values, for a total of 130,000 sets.
Auxiliary functions	Auto Gain, Auto Range, Auto Blanking E, Auto Freeze, Auto average, Auto Shutdown (Hibernation),Buzzer alarm, upper computer communication, Backlight Adjustment
Unit	Metric system, English system
Language	Chinese，English
Probe interface	DUAL LEMO-00 C5
Weight	228g, no battery
Battery	Two 1.5V AA batteries
Output interface	MINI USB，data export to the host computer
Size	153mm×76mm×37mm
Display screen	2.4-inch 320×240 IPS_LCD
Working temperature	-10℃~55℃

Standard Delivery

Items	Qty
Main Unit	1 PC
Probe	Optional
Alkaline battery	2 PCS
Coupling agent	1 Bottle
Screwdriver	1 PC
Instrument case	1 PC
User Manual	1 Copy
Product warranty card	1 Copy
Product certificate	1 Copy

Optional Delivery

Items	Qty
Software	1 PC
USB Cable	1 PC

Model	TC510	5Z14N	DL15
Type	double crystal 5M	single crystal 5M	single crystal 15M
Frequency	5MHz	5MHz	15MHz
Diameter of contact area	10mm	20mm	6.35mm
Measuring range	1~400.0mm	4～3200.0mm	0.15～25.0mm
Allowable contact temperature	-10～70℃	-10～70℃	-10～70℃

The Probe for iThick-7000 Ultrasonic Thickness Gauge

Probe Model		N1
Code		CTP01250N00
Operating Principle		Eddy Current
Substrate Material		Non-magnetic Metal Substrate(Copper, Aluminum, Zinc, Tin Etc.)
Coating Material		Non-magnetic Metal Substrate(Copper, Aluminum, Zinc, Tin Etc.)
Measuring Range (μm)		0~1250
Low Range Resolution (μm)		0.1
Accuracy	One-Point Calibration (μm)	±(3%H+1.5)
	Two-Point Calibration (μm)	±[(1~3)%H+1.5]
Measuring Conditions	Min Curvature Radius (mm)	3
	Diameter of The Min Area (mm)	Φ5
	Critical Thickness of Substrate(mm)	0.3

The Probe for iThick-7000 Ultrasonic Thickness Gauge

Code	Thickness Measurement Range	Crystal Diameter	Frequency	Operating Temperature
TP1507025	0.15-25mm	Φ7.5mm	15MHz	-10℃~70℃
TP0510400	1.5-400mm	Φ10mm	5MHz	-10℃~70℃
TP1514320	4-3200mm	Φ14mm	15MHz	-10℃~70℃
