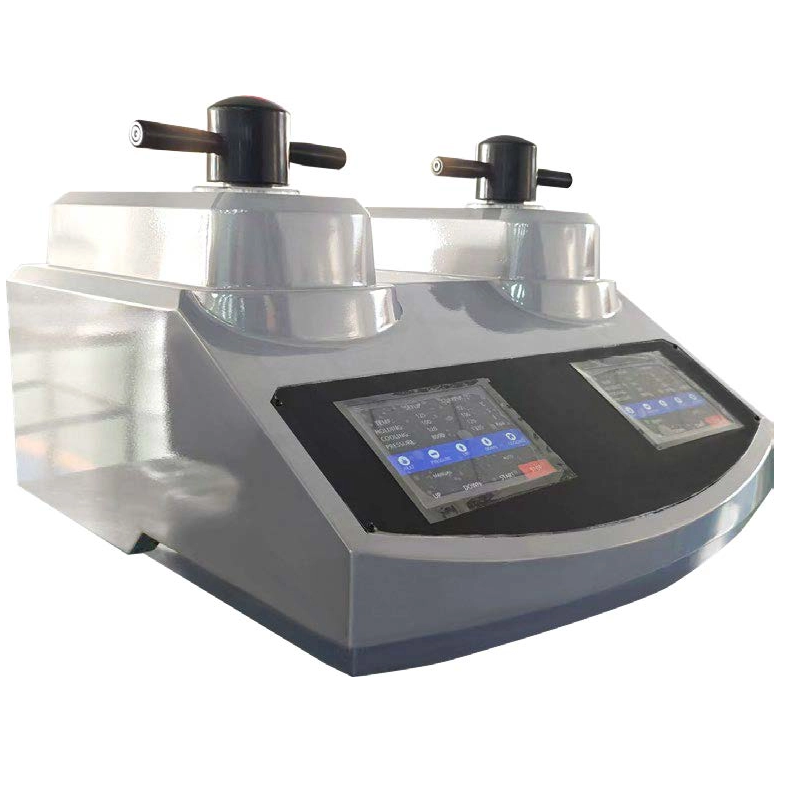

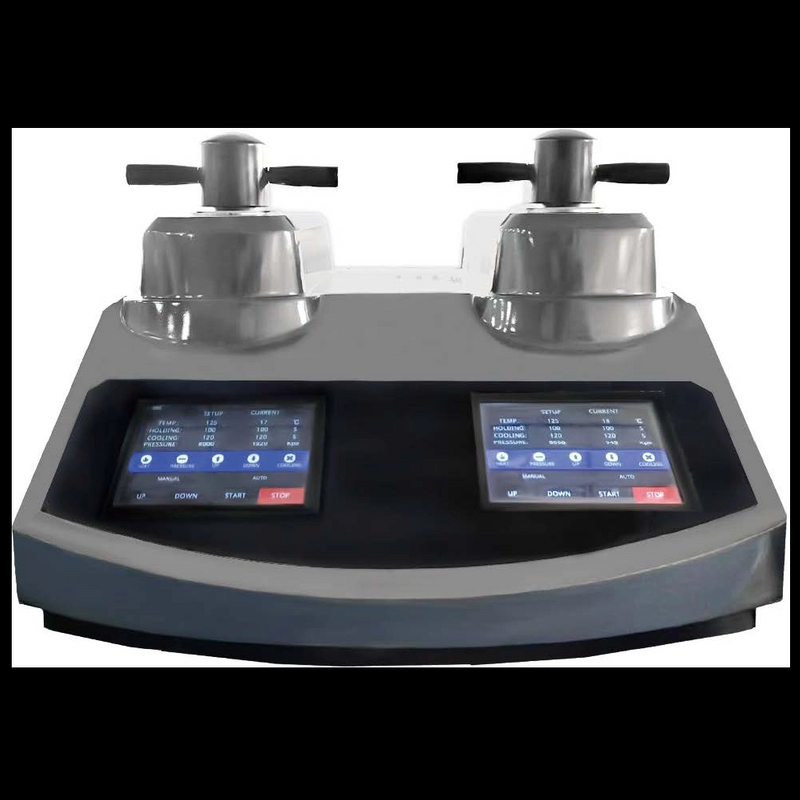

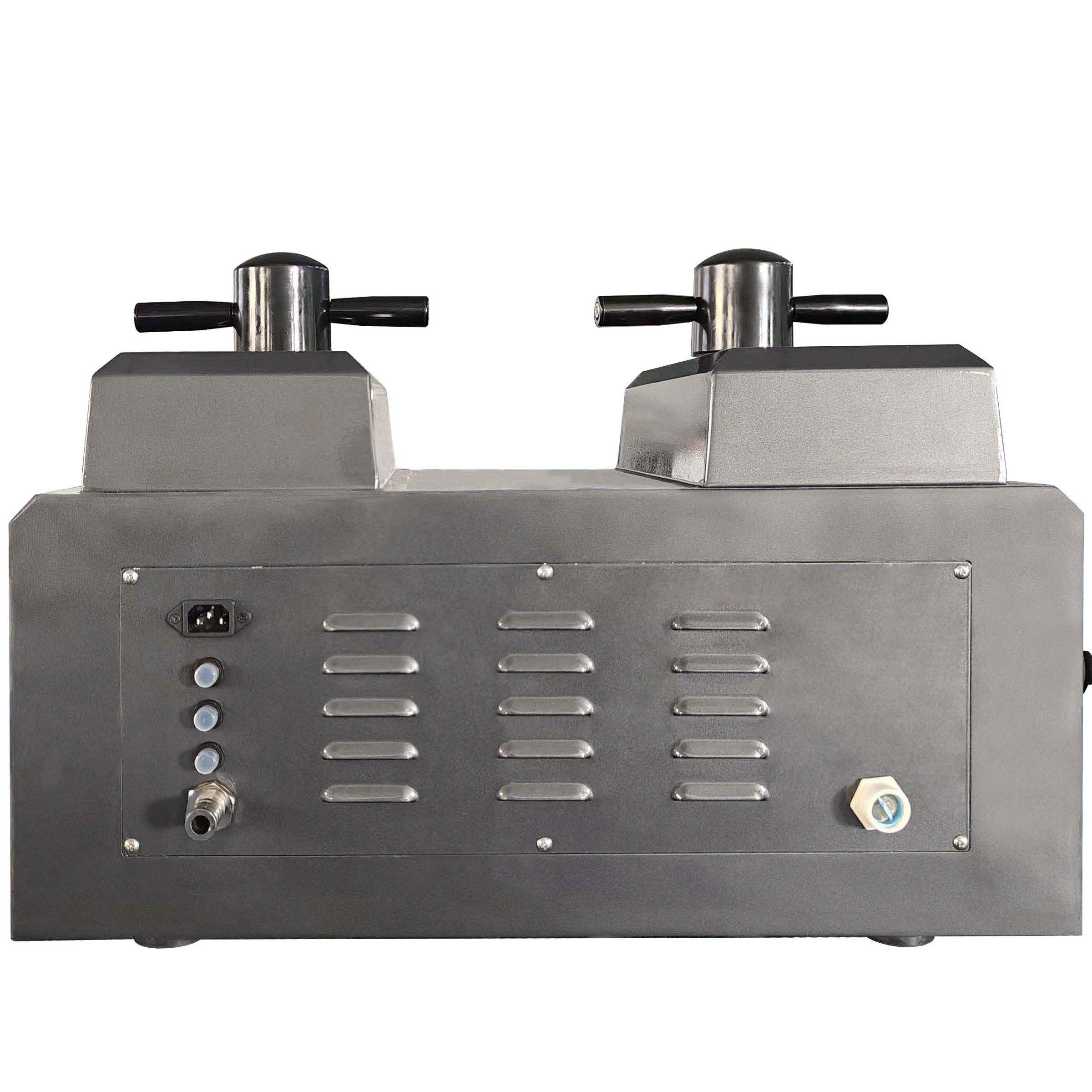

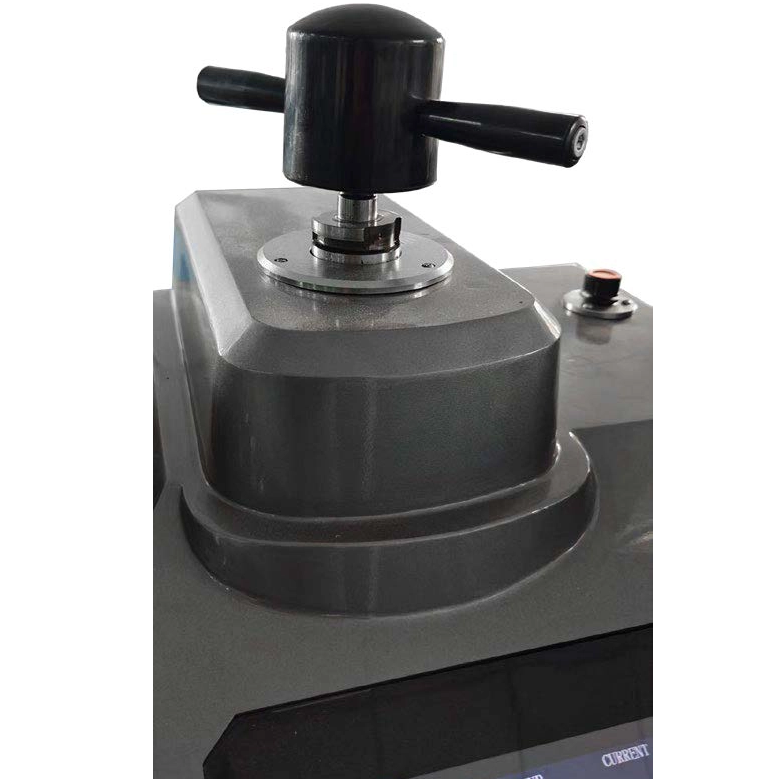

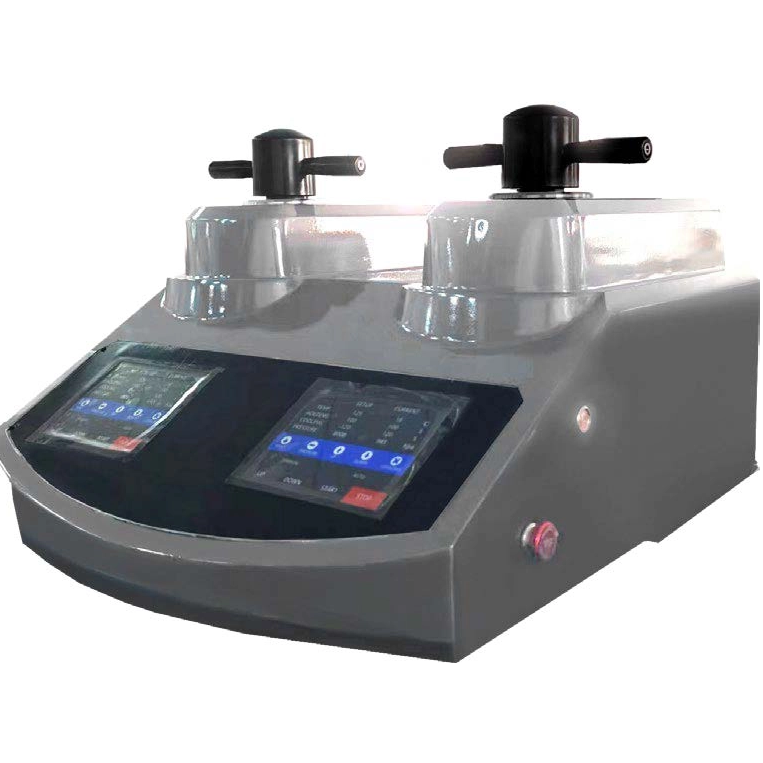

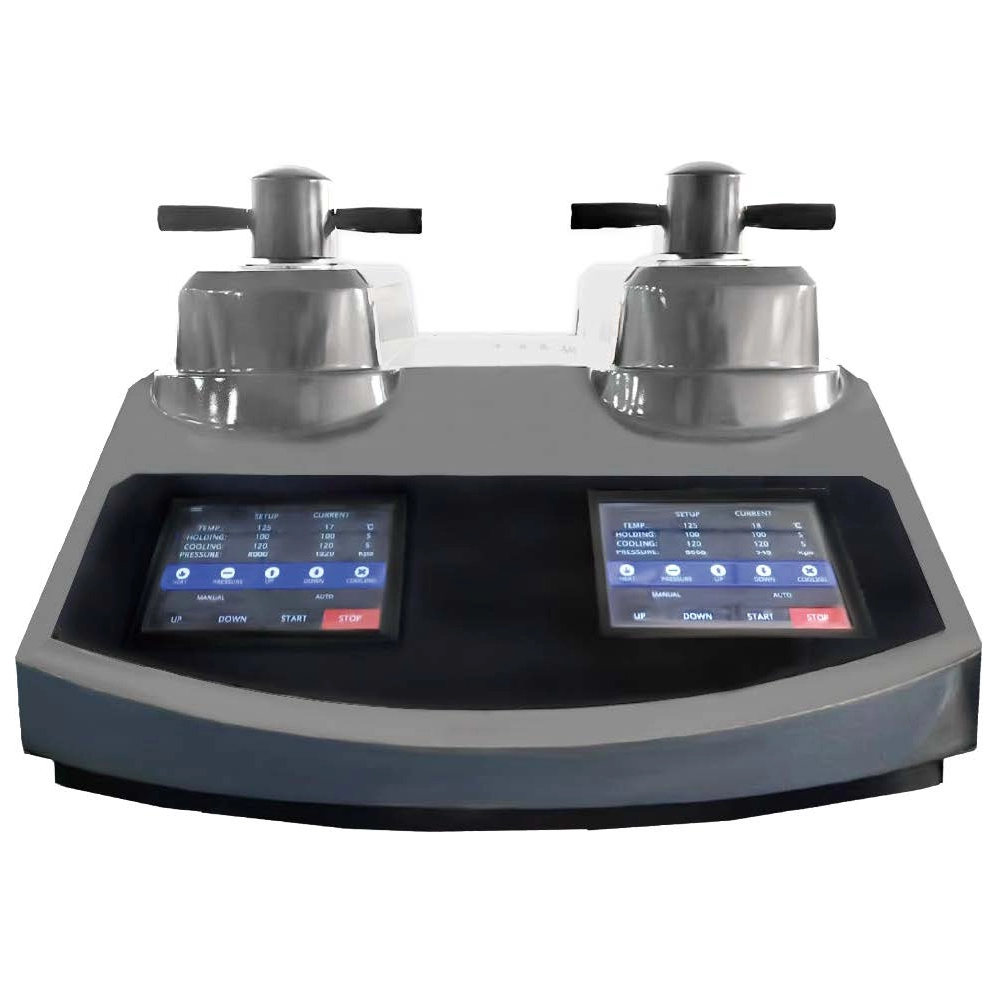

iPress-2HA/4HA Auto Metallographic Mounting Press(Hydraulic Pressure)

Product Feature：

●Multi-function mounting.
●Hydraulic control, the cylinder adopts special process design to achieve automatic heating and pressurization, automatic cooling
and automatic shutdown after pressing and forming.
●Easy to operate, the inlay process is completed in about 5 minutes (except for transparent acrylic).
●Chinese and English interfaces can be switched.
●Parameters can be adjusted and displayed.

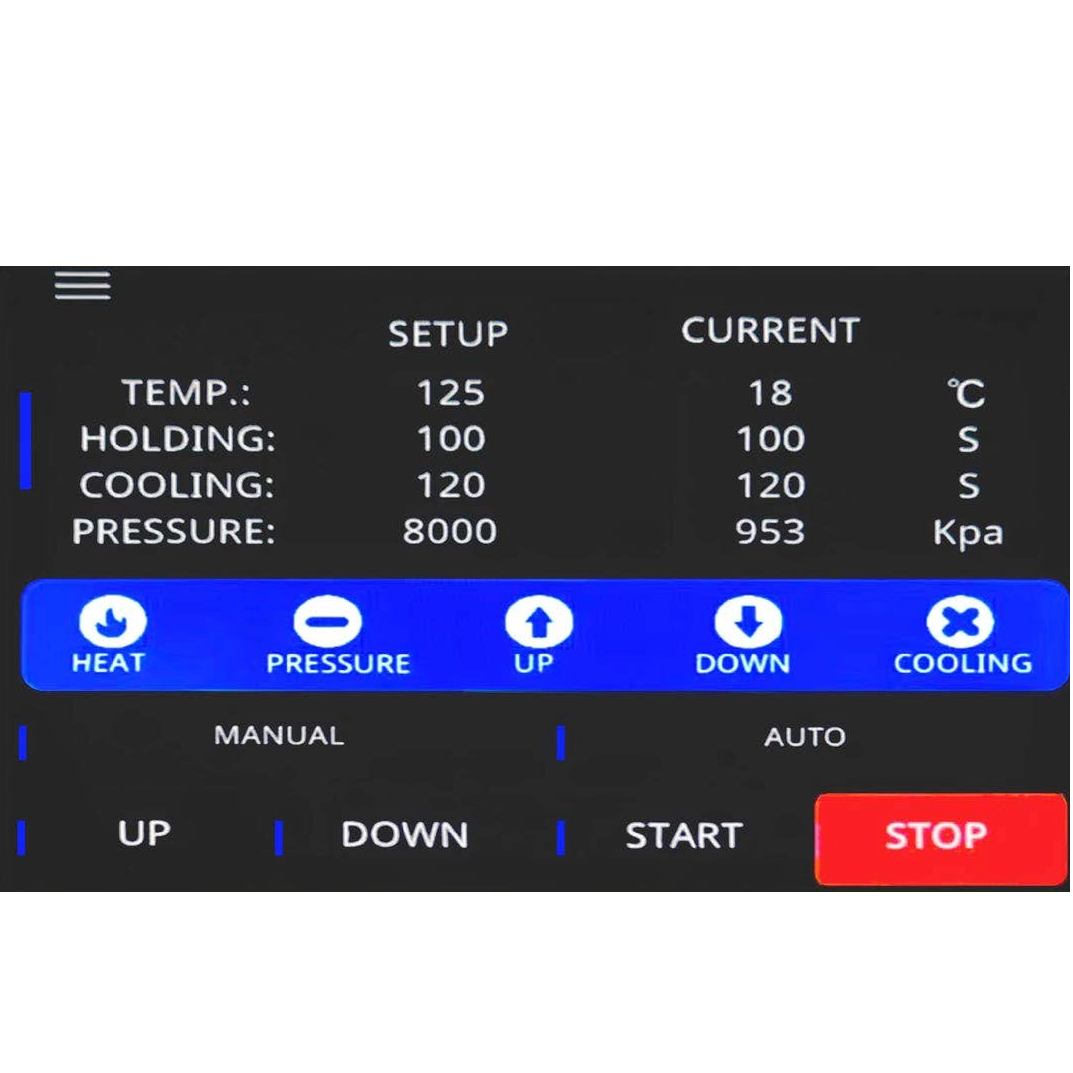

●10 sets of data can be stored, and parameters such as temperature,time,and pressure can be displayed during operation.
●The cooling method is water cooling.

Product Application：

●Material science:
Material samples can be made into specimens of standard size for mechanical property testing, microstructure observation and other experiments.
●Metallurgy industry:
In the production and use of metal materials, metal samples can be made into specimens suitable for microscopic observation, and metallographic analysis, scanning electron microscope observation and other experiments can be carried out to analyze the material's organizational structure, component distribution, etc.
●Geology and mineral resources:
Mineral samples can be made into specimens suitable for microscopic observation, and used for mineralogical research, ore deposit research, etc., to identify and evaluate ores and minerals during the exploration and development of mineral resources.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Parameter：

Product Name	iPress-2HA	iPress-4HA
Machine Type	Single Mounting Cylinder	Dual Mounting Cylinder
Mounting Diameter	Φ22mm, Φ30mm, Φ45mm
Heater Sample Preparation Pressure	220V 1600W（Φ22mm, Φ30mm）/2000W(Φ45mm) 0-10MP
Heating temperature range	35~300℃
Sample preparation time	About 6min
Cooling mode	Water cooling
Overall dimension	435610430mm	650700560mm
Net weight	52kg	100KG
Gross weight	64kg	111.5KG

Packing List：

Name	Qty
Machine Mainframe	1 set
Mounting Powder	1 bottle
Thermocouple	1 pc
Plastic Spoon	1 pc
Inlet Pipe	1 ea.
Outlet Pipe	1 pc
Pipe hoop	2 pcs
Filter	1 pc
Instruction Manual	1 copy
Product Certificate	1 copy
Warranty Card	1 copy
