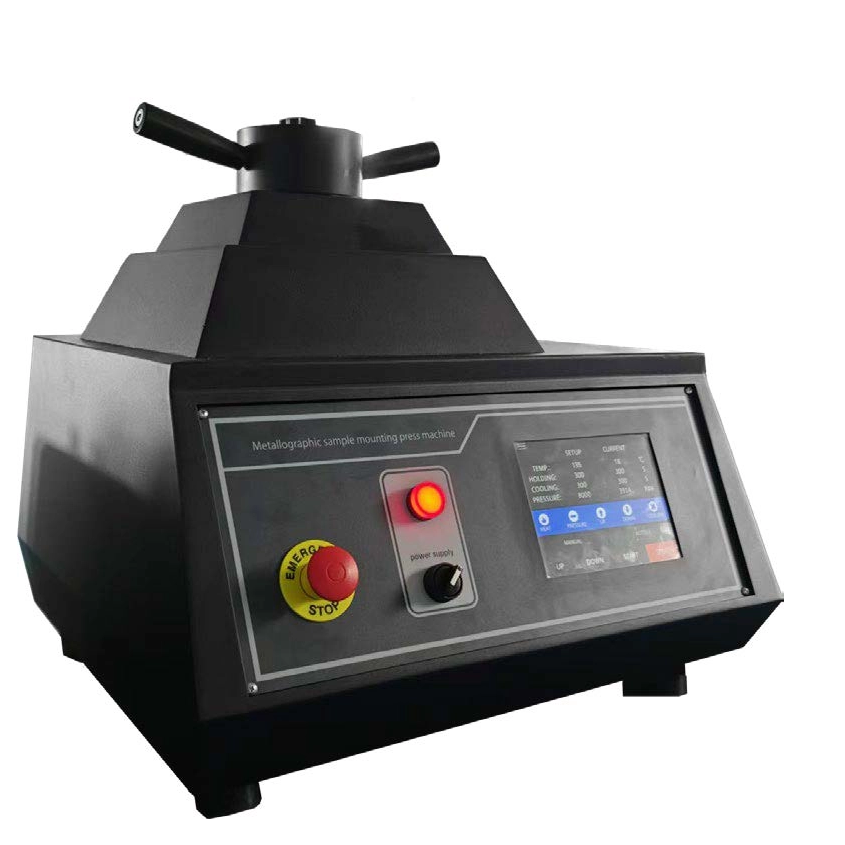

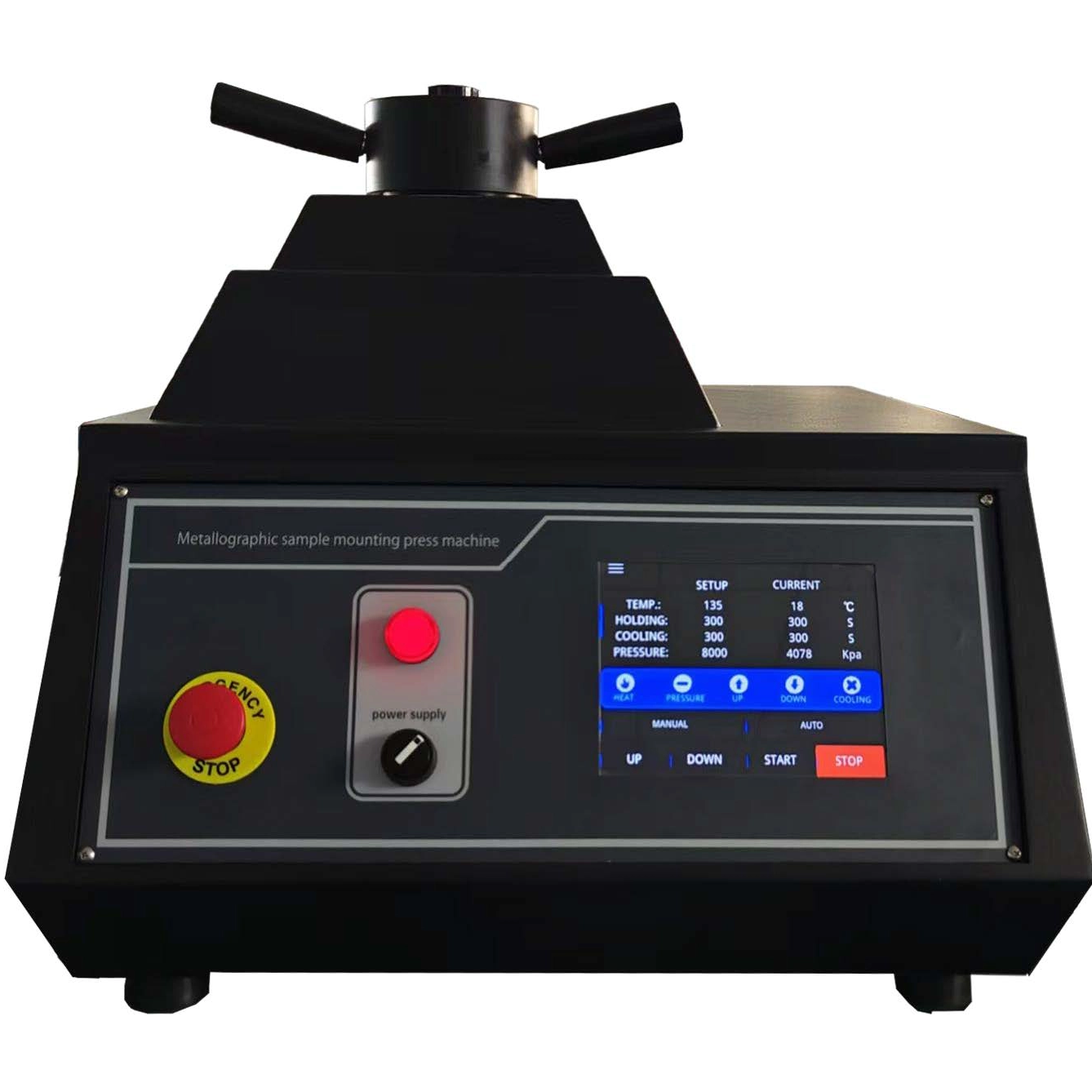

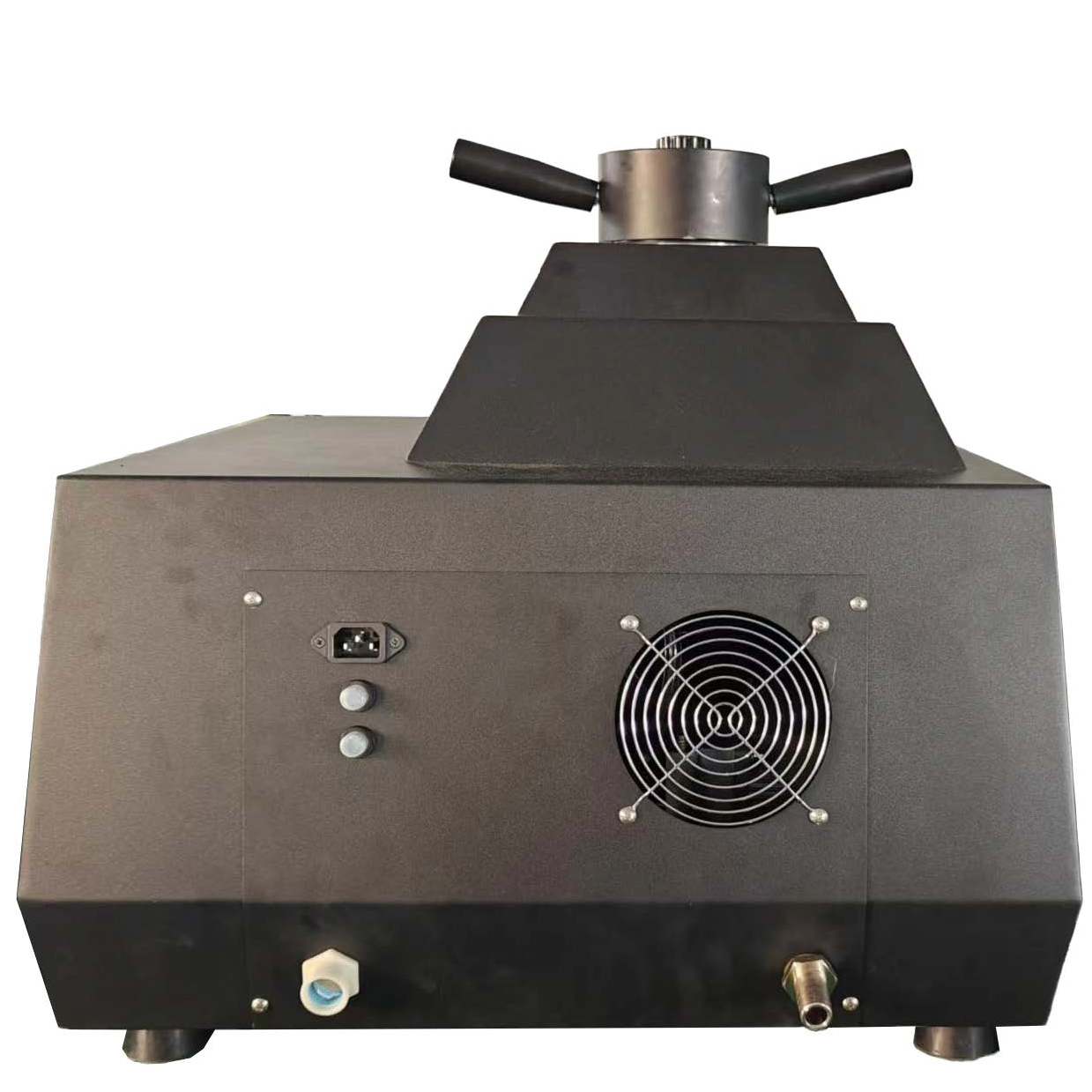

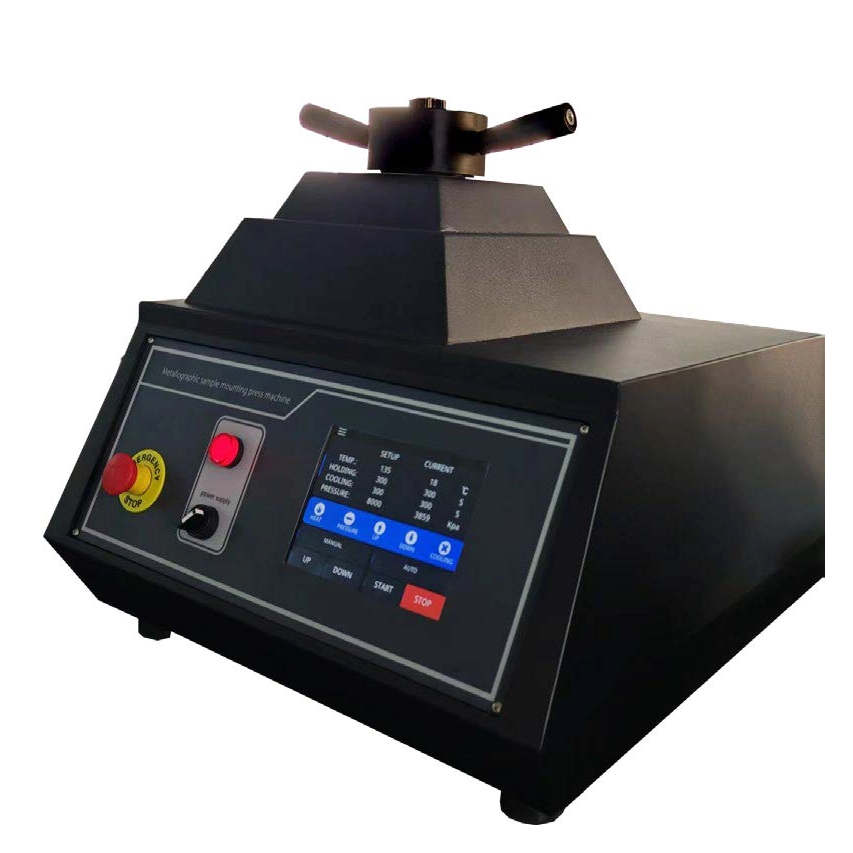

iPress-2EA Auto Metallographic Mounting Press(Electric Motorized)

Product Feature：

●Multifunctional mounting, suitable for mounting small, difficult to hold or irregular workpieces, only suitable for thermosetting materials (such as bakelite powder).
●Automatic operation.
●Easy to operate.

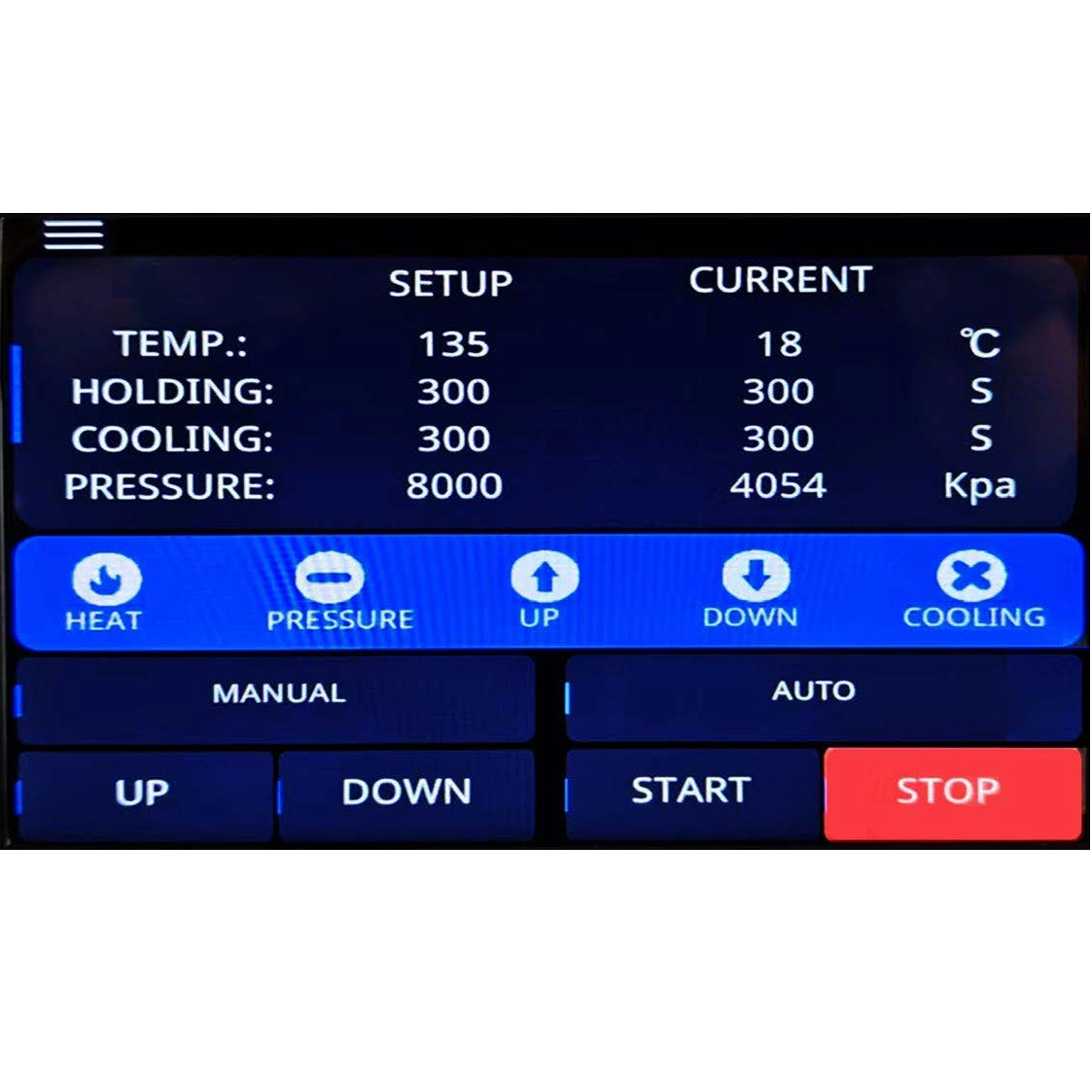

●Set parameters on the screen, click on the number to modify and press the ENT key to save.
●With manual operation mode, the lower mold can be raised and lowered by buttons to facilitate confirmation of equipment status.
●Chinese and English interfaces can be switched.
●Parameters can be adjusted and displayed.

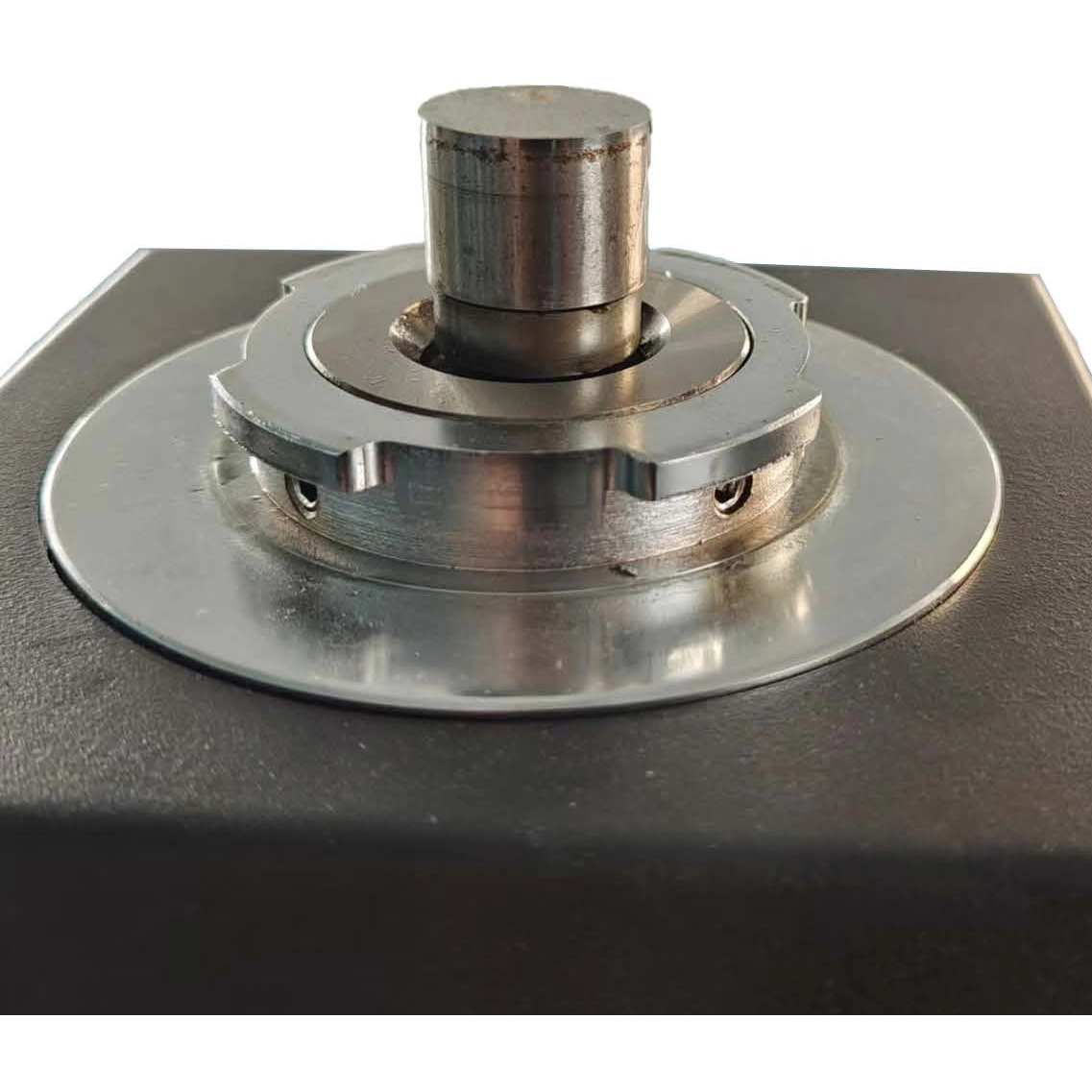

●Replaceable steel sleeves for samples of different specifications (standard configuration of 4 sizes of cylinder sleeves, customized sizes).
●Automatic temperature control, temperature, pressure, time and other parameters can be displayed during operation.
●Safe and energy-saving.

Product Application:

●Material science:
Material samples can be made into specimens of standard size for mechanical property testing, microstructure observation and other experiments.
●Metallurgical industry:
In the production and use of metal materials, metal samples can be made into specimens suitable for microscopic observation, and metallographic analysis, scanning electron microscopy observation and other experiments can be carried out to analyze the organizational structure, component distribution, etc. of the material.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Product Name	iPress-2EA
Sample pressing diameter	ф25mm、ф30mm、ф40mm 、ф50mm
Replaceable cylinder dia.	ф25mm、ф30mm、ф40mm 、ф50mm
Heating temperature range	35~200℃
Power	1650W
Input voltage	220V 50HZ
Automatic cooling time	0~ 60min
Pressure holding time range	1-99min
Cooling mode	Water cooling time
Machine Dimension	580625580mm
Net weight	82.3kg
Gross weight	103.5kg

Packing List

Name	Qty
Machine Mainframe	1
Mounting Power	1
Thermocouple	1
Plastic Spoon	1
Inlet Pipe	1
Outlet Pipe	1
Interchangeable Steel Mold	1 pc ea.
Hexagon Wrench （M4）	1
Pipe hoop	2
Filter	1
Instruction Manual	1
Product Certificate	1
Warranty Card	1
