MPress-A Metallographic Auto Mounting Press

Product Application
Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation. YZXQ is the ideal equipment for sample mounting with stable and reliable performance,
Availability:
Quantity:
  • MPress-A

  • Mikrosize

Product Description

Product Feature
●Advanced hydraulic water-cooling automatic mounting press makes quickly sample mounting.
●Program controlled mounting process, realizing the one-key operation of heating, loading, holding, cooling and unloading.
●Audible and visual alarm function after sample mounted
●Safe cooling and mounting separation design.

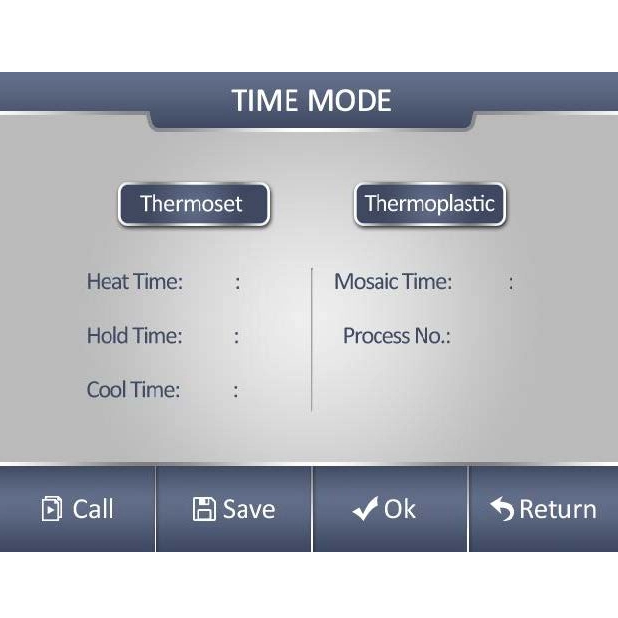

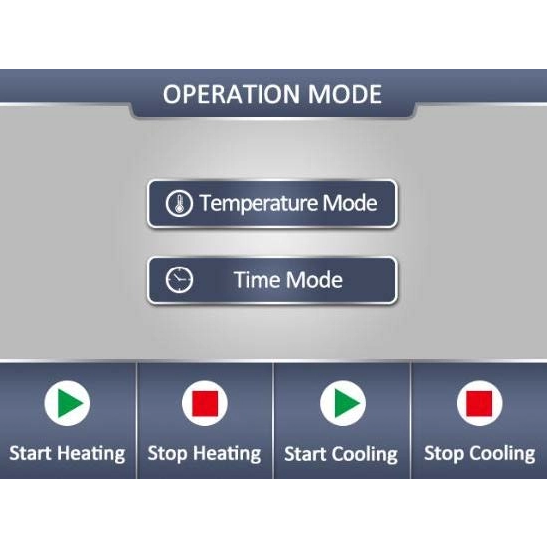

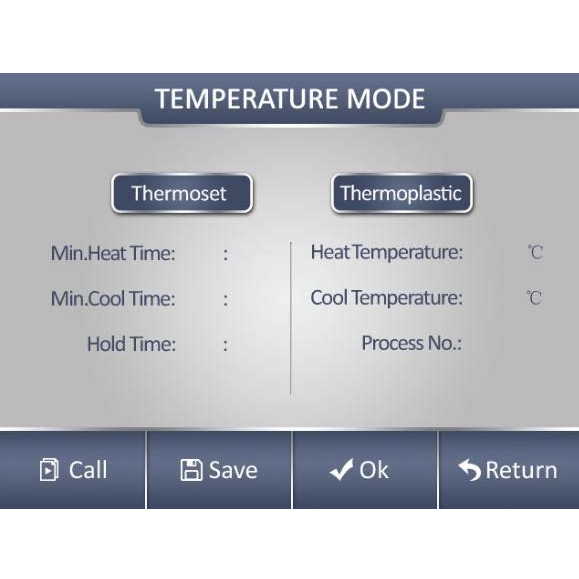

●High definition touch screen, displaying by curve of real-time pressure, temperature.
●Powerful hydraulic pump makes the mounted sample more compact.
●Special rotary locking design makes operation more convenient.

Technical Specification

Product Name

Metallographic Auto Mounting Press

Model

MPress-1A

MPress-2A

Mounting Head

Single

Dual

Mould Diameter

Ф25mm,Ф30mm,Ф40mm (Choose one)

Cavity Height

108mm, effective 60mm

Heating Power

Ф25mm/Ф30mm  1.2kW;  Ф40mm  1.6kW

Pressure

150bar (equivalent to 15Mpa, 150kgf/cm2, not adjustable)

Heating Temperature

50~180℃ (The default is 120℃)

Hold Time

Adjustable (The default is Ф40mm 1min30s,  Ф25mm/Ф30mm 1min)

Cooling Method

External water source cooling

Power Supply

220V, 50Hz,10A

Machine Dimensions

520×480×520mm

650×600×550mm

Net Weight

60Kg

105kg

Packing List

Name

Specification

Qty

Machine Mainframe

/

1 set

Rotary Handle

/

1 pc

Upper Mould Block

/

1 pc

Pump Breathing Cap

/

1 pc

Water Inlet Pipe

/

1 pc

Water Outlet Pipe

Ф10mm

1 pc

Water Inlet Filter Screen

/

1 pc

Hoop

/

1 pc

Bakelite Powder

500g

1 bottle

Measuring Cup

/

1 pc

Funnel

/

1 pc

Usage Instruction Manual

/

1 copy

Optional Accessories

Name

Specification

Thermoset Mounting Material

Black, White, Green, Red

Thermoplastic Mounting Material

Transparent

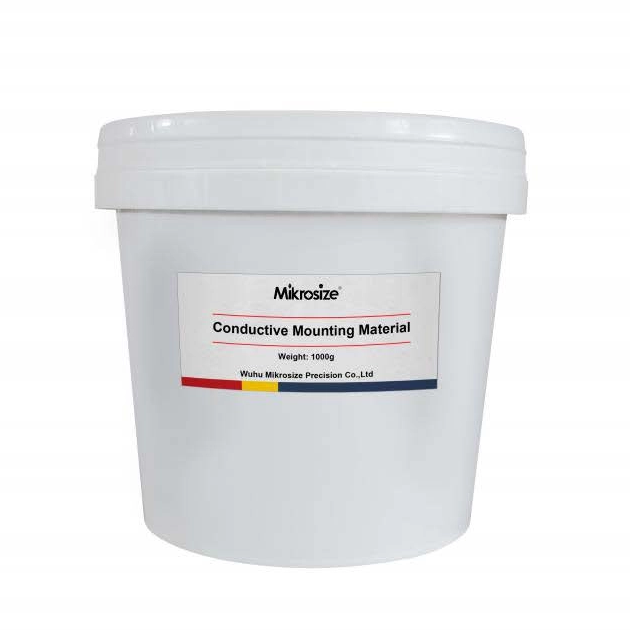

Conductive Mounting Material

Black

Circulating Cooling System

Customized.

Mounting Clamp

Customized.
