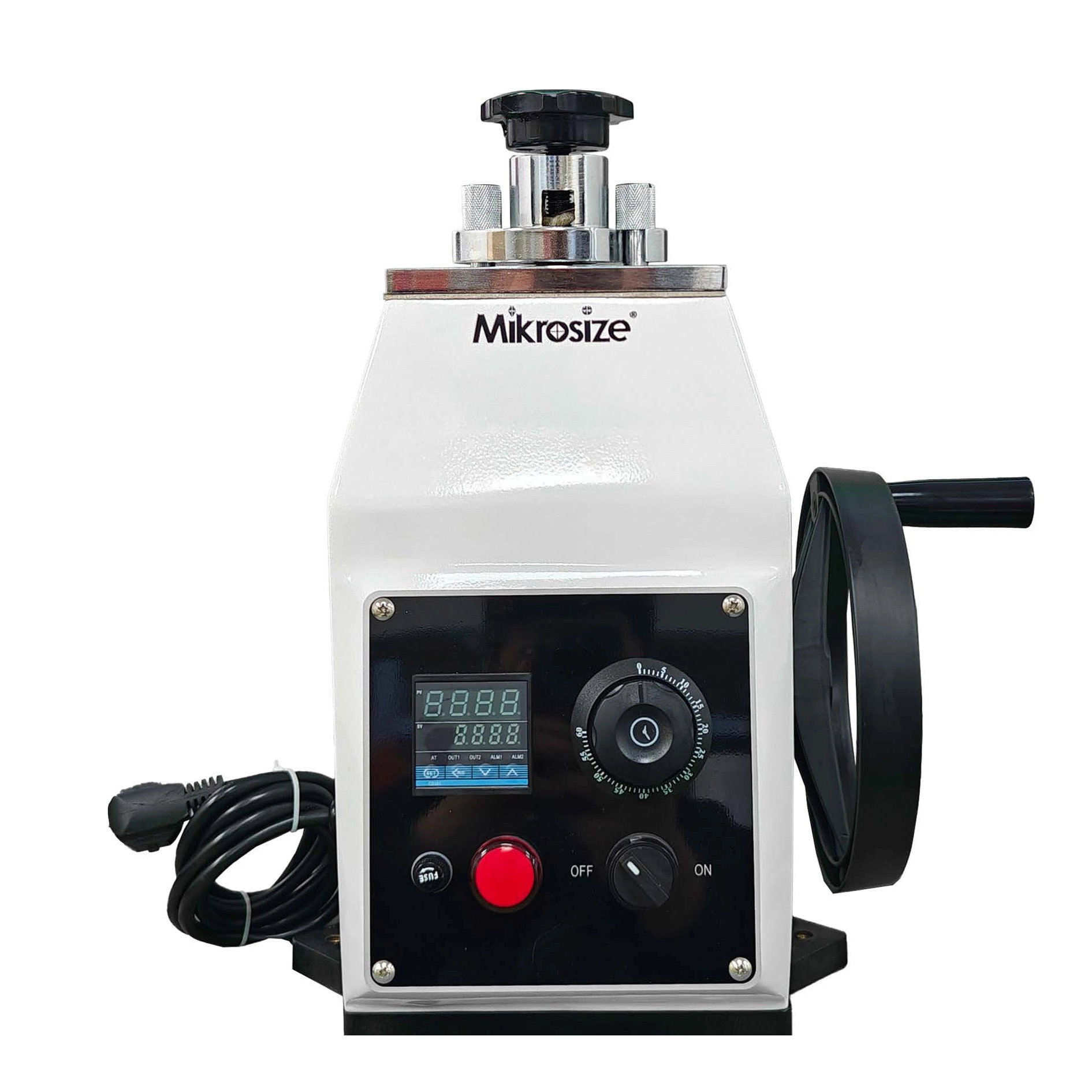

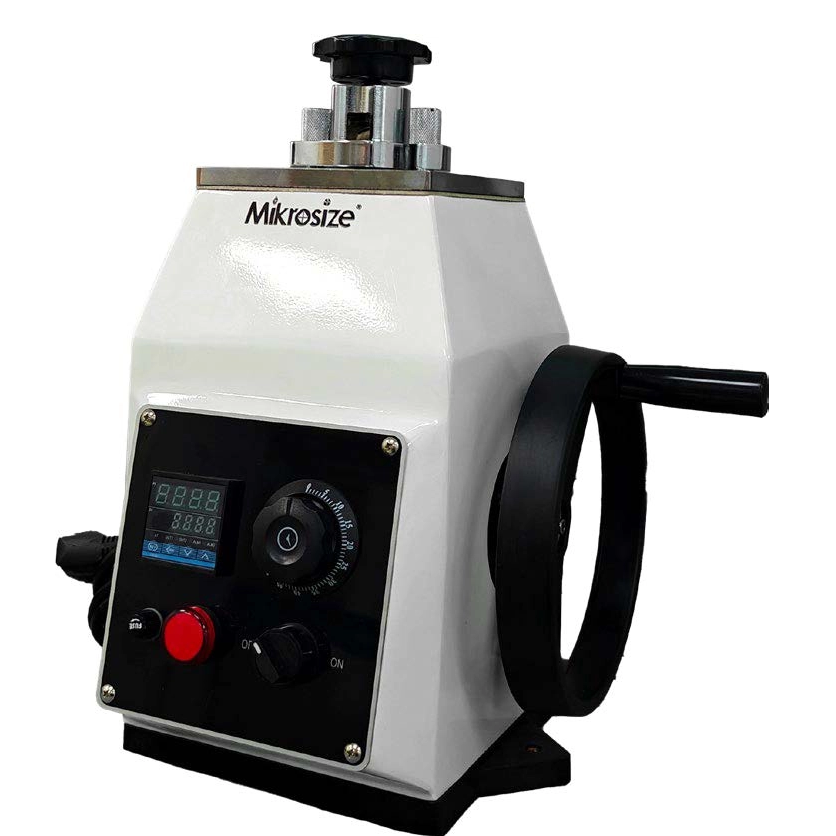

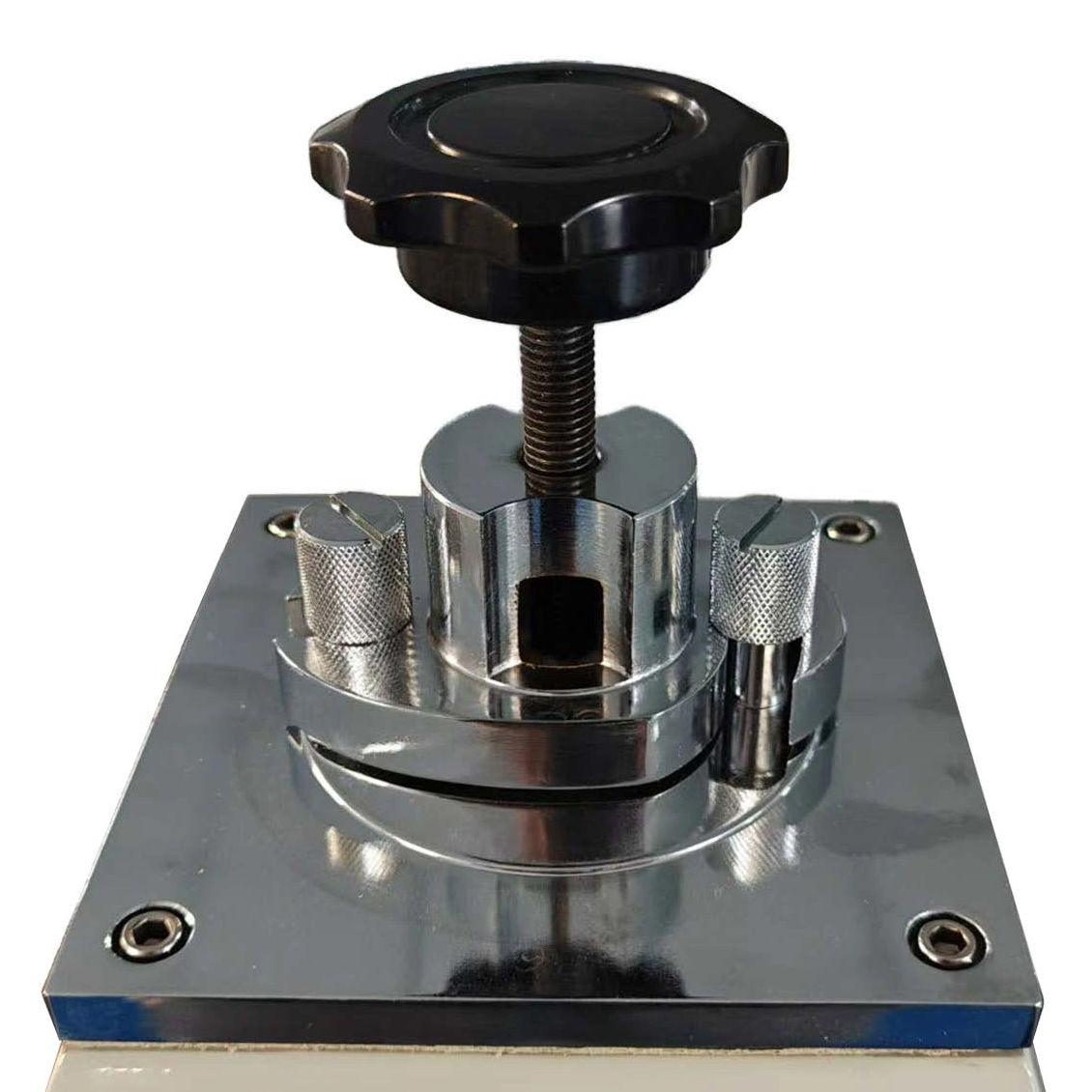

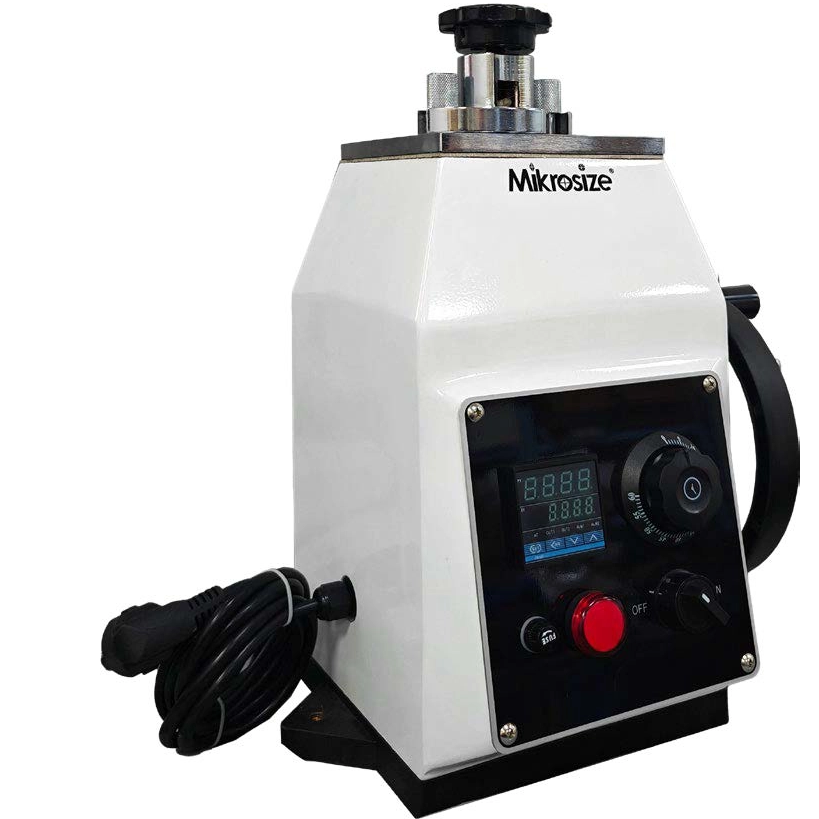

iPress-1M Manual Metallographic Mounting Press

Product Feature:
●After being embedded by this machine, it is convenient to grind and polish the sample, which is beneficial to observe the material structure of the sample under the metallographic microscope and test the hardness of the sample on the hardness tester.
●The inlay material of this machine is limited to thermosetting materials. The pressing temperature of different thermosetting materials can be adjusted and customized according to the materials.
Product Application:
iPress-1M The hot mounting machine is used for inlaying small, difficult to hold or irregular metallographic and petrographic samples before grinding and polishing.
Availability:
Quantity:

Product Description

 Technical Parameter

Product Name

iPress-1M

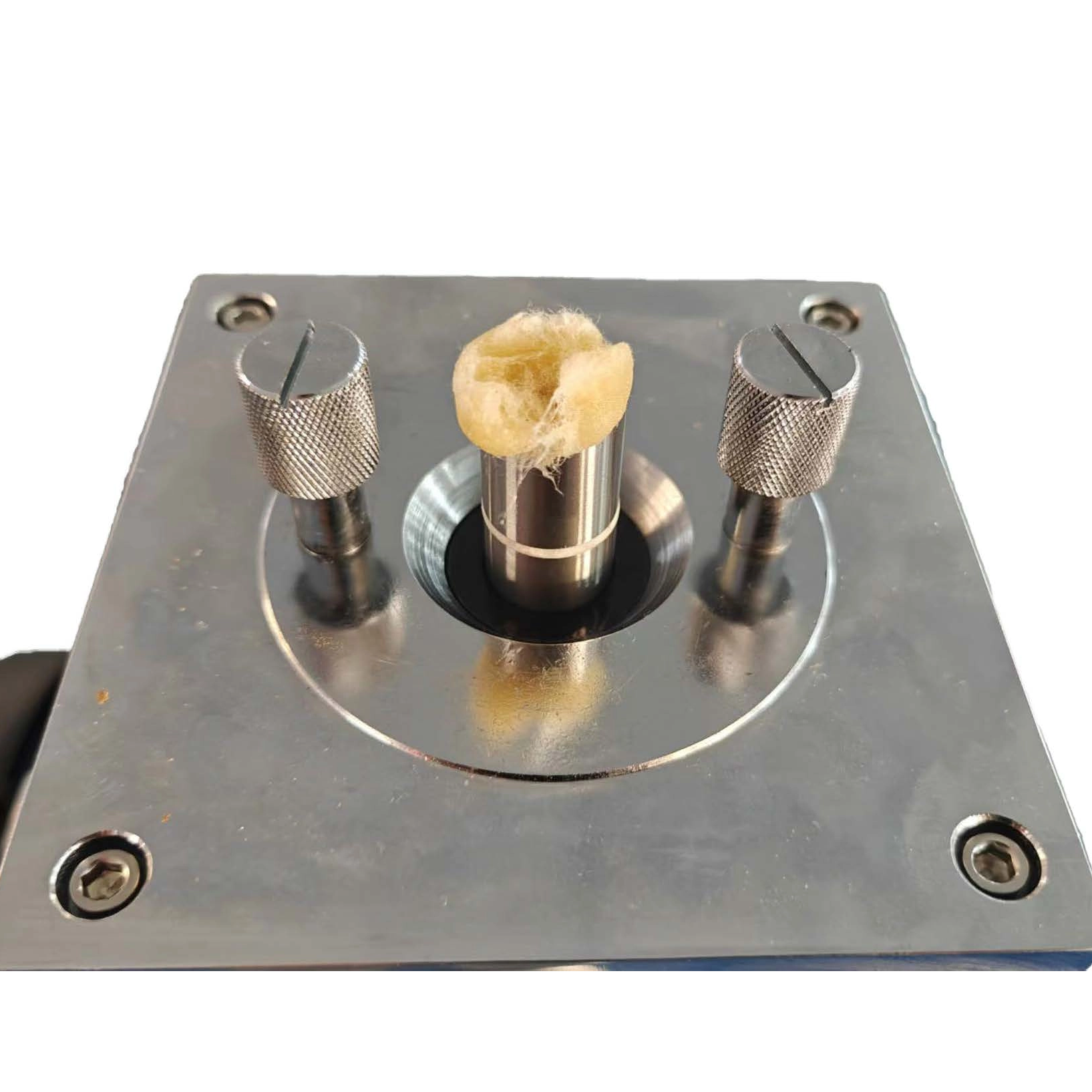

Sample pressing diameter

Φ22、Φ30、Φ45mm Three specifications (standard configuration 1, choose when ordering)

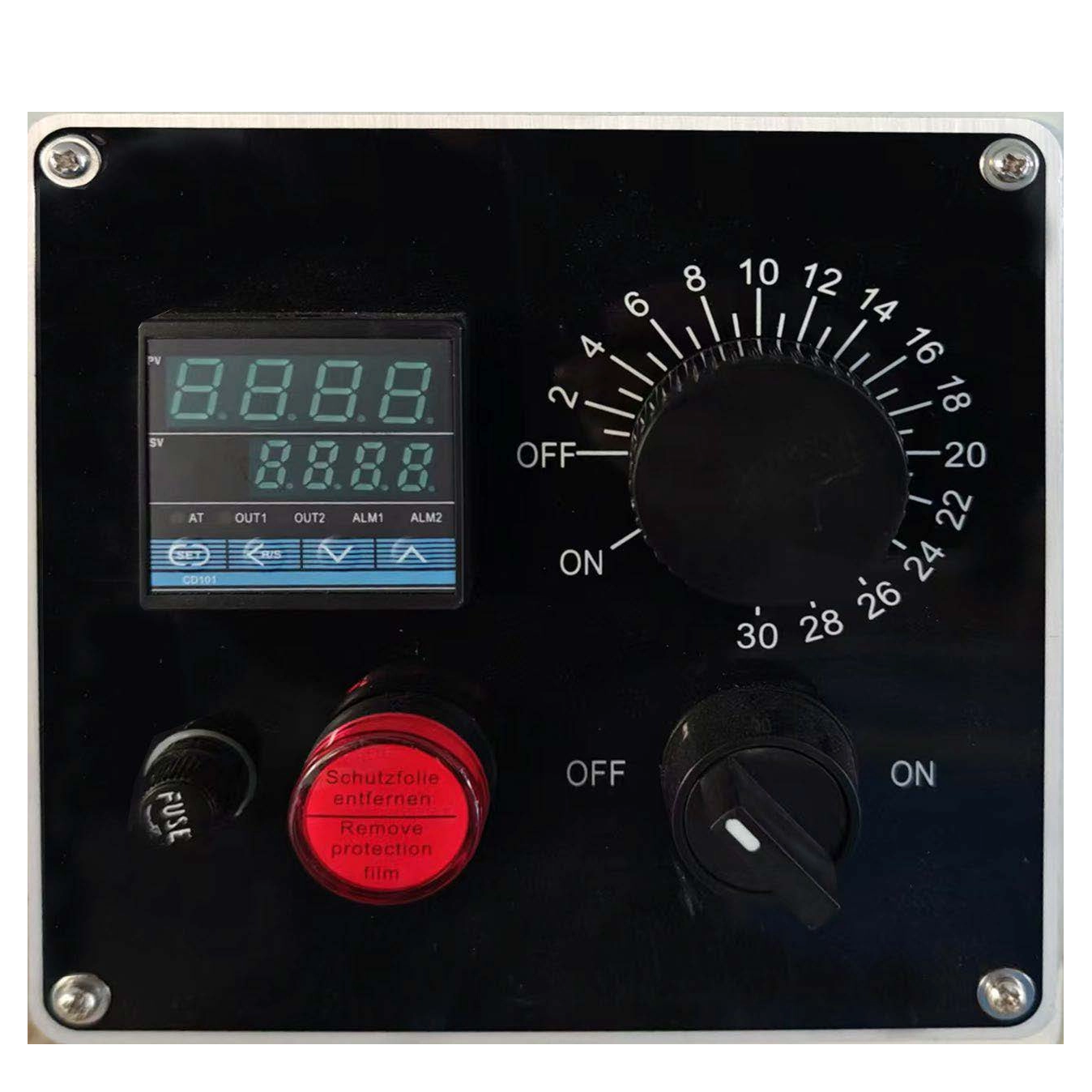

Temperature control range

Room temperature-300℃

Timing range

0-30min

Overall power

≤600W

Overall dimension

265*260*425mm

Packing size

460*370*550mm

Net weight

32kg

Gross weight

40kg

Packing List

Main machine

iPress-1M

SET

1

Plastic spoon


PCS

1

Manual


SHARE

1

Product certificate


SHARE

1

Fuse


PCS

1

Thermocouple


PCS

1

Power Cord


PCS

1
