MPress-2HA Auto Metallographic Mounting Press

Product Application
Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation.

Availability:

Quantity:



Inquire Add to Basket

Model:
MPress-2HA
Brand:
Mikrosize

Product Description

Product Description

Product Feature
●MPress-2HA is an advanced hydraulic water-cooling automatic sample mounting press. ●Controlled by the one-chip computer program, which realizes the one-key operation of heating, loading, holding, cooling and unloading process.
●The sample mounting is automatically completed without operator on duty.
●The machine adopts hydraulic pump with higher pressure, which makes the sample more compact.

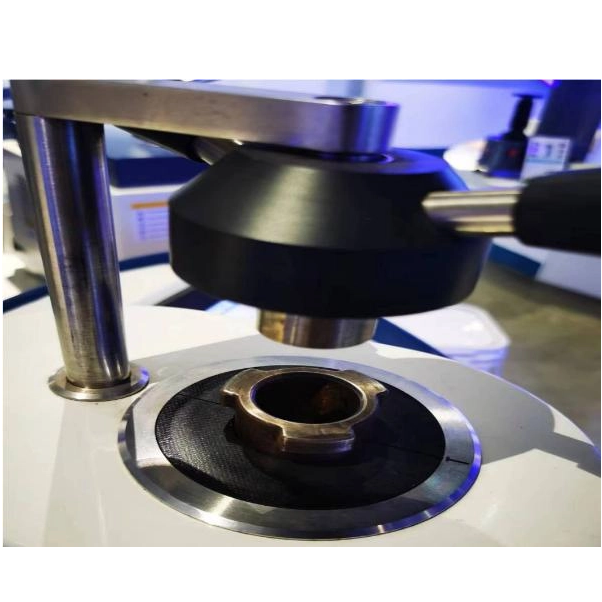

●Lengthened cavity and so two samples can be completed at the same time divided by middle block. Unique cold and heat separation design Plus emergency stop
button makes it more safe and stable.

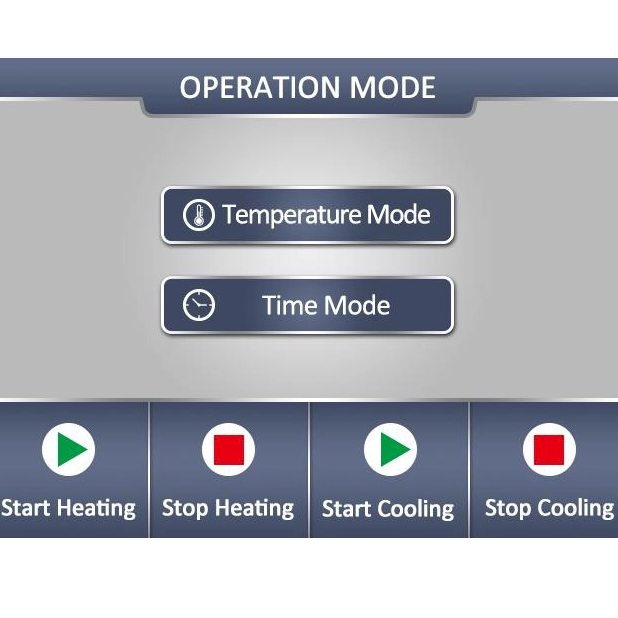

●Dual control of high-definition touch screen and physical keys, various mounting scheme can be saved.
●With water cooling system, it can finish two samples mounting in 7 minutes at the soonest.

Technical Specification

Model	MPress-2HA
Product Name	Automatic Metallographic Mounting Press
Mould Diameter	Ф25mm，Ф30mm，Ф40mm (Choose one)
Cavity Height	140mm, effective 85mm, mounting two samples at the same time
Heating Power	Ф25mm: 1KW
	Ф30mm 1.8KW;
	Ф40mm 2.4KW
Pressure	50~200bar (150bar ex-factary set, equivalent to 15Mpa, 150kgf/cm2)
Heating Temperature	50~180℃ (120℃ ex-factary set)
Heating Time	1~7min (4min30s ex-factary set)
Dwell Time	30s~7min (1min ex-factary set)
Cooling Time	1~30min (2min ex-factary set)
Total Time	7min30s for two samples Ф30mm, 9min for two samples Ф40mm

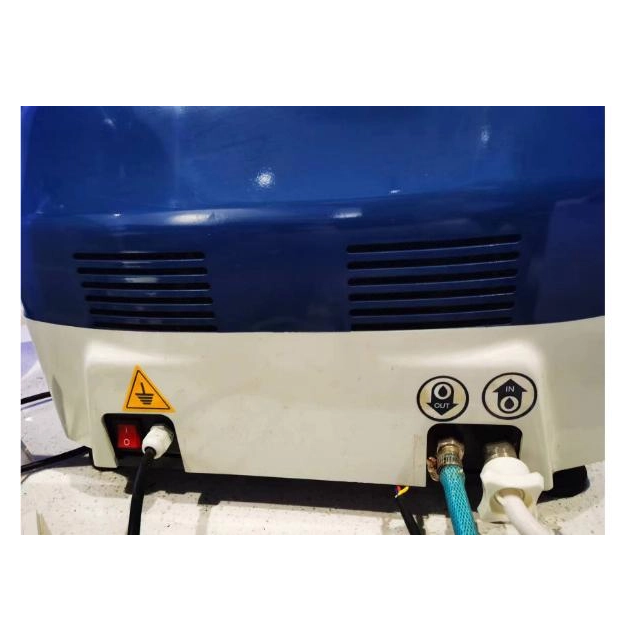

Cooling Method	External water source cooling
Power Supply	220V, 50Hz，10A
Machine Dimensions	530×510×480mm
Net Weight	60Kg

Standard Delivery

Name	Specification	Qty
Machine Mainframe	/	1 set
Middle Mould Block	/	1 pc
Water Inlet Pipe	/	1 pc
Water Outlet Pipe	Ф10mm	1 pc
Water Inlet Filter	/	1 pc
Hoop	/	1 pc
Bakelite Powder	500g	1 bottle
Measuring Cup	/	1 pc
Inner Hexagon Spanner	5mm	1 pc
Brush	/	1 pc
Usage Instruction Manual	/	1 copy

Optional Accessories

Name	Specification
Thermosetting Mounting Material	Black, White, Green, Red
Conductive Mounting Material	Black
Circulating Cooling System	Customized.
Sample Holder	Customized.
