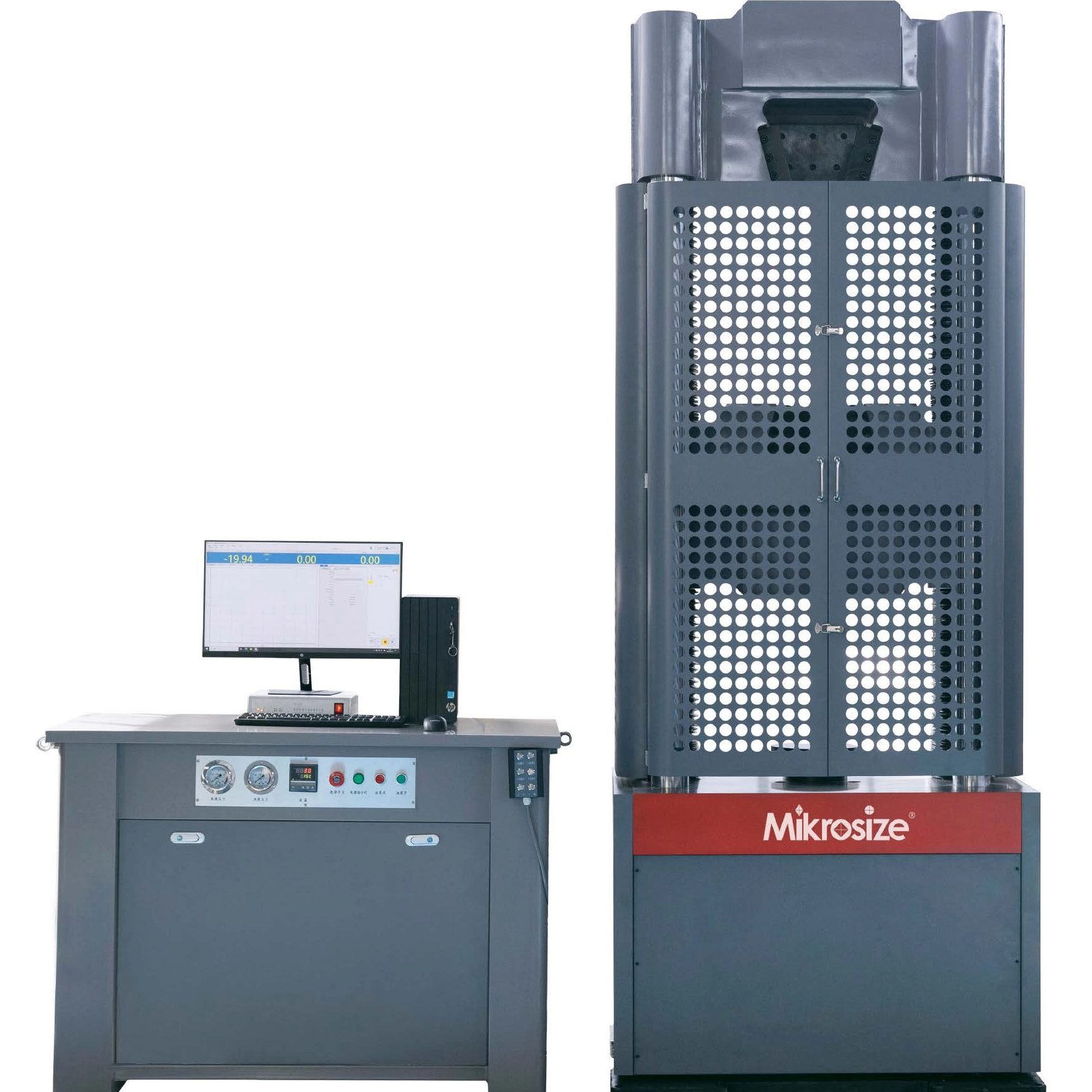

UTM-2000H 2000kN Computerized Electro-Hydraulic Servo Hydraulic Universal Testing Machine

Product Description：

lUTM-2000H series computer-controlled servo-hydraulic universal testing machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Types Of Specimens And Materials：

lMetals-(wire, rod, tube, strip, plate, strip) ;
lFasteners (tensile, proof, single and double shear) ;

lConstruction materials (reinforcement bar, wire, mesh, folding, compression of concrete and com- ponents),etc.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Applied Standards

Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.

Technical Specification

Model	UTM-2000H
Number of Columns	6 (4 columns and 2 screws)
Load Capacity	2000kN
Load Capacity	200000kgf
Calibration Standard	ISO 7500
Calibration Standard	Class 1
Testing load Accuracy	±1%
Load Measuring Range	1%～100% F.S
Load Resolution	1/500,000 of FS
Displacement Resolution	0.001mm
Displacement Accuracy	≤±1% of Indicating Value
Deformation Measuring Range	1%~100%FS
Deformation resolution	1/±500000FS of the max deformation
Deformation accuracy	≤±1% of Indicating Value
Overload Protection	≥5% of Full Range

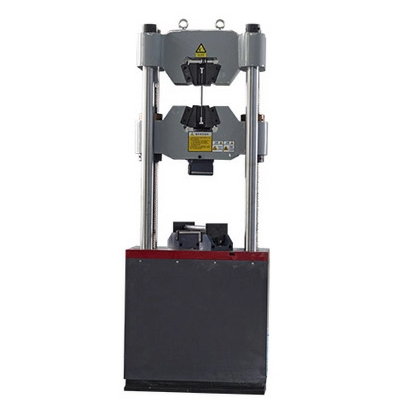

Main Frame Parameters

Max. Tensile Testing Space	800mm
Max. Compression Testing Space	750mm
Distance Between Two Columns	600mm
Max. Piston Stroke	250mm
Testing Speeds	0-50mm/min
Cross Beam Adjustment for Max Speed	About 120 mm/min

Technical Specification

Controls Parameters

Control Mode	Force closed loop control, deformation closed loop control, displacement closed loop control
Force Control Controls The Speed Range	0.001%~5%FS/s
Deformation Control Controls Speed Range	0.001%~5%FS/s

Accessory Parameters

Clamping mode	Built-in wedge type hydraulic automatic clamping
Overall Dimensions of The Jaws	120*120mm
Round Specimen Clamping Dia. Range	Φ30-Φ55mm (Optional:Φ15-30mm;Φ55-70mm)
Flat Specimen Clamping Thickness Range	10-40mm (Optional:40–70mm)
Compression Plate Dimensions	Φ200mm

Machine Parameters

Load Frame Dimension *(LWH)*	11209203000mm

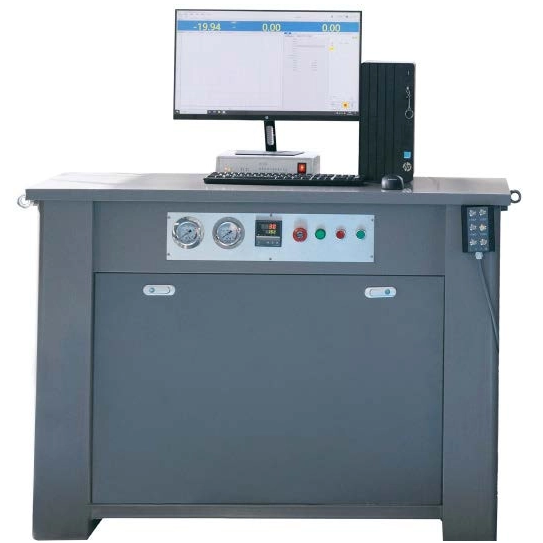

Oil Power Dimension *(LWH)*	125010001000mm
N.W.	7500kg
Power Supply	3P 415V±10%,50-60HZ,3.2kW
Operating Temperature	0 to +38° C (+32 to +100° F)
Humidity Range	10% to 90% non-condensing
NOTE:	Extra wide and/or extra height frames are available Power supply system is completely customizable
