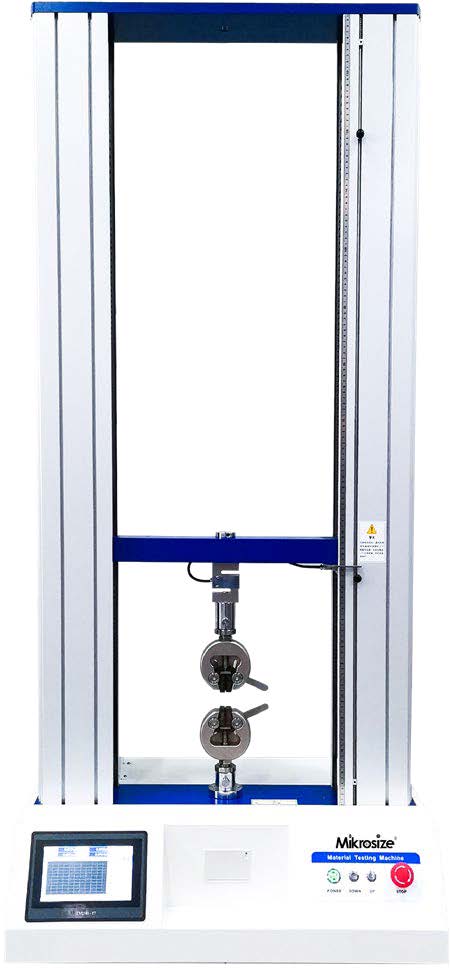

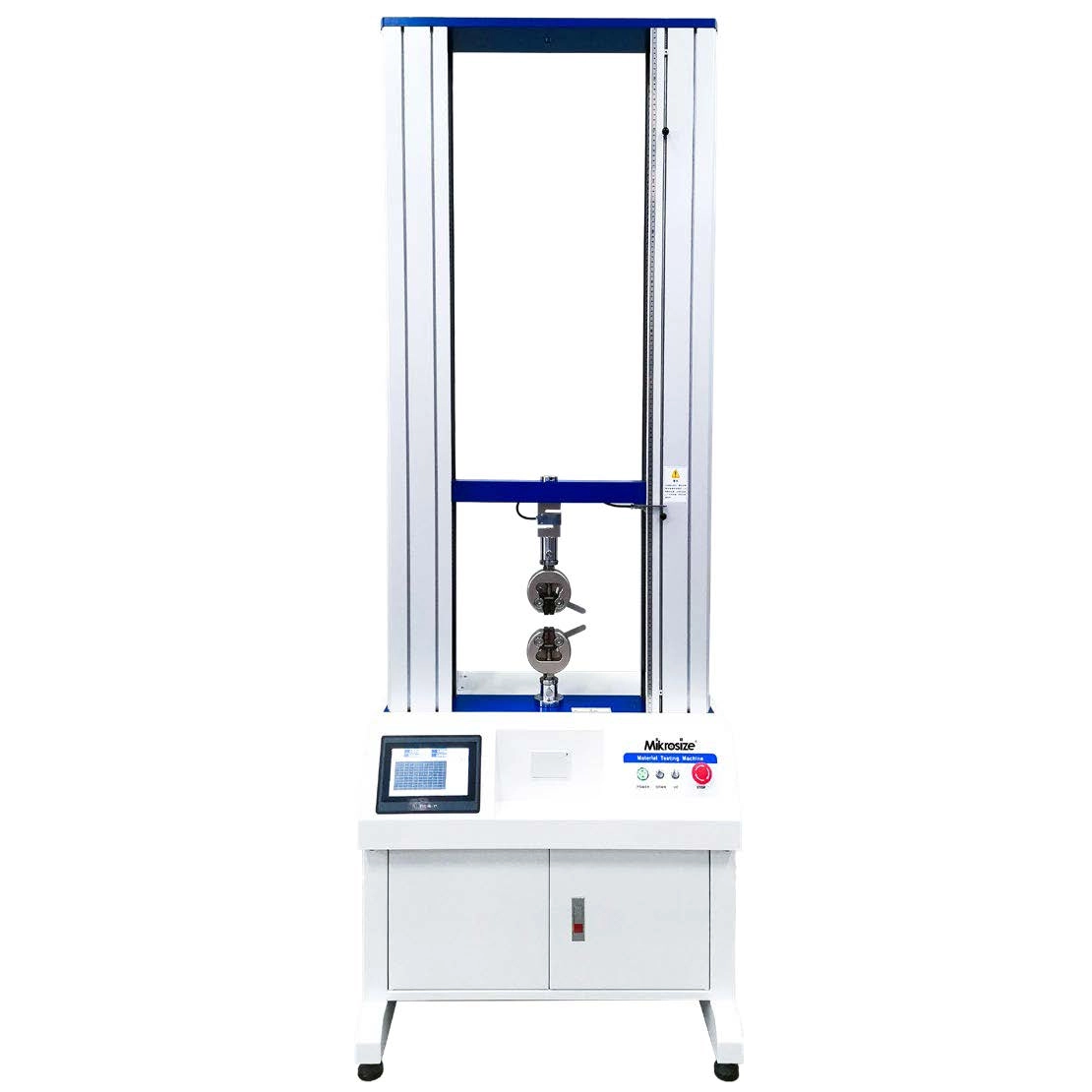

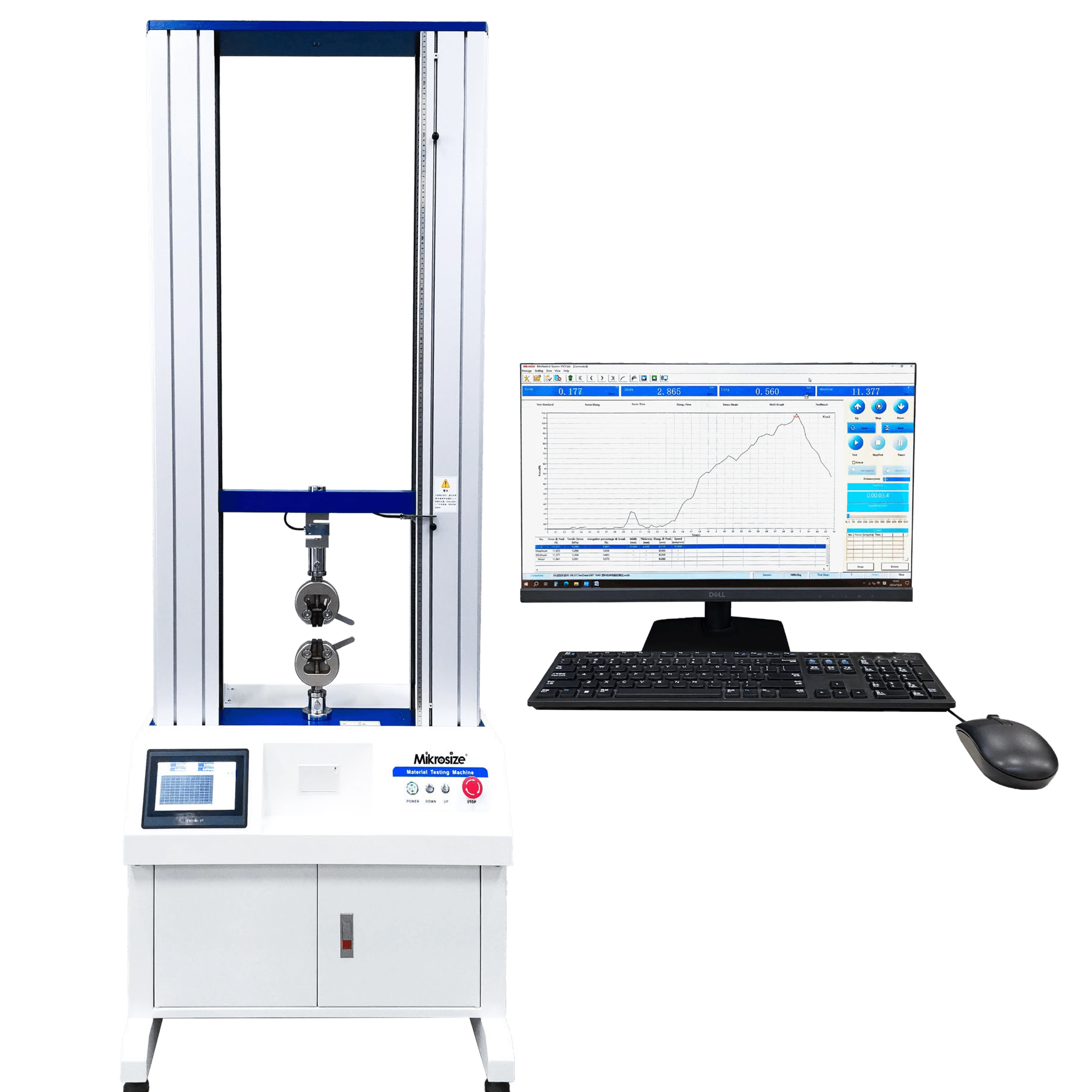

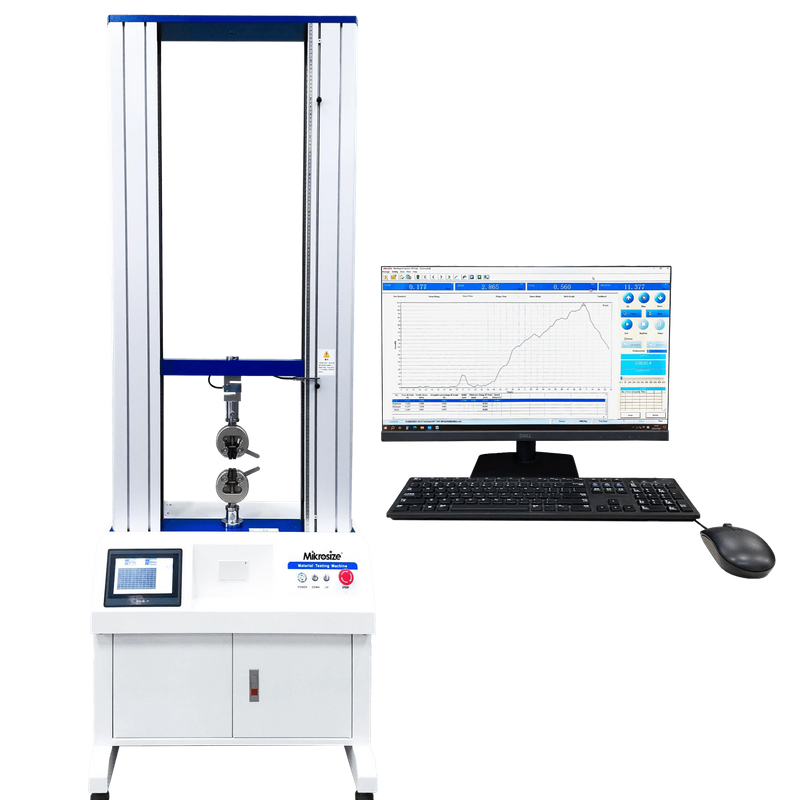

UTM-FDC Computerized Dual-column Servo Tensile Testing Machine

Product Feature：
●Fully computer-controlled testing machines, international speed control technology.
●International brands components, making the machine with long-term high reliability, stability, and precision, as well as smooth operation and a long lifespan.
●Used for material testing with loads below 50 KN and covers a wide range of testing functions for most products, making it an ideal mechanical testing instrument for factories, research institutes, and quality inspection agencies.
●Fully digital, closed-loop (force, deformation, displacement) control system with adaptive PID algorithms achieves fully digital closed-loop control of force and displacement, allowing automatic switching between control loops and ensuring smooth transitions without impact when switching between different modes.

Product Application：
●Suitable for mechanical performance tests and analysis such as tension, compression, peel, tear, and shear; suitable for Medium-strength Metal, Sintered product, friction material, rubber, plastic, thin film, fiber and fine thread, adhesive, foam material, adhesive tape, elastomer, connector, bio-material, wood products and paper products, metal foil, wire, oil bearing, ceramics, parts and components, fastener, composite material.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Product Name		Floor Type Dual Column Electronic Universal Testing Machine
Model		UTM-FDC
Divided Models		UTM -FDC -002	UTM -FDC -005	UTM -FDC -01	UTM -FDC -02	UTM -FDC -05	UTM -FDC -1	UTM -FDC -2	UTM -FDC -5	UTM -FDC -10	UTM -FDC -20	UTM -FDC -30	UTM -FDC -50
Test Force	KN	0.02	0.05	0.1	0.2	0.5	1	2	5	10	20	30	50
	KG	2	5	10	20	50	100	200	500	1000	2000	3000	5000
	lb	4	11	22	44	110	220	440	1102	2204	4409	6613	11023

Test Force Unit Switch		G、Kg、lb、N、KN
Displacement Unit Switch		Inch cm mm
Test Level		Level 1
Effective Force Range		0.4％～100％FS
Test Force Precision		Within ±1% of Indicated Value
Test Force Resolution		1/500000
Displacement Resolution		≤0.05μm
Displacement Precision		Within ±1% of Indicated Value
Deformation Test Range		0.2%～100%FS
Deformation Precision		Within ±1% of Indicated Value
Large Deformation Test Range		1000mm（Optional）
Large Deformation Resolution		0.01mm（Optional）
Large Deformation Error		Within ±1% of Indicated Value(Optional)
Max Test Speed		500mm/min；Optional 1000mm/min
Min Test Speed		0.1mm/min
Speed precision		Within ±1% of Indicated Value
Standard Test Height		Without Clamp：1330mm；With Clamp：800mm
Test Width	Standard	420mm
	Optional	650mm

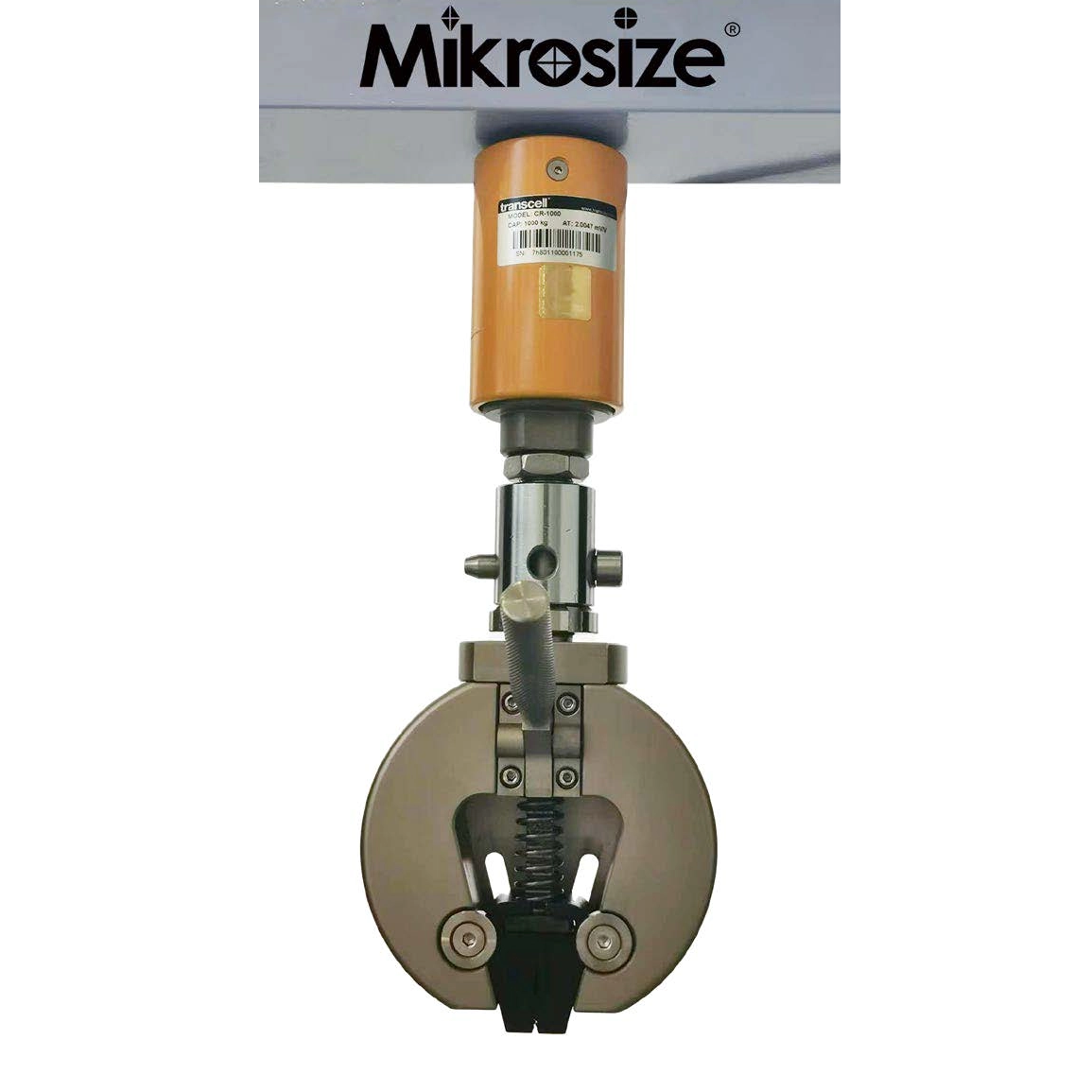

Clamps		A Set of Tensile Clamps, Other Clamps Optional
Return Mode		Manual/Auto
Shutdown Mode		Automatic Shutdown at the Maximum Breaking Value.
		Shutdown due to Upper and Lower Limit Safety Settings
Safety Device		Mechanical Travel Protection
		Emergency Stop Button
Overloading Protection		Automatically Protect If loading exceeds the Maximum Load by 10%
Power Supply		220VAC/ 50Hz
Mainframe Dimension/Weight		Without Working Cupboard：LWH:750mm500mm1650mm /165KG With Working Cupboard：LWH:750mm500mm2050mm / 185KG
Package Dimension/Weight		Without Working Cupboard：LWH:850mm600mm1800mm /200KG With Working Cupboard：LWH:850mm600mm2250mm / 210KG

Standard Delivery：

Name	Qty
Mainframe Machine	1 pc
Power Cord	1 pc
Test Software Program CD 1	1 pc
Data Cable
Fixture
Anti-flight Excitation Device (Protective Door)	1 pc
Computer	1 pc
Printer	1 pc
3 Point Bending Fixture	1 pc
4 Point Bending Fixture	1 pc
Instruction Manual	1 pc
Product Certificate	1 pc
Product Warranty	1 pc
