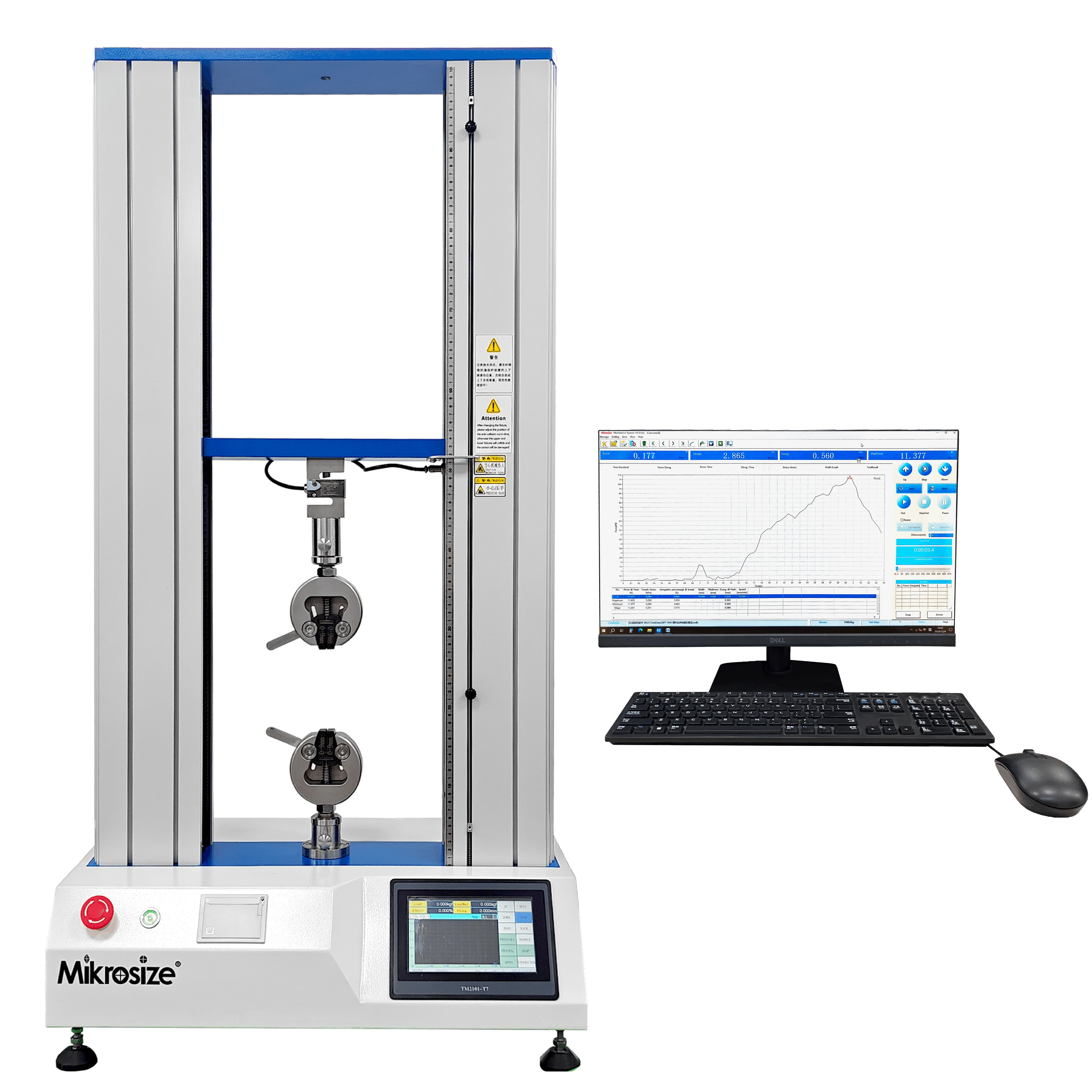

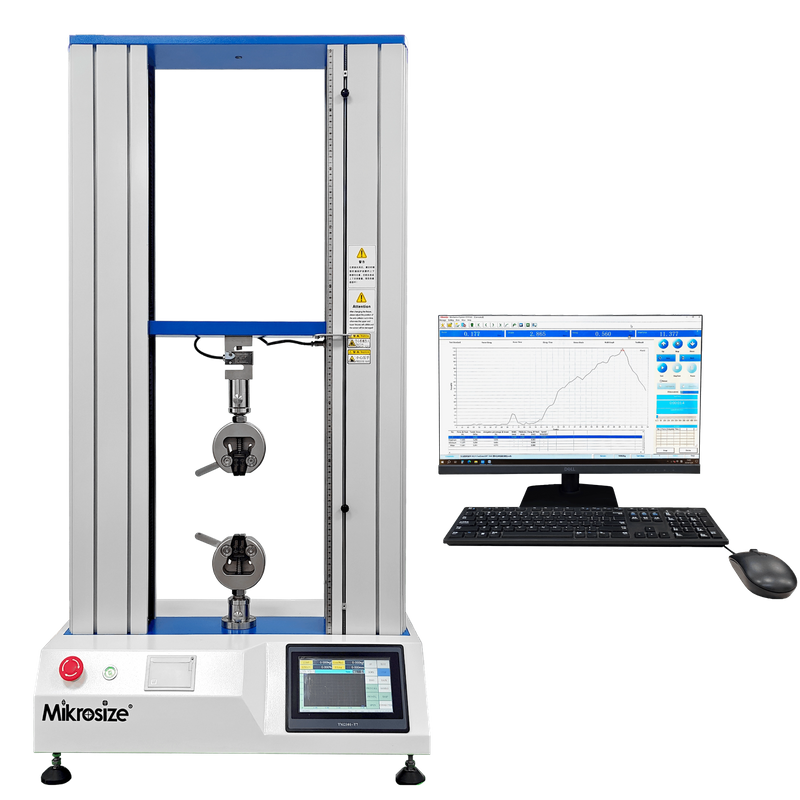

UTM-TDC Dual - Column Universal Material Testing Machine （Bench Type）

Product Feature：

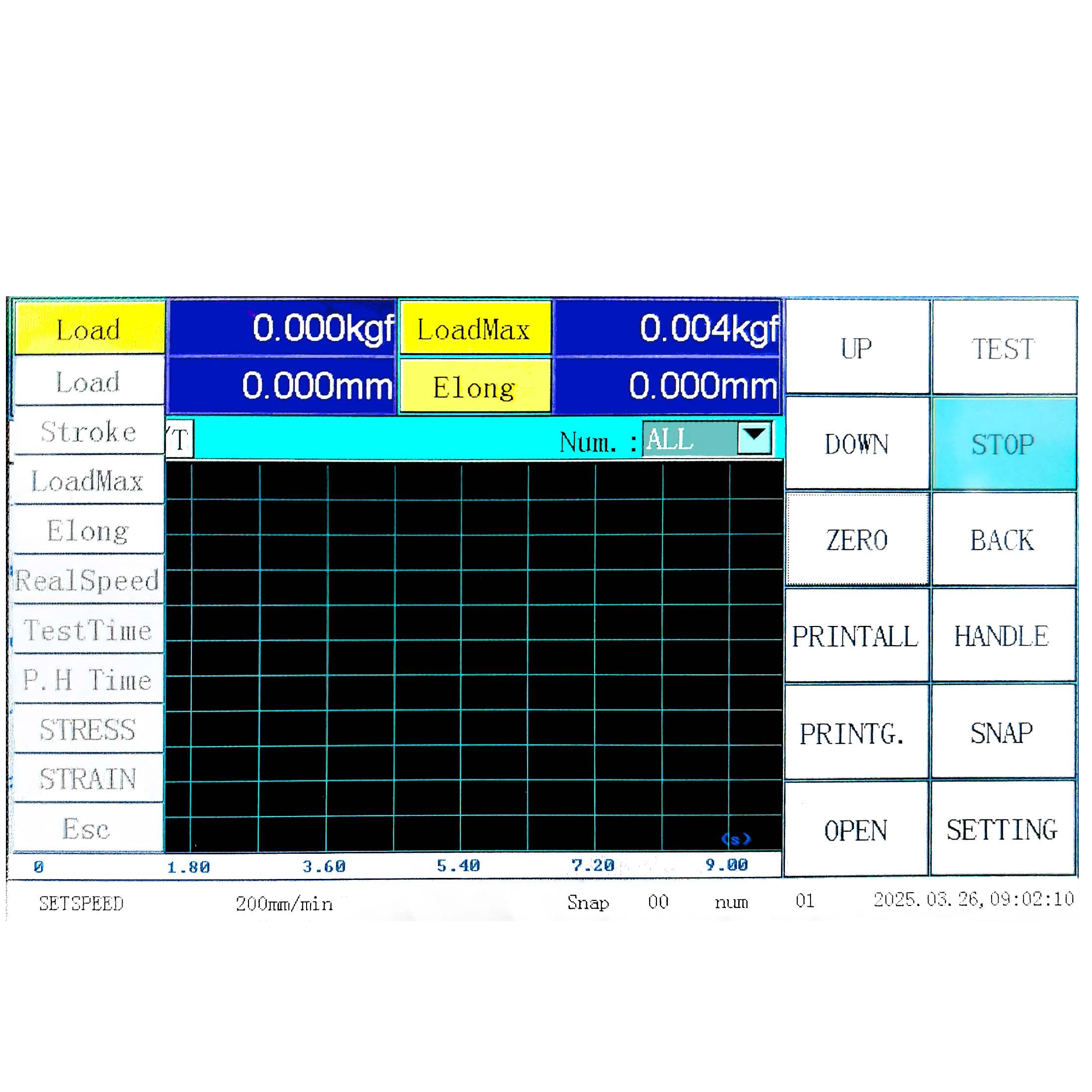

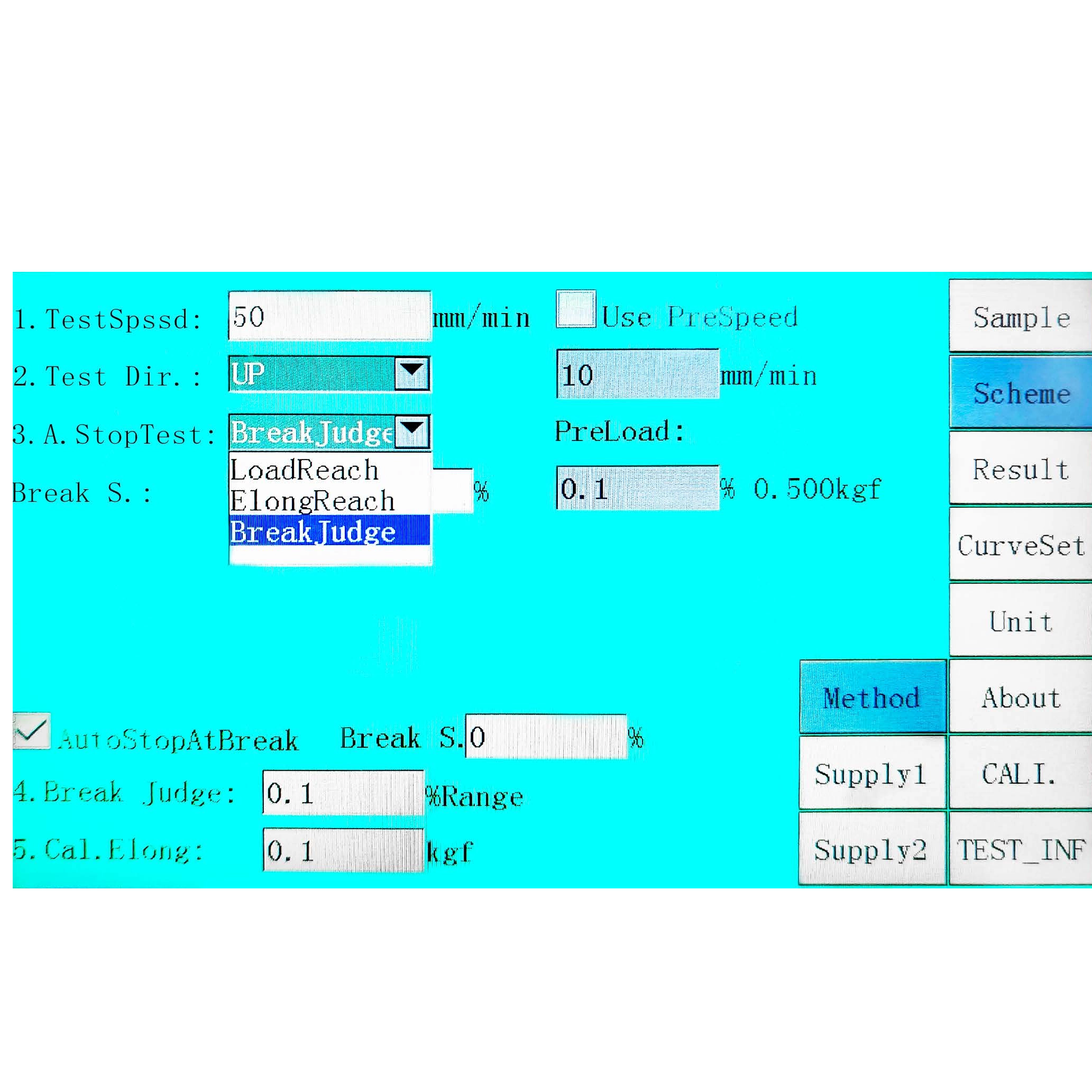

● Color touch - screen for easy and convenient operation.
● Can be connected to computer and used with software for more functions.
● Driven by a stepper motor.
● Class 1 testing machine.
● C3 - grade high - precision load cell.

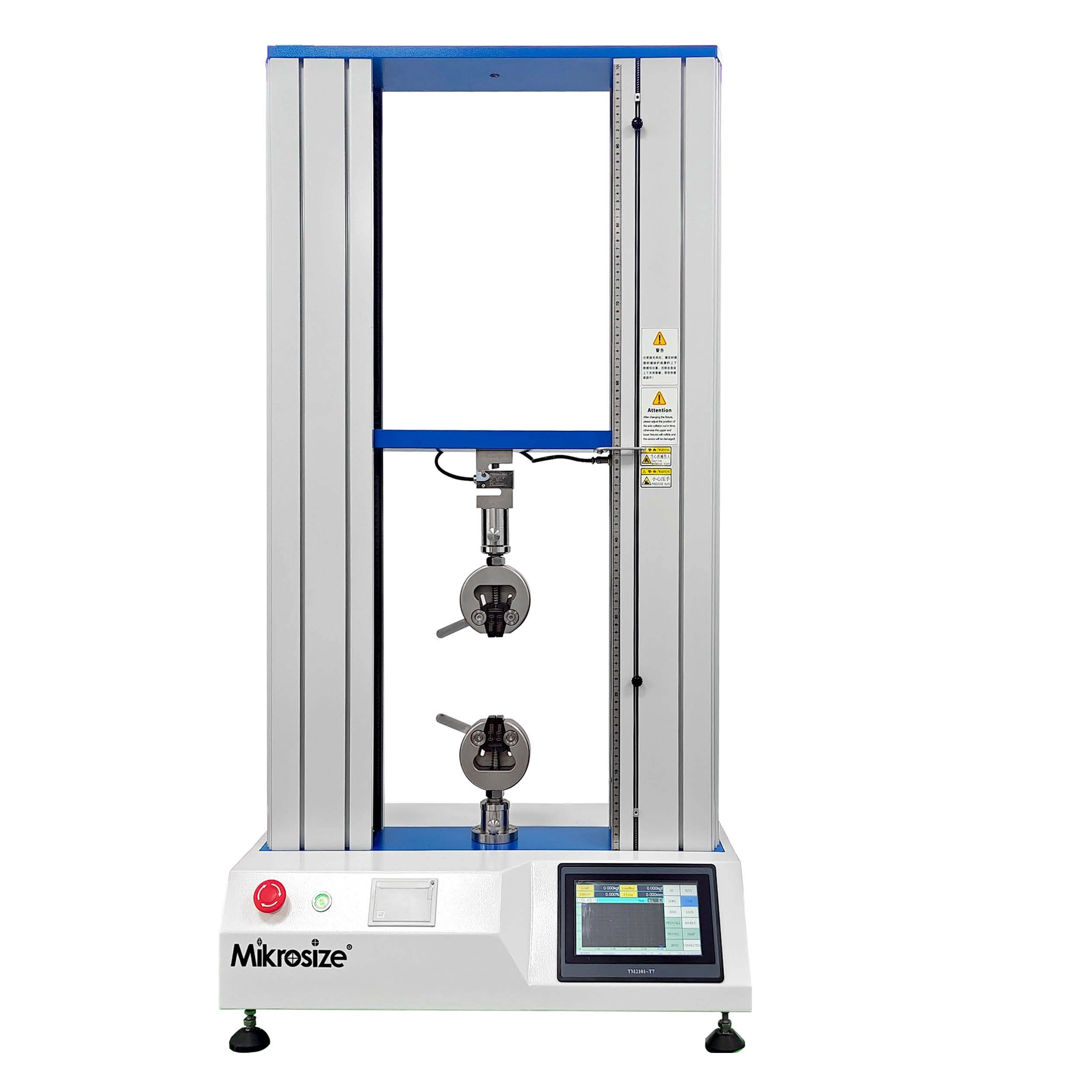

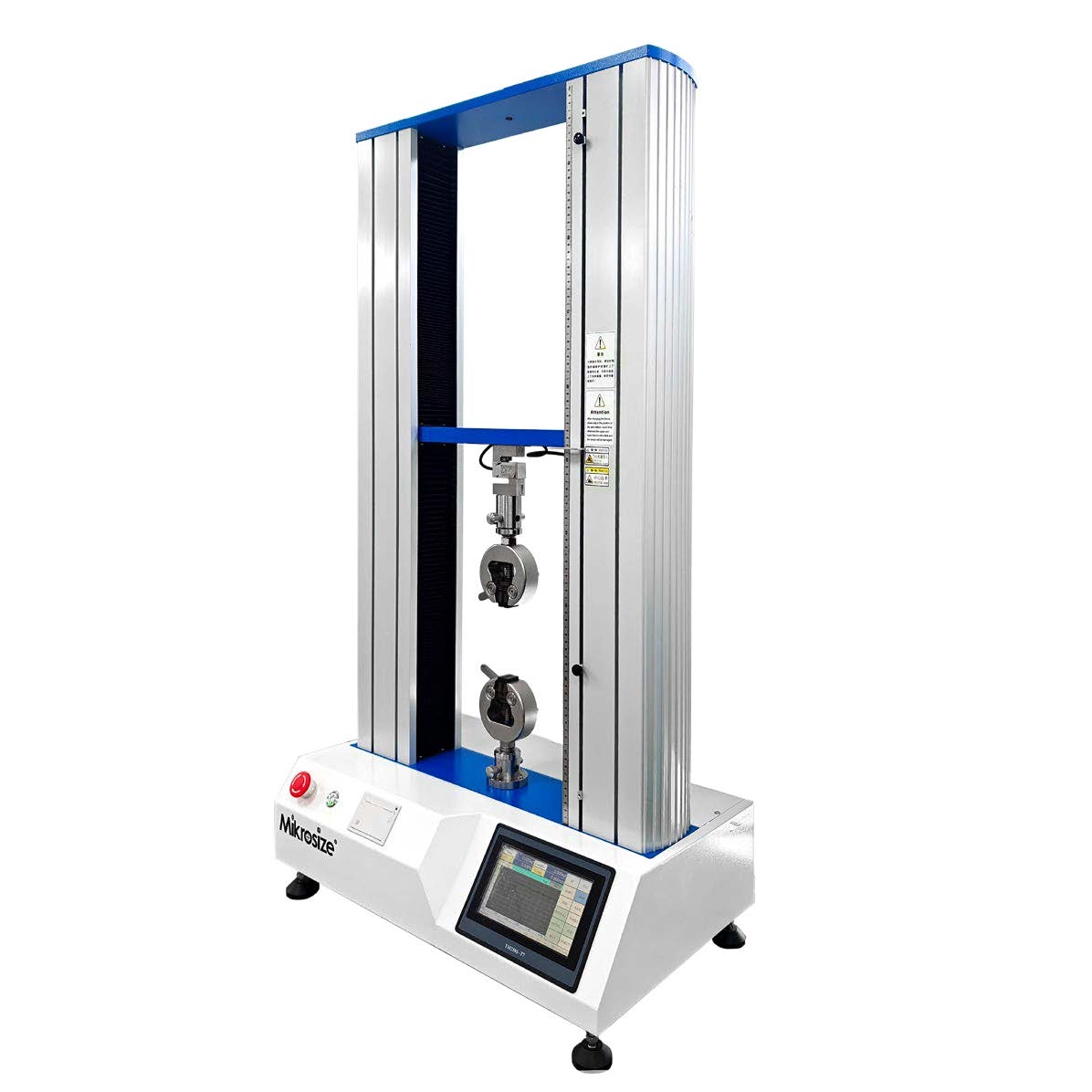

● Gantry - type dual - column high - rigidity design for durability.
● Maximum capacity: 10KN.
● Test speed:
Maximum 500mm/min，
Minimum 0.1mm/min
● Multiple units available:
Force: g、Kg、lb、N、KN
Displacement:inch、 cm 、 mm
● With the function of automatically returning to the initial position
after the test.

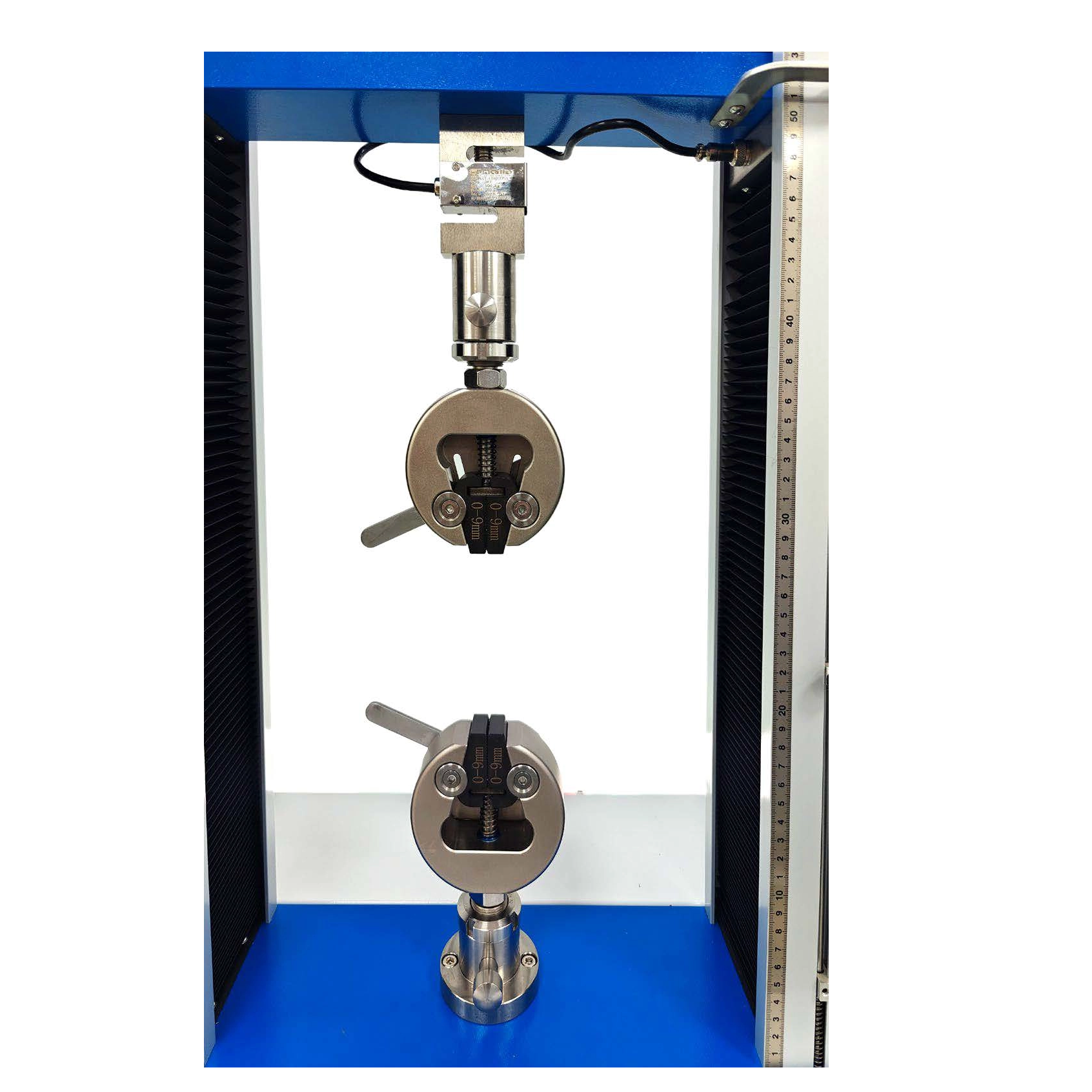

● In addition to the standard tensile fixture, other types of fixtures
can be customized.
● The software provides curve graphs, data tables, and test
reports, all of which can be printed.
● Automatically calculates maximum force, minimum force, average
force, maximum deformation, elongation rate, strength, etc.
● With multiple curve modes such as stress - strain, force -displacement, force - time, and strength - time.
● With test mode functions for tension, bending, compression,tearing, peeling, elongation rate, etc.
● Equipped with multiple protection devices including mechanical travel switches, emergency stop switches, overload limit protection,and break - point stop protection.
● Standards complied with:
GB/T 2611、GB/T 16491、GB/T 1040、ISO 527、GB/T 8804、
GB/T 9341、GB/T 12160、GB/T 16825

Product Application：
● Manufacturing industry: Used to test the mechanical properties of various parts and raw materials to ensure product quality meets design requirements.
● Material research and development: Helps researchers understand the mechanical properties of new materials and provides data support for material improvement and innovation.
● Research institutions: In scientific research experiments, it is used to study the mechanical behavior laws of substances and promote the development of related disciplines
● In the process of mechanical processing, Brinell hardness tester can be used to detect the hardness of raw materials, in order to select suitable processing technology and cutting tools.
● Can be used to test the hardness of mechanical components such as gears, bearings, bolts, etc., to ensure that they meet design requirements and performance requirements.
● Can be used to test the hardness of forgings to determine the effectiveness of forging processes and the quality of forgings.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification:

Model		UTM-TDC
Name		Dual - Column Universal Material Testing Machine （Bench Type）
Capacity	KN	0.05	0.1	0.2	0.5	1	2	5	10
	KG	5	10	20	50	100	200	500	1000
	lb	11	22	44	110	220	440	1102	2204
Testing Machine Class		Class 1
Force Unit		g、Kg、lb、N、KN
Displacement Unit		Inch、cm、mm
Effective Test Force		0.4%~100%FS
Force Accuracy		Within ±1% of Indication Value
Force Resolution		1/300000
Displacement Accuracy		Within ±1% of Indication Value
Displacement Resolution		0.001mm
Deformation Measurement Range		2%~100%FS
Deformation Indication Accuracy		Within ±1% of the indicated value
Maximum Test Speed		500mm/min
Minimum Test Speed		0.1mm/min
Speed Accuracy		Within ±1% of the indicated value
Crossbeam Stroke		No - fixture test stroke: 920mm
Measuring Width		320mm
Fixture Configuration		Configured according to customer requirements
Return Method		Manual, Automatic
Stop Method		1. Automatically stop at the maximum fracture value 2. Stop when the upper and lower limit safety settings are reached
Safety Device		1.Mechanical travel switch protection 2.Emergency stop switch for emergency braking
Overload Protection		When reaching 100% of the maximum load, the machine automatically stops for protection
Power Supply Voltage		220V.AC/50Hz (Can be selected as 110V.AC/60Hz according to the country)
Machine Size/Weight		LWH:650mm400mm1220mm About 70Kg
Packaging Size/Weight		LWH:700mm450mm1350mm About 90Kg
