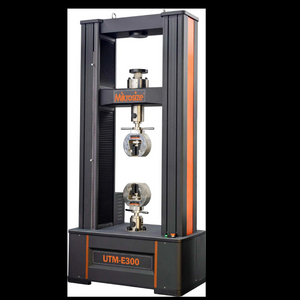

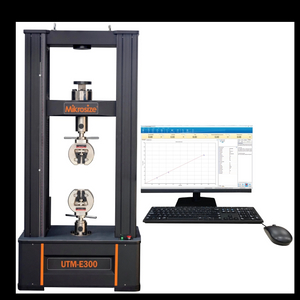

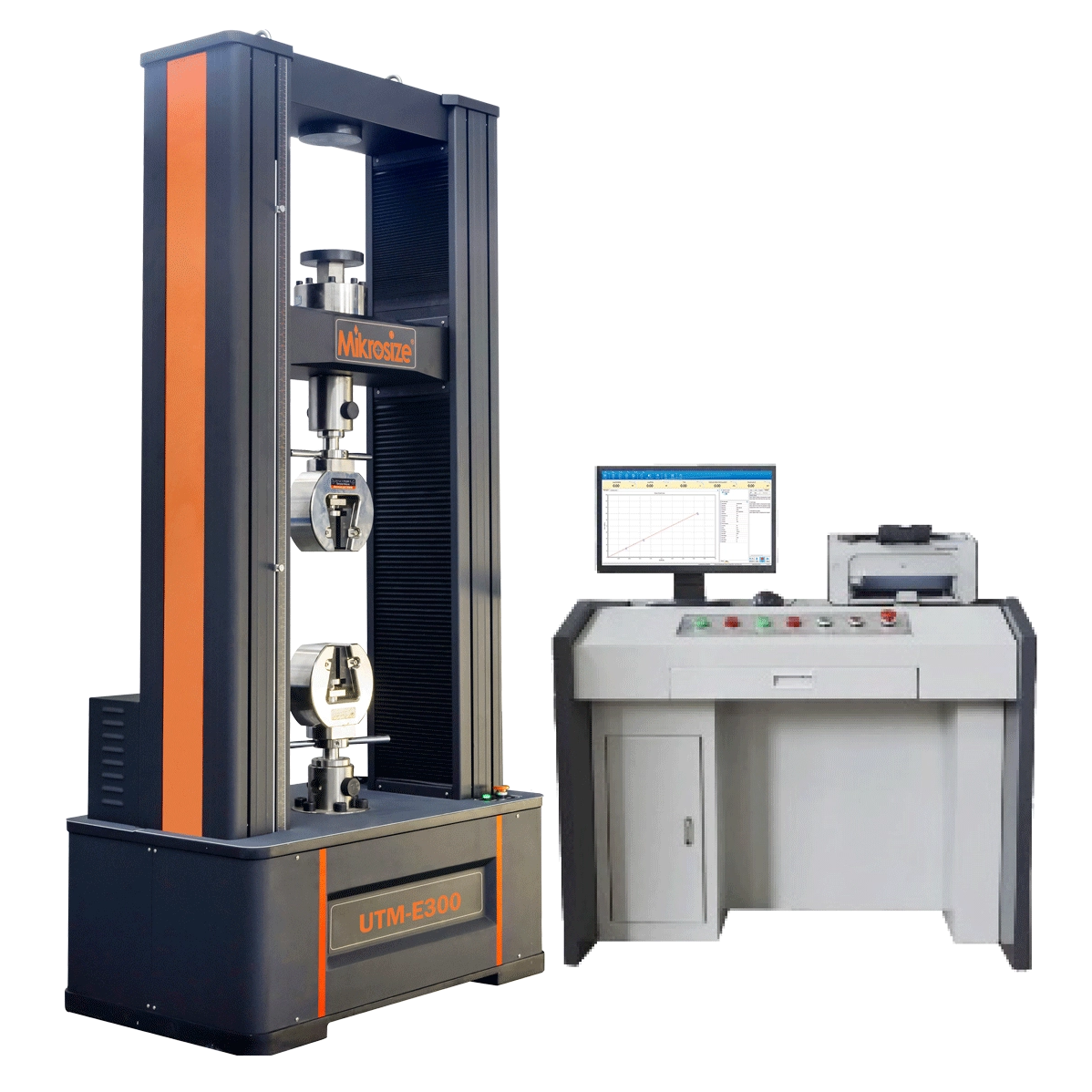

UTM-E300 Computer Controlled Electronic Tensile Testing Machine

Product Feature：

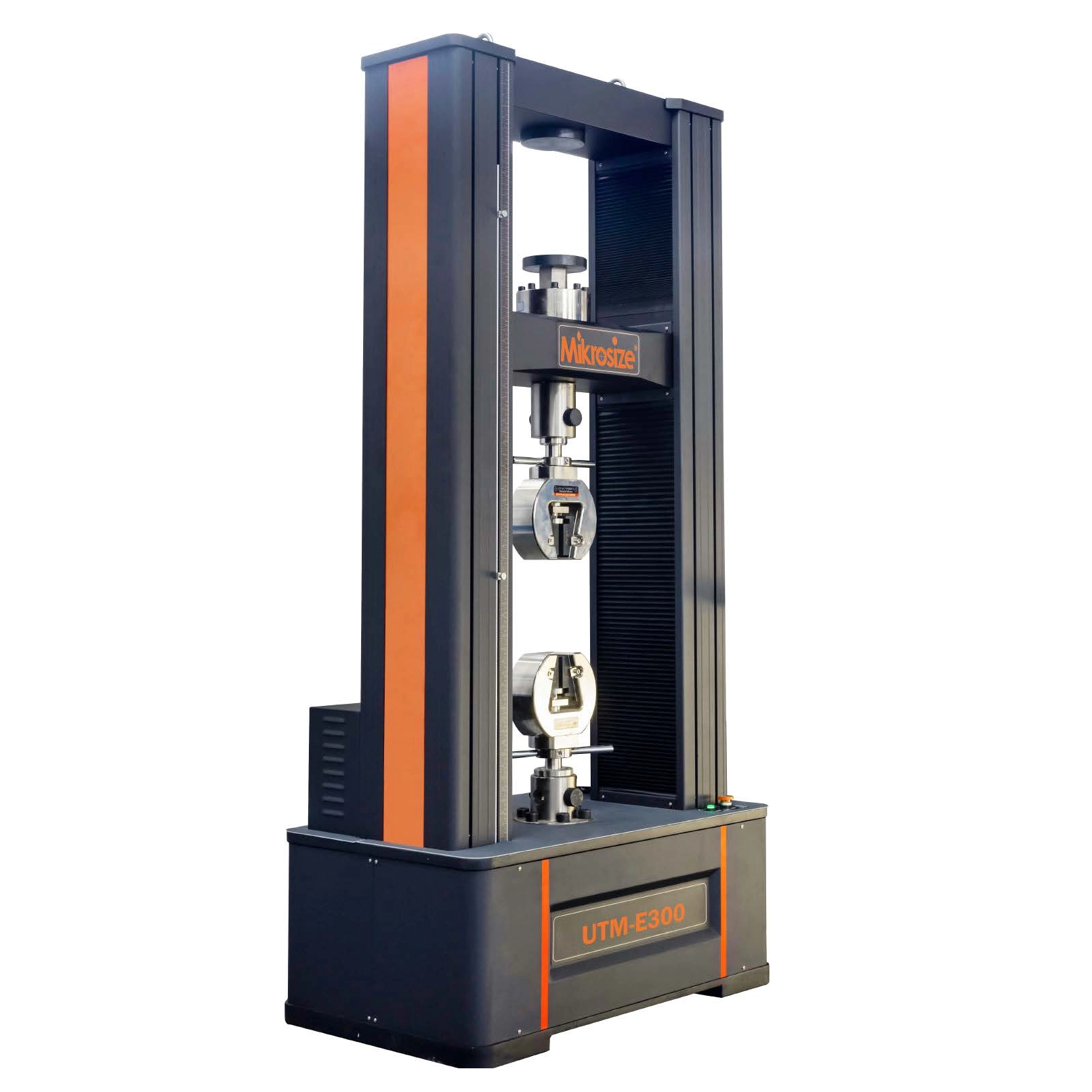

lThe main machine adopts a rigid floor-standing gantry frame structure, which is com- posed of an upper crossbeam, a movable crossbeam and a workbench connected by col- umns and ball screws, ensuring stability and reliability.
lThe movable crossbeam is processed from a single casting, which ensures it can bear suf- ficient force without deformation.

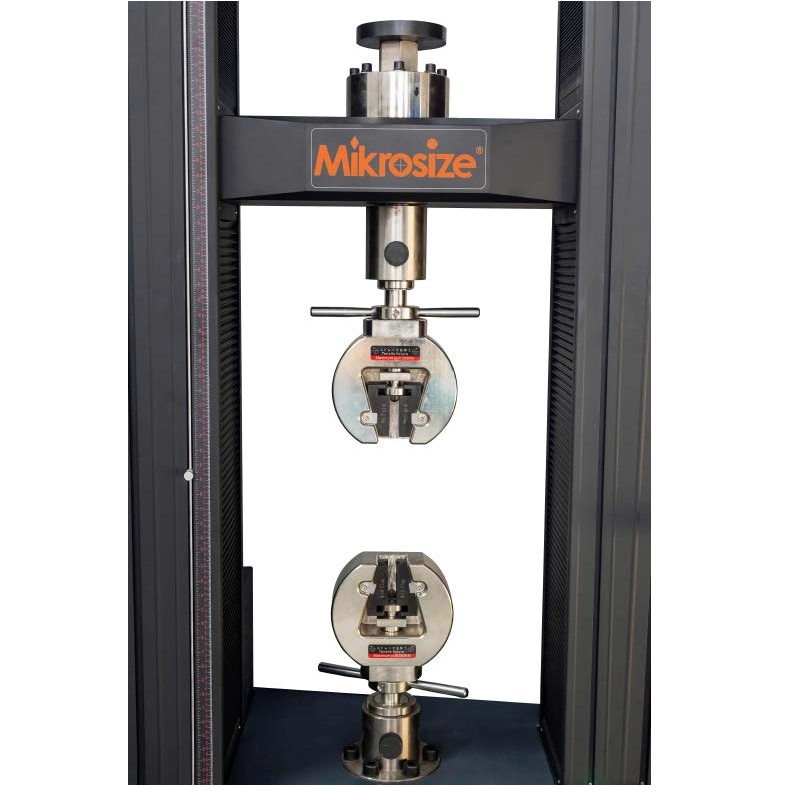

lIt can conduct both tensile and compression tests simultaneously, with the upper part serving as the tensile test space and the lower part as the compression test space.

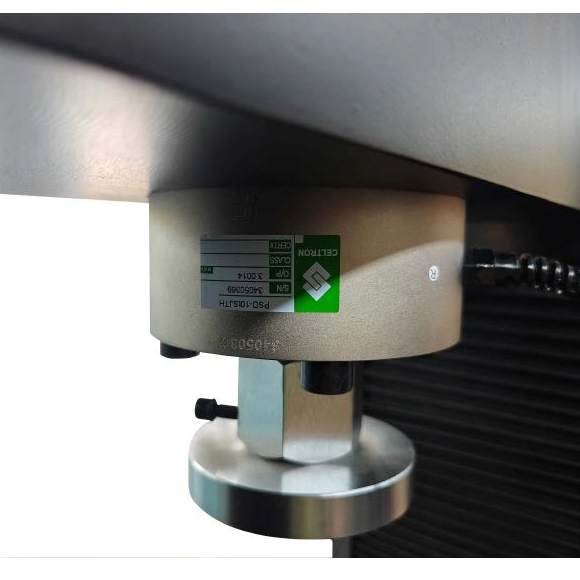

lDriven by a servo motor, it is equipped with a high-precision sensor, a dedicated indepen- dent controller and measurement and control software, enabling precise control of the equipment.
lEquipped with a magnetic handheld control box, facilitating users to operate the equip- ment from a distance.

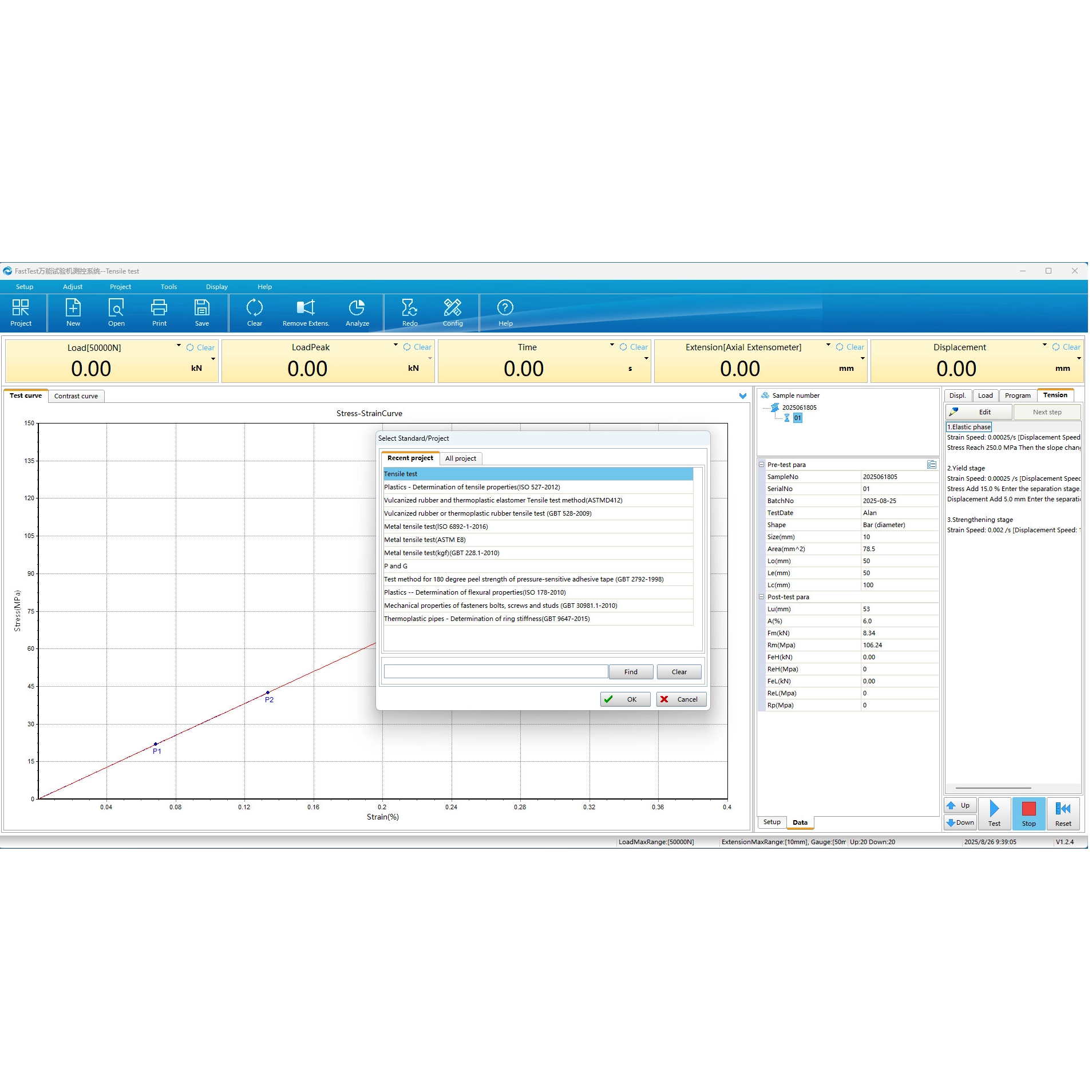

lThe dedicated software has multiple functions to meet the needs of different users. It also features a modular and open design. In addition to providing common standards such as GB, ASTM, DIN, ISO and JIS, users can design calculation formulas according to their own requirements.

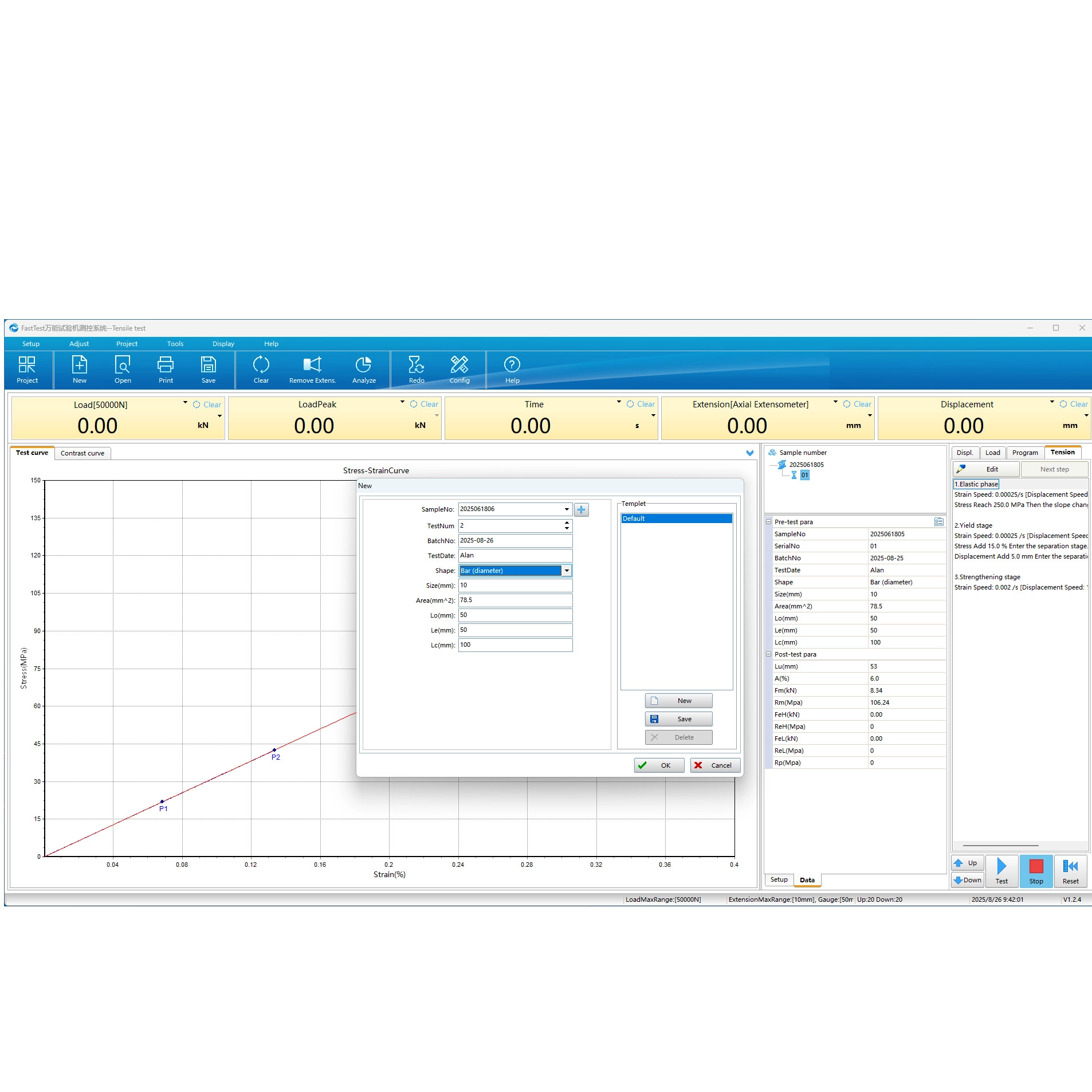

lThe software can generate real-time curves in multiple modes, including force-time, stress-time, strain-time, displacement-time, etc.
lThe software can automatically calculate parameters such as maximum force, average force, maximum deformation, tensile strength and yield strength.
lIt provides customizable test report templates for users, supporting report export in mul- tiple formats: Word, PDF and Excel.
lThe software is compatible with multiple Windows operating systems: Windows 7, Win- dows 10 and Windows 11.
lMaximum test force: 100kN.
lTest speed range: 0.001 - 500mm/min. Multiple units are available.
lForce units：KN、N、kgf、lbf.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Technical Specification：

Model	UTM-E300
Max Load	300kN
Load Accuracy	Grade 1 （Optional Grade 0.5)
Testing Range	2%～100%F.S ( Optional 0.4%～100%F.S)
Load Resolution	1/500000FS
Test Control Mode	3 closed loop control, stress, strain and displacement
Deformation Measuring Range	0.2%～100%FS
Deformation Accuracy	≤±1%
Displacement Accuracy	≤±1%
Displacement Resolution	0.01mm

Control Mode	Force closed loop control, deformation closed loop control, displacement closed loop control
Force Control Controls The Speed Range	0.001%~5%FS/s
Constant Force Control Accuracy	When the rate is < 0.05%FS/s, it is within ±2% of the set value; when the rate is ≥0.05%FS/s, it is within ±0.5% of the set value;
Deformation Control Controls Speed Range	0.001%~5%FS/s
Constant Deformation Control Accuracy	When the rate is < 0.05%FS/s, it is within ±2% of the set value; when the rate is ≥0.05%FS/s, it is within ±0.5% of the set value;

Max. Tensile Testing Space	550mm
Max. Compression Testing Space	550mm
Test Width	500mm
Crosshead Speed Range	0.001～180mm/min
Overall *Dimensions (LWH)*	10506502300mm
Power Supply	1P 220V±10%,50-60HZ,2.5KW
N.W.	About 1500kg
