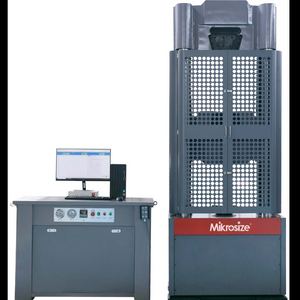

UTM-1000H 1000kN Computerized Electro-Hydraulic rvo Hydraulic Universal Testing Machine

Number of Columns

6 (4 columns and 2 screws)

Load Capacity

1000kN

Load Capacity

100000kgf

Calibration Standard

ISO 7500

Calibration Standard

Class 1 (Optional Class 0.5)

Testing load Accuracy

±1% (Optional ±0.5%)

Load Measuring Range

1%～100%F.S

Load Resolution

1/500,000 of FS

Displacement Resolution

0.001mm

Displacement Accuracy

≤±0.5% of Indicating Value

Deformation Measuring Range

1%~100%FS

Deformation resolution

1/±500000FS of the max deformation

Deformation accuracy

≤±0.5% of Indicating Value

Overload Protection

≥5% of Full Range

Max. Compression Testing Space

550mm

Distance Between Two Columns

550mm

Max. Piston Stroke

250mm

Testing Speeds

0-80mm/min

Cross Beam Adjustment for Max Speed

About 200 mm/min

Force Control Controls The Speed Range

0.001%~5%FS/s

Deformation Control Controls Speed Range

0.001%~5%FS/s

Overall Dimensions of The Jaws

80*80mm

Round Specimen Clamping Dia. Range

Φ13-Φ26 (Optional:Φ26-Φ40mm;Φ6-13mm)

Flat Specimen Clamping Thickness Range

0~15mm (Optional:15–30mm)

Compression Plate Dimensions

Φ160mm

Overall Dimensions of The Jaws

80*80mm

Round Specimen Clamping Dia. Range

Φ13-Φ26 (Optional:Φ26-Φ40mm;Φ6-13mm)

Flat Specimen Clamping Thickness Range

0~15mm (Optional:15–30mm)

Compression Plate Dimensions

Φ160mm

Load Frame Dimension (L*W*H)

900*660*2150mm

Oil Power Dimension (L*W*H)

1250*1000*1000mm

N.W.

1780kg

Operating Temperature

0 to +38° C (+32 to +100° F)

Humidity Range

10% to 90% non-condensing

NOTE:

Extra wide and/or extra height frames are available Power supply system is completely customizable

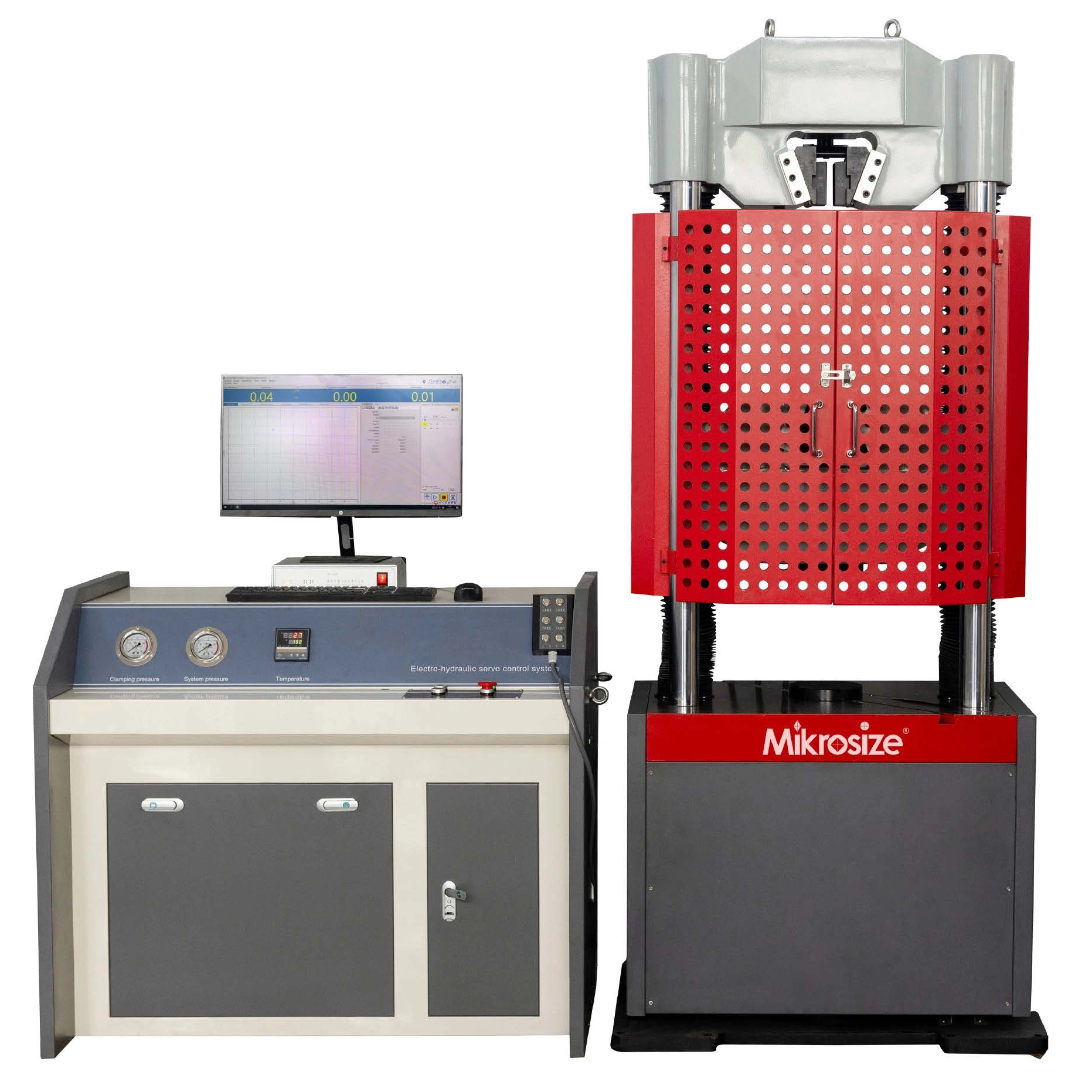

Host Frame

1

1000kN,6 columns (4 col- umns and 2 screws), High intensity testing machine structure and crosshead, high stiffness to assure ac- curacy.

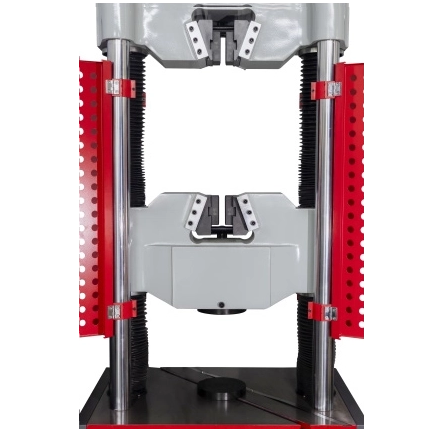

Hydraulic Automatic Wedge Tensile Grip

each1

Open front hydraulic wedge clamps for easier loading and allowing rapid loading and unloading of speci- mens.

Round: Φ 13 -Φ 26 ; Φ 26 -Φ

40mm;

Optional:Φ6-13mm;

Flat:0-15mm; Optional:15-30mm; Width of Flat Specimens:80*80mm

Compression Fixture

1

Dia.: Φ160mm

3-Point Bending Fixture

1

Applicable to steel bar- dia.:1/8 inches, 1/4 inches,1/2 inches, 3/8 inches, 1 inches

Safety Screening

1

Independent research and development

Control Cabinet

1

Max. Pressure:30MPa Max. Flow:3.6L/min Power:1.5KW

Oil Box

1

Independent research and development

Servo Motor And Drive System

1

1.5KW Ac servo motor pump, 1000RPM

Plunger Pump

1

5L/min

Hydraulic Integrated Valve Block

1

10μm, Includes precision oil filter

Pressure Gage

1

System pressure and clamping pressure

High-Pressure Oil Pipe

1

The max. pressure it can safely withstand is 53MPa

Magnetic Exchange Valve

1

Pressure 31.5Mpa

Measure and Control Software

1

Standard English, Can optional

English,Russia,Chinese etc

Control System

1

3 closed loop (force, defor- mation, displacement) con- trol system

Load Cell

1

Max. Load Capacity :1000kN

Hand-Held Controller

1

Can control the rise and fall of moving beams and cylin- ders, clamping and loosen- ing of jaws

Displacement Sensor

1

10000 wire, for the best positioning and measuring accuracy

Computer

1

HP

Printer

1

HP

Electronic Extensometer (Optional)

1

Gauge Length: 50mm; Deformation: 10mm

Other

each1

Instruction Manual, Packing List, Certificate
