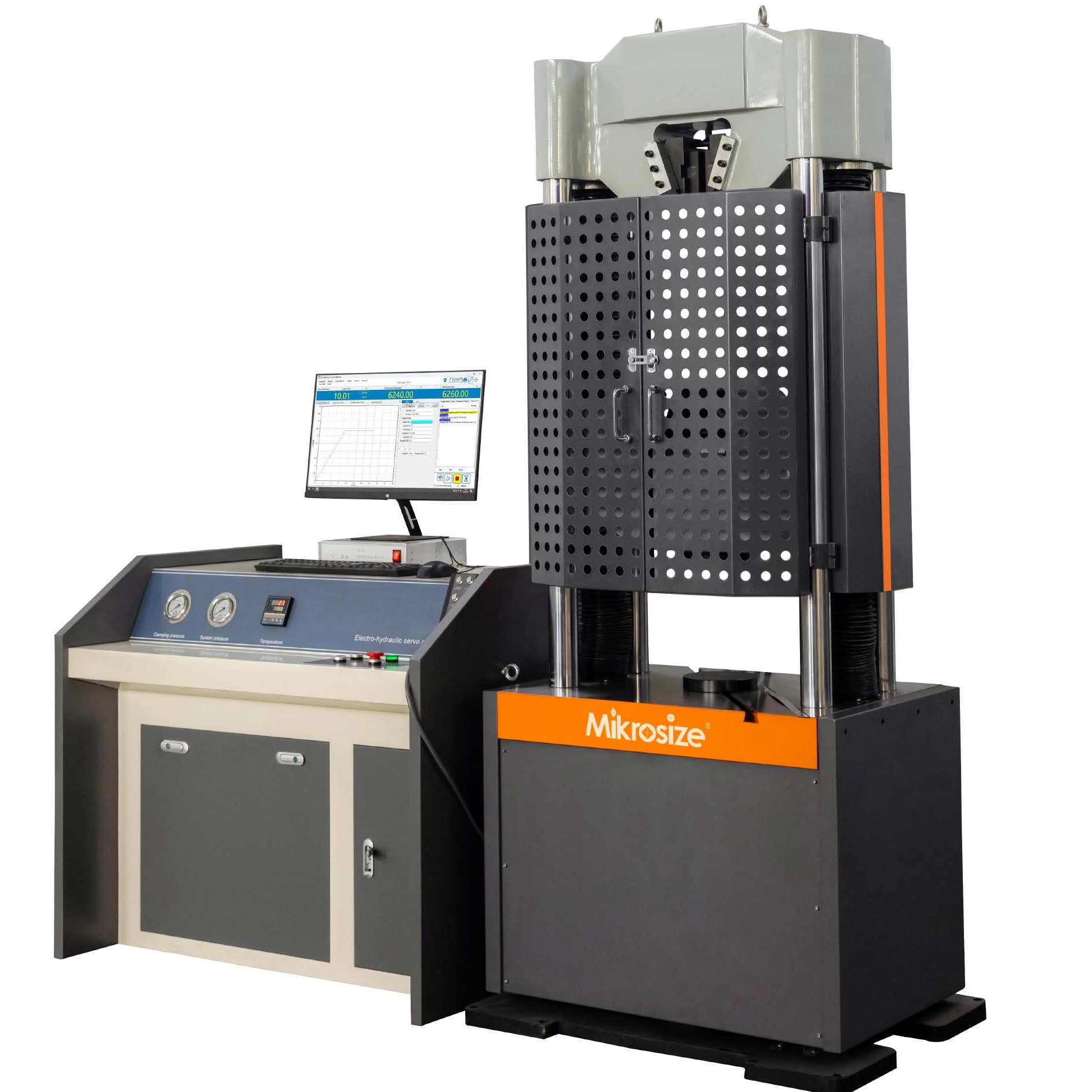

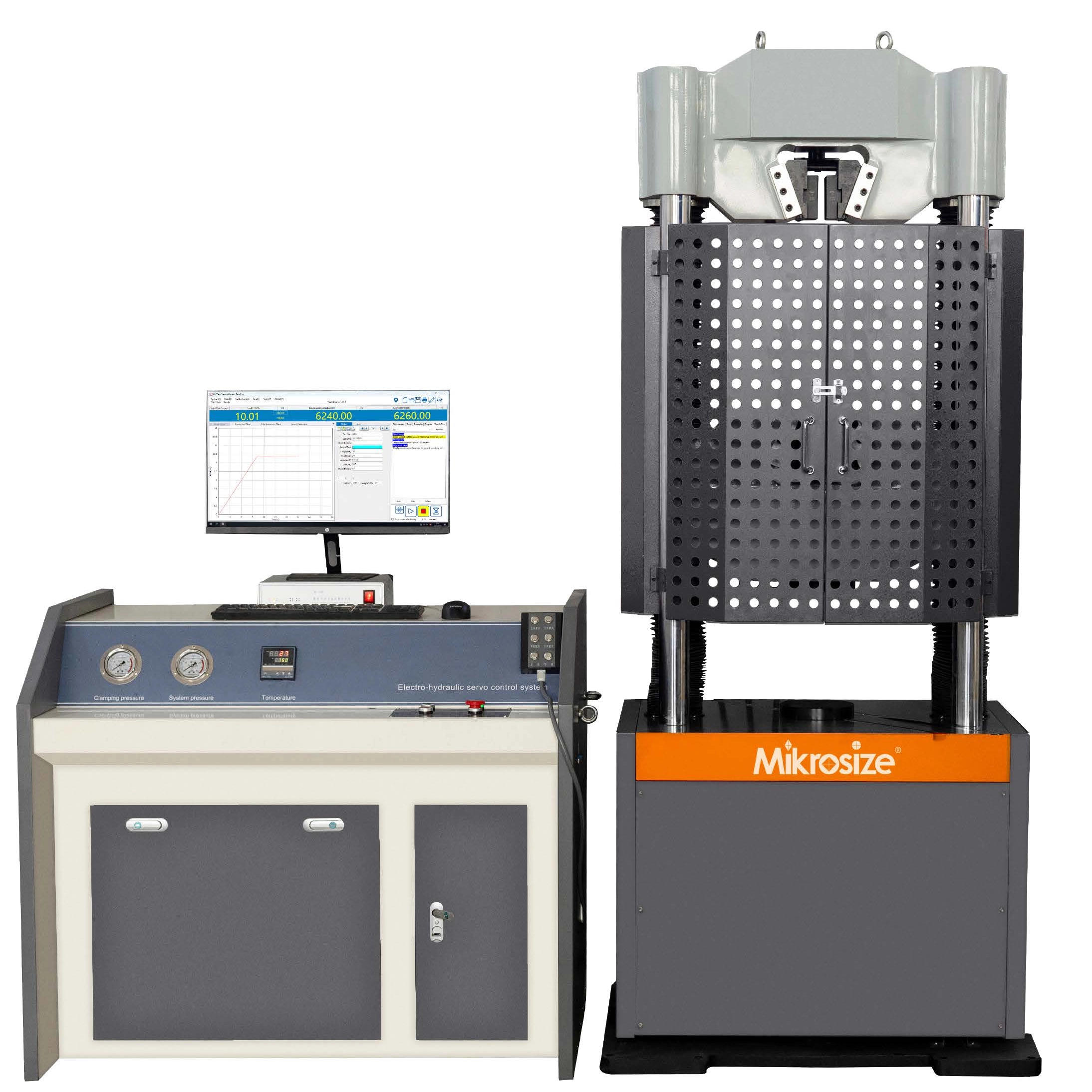

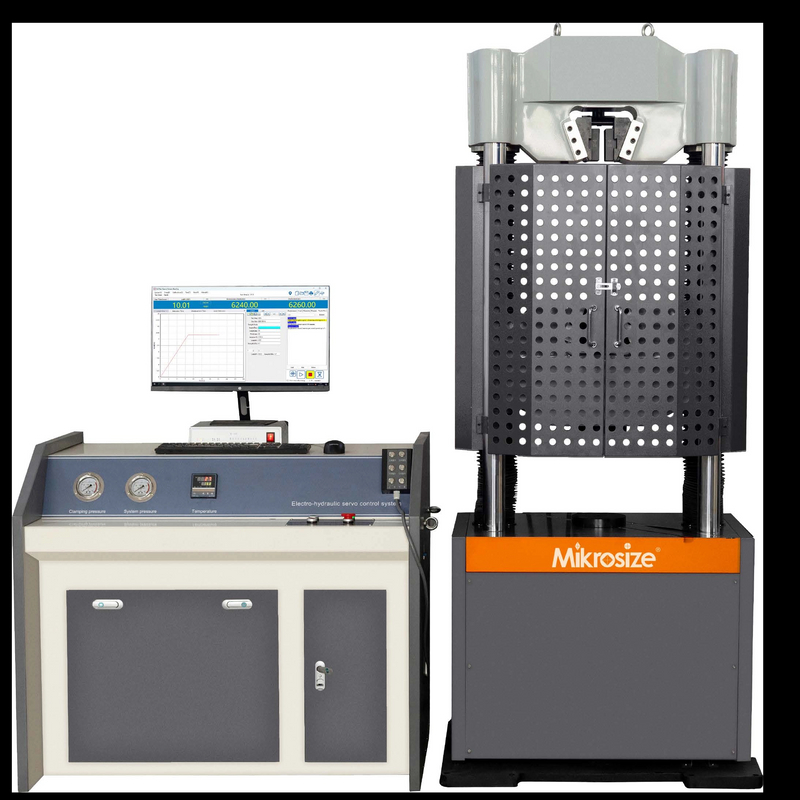

UTM-H600 Computerized Electro-Hydraulic Servo Hydraulic Universal Testing Machine

Product Feature：

lSuitable for tension, compression, bending and shear tests of metals and non-metals (in- cluding composite materials).
lAdopts electro-hydraulic servo closed-loop control, which can accurately control the flow of hydraulic oil through the servo valve and apply load through the oil cylinder
lOil cylinder lower-mounted main machine, with tension test space on the upper part and compression/bending test space on the lower part.
lThe motor drives the lead screw to rotate to control the lifting of the crossbeam, so as to adjust the tension and compression space.

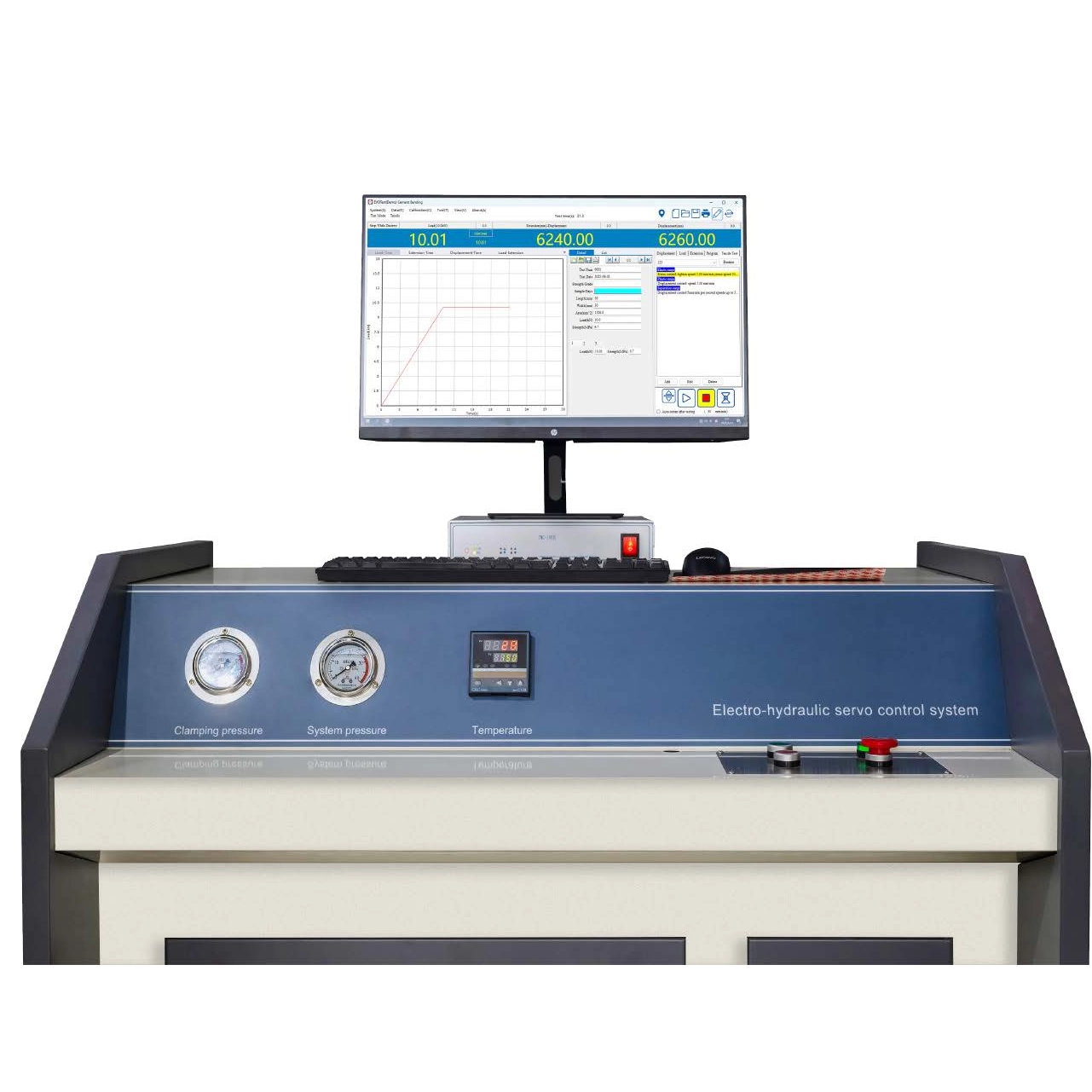

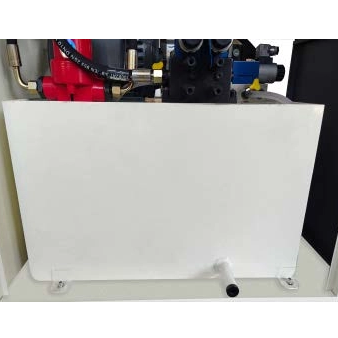

lEquipped with a special electro-hydraulic servo oil source control cabinet, with indicating instruments, control buttons and emergency stop buttons.
lBuilt-in controller, which can realize constant speed test force, constant speed displace- ment, constant speed strain, constant speed load cycle and other tests.

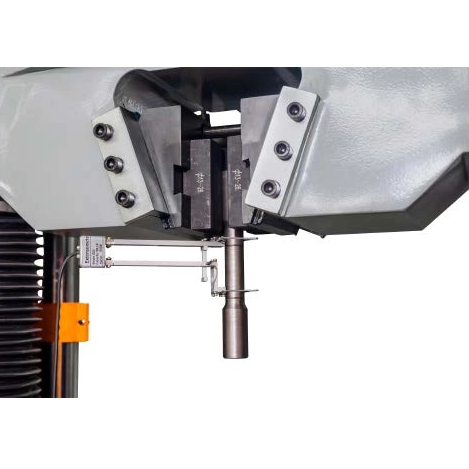

lEquipped with a wired remote control box, which can control the opening and closing of the fixture to clamp the sample.
lFour-column and two-lead screw design, with stable structure and high rigidity, which can meet high-strength testing requirements.
lEquipped with a metal wire protective cover to prevent splashes from causing harm to ex- perimenters when the sample breaks.
lIt has multiple protection functions such as overload and overpressure emergency stop protection, as well as mechanical limit devices.

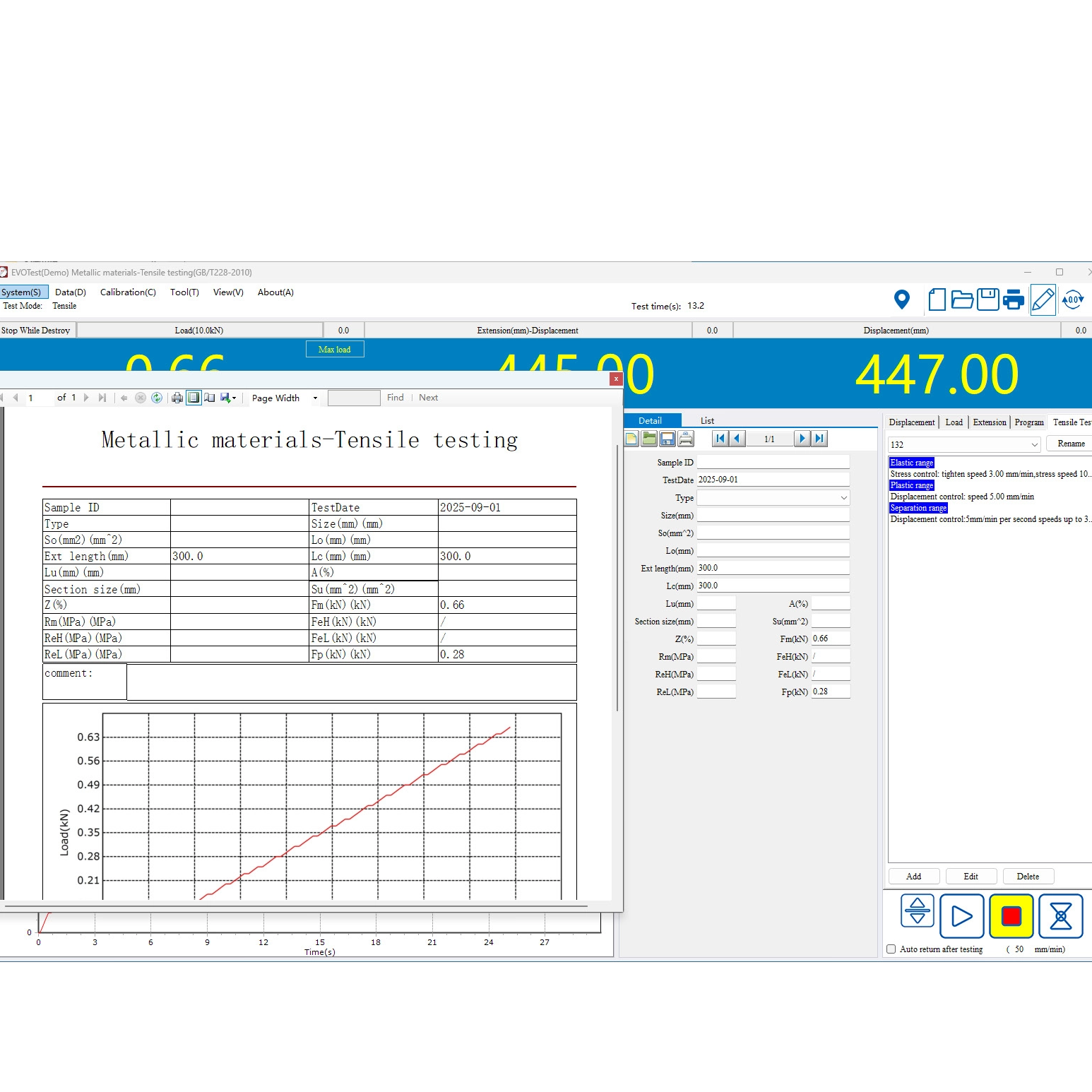

lCooperating with special measurement and control software, it can realize real-time mea- surement and display of experiments, real-time control, data processing, result output and other functions.
lThe software supports multiple operating systems such as Win7, Win10 and Win11.
lSupports the use with extensometers (optional).
lThe design meets the standards: ASTM E4, ISO 7500-1, EN 10002-2, BS 1610, DIN 51221, etc.

Product Application：

lBasic mechanical property testing of metal materials. Performance and structure verification of composite materi- als.
lQuality inspection of construction and civil engineering mate- rials.
lReliability and failure analysis of auto parts.
lUltimate performance verification of aerospace and high-end equipment.
