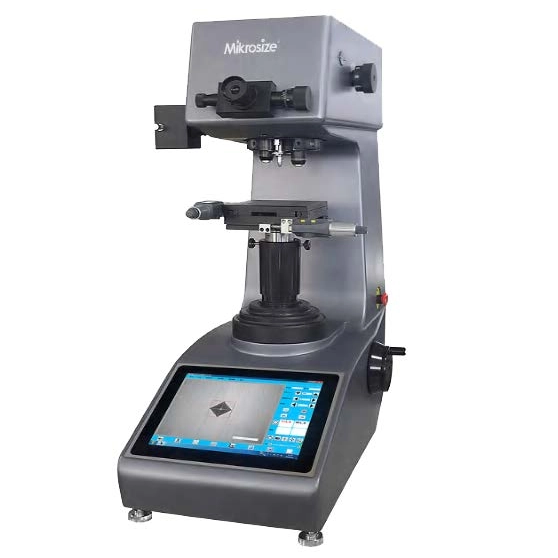

MVision-10/30/50 Intelligent Macro Vickers Hardness Tester

Product Feature：
Manual Type:
● High-tech and new product combining the optics,mechanic and electrics.Load cell control system, improves precision of test force and repeatability , stability of the indicating value.
● Display test force, dwell time, test numbers on screen, only need to input the diagonal of the indentation,then you can automatically get the hardness value on the screen.

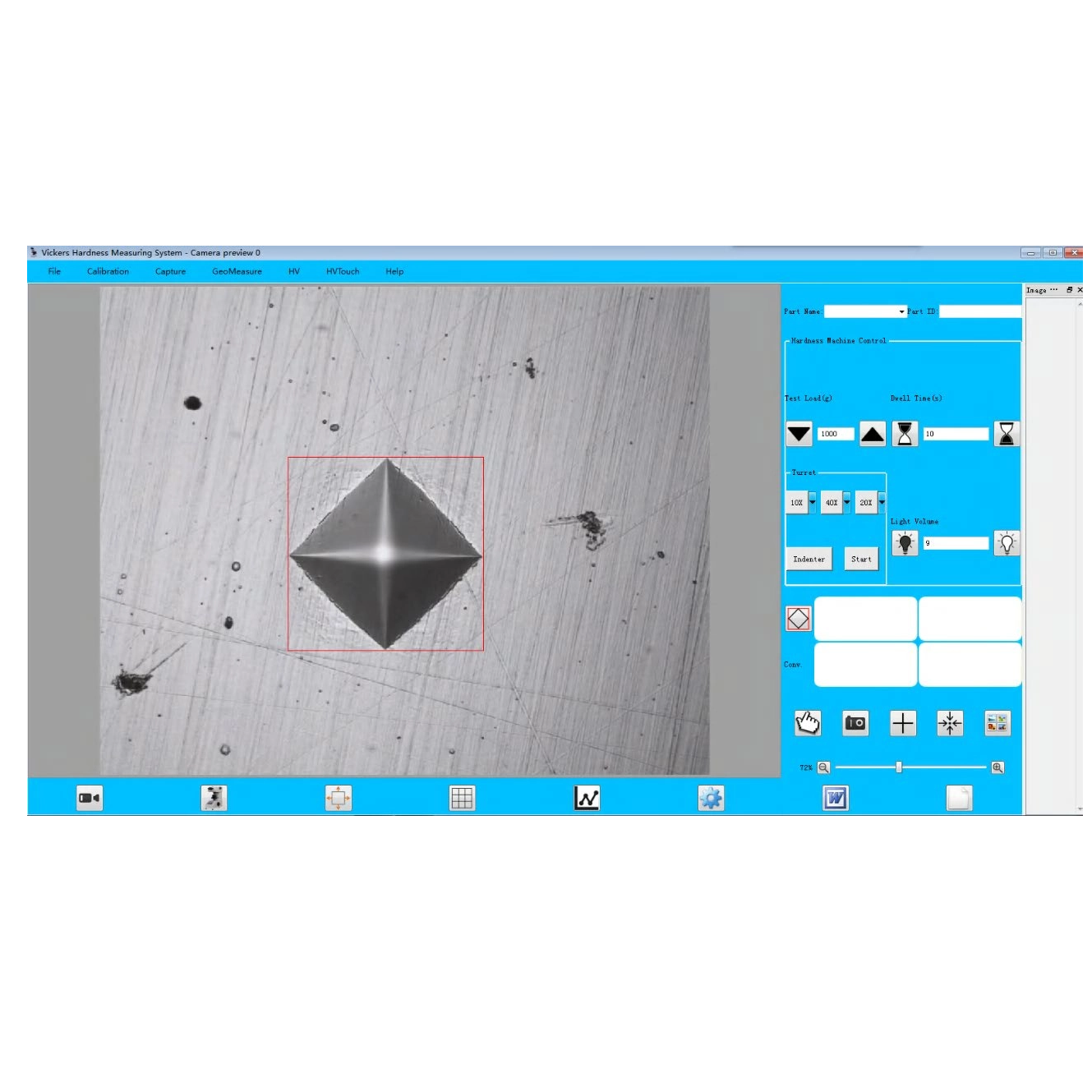

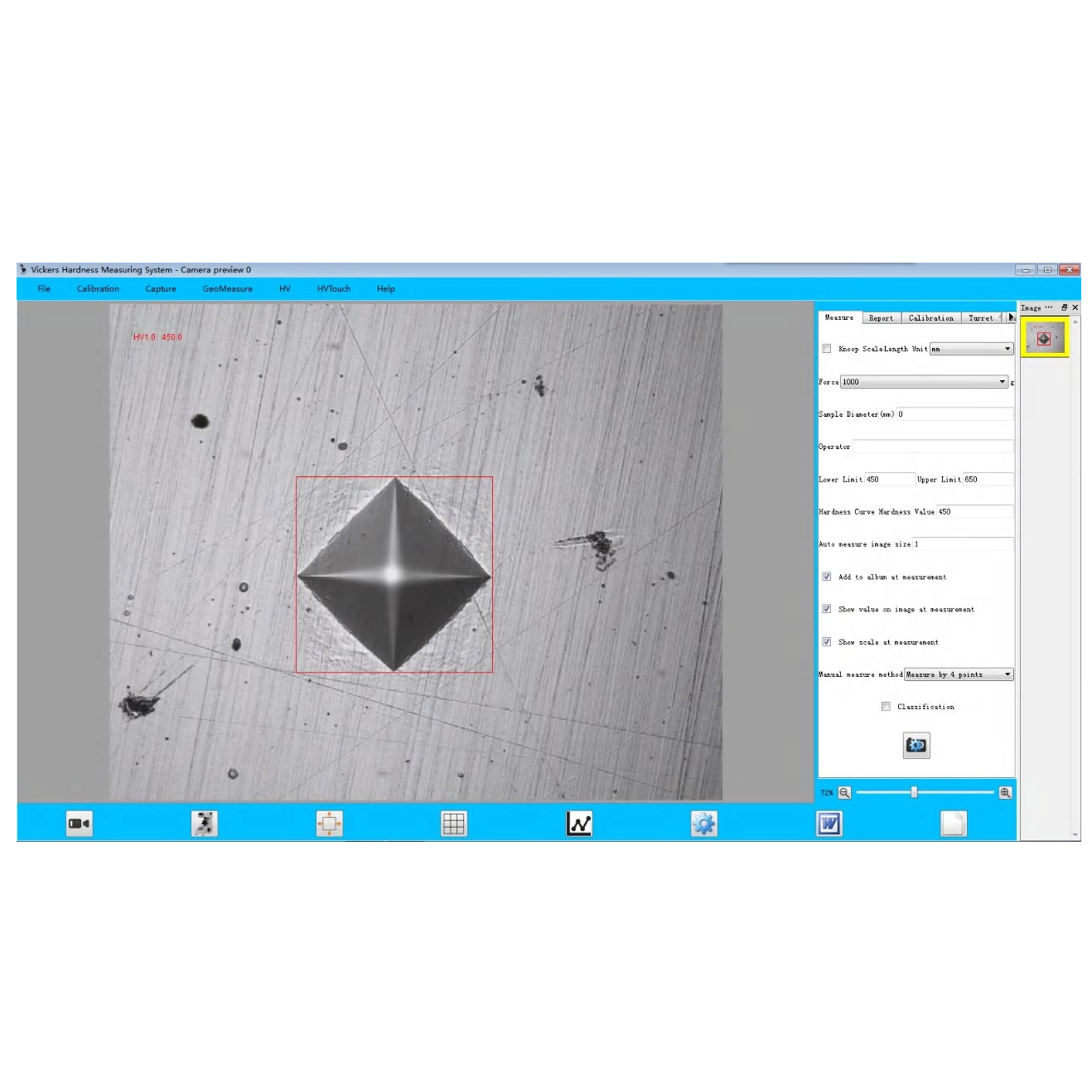

● Can be equipped with CCD image automatic measuring system.
Digital Type：
● Based on manual type,digital macro vickers hardness tester with digital measuring eyepiece, no need for checking the table or inputting the diagonal of the indentation,
● Directly shows the test force, indentation diagonal,dwell time, test numbers, conversion scale, date and time.
● Automatically get the hardness value on screen,just press the eyepiece button after measuring the indentation diagonal ,
● Can be equipped with LCD video measuring device and CCD image automatic measuring system.
Touch Screen：
●Based on digital type,Touch Screen macro vickers hardness tester adopts the high resolution color touch screen, easy to operate, display backlight adjustable with energy-saving mode.
● Directly show the test force, indentation diagonal, dwell time, test numbers, conversion scale, date and time.
● Automatically get hardness value on screen, test results can be saved in real time with automatic calculation of maximum, minimum and average value, data can be arbitrary deleted and printed out,
● With RS232 interface for connecting to the computer.
Product Application：
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
