Product Application
Widely used to test the hardness of all kinds of metal materials (steel, nonferrous metals, tinsel, cemented carbide, sheet metal, etc.).Surface layer / coating (Carburization, nitriding, decarburization layer, surface hardening layer, galvanized coating, etc.).Glass, chip, ceramic, plastic and rubber, etc.
| Quantity: | |
|---|---|
uVicky-5/10/30/50/100/120
Mikrosize
uVicky-5/10/30/50/100/120
Product Description
Product Feature
●Closed loop design with high accuracy load cell, instead of dead weights, loading - dwell - unloading automatically
●With load automatic correct function, greatly improved test accuracy and get calibration more easy
●Hardness value automatic corrected according to different hardness block
●8’’Touch screen interface with menu structure, easy to operate

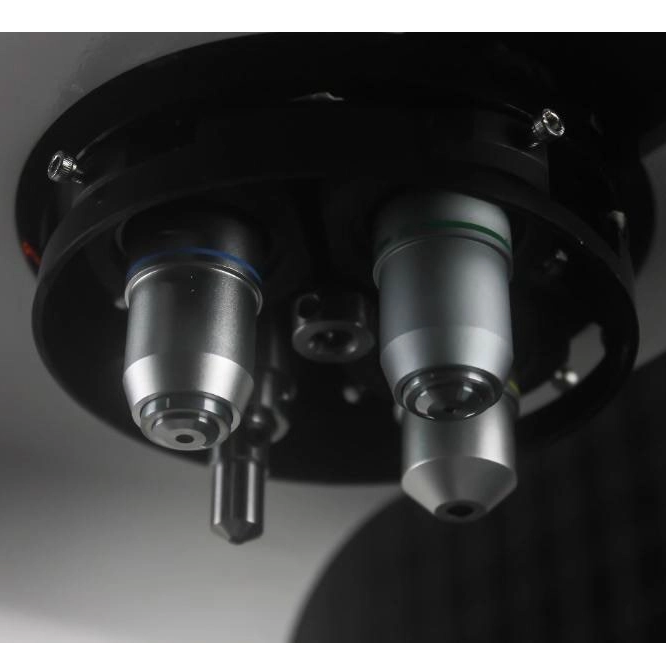

●Any three of the 5X, 10X, 20X, and 40X objective lenses are installed to ensure the indentation of different sizes can meet the standard size in the field of view. At the same time, a wide range of sample profile scanning can be carried out with low magnification.
●All the three objective lenses can realize the measurement function

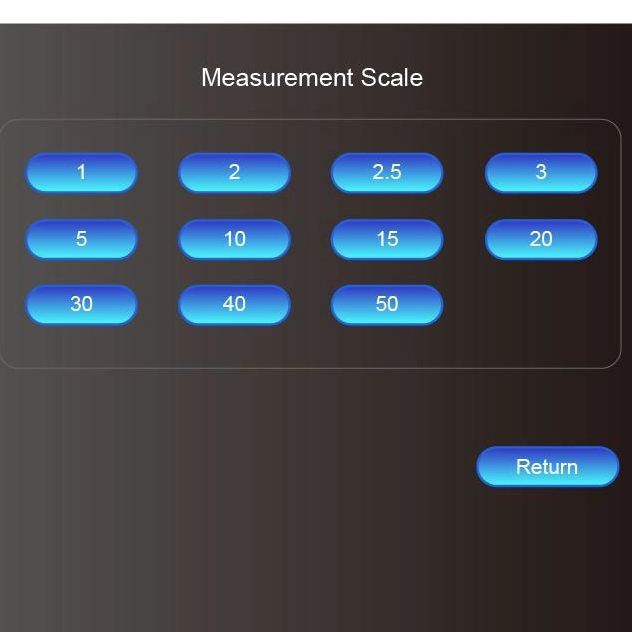

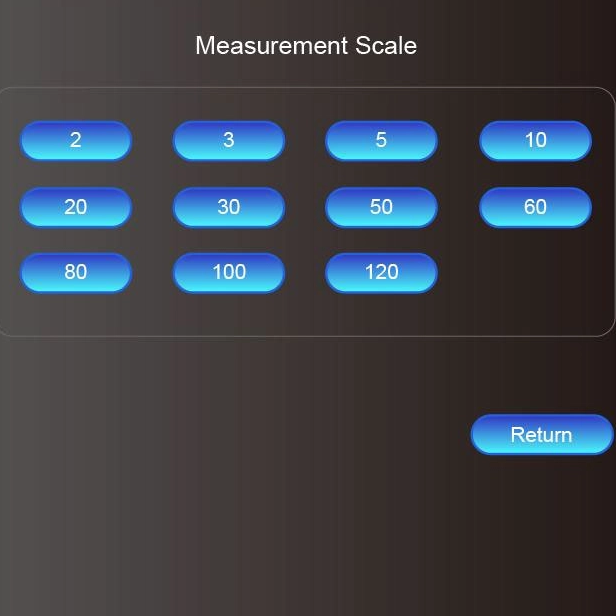

●Level 11 test force, to meet all the test forces in the range of the standard. force value is optional
●Indentor and objective lens automatically switch to each other, and accurately automatic positioning of test point.

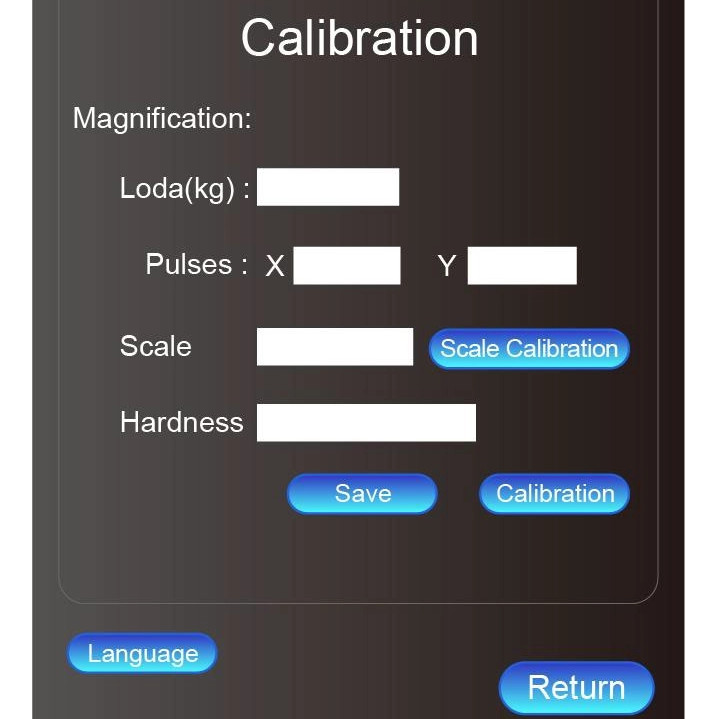

●It can be calibrated according to the standard hardness block or length scale, and the hardness can be modified automatically according to the high, middle and low hardness values
●Test setting parameters are protected by password;
●LED illumination, long life, no need to replace the bulb;
●Built-in camera, clearer image (optional);
●Chinese, English and other languages for choice;
●With RS-232 interface, on-line with computer (optional)
●Test data can save to USB flash disk as EXCEL format, edit and process more easy
● Equipped with dual optical path, one optical path for eyepiece system, another path for CCD camera, both path can working in same time, no need switch optical path rod. Greatly extend the service life of the optical system.
●OK/NG judgement function.
●Modular design, simple maintenance
●With hardness conversion function, from HV hardness value can covert to HR, HB, etc.
●With HV/HK test functio
Technical Specification
Model | uVicky-5 | uVicky-10 | uVicky-30 | uVicky-50 | uVicky-100 | uVicky-120 |
uVicky-5Q | uVicky-10Q | uVicky-30Q | uVicky-50Q | uVicky-100Q | uVicky-120Q | |
Objective Lens | 10X/20X (uVicky-5/10/30/50/100/120) | 10X/20X/40X(uVicky5Q/10Q/30Q/50Q/100Q/120Q) | ||||
Both Lens for Observe&Measure | All Three Lens for Observe&Measure | |||||
Eyepiece | 10X Digital Eyepiece with Built-in Encoder(15X Optional) | |||||
Measuring Magnification | 100X/200X(uVicky-5/10/30/50/100/120) | 100X/200X/400X(uVicky5Q/10Q/30Q/50Q/100Q/120Q) | ||||
Customized Magnification | Yes | Yes | Yes | Yes | Yes | Yes |
Test Force | 0.3Kgf 0.5Kgf 1.0Kgf, 2.0Kgf 2.5Kgf 3.0Kgf 5.0Kgf | 0.3Kgf 0.5 Kgf 1.0 Kgf 2.0 Kgf 2.5 Kgf 3.0 Kgf 5.0Kgf 10.0Kgf | 0.5 Kgf 1.0 Kgf 2.0 Kgf 2.5 Kgf 3.0 Kgf 5.0Kgf 10.0Kgf 15.0kgf 20.0Kgf 30.0Kgf | 1.0 Kgf 2.0 Kgf 2.5 Kgf 3.0 Kgf 5.0 Kgf 10.0Kgf 15.0 Kgf 20.0Kgf 30.0Kgf 40.0Kgf 50.0Kgf | 2.0Kgf 3.0Kgf 5.0Kgf 10.0Kgf 20.0Kgf 30.0Kgf 50.0Kgf 60.0Kgf 80.0Kgf 100.0Kgf | 2.0Kgf 3.0Kgf 5.0Kgf 10.0Kgf 20.0Kgf 30.0Kgf 50.0Kgf 60.0Kgf 100.0Kgf 120.0Kgf |
Customized Test Force | Yes | Yes | Yes | Yes | Yes | Yes |
Test Force Standard | GB/T4340.1, GB/T4340.2,ASTM E92 | |||||
Closed Loop System | Yes | Yes | Yes | Yes | Yes | Yes |
Minimum Unit of Test | 0.01 μm | |||||
Precision Standard | JJG260-91,JISB7725,JISB7734,GB/T3430.2-99,ASTME-384,ISO6507-2,ISO4546 | |||||
Conversion Scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | |||||
Conversion Standard | GB1172-99, ASTM | |||||
Turret | Auto | Auto | Auto | Auto | Auto | Auto |
Hardness Test Range | 8~2900HV | |||||
Loading Method | Automatic Loading-Dwelling-Unloading | |||||
Dwelling Time | 1~99s | |||||
Test Space | Test Height:180mm, Test Throat: 160mm | |||||
Data Output | 8’’ Touch Screen, Built-in Printer, RS232 Interface, Saved to U-disk in Excel Format (Measuring Software Optional) | |||||
Weight&Dimension | Machine Net Weight : 55Kg , Machine Dimension:580x190x700mm | |||||
Package Gross Weight:78Kg, Package Dimension: 800*470*800mm | ||||||
Power Supply | AC220V ± 5%, 50 to 60 HZ(110V is Available) | |||||
Packing List
Item | Quantity | Item | Quantity |
10X Eyepiece | 1 | Large, Medium Flat Test Anvil | Each 1 |
Vickers Hardness Block | 2 | V-shaped Test Anvil | 1 |
U disk | 1 | Spare Fuse (2A) | 2 |
Power Cable | 1 | Dust Cover | 1 |
Hexagon Socket Wrench (2.5mm) | 1 | Touch Pen | 1 |
Product Certificate | 1 | Adjust Feet Screw | 4 |
Warranty Card | 1 | Instruction Manual | 1 |
